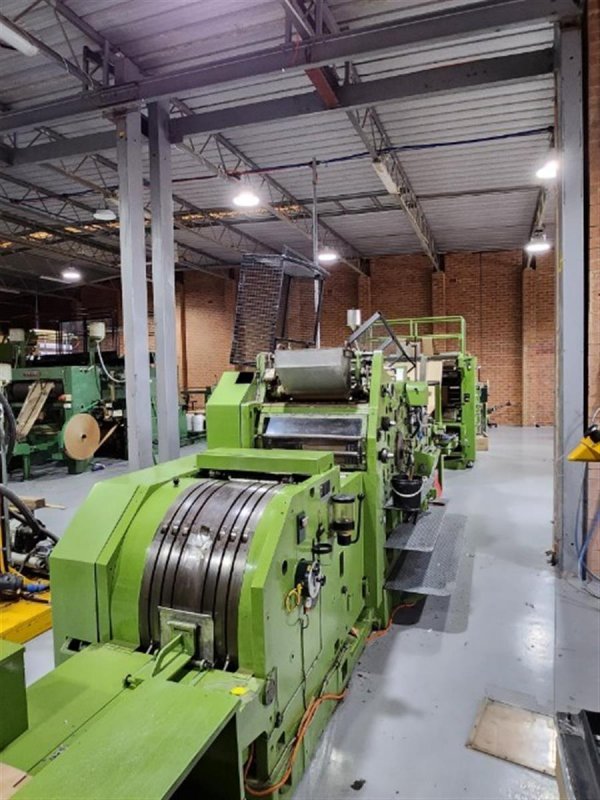

WINDMÖLLER & HÖLSCHER TRIUMPH 5A Machines a sac pour papier // Paper bag making SOS // Bag making // Équipement d'occasion // Tecno Converting 2000 S.r.l.

Code Machine: SO331
Fabricant: WINDMÖLLER & HÖLSCHER
Modello: TRIUMPH 5A
Année: 1970
Materials: 100 – 140 gsm/paper
Feed:: Reel fed
Handel unit: Flat
Bag length max (mm): 650
Bag length min (mm): 420
Bag width max (mm): 450
Bag width min (mm): 220
Bottom width max (mm): 220
Bottom width (mm): 90
Cycle / min: 180 bags/min
Unwinder: Max reel width: 1370 mm .Max reel diameter: 1270 mm
Note: With in-line flat handle unit Installed electrical load 30kw Dimensions: LxWxH 11,3 x 2,74 x 2,67 m

Code Machine	SO331
Fabricant	WINDMÖLLER & HÖLSCHER
Modello	TRIUMPH 5A
Année	1970
Materials	100 – 140 gsm/paper
Feed:	Reel fed
Handel unit	Flat
Bag length max (mm)	650
Bag length min (mm)	420
Bag width max (mm)	450
Bag width min (mm)	220
Bottom width max (mm)	220
Bottom width (mm)	90
Cycle / min	180 bags/min
Unwinder	Max reel width: 1370 mm .Max reel diameter: 1270 mm
Note	With in-line flat handle unit Installed electrical load 30kw Dimensions: LxWxH 11,3 x 2,74 x 2,67 m
