** SOLD **
Film bag making machines are used to weld a web or a tubular of plastic film, typically PE or PP, into bags. Their construction and equipment may be very different depending on: the type of bags they need to produce, the type of handle they can apply and the way in which these bags are delivered.
Ask more informations
about a similar one
- Machine Code
- FI240
- Manufacturer
- LEMO
- Modello
- INTERMAT S 1100 TU.ST /V
- Year
- 2000
- Type of bags
- Wicketers
- Working width (mm)
- 1100
- Bag length
- 240 -650
- Cycle / min
- 120m/min mechanical speed
- Note

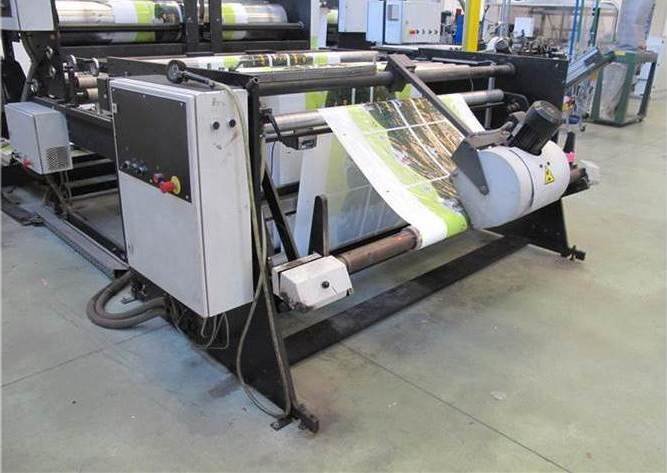

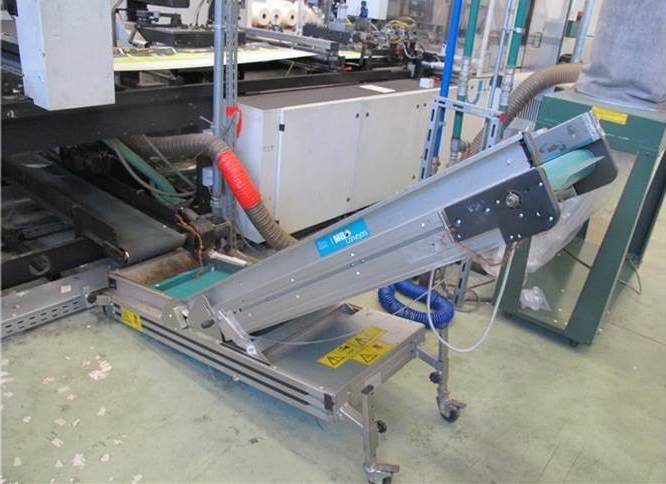

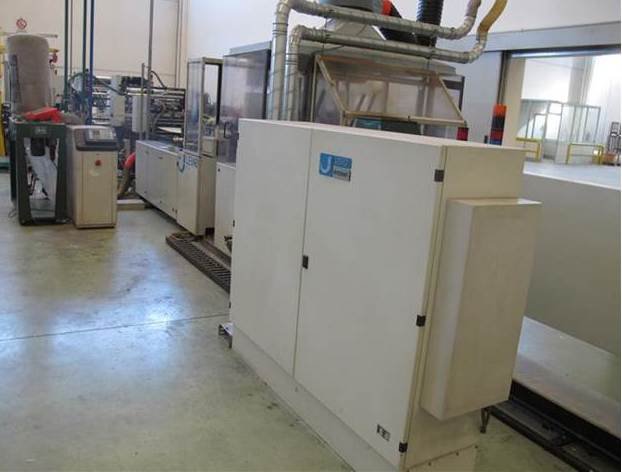

- For diapers bags; For cross handle and paramount handle. Double and single handle. welded inside or outside bottom guesset Servo drive technology ; Varitronic operation command; Height of the bag min 300 (excluding handle and wicket area )/ max850mm (excluded handle); Width entry of the film : 1850mm ; Thickness min 50my/max 90my for LDPE ; min70my/max 125my for film in double handle in LDPE ; 150-180my for single handle. Roll unwinder with feeder, foil threatment station with sealing units, film unwinder, shearlift table, column swiveling crane with electric chain hoist, foil folding station, E+L type OR2262, ,output conveyor, inclined bel conveyor, FRIGEL Chiller, type RC40, power cabinet, 400V, 50Hz, 38Kwa, bag exhauster, exhausters, blowers, bag, pin output conveyor .Discharge bags system.
| Machine Code | FI240 |
| Manufacturer | LEMO |
| Modello | INTERMAT S 1100 TU.ST /V |
| Year | 2000 |
| Type of bags | Wicketers |
| Working width (mm) | 1100 |
| Bag length | 240 -650 |
| Cycle / min | 120m/min mechanical speed |
| Note | For diapers bags; For cross handle and paramount handle. Double and single handle. welded inside or outside bottom guesset Servo drive technology ; Varitronic operation command; Height of the bag min 300 (excluding handle and wicket area )/ max850mm (excluded handle); Width entry of the film : 1850mm ; Thickness min 50my/max 90my for LDPE ; min70my/max 125my for film in double handle in LDPE ; 150-180my for single handle. Roll unwinder with feeder, foil threatment station with sealing units, film unwinder, shearlift table, column swiveling crane with electric chain hoist, foil folding station, E+L type OR2262, ,output conveyor, inclined bel conveyor, FRIGEL Chiller, type RC40, power cabinet, 400V, 50Hz, 38Kwa, bag exhauster, exhausters, blowers, bag, pin output conveyor .Discharge bags system. |
