Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.
Ask more informations
- Machine Code
- LA541
- Manufacturer
- NORDMECCANICA
- Modello

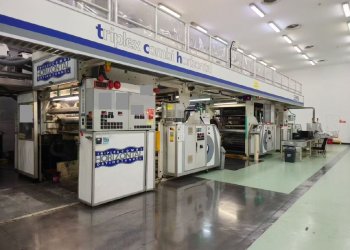

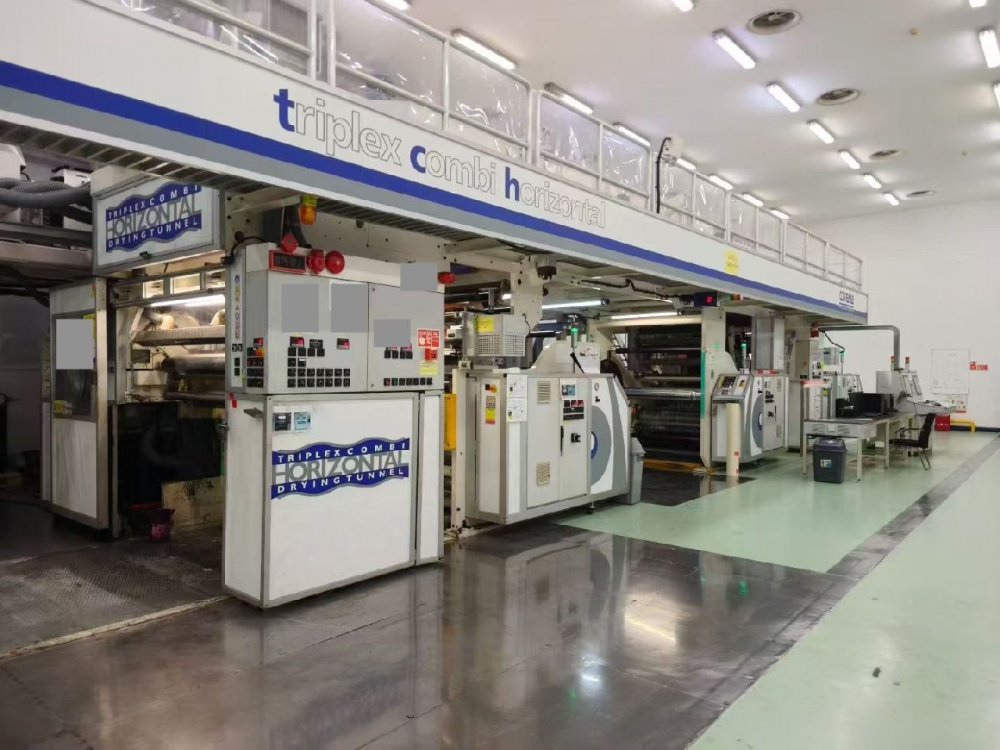

- Combi Horizontal Tandem
- Year
- 2011
- Application
- Triplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1600
- Speed
- max mechanical : 600 m/min
- First unwinder type
- Turret
- Max diameter reel unwinder
- 1080
- Secondary unwinder type
- Turret
- Max diameter reel unwinder
- 1080
- Third unwinder type
- Turret
- Max diameter reel unwinder
- 1080

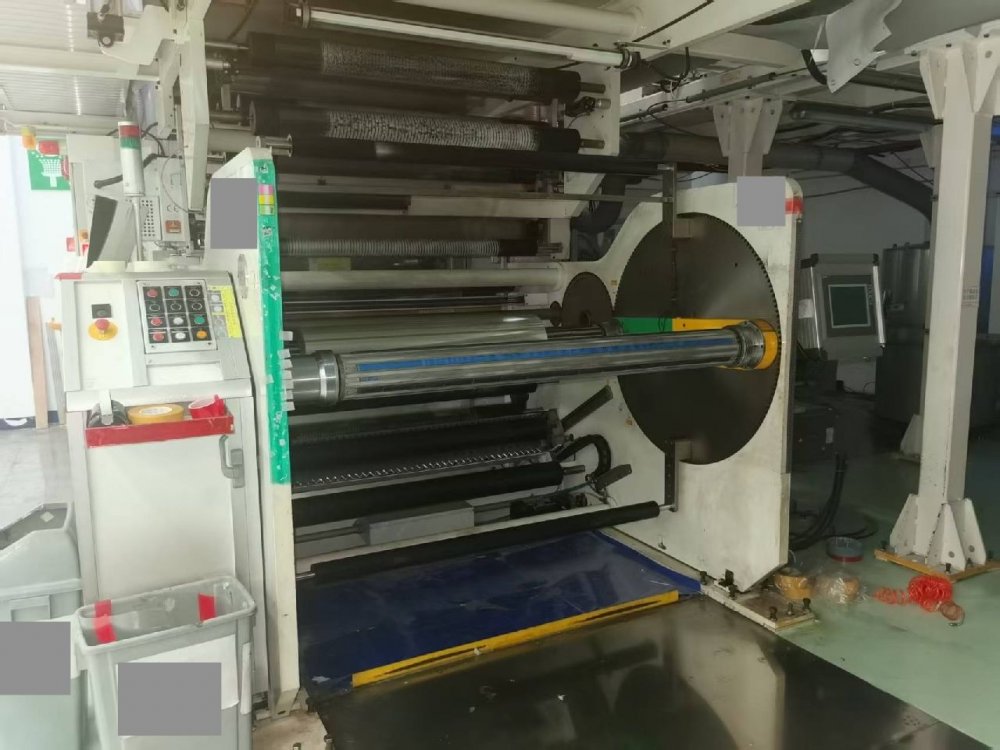

- Rewinder type
- Turret
- Max diameter reel rewinder
- 1080
- Coating unit
- Coating system with exchangeable trolley. Rotogravure trolley included
- Second Coating unitr
- Coating system with exchangeable trolley. Rotogravure trolley included. Variable repeat gravure trolley
- Drying
- 2 horizontal drying tunnels,. Each tunnel with 2 zones (4 zones total. Each tunnel with 2 inflow and 2 outflow fans. (Total 8). 4x thermal oil heat exchangers

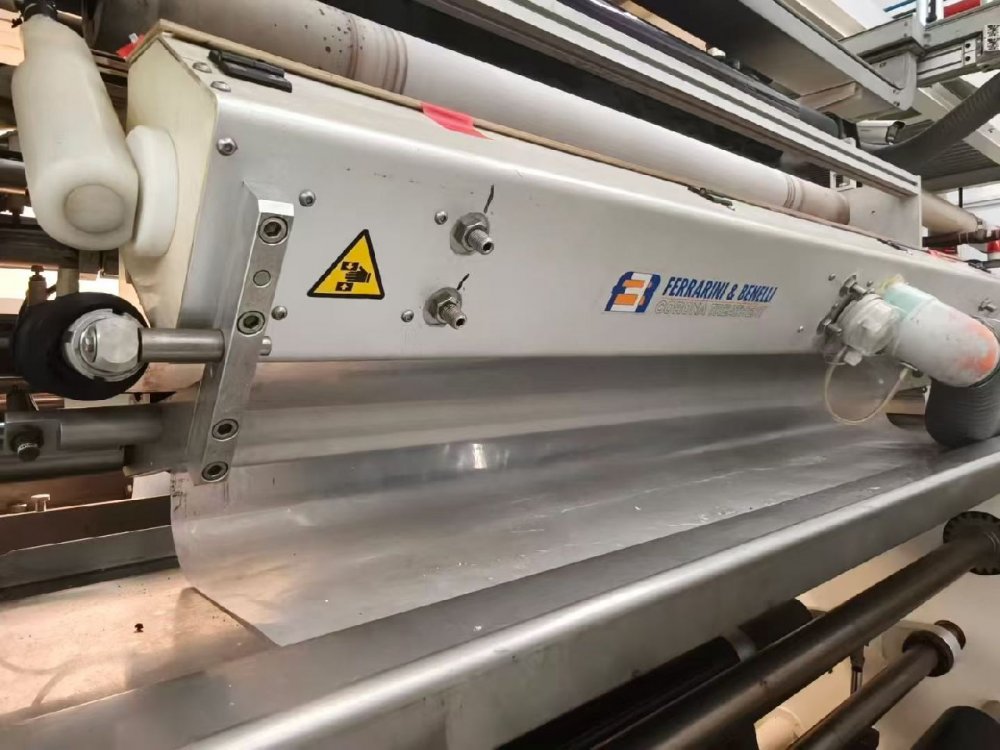

- Corona treatment
- Ferrarini Benelli
- Note
- Sinamics controls
| Machine Code | LA541 |
| Manufacturer | NORDMECCANICA |
| Modello | Combi Horizontal Tandem |
| Year | 2011 |
| Application | Triplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1600 |
| Speed | max mechanical : 600 m/min |
| First unwinder type | Turret |
| Max diameter reel unwinder | 1080 |
| Secondary unwinder type | Turret |
| Max diameter reel unwinder | 1080 |
| Third unwinder type | Turret |
| Max diameter reel unwinder | 1080 |
| Rewinder type | Turret |
| Max diameter reel rewinder | 1080 |
| Coating unit | Coating system with exchangeable trolley. Rotogravure trolley included |
| Second Coating unitr | Coating system with exchangeable trolley. Rotogravure trolley included. Variable repeat gravure trolley |
| Drying | 2 horizontal drying tunnels,. Each tunnel with 2 zones (4 zones total. Each tunnel with 2 inflow and 2 outflow fans. (Total 8). 4x thermal oil heat exchangers |
| Corona treatment | Ferrarini Benelli |
| Note | Sinamics controls |
