Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations
- Machine Code
- LA519
- Manufacturer
- NORDMECCANICA
- Modello
- Triplex Combi
- Year
- 1996
- Application
- Triplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1100
- Materials
- Films, paper all foil
- Speed
- 300 m/min
- First unwinder type
- Turret
- Max diameter reel unwinder
- 900
- Secondary unwinder type
- Turret
- Max diameter reel unwinder
- 900
- Third unwinder type
- Turret
- Max diameter reel unwinder
- 900
- Rewinder type
- Turret
- Max diameter reel rewinder
- 1000
- Coating unit

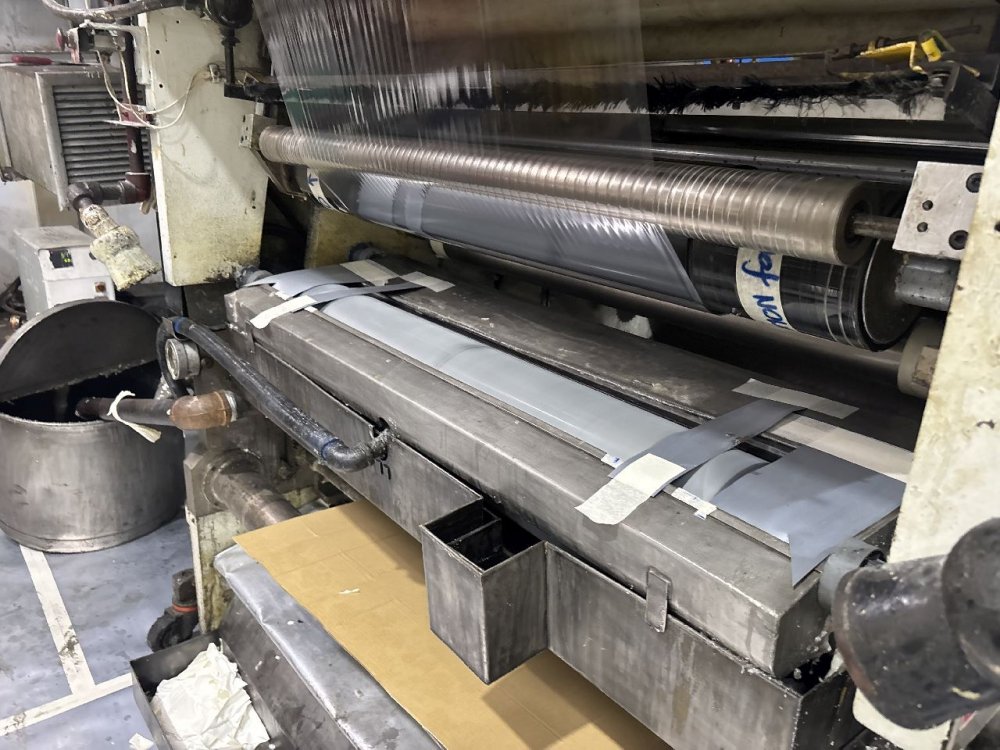

- Interchangeable trolley system. Available with gravure trolley
- Second Coating unitr
- Interchangeable trolley system. Available with gravure trolley and with solvent less trolley
- Drying
- First coating unit with double vertical drying hoods. Second coating unit with double vertical drying hoods. Each Hood (4) with independent ventilation and heaters
- pumping mixing unit
- 2 components pumping mix unit for solvent less
- Note
- Quality control - Dr. Schenk, year 2019
| Machine Code | LA519 |
| Manufacturer | NORDMECCANICA |
| Modello | Triplex Combi |
| Year | 1996 |
| Application | Triplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1100 |
| Materials | Films, paper all foil |
| Speed | 300 m/min |
| First unwinder type | Turret |
| Max diameter reel unwinder | 900 |
| Secondary unwinder type | Turret |
| Max diameter reel unwinder | 900 |
| Third unwinder type | Turret |
| Max diameter reel unwinder | 900 |
| Rewinder type | Turret |
| Max diameter reel rewinder | 1000 |
| Coating unit | Interchangeable trolley system. Available with gravure trolley |
| Second Coating unitr | Interchangeable trolley system. Available with gravure trolley and with solvent less trolley |
| Drying | First coating unit with double vertical drying hoods. Second coating unit with double vertical drying hoods. Each Hood (4) with independent ventilation and heaters |
| pumping mixing unit | 2 components pumping mix unit for solvent less |
| Note | Quality control - Dr. Schenk, year 2019 |
