** SOLD **

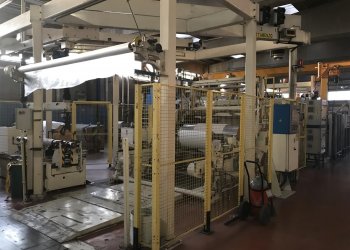

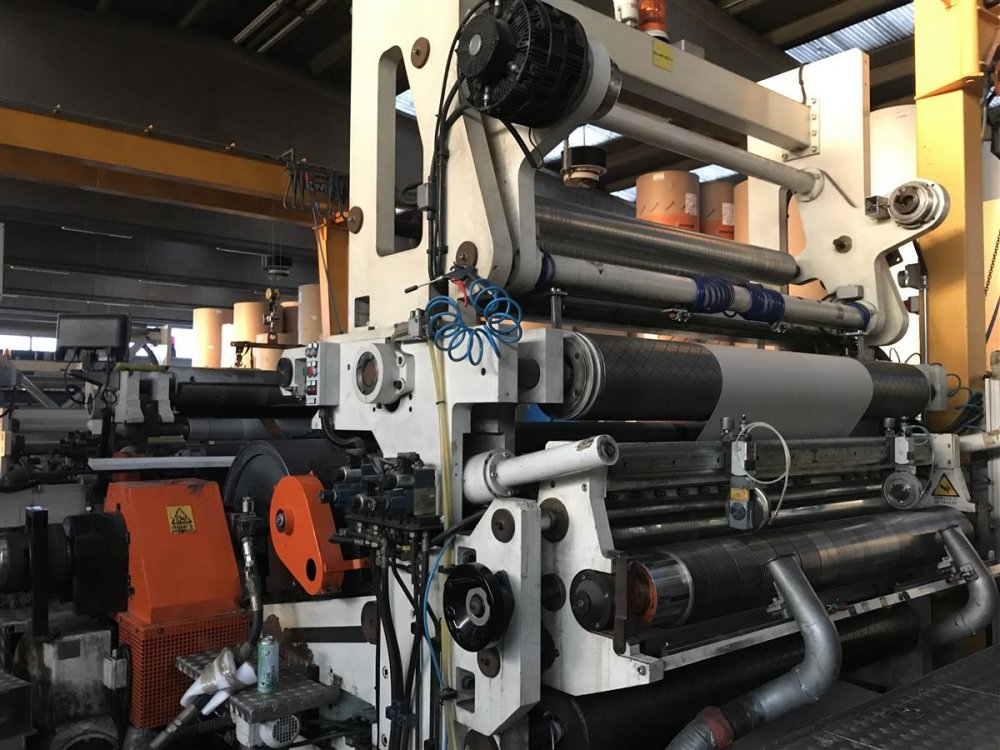

An extrusion laminator extrudes a molten polymer on a primary web and laminates on it a secondary web, creating a single web with a multilayer structure.
Ask more informations
about a similar one
- Machine Code
- EC35
- Manufacturer
- ERWEPA - IMS
- Year
- 2006
- Width (mm)
- 1770
- Coating/lamination units
- 2

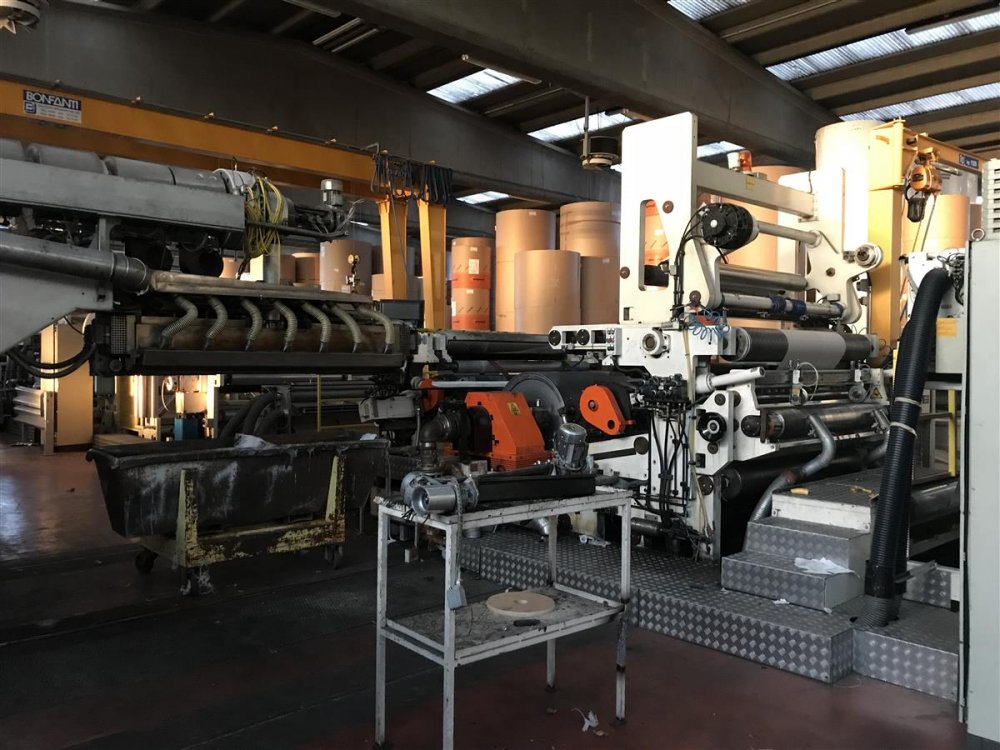

- Coating/lamination unit 1 description

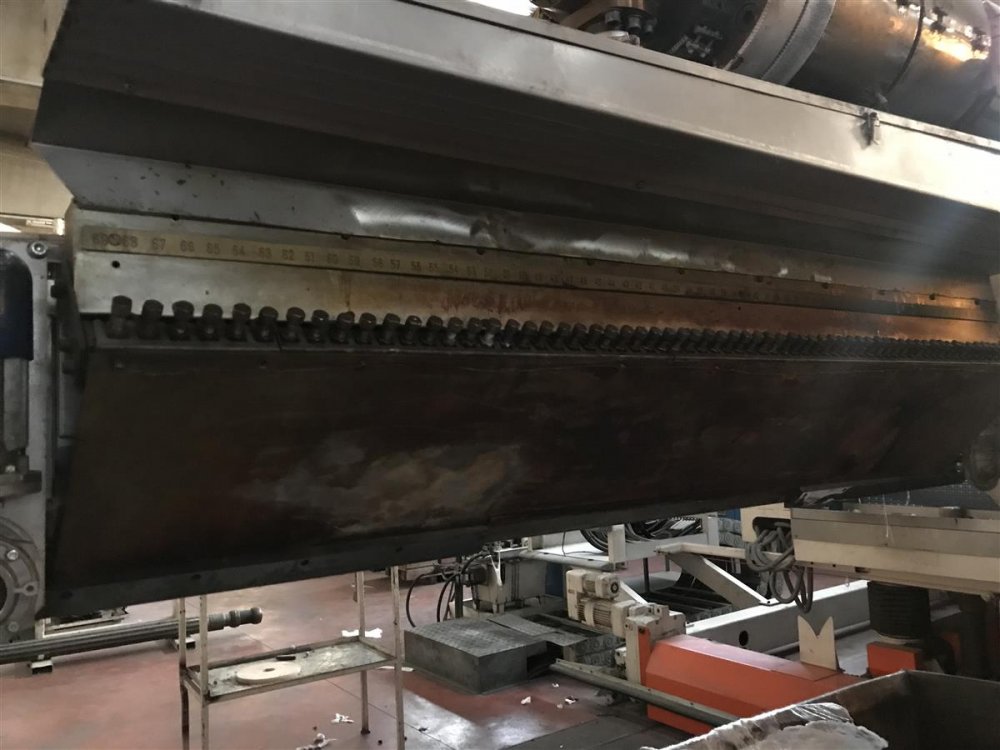

- Extrusion lamination unit Make: Battaglio Extruder: Make Battaglio screw diam 180mm Die Make Erwepa, - with external deckilng - with automatic thickness profile controll adjustment though 69 thermal bolts chill roll diam 800mm Thickness gauge Beta rays make Protagon seconday reel unwind 1200mm diam
- Coating/lamination unit 2 description
- Extrusion lamination unit Make: Davis Standard - Erwepa Extruder: Make Davis Standard screw diam 180mm Die Make Erwepa, - with external deckilng - with automatic thickness profile controll adjustment though 69 thermal bolts chill roll diam 960mm Thickness gauge Beta rays make Protagon Third unwind reel 1020mm diam

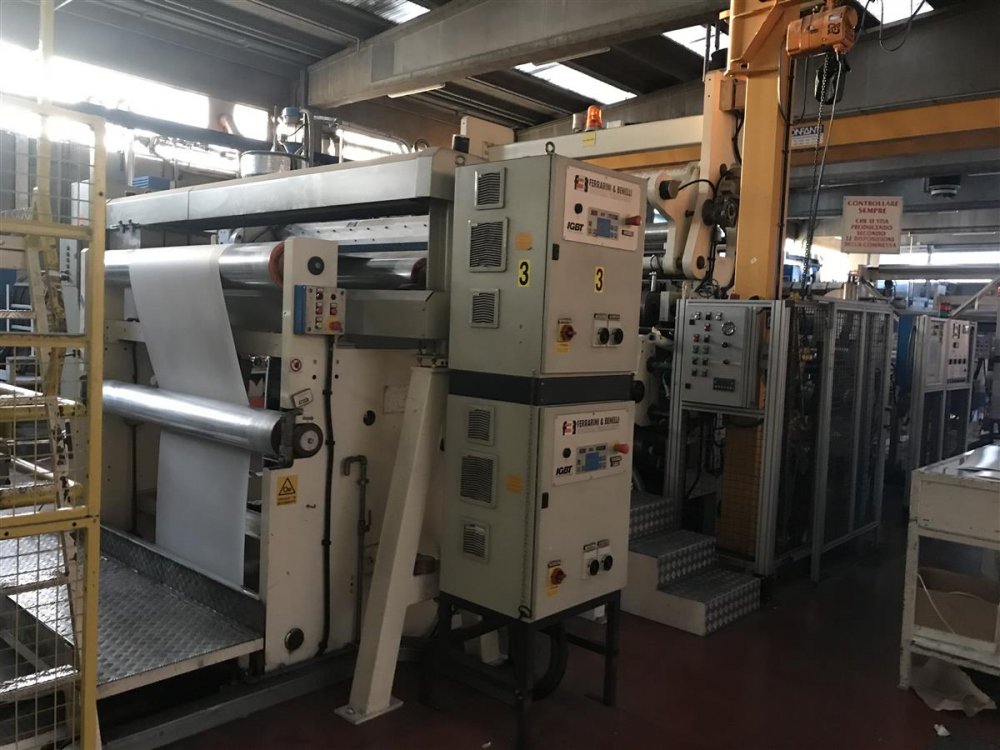

- Treatment
- 3 treatments from Ferrarini Benelli
- Primary unwinder description
- IMS ; Turret and Shaftless; max siam 1800mm
- Secondary unwinder description
- Single, reel diam 1200mm
- 3rd unwinder description
- Single, reel diam 1020mm

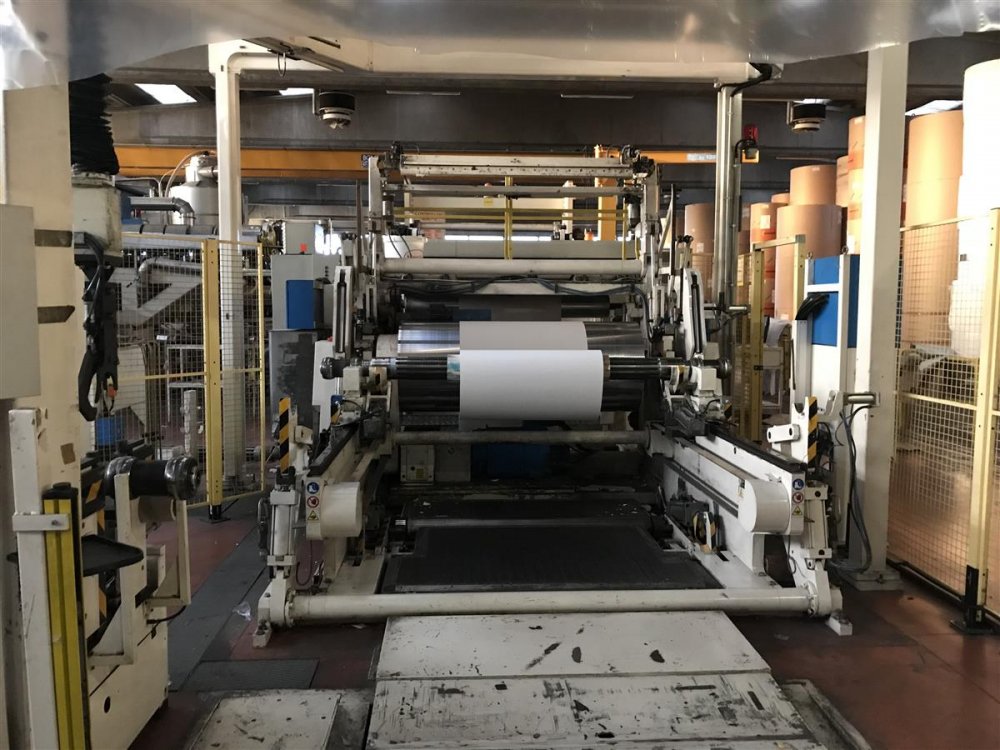

- Rewinder description
- IMS; Pope roller; max diam 1800mm with autoatic shaft extraction system
- Speed
- 650 m/min
- Note
- Drives and automation Parker
| Machine Code | EC35 |
| Manufacturer | ERWEPA - IMS |
| Year | 2006 |
| Width (mm) | 1770 |
| Coating/lamination units | 2 |
| Coating/lamination unit 1 description | Extrusion lamination unit Make: Battaglio Extruder: Make Battaglio screw diam 180mm Die Make Erwepa, - with external deckilng - with automatic thickness profile controll adjustment though 69 thermal bolts chill roll diam 800mm Thickness gauge Beta rays make Protagon seconday reel unwind 1200mm diam |
| Coating/lamination unit 2 description | Extrusion lamination unit Make: Davis Standard - Erwepa Extruder: Make Davis Standard screw diam 180mm Die Make Erwepa, - with external deckilng - with automatic thickness profile controll adjustment though 69 thermal bolts chill roll diam 960mm Thickness gauge Beta rays make Protagon Third unwind reel 1020mm diam |
| Treatment | 3 treatments from Ferrarini Benelli |
| Primary unwinder description | IMS ; Turret and Shaftless; max siam 1800mm |
| Secondary unwinder description | Single, reel diam 1200mm |
| 3rd unwinder description | Single, reel diam 1020mm |
| Rewinder description | IMS; Pope roller; max diam 1800mm with autoatic shaft extraction system |
| Speed | 650 m/min |
| Note | Drives and automation Parker |
