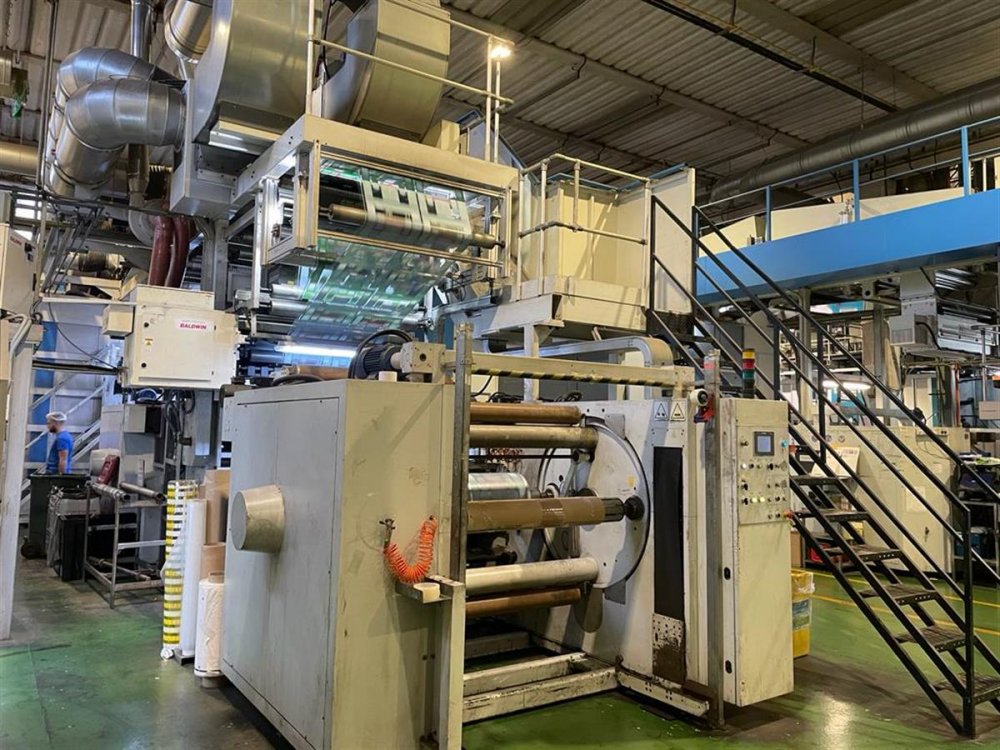

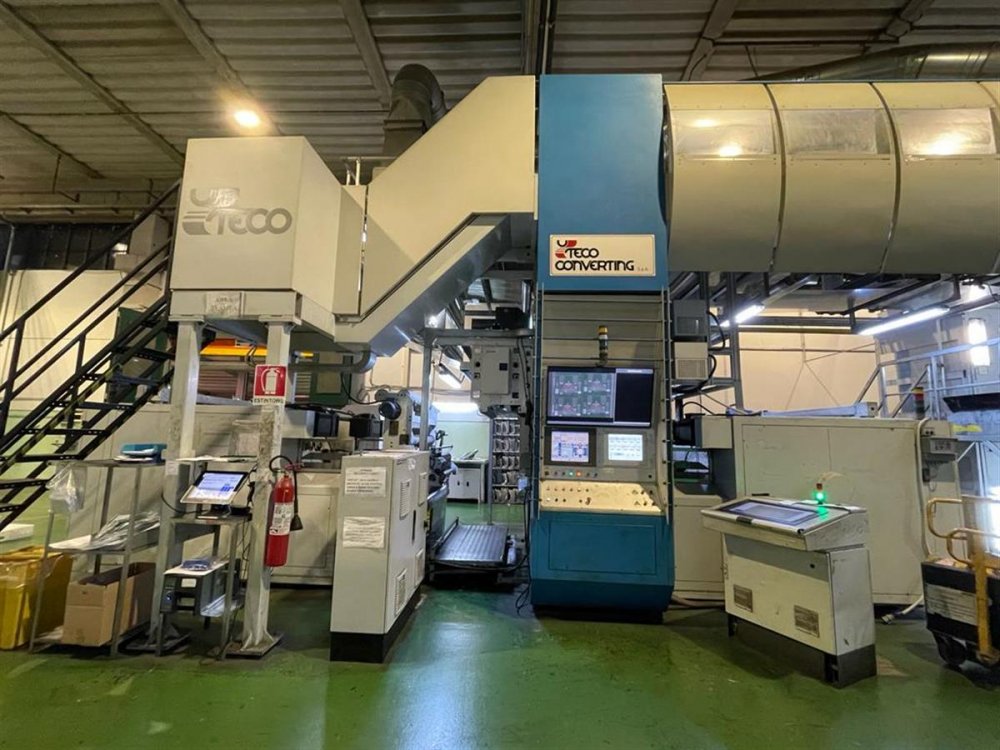

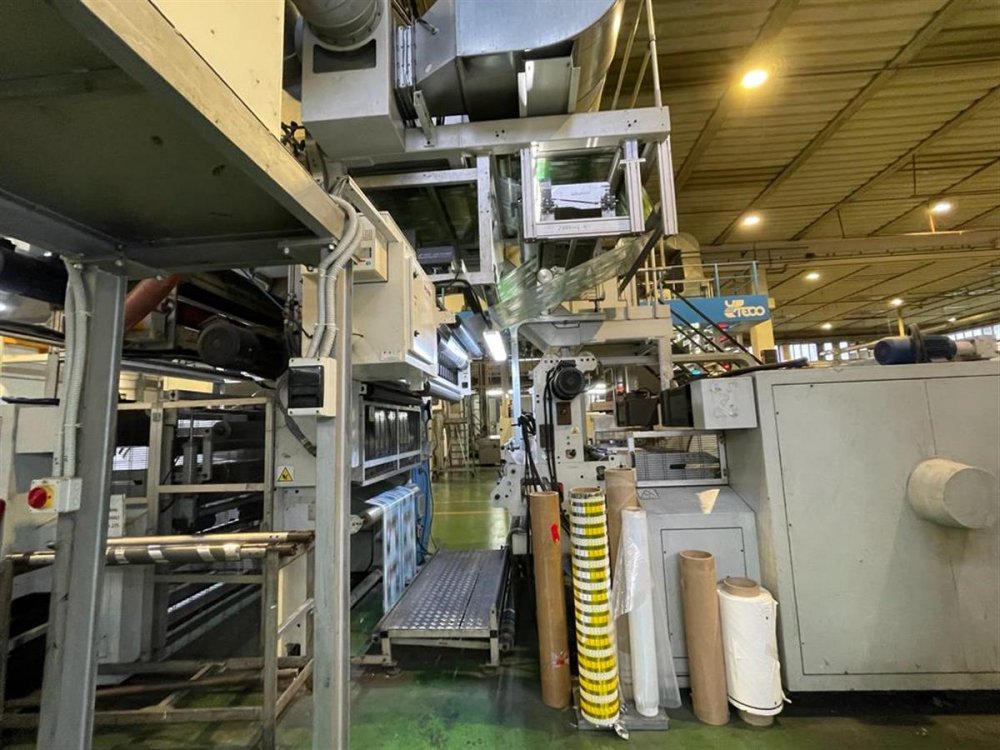

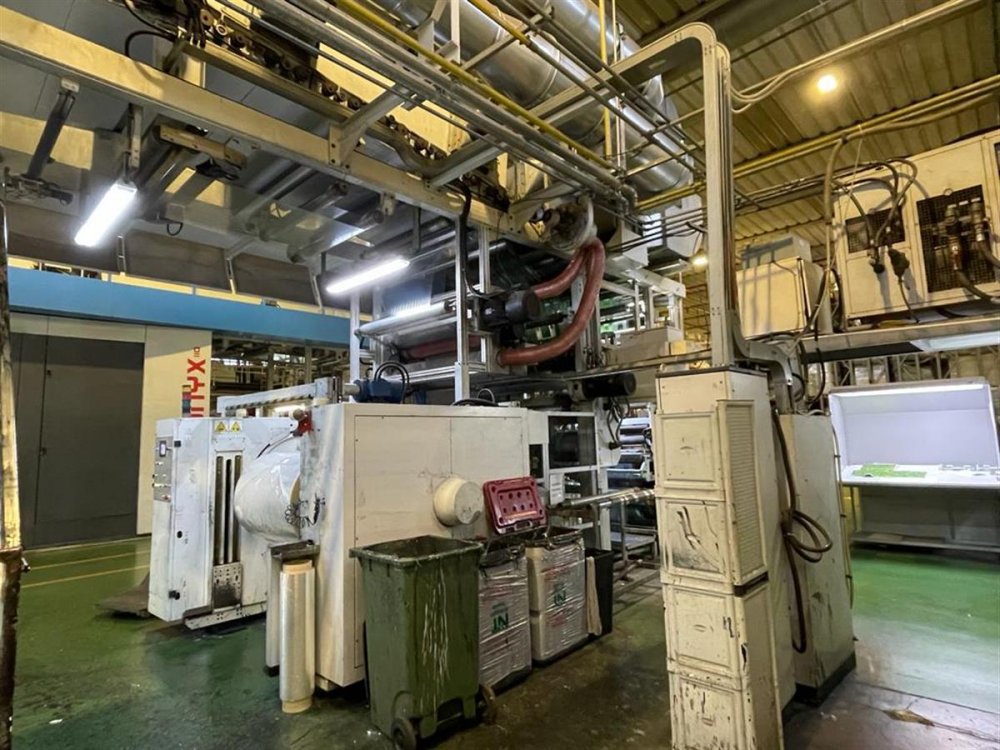

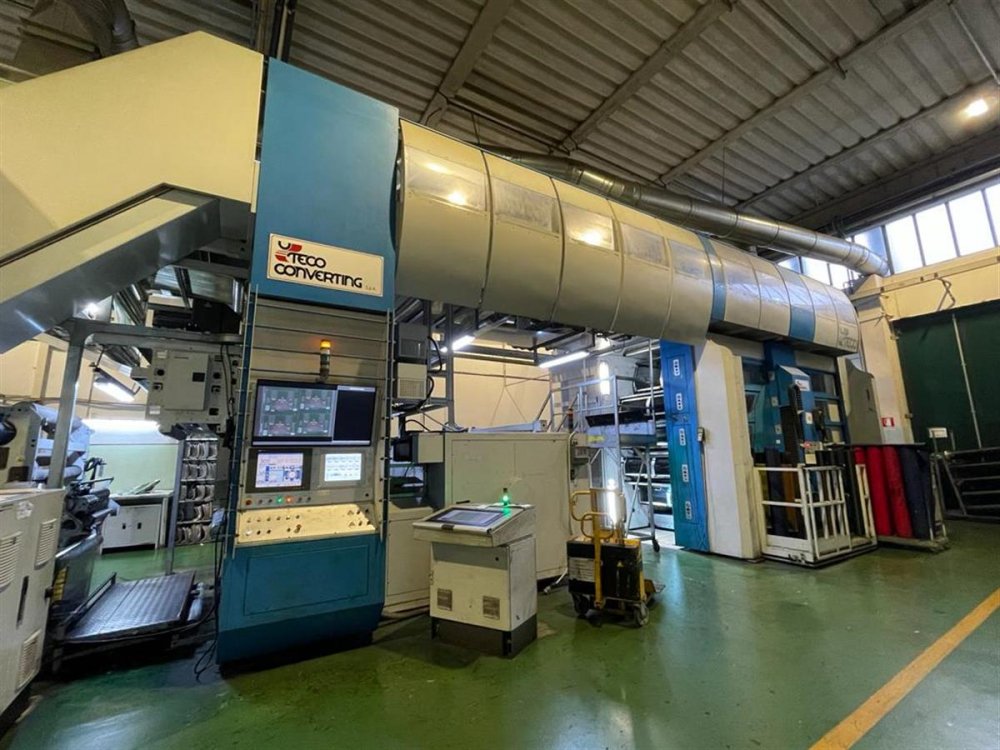

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1012
- Manufacturer
- UTECO
- Modello
- DIAMOND HP 108
- Year
- 2009
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 850
- Unwinder type
- Turret Automatic non stop
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic non stop
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , double tunnel 2x 3 mt , 2 gas burners . Automatic air recirculation system with LEL control
- Videocamera
- Yes BST
- Corona treatment
- Yes driven
- Web guides
- Yes in and out
- Vyscosity control
- Yes
- Washing system
- YES
- Inking system
- Closed chamber doctor blades
- Anilox
- 15 ceramic anilox sleeves
| Machine Code | FL1012 |
| Manufacturer | UTECO |
| Modello | DIAMOND HP 108 |
| Year | 2009 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret Automatic non stop |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , double tunnel 2x 3 mt , 2 gas burners . Automatic air recirculation system with LEL control |
| Videocamera | Yes BST |
| Corona treatment | Yes driven |
| Web guides | Yes in and out |
| Vyscosity control | Yes |
| Washing system | YES |
| Inking system | Closed chamber doctor blades |
| Anilox | 15 ceramic anilox sleeves |
