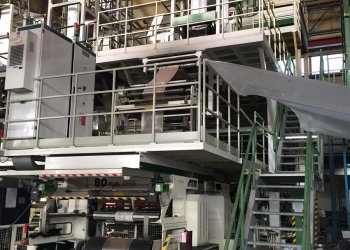

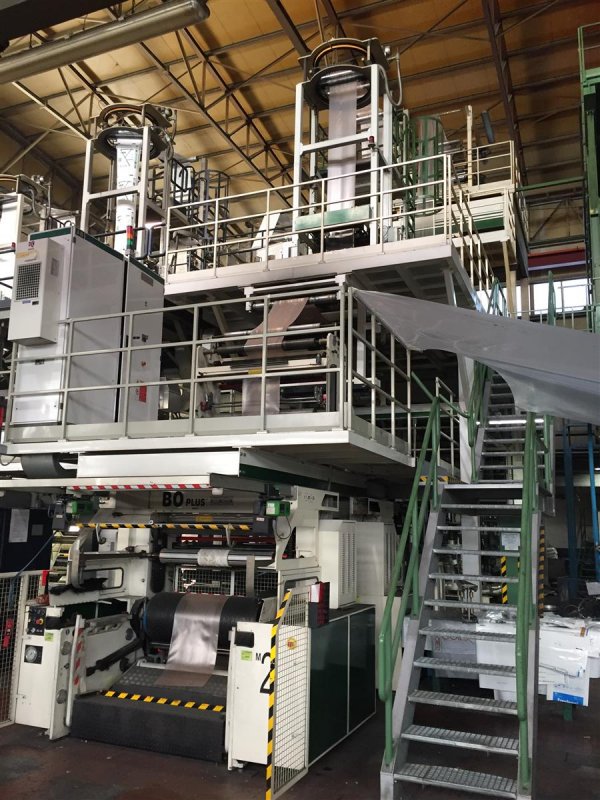

3 layers MACCHI ( COEX ) film blowing machine

** SOLD **

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.

Ask more informations
about a similar one
Machine Code
EX513
Manufacturer
MACCHI
Modello
( COEX )
Year
2006
Number of layers
3
Film structure
ABC
Material
LDPE Film and film for FFS bags
Film Width
1200

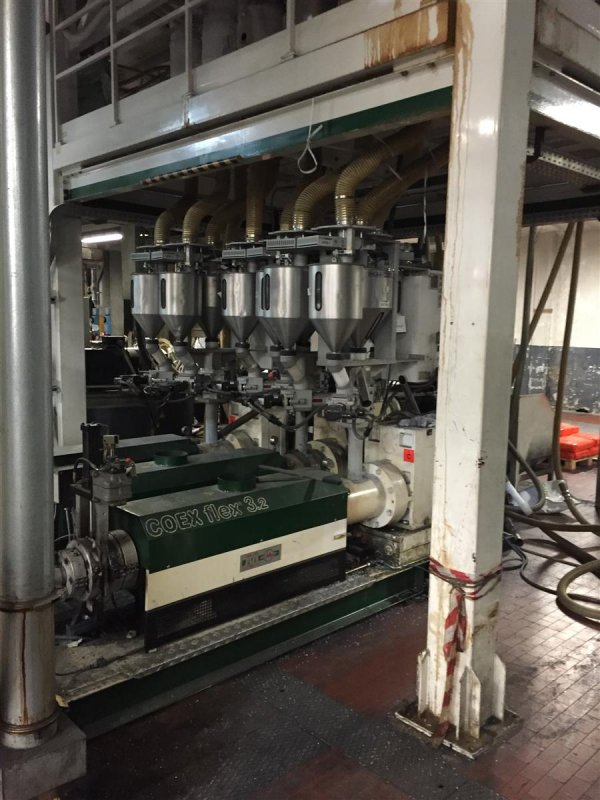

Extruder 1 Layer ref:
A
Screw diam 1
55mm

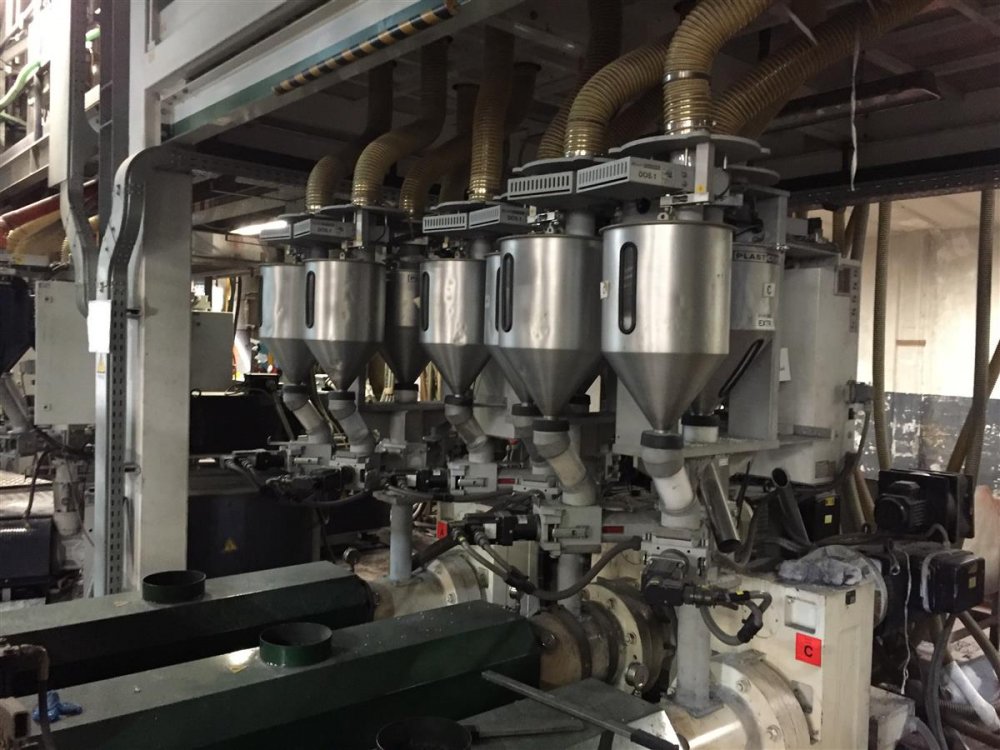

Description 1
L/D 30; AC motor; 4 components gravimetric dosing system Plascontrol
Extruder 2 Layer ref:
B
Screw diam 2
65mm
Description 2
L/D 30; AC motor; 4 components gravimetric dosing system Plascontrol
Extruder 3 Layer ref:
C
Screw diam 3
55mm
Description 3
L/D 30; AC motor; 4 components gravimetric dosing system Plascontrol

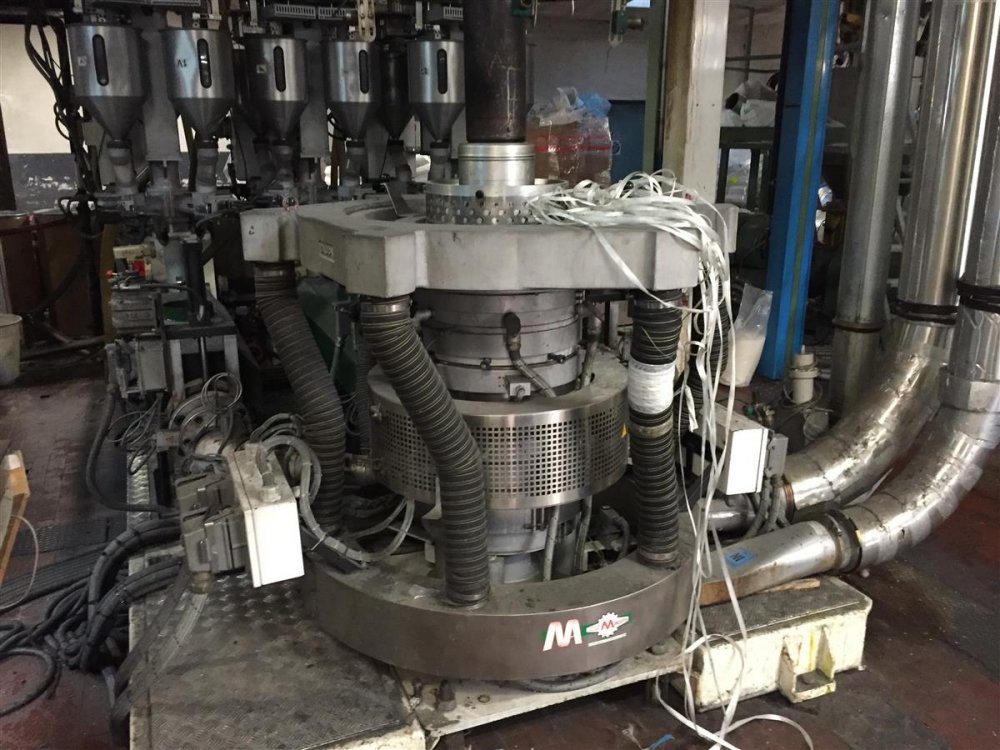

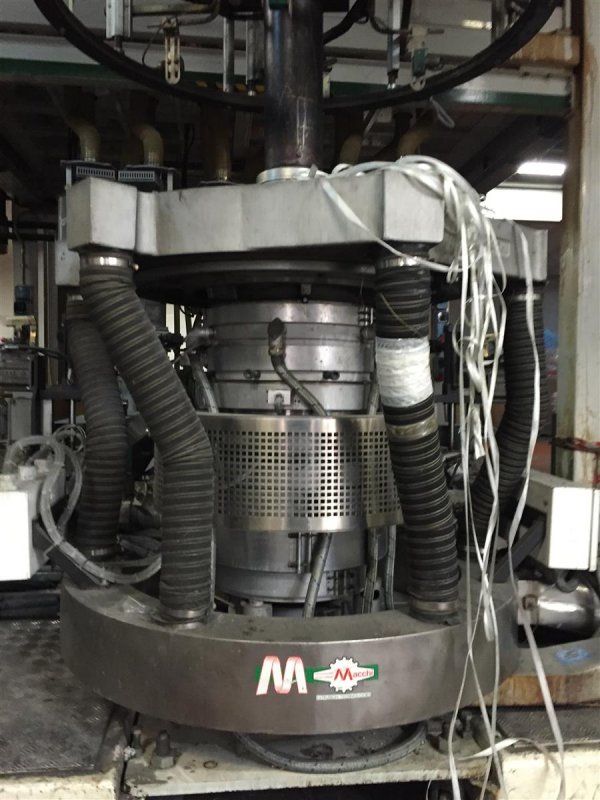

Head description
Automatic die Model Coex flex 3 TE 501 with IBC . Air ring ASR 2 . Die gap: 2,2mm
Die diam (mm)
220
Thickness controll system
Automatic Profile Control type TE 501 ; gauge control Kundig
Bubble cage
yes
Take off unit
ST199R 1200 rotating
Web guide
Yes
Rewinder Type
Double back to back
Rewinder max reel diameter
1200mm

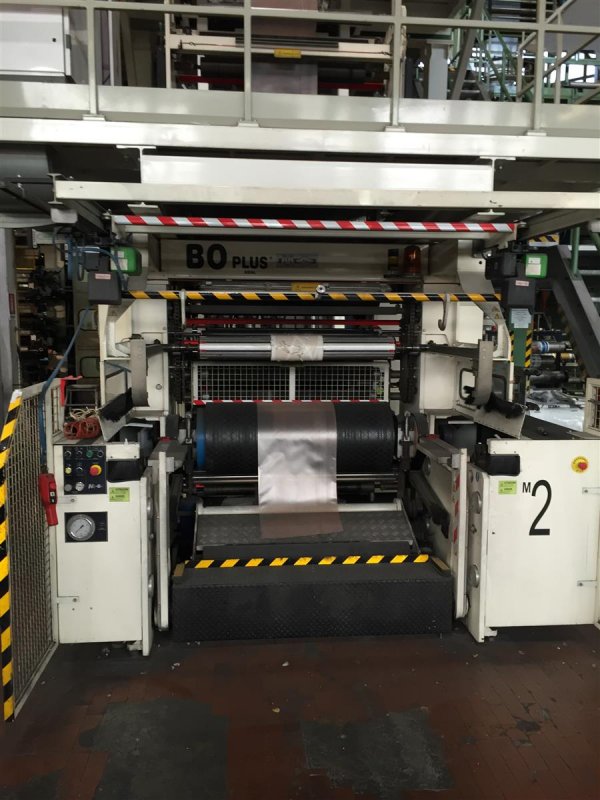

Rewinder description
Model BO-Plus AXIAL D 1200 IN 260. 716; Surface and center driven
Note
Additional pulling calender between take off unit and winder. Upper Tower structure included. PLC Siemens S7. Drives ABB.
Machine Code EX513
Manufacturer MACCHI
Modello ( COEX )
Year 2006
Number of layers 3
Film structure ABC
Material LDPE Film and film for FFS bags
Film Width 1200
Extruder 1 Layer ref: A
Screw diam 1 55mm
Description 1 L/D 30; AC motor; 4 components gravimetric dosing system Plascontrol
Extruder 2 Layer ref: B
Screw diam 2 65mm
Description 2 L/D 30; AC motor; 4 components gravimetric dosing system Plascontrol
Extruder 3 Layer ref: C
Screw diam 3 55mm
Description 3 L/D 30; AC motor; 4 components gravimetric dosing system Plascontrol
Head description Automatic die Model Coex flex 3 TE 501 with IBC . Air ring ASR 2 . Die gap: 2,2mm
Die diam (mm) 220
Thickness controll system Automatic Profile Control type TE 501 ; gauge control Kundig
Bubble cage yes
Take off unit ST199R 1200 rotating
Web guide Yes
Rewinder Type Double back to back
Rewinder max reel diameter 1200mm
Rewinder description Model BO-Plus AXIAL D 1200 IN 260. 716; Surface and center driven
Note Additional pulling calender between take off unit and winder. Upper Tower structure included. PLC Siemens S7. Drives ABB.
