3 layers KIEFEL KIRON ( COEX ) blown film machine

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.

Machine Code EX495
Manufacturer KIEFEL
Model KIRON ( COEX )
Year 2010
Number of layers 3
Film structure ABC
Material LDPE, LLDPE, MDPE
Film Width (mm) 2200
Output (Kg/h) 600 depending on material
Extruder 1 Layer ref: A
Screw diam 70mm
Description 26L/D .Gravimetric dosing unit 5 components. Motor AC 75Kw. Hydraulic screen changer
Extruder 2 Layer ref: B
Screw diam 100mm
Description 26L/D.Gravimetric dosing unit 4 components. Motor AC 145Kw. Hydraulic screen changer
Extruder 3 Layer ref: C
Screw diam 70mm
Description 26L/D.Gravimetric dosing unit 5 components. Motor AC 75Kw. Hydraulic screen changer

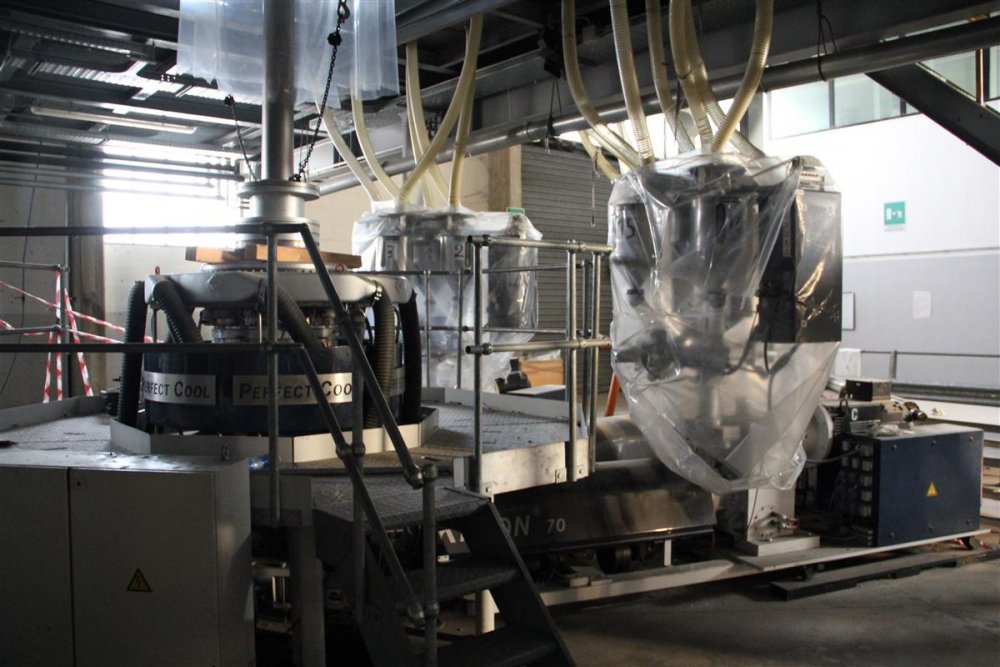

Head description Kirion 250/500-3 suitable for die diam 250-500mm . Cool ring Perfect cool . IBC
Die diam (mm) 400mm and 500mm
Thickness controll system Yes automatic Profile Control C2

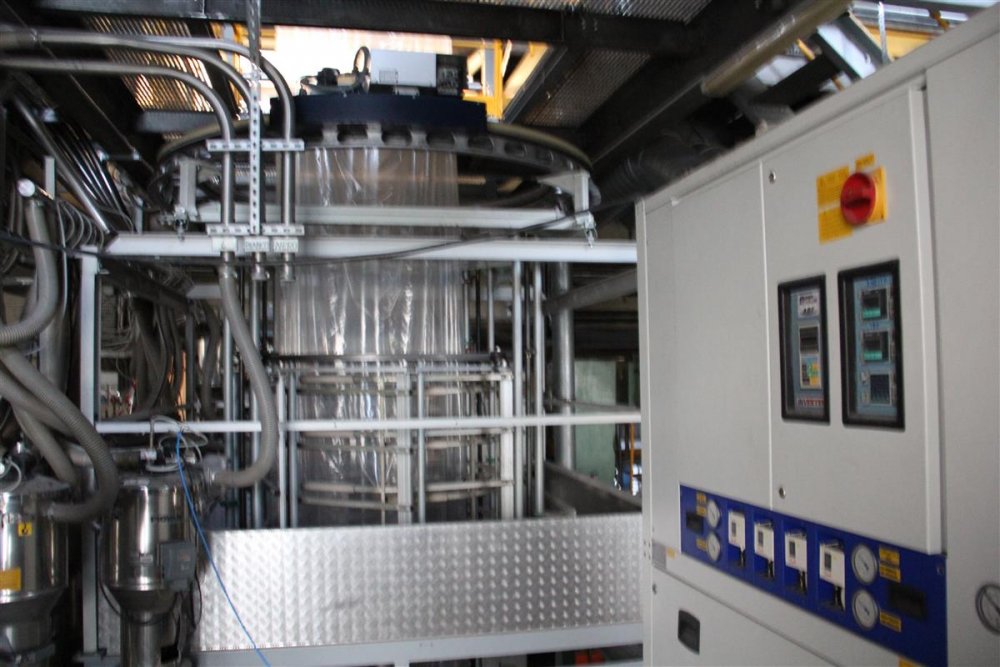

Bubble cage Additional ultrasonic bubble control N2200-C including ultrasonic web detector. Motorized adjustment
Take off unit Rotating T2200, Zero Touch 2200 air cushion
Corona treatment Double side
Web guide Yes
Rewinder max reel diameter 1200

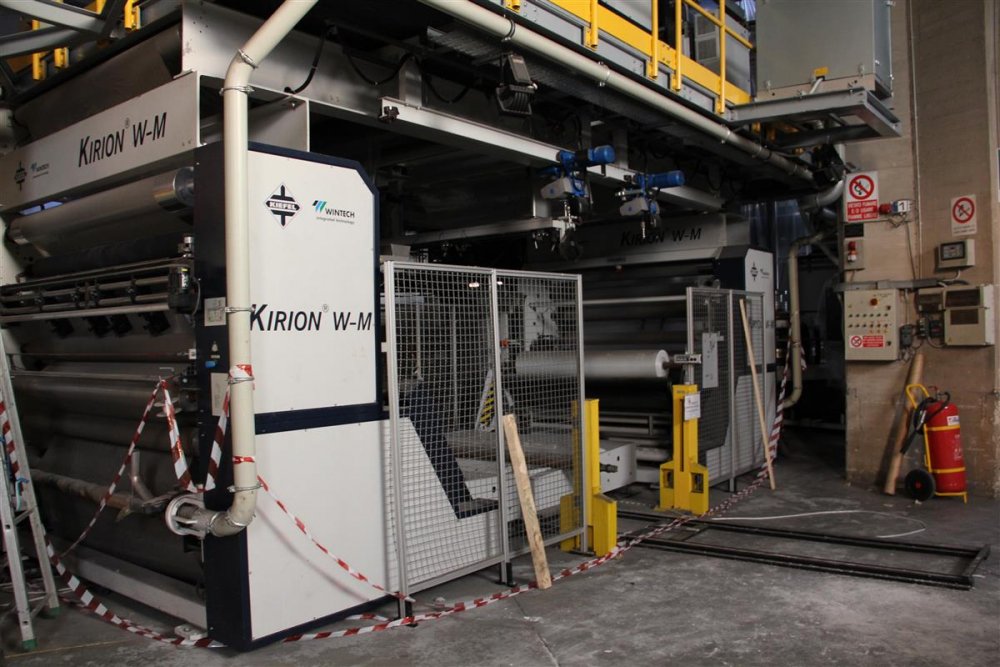

Rewinder description Kirion W 2200 M2 Center and surface driven. Possibility of gap and contact winding. tension 40-400N. Mechanical speed 200M/min. S wrap cooling unit. Automatic reels extraction and new shaft loading system

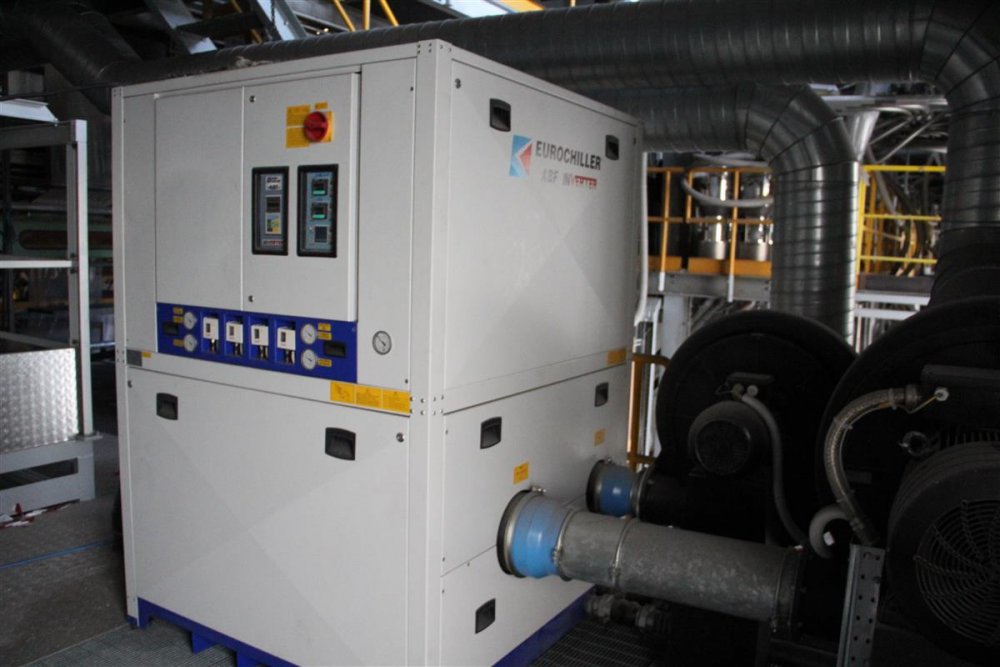

Additional information Edge trim system. Inline slitting system Twin chiller for Kirion C
