In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
- Machine Code
- EX814
- Manufacturer
- MACCHI
- Modello
- Coex flex ST265R
- Year
- 2012
- Number of layers
- 3
- Film structure
- ABC
- Material
- LDPE, LLDPE, MLDPE
- Film Width
- 2000
- Output (Kg/h)
- up to 380
- Extruder 1 Layer ref:
- A layer
- Screw diam 1
- 60/30
- Extruder 2 Layer ref:
- B layer
- Screw diam 2
- 100/30
- Extruder 3 Layer ref:
- C layer
- Screw diam 3
- 60/30

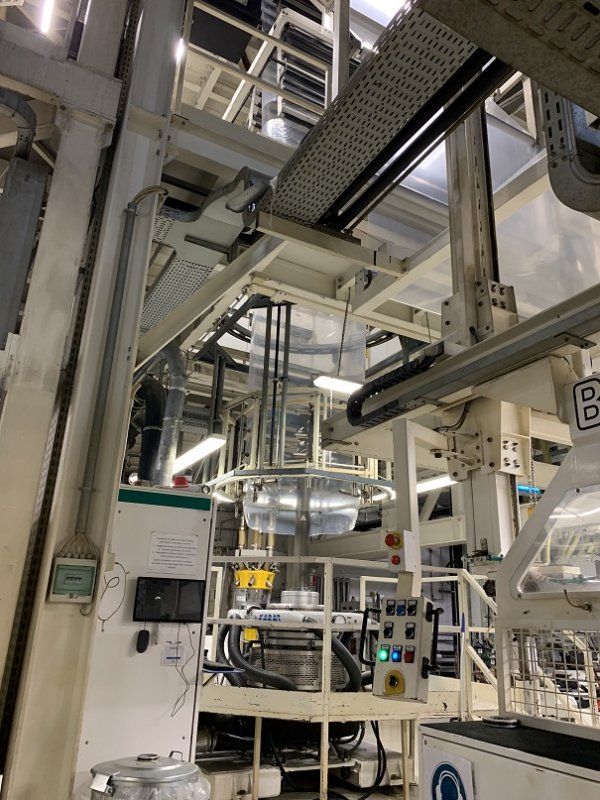

- Head description
- IBC system K-design Carat cooling ring
- Die diam (mm)
- 400
- Thickness controll system
- Kundig
- Bubble cage
- Yes, automatic. Decatex.
- Panel for gussets
- No

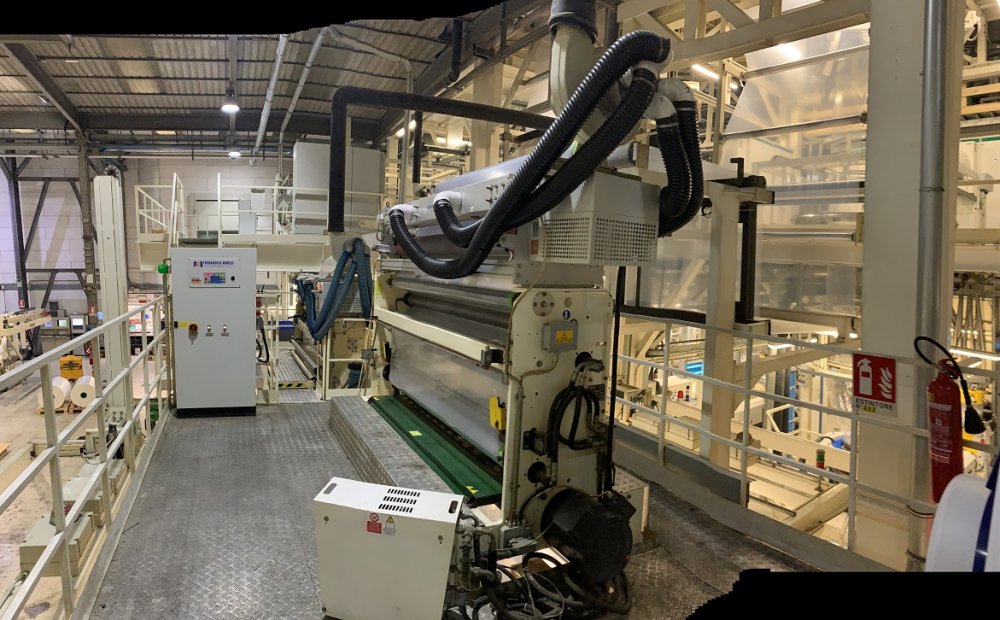

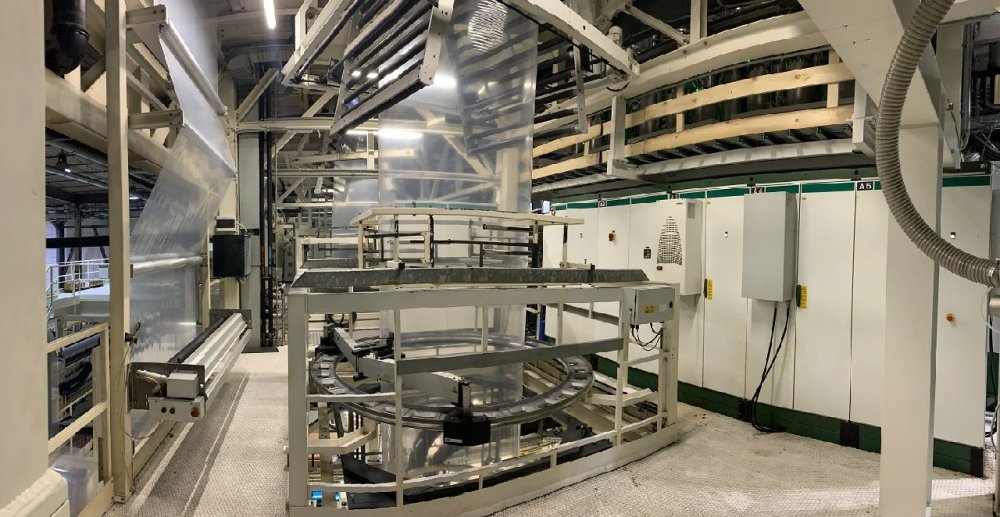

- Take off unit
- Oscillating
- Web guide
- E&L

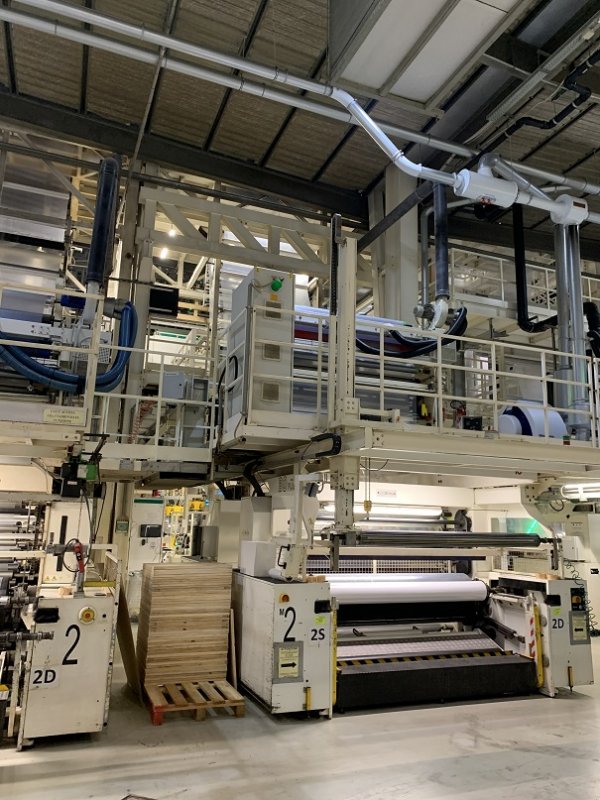

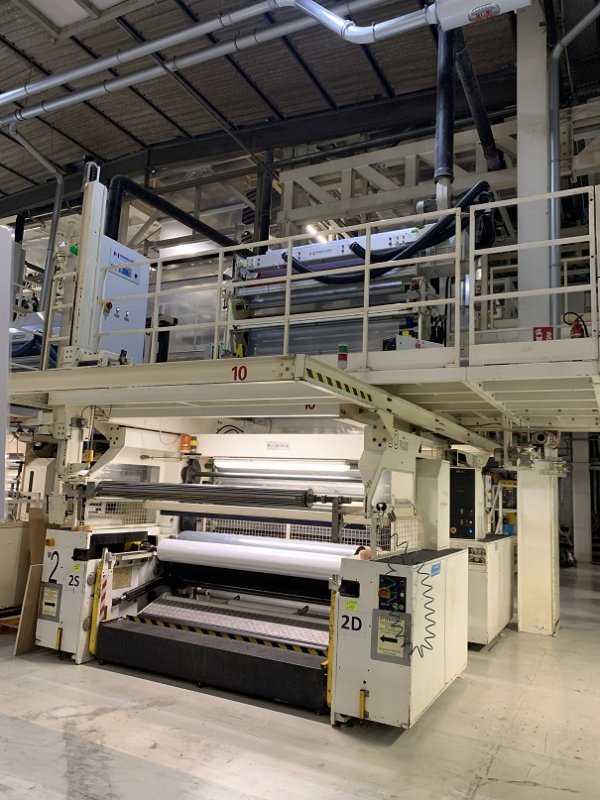

- Rewinder Type
- Double back to back
- Rewinder description
- BOPLUS/D
- Note
- Only part of tower/structure is included
| Machine Code | EX814 |
| Manufacturer | MACCHI |
| Modello | Coex flex ST265R |
| Year | 2012 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | LDPE, LLDPE, MLDPE |
| Film Width | 2000 |
| Output (Kg/h) | up to 380 |
| Extruder 1 Layer ref: | A layer |
| Screw diam 1 | 60/30 |
| Extruder 2 Layer ref: | B layer |
| Screw diam 2 | 100/30 |
| Extruder 3 Layer ref: | C layer |
| Screw diam 3 | 60/30 |
| Head description | IBC system K-design Carat cooling ring |
| Die diam (mm) | 400 |
| Thickness controll system | Kundig |
| Bubble cage | Yes, automatic. Decatex. |
| Panel for gussets | No |
| Take off unit | Oscillating |
| Web guide | E&L |
| Rewinder Type | Double back to back |
| Rewinder description | BOPLUS/D |
| Note | Only part of tower/structure is included |
