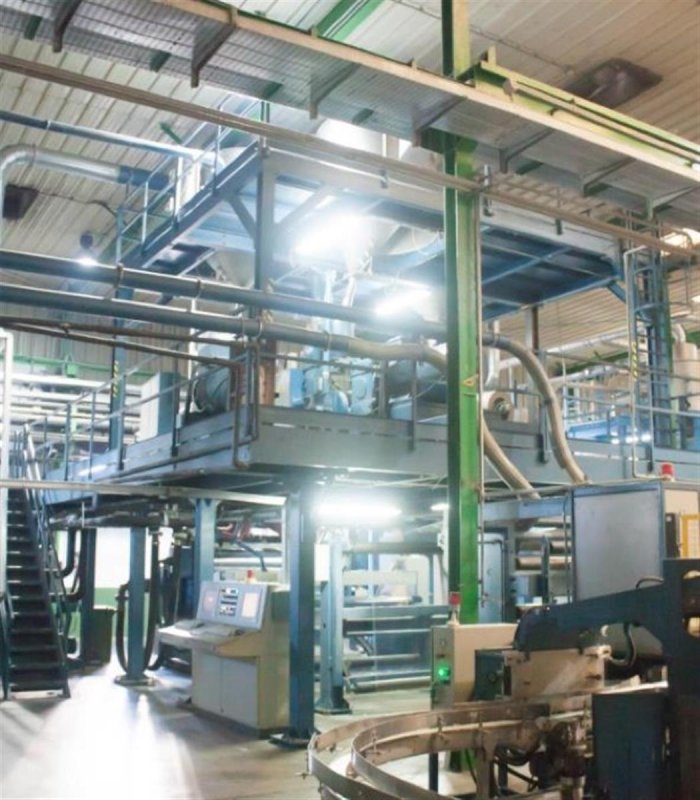

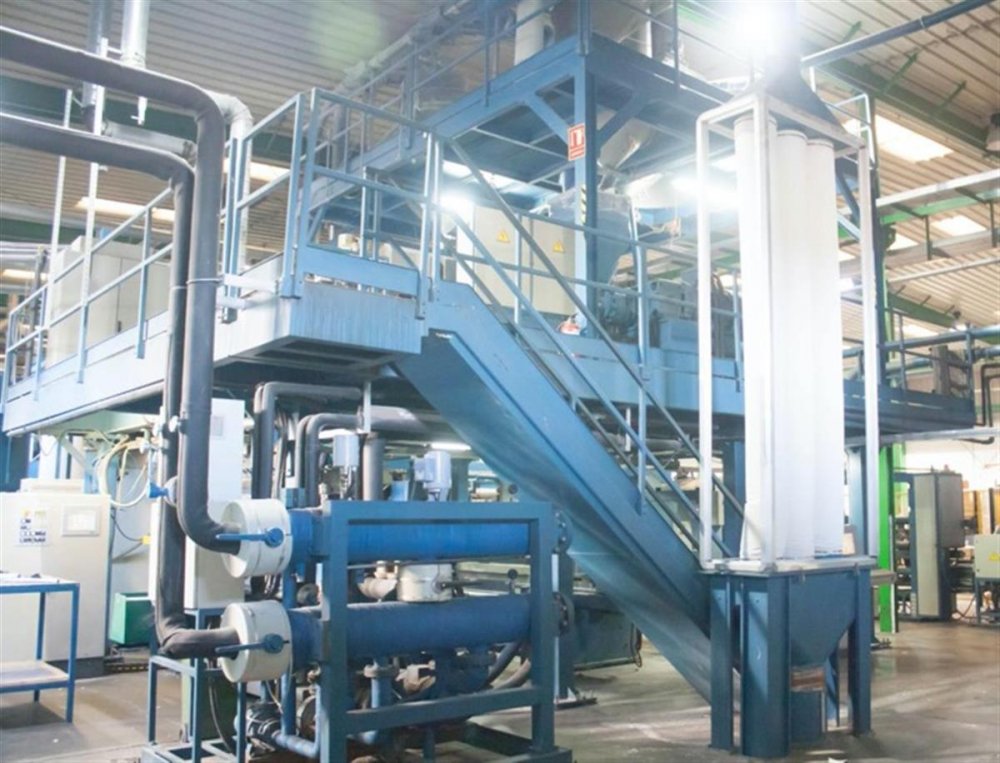

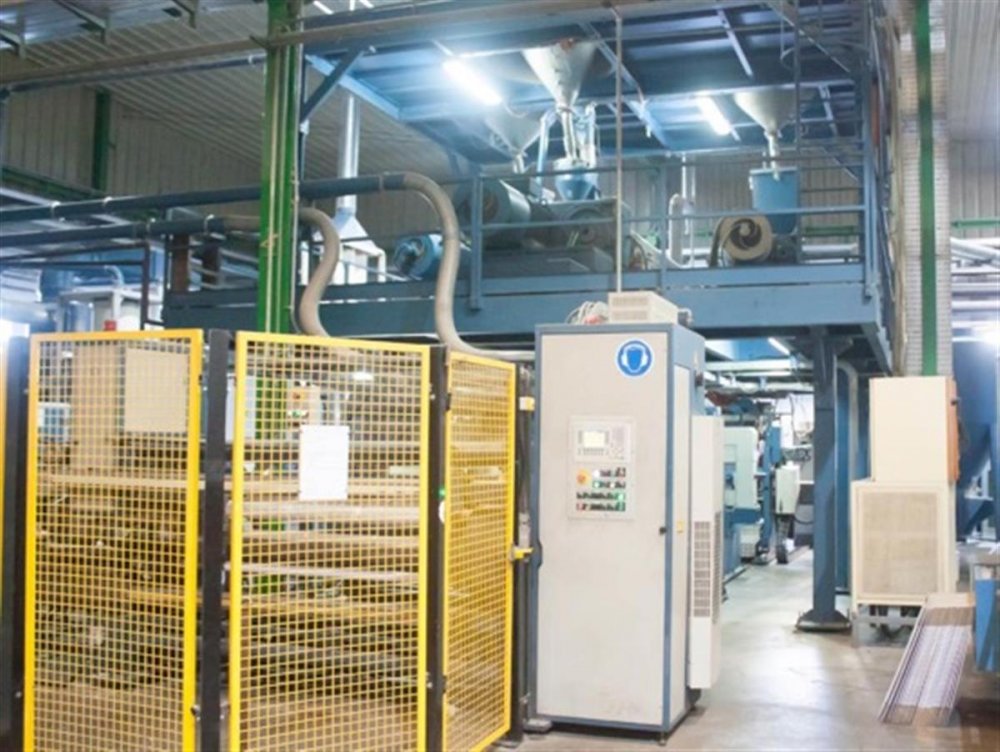

3 layers ADTECH PROVERA Cast film extrusion line

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA205
Manufacturer ADTECH PROVERA
Year 2003
Number of layers 3
Film structure ABC
Material STRETCH LLDPE
Film width (mm) 1500
Speed (m/min) 600
Output (Kg/h) 750
Extruder 1 Layer ref: A
Screw diam 80mm
Description L/D30, AC Motor
Extruder 2 Layer ref: B
Screw diam 120mm
Description L/D30, AC Motor
Extruder 3 Layer ref: C
Screw diam 80mm
Description L/D30, AC Motor
Head description Make Carraro, double chamber air knife

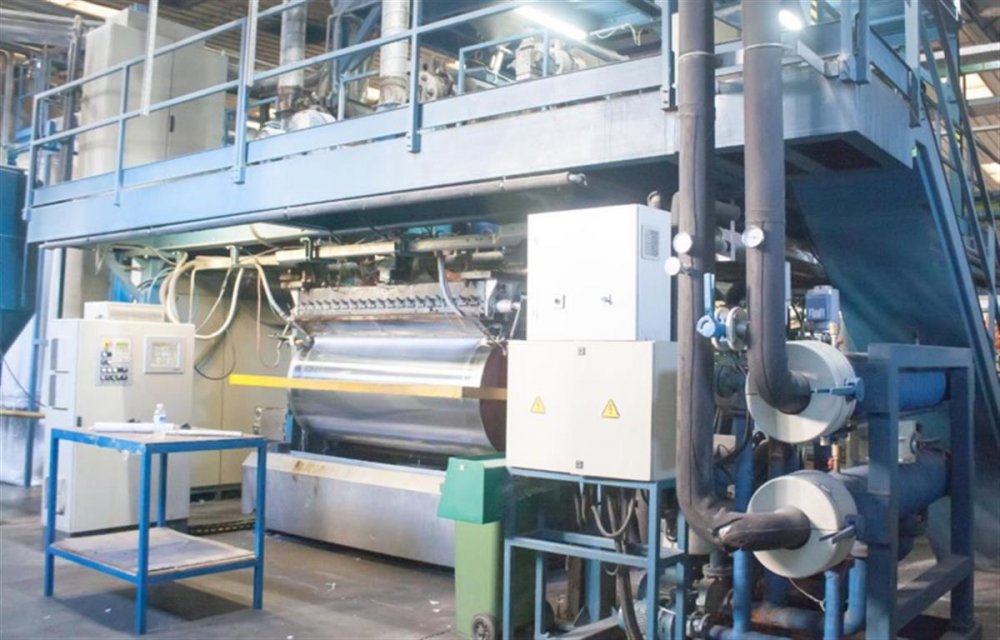

Chill roll unit First chill roller 1 m diam.
Thickness controll system Thickness gauge ADTECH
Web guide Oscillating device
Rewinder description For hand reels
Additional information in line edge reclaim system
