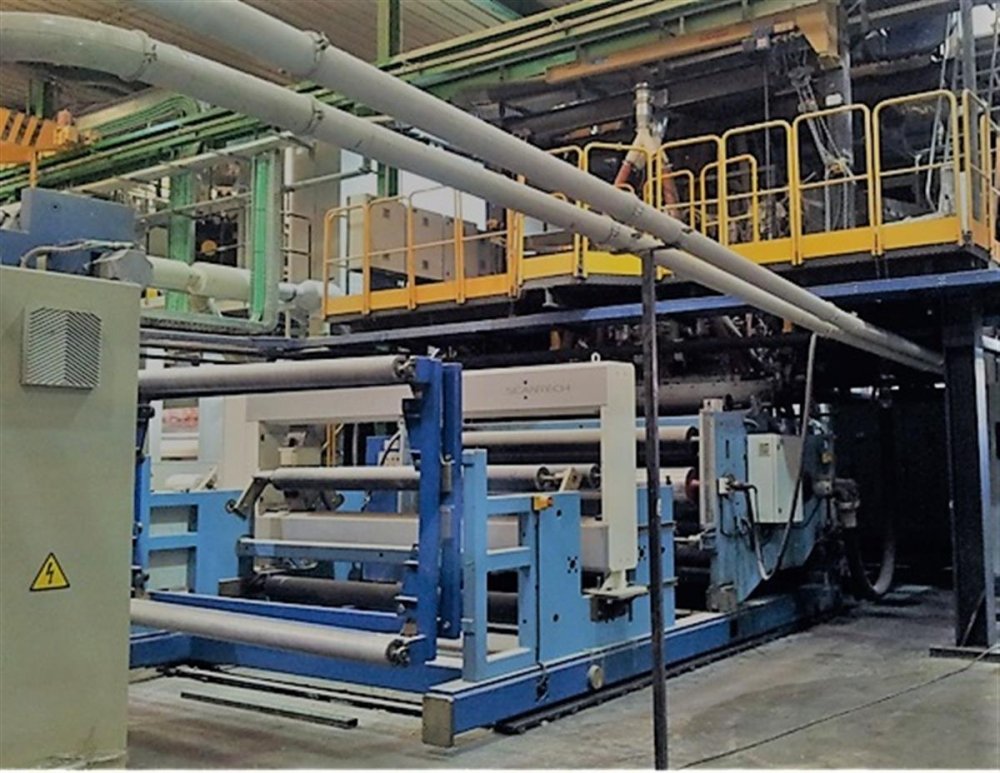

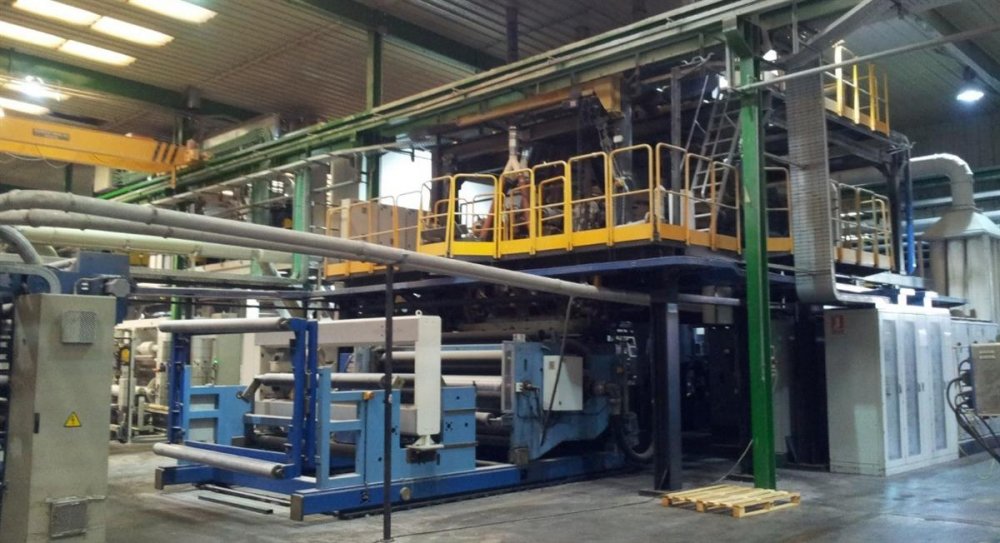

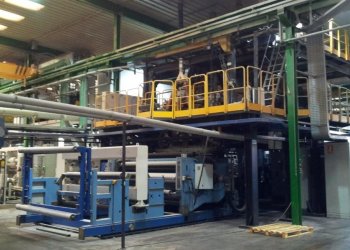

5 layers PRIMPLAST CAST2000 Cast film machine

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA153
Manufacturer PRIMPLAST
Model CAST2000
Year 2002
Number of layers 5
Film structure A-B-C-D-E
Material LDPE, LLDPE, STRETCH FILM
Film width (mm) 2000
Output (Kg/h) 1200 (23MY)
Extruder 1 Layer ref: A
Screw diam 160
Description 30D
Extruder 2 Layer ref: B
Screw diam 90
Description 30D
Extruder 3 Layer ref: C
Screw diam 120
Description 30D
Extruder 4 Layer ref: D
Screw diam 90
Description 30D
Extruder 5 Layer ref: E
Screw diam 120
Head description Automatic, feedblock EDI,
Die width (mm) 2000mm
Chill roll unit 1 chill roll unit
Thickness controll system 1 x-ray automatic thickness measuring device Scantech year 2008
Rewinder max reel diameter (mm) 2000
Rewinder description Automatic. Make Adtech Provera .Hand reels and machine reels. Reel change every 20 seconds
Additional information Film thickness range 12my-70my Thickness: 12 – 70 my Nr. 4 Electrostatic pin edge Nr. 1 Traverse oscillating unit Nr. 1 Edge trims reclaiming system unit Nr. 1 Control line console Nr. 1 Extruders platform
