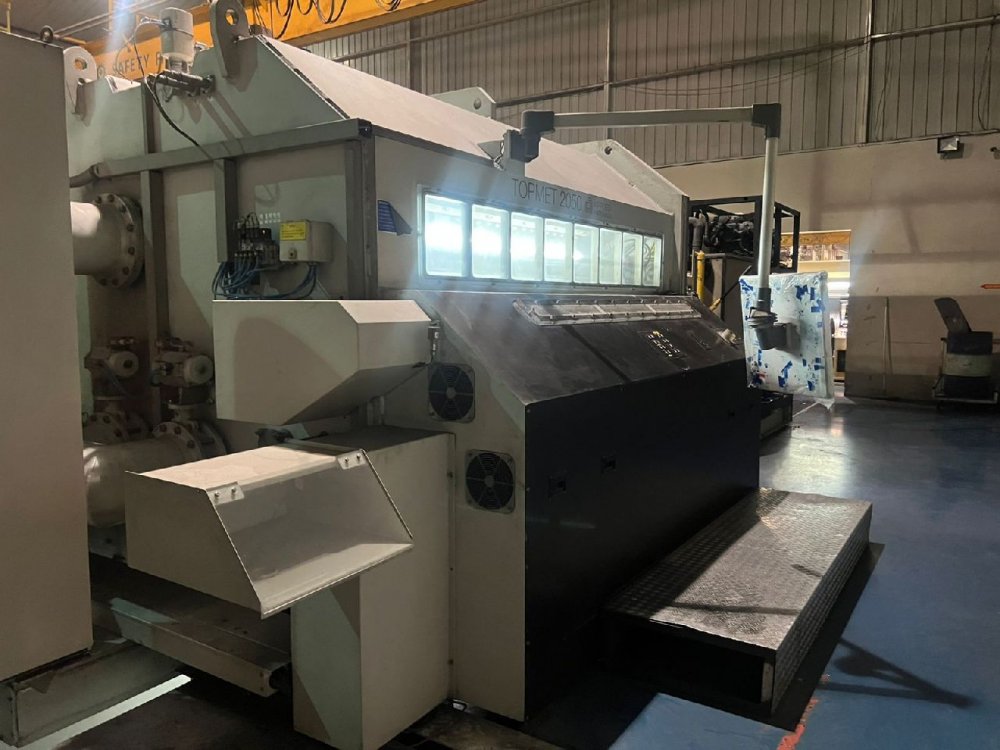

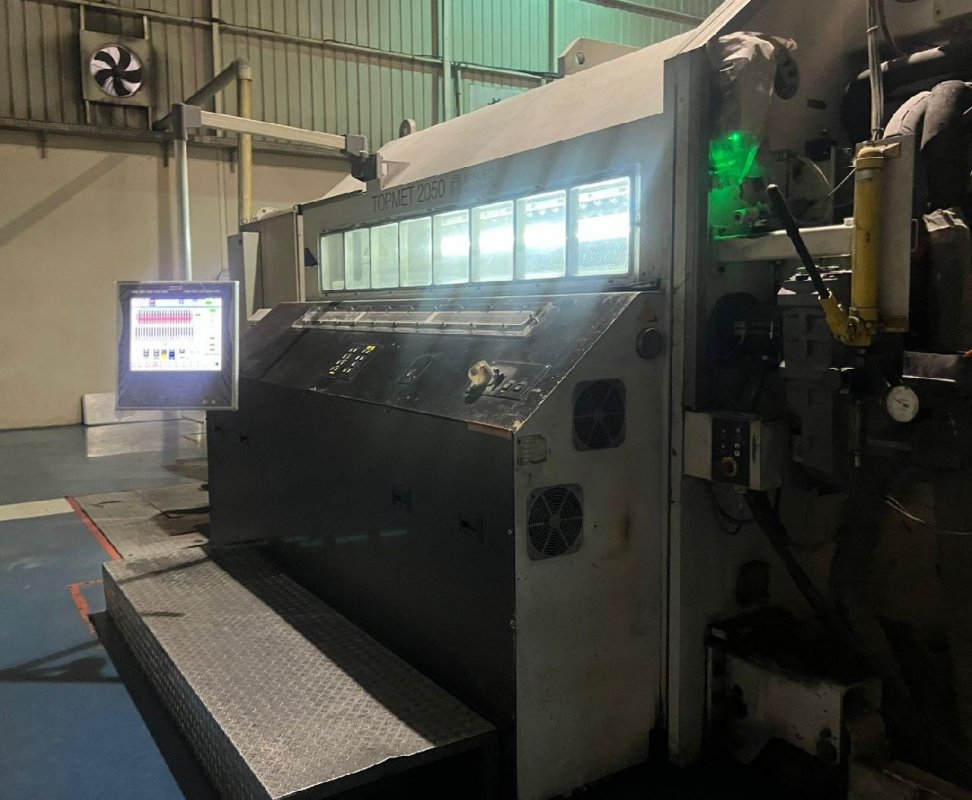

A Vacuum metallizer is used to coat a layer of aluminium (or other metals) onto a web, typically plastic film or paper.
Ask more informations
- Machine Code
- ME095
- Manufacturer
- APPLIED FILM
- Modello
- Topmet
- Year
- 2010
- Working width (mm)
- 2050
- Speed
- 1 - 14 m/s
- Max diameter reel unwinder
- 1000
- Max diameter reel rewinder
- 1000
- Evapouration Boots
- 22, Aluminum, purity better than 99.7% (wire diameter d: 1.5 mm < d < 1.8 mm) Thickness - 0.5 - 3 OD (thickness measurement system LMS4-OD), 0.8 - 10 Ohm/area (thickness measurement system LMS-R)

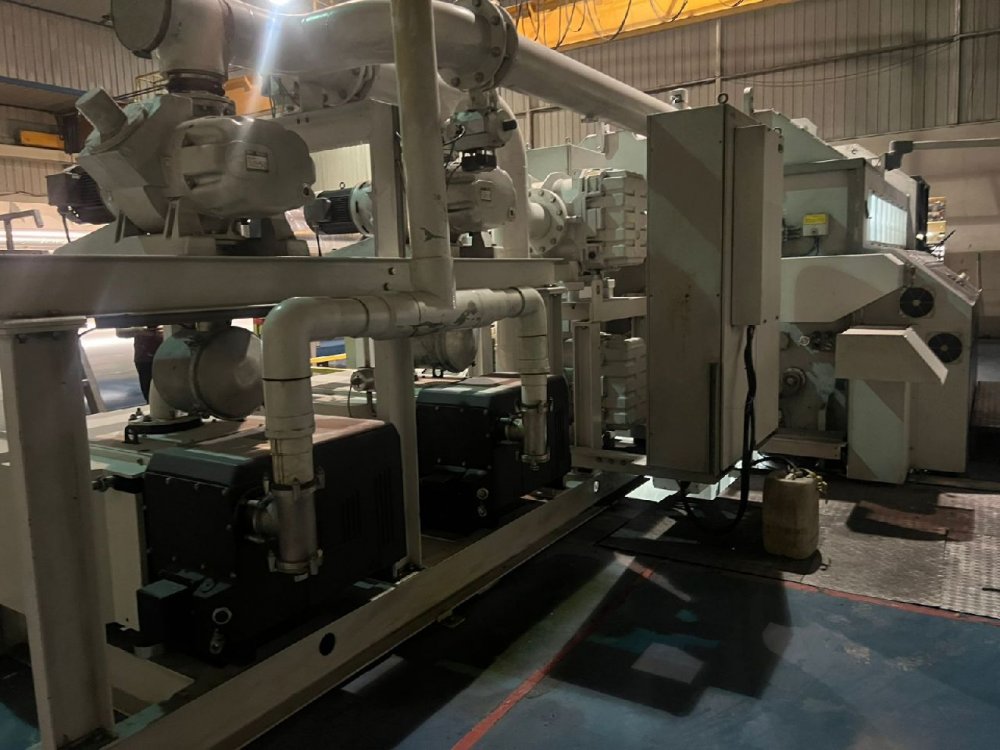

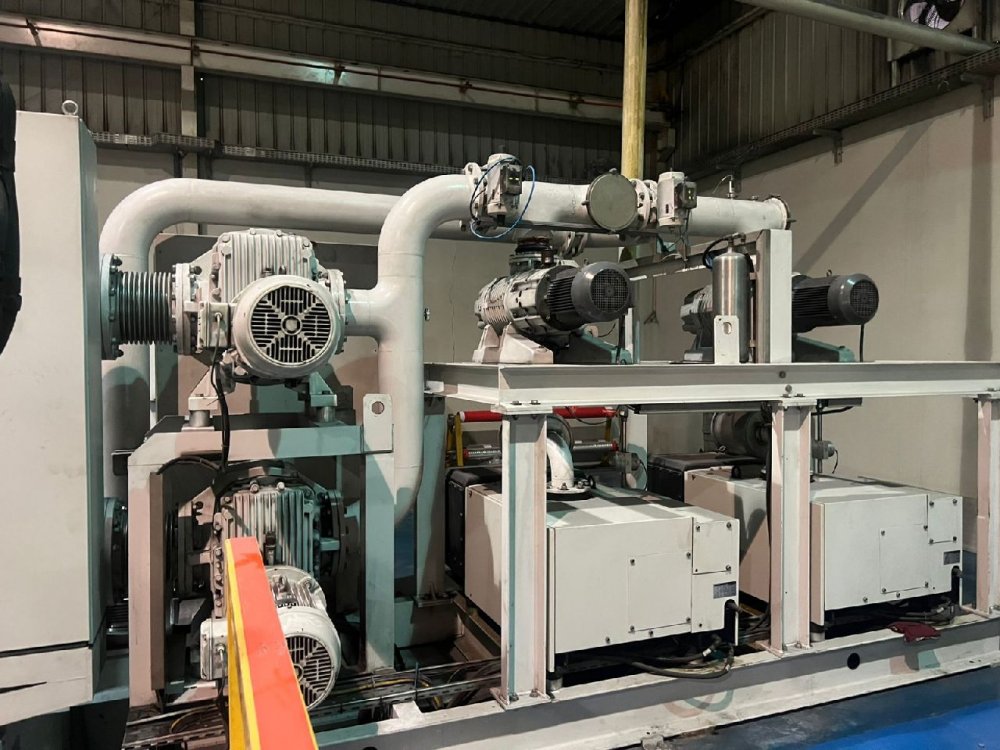

- Pumping down time
- Nominal 6 minutes, (dry, clean and empty chamber), as per machine's specs
- Note
- Working pressure -approx. 4 × 10* mbar Nature of coating - Single-sided Coating area - Full web width, with 10 mm edge masking Coating width - min. 900 mm / max. 2,050 mm Process gases: Argon - Purity 99.998% Oxygen -Purity 99.999%
| Machine Code | ME095 |
| Manufacturer | APPLIED FILM |
| Modello | Topmet |
| Year | 2010 |
| Working width (mm) | 2050 |
| Speed | 1 - 14 m/s |
| Max diameter reel unwinder | 1000 |
| Max diameter reel rewinder | 1000 |
| Evapouration Boots | 22, Aluminum, purity better than 99.7% (wire diameter d: 1.5 mm < d < 1.8 mm) Thickness - 0.5 - 3 OD (thickness measurement system LMS4-OD), 0.8 - 10 Ohm/area (thickness measurement system LMS-R) |
| Pumping down time | Nominal 6 minutes, (dry, clean and empty chamber), as per machine's specs |
| Note | Working pressure -approx. 4 × 10* mbar Nature of coating - Single-sided Coating area - Full web width, with 10 mm edge masking Coating width - min. 900 mm / max. 2,050 mm Process gases: Argon - Purity 99.998% Oxygen -Purity 99.999% |
