** SOLD **

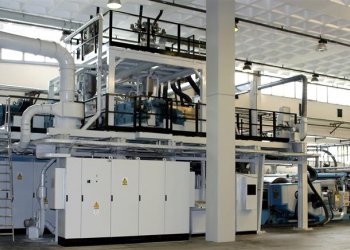

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
about a similar one
- Machine Code
- CA081
- Manufacturer
- TAU SYSTEM
- Modello
- AX-1-CAST
- Year
- 1996
- Number of layers
- 3
- Film structure
- BAC
- Material
- CPP and stretch film
- Film width (mm)
- 1850
- Speed (m/min)
- Mechanical speed of winders: 10-200m/min;
- Output (Kg/h)
- Output:420 kg/h;
- Extruder 1 Layer ref:
- A - Type: 55/30 D; Screw speed: 0-200 rpm, Length:1650mm
- Screw diam 1
- 55
- Description 1
- Gravimetric dosing unit
- Extruder 2 Layer ref:
- B- Type 90/30D, Length:2700mm;screw speed: 0-145rpm
- Screw diam 2
- 90
- Description 2
- Gravimetric dosing unit
- Extruder 3 Layer ref:
- C - Type: 55/30 D; Screw speed: 0-200 rpm
- Screw diam 3
- 55
- Description 3
- Gravimetric dosing unit
- Die width (mm)
- 1850
- Chill roll unit
- Flat die type L3J 1850 mm; lip gaps adjustable: 10-100 microns,Upperlip gapping: every 25 mm push screw;Heating: 9 zones;Flow surface: hard chromium plated and mirror polished;\r\n\r\n\r\n
- Thickness controll system
- Oscillating take off unit; Sintel 900 system thickness ,gauge system
- Rewinder description
- Semi-automatic
- Note
- Cardboard cores for bobbins: 76 mm (internal diam.) .
| Machine Code | CA081 |
| Manufacturer | TAU SYSTEM |
| Modello | AX-1-CAST |
| Year | 1996 |
| Number of layers | 3 |
| Film structure | BAC |
| Material | CPP and stretch film |
| Film width (mm) | 1850 |
| Speed (m/min) | Mechanical speed of winders: 10-200m/min; |
| Output (Kg/h) | Output:420 kg/h; |
| Extruder 1 Layer ref: | A - Type: 55/30 D; Screw speed: 0-200 rpm, Length:1650mm |
| Screw diam 1 | 55 |
| Description 1 | Gravimetric dosing unit |
| Extruder 2 Layer ref: | B- Type 90/30D, Length:2700mm;screw speed: 0-145rpm |
| Screw diam 2 | 90 |
| Description 2 | Gravimetric dosing unit |
| Extruder 3 Layer ref: | C - Type: 55/30 D; Screw speed: 0-200 rpm |
| Screw diam 3 | 55 |
| Description 3 | Gravimetric dosing unit |
| Die width (mm) | 1850 |
| Chill roll unit | Flat die type L3J 1850 mm; lip gaps adjustable: 10-100 microns,Upperlip gapping: every 25 mm push screw;Heating: 9 zones;Flow surface: hard chromium plated and mirror polished;\r\n\r\n\r\n |
| Thickness controll system | Oscillating take off unit; Sintel 900 system thickness ,gauge system |
| Rewinder description | Semi-automatic |
| Note | Cardboard cores for bobbins: 76 mm (internal diam.) . |
