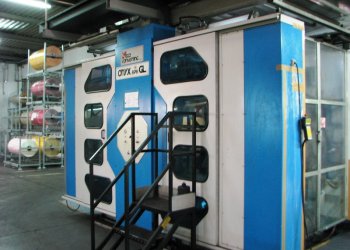

UTECO ONYX 876 flexo printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL591
Manufacturer UTECO
Model ONYX 876
Year 2006
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 300
Max print repeat (mm) 760
Unwinder type SINGLE
Max reel diameter unwinder (mm) 1000
Rewinder type SINGLE
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , final tunnel 4 mt., Thermo oil heat exchangers, automatic air recirculation system

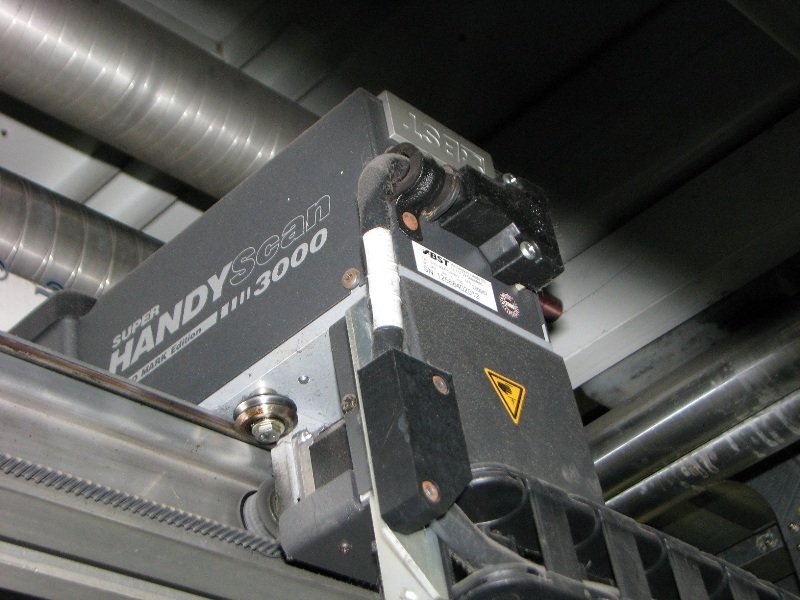

Videocamera BST Super Handy 3000
Corona treatment Yes
Web guides Yes
Vyscosity control 8 GAMA
Anilox 8 as follows: 3x80L/cm, vol.17 cm3/m2; 1x80L/cm, vol.15cm3/m2; 2x100L/cm,vol. 13 cm3/m2;1x140L/cm, vol. 9 cm3/m2;1x180L/cm, vol. 10 cm3/m2
Print Sleeves 8 sleeves repeat 300 mm (plate thickness 2,84 + stickyback 0,55 mm) outer diameter 88,713 mm ; 8 sleeves repeat 319 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 98,262 mm; 8 sleeves repeat 369 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 114,177 mm;
Additional information Speed 360m/min .Analyzer solvent concentration in the printing unit and drying tunnel

** SOLD **
