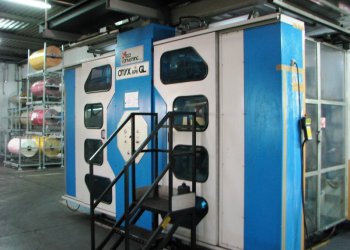

- Maschinencode
- FL591
- Hersteller
- UTECO
- Modello
- ONYX 876
- Baujahr
- 2006
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1450
- Print width (mm)
- 1400
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760
- Unwinder type
- SINGLE
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- SINGLE
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt., Thermo oil heat exchangers, automatic air recirculation system
- Videocamera
- BST Super Handy 3000
- Corona treatment
- Yes
- Web guides
- Yes
- Vyscosity control
- 8 GAMA
- Anilox
- 8 as follows: 3x80L/cm, vol.17 cm3/m2; 1x80L/cm, vol.15cm3/m2; 2x100L/cm,vol. 13 cm3/m2;1x140L/cm, vol. 9 cm3/m2;1x180L/cm, vol. 10 cm3/m2
- Print Sleeves
- 8 sleeves repeat 300 mm (plate thickness 2,84 + stickyback 0,55 mm) outer diameter 88,713 mm ; 8 sleeves repeat 319 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 98,262 mm; 8 sleeves repeat 369 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 114,177 mm;
- Note
- Speed 360m/min .Analyzer solvent concentration in the printing unit and drying tunnel
| Maschinencode | FL591 |
| Hersteller | UTECO |
| Modello | ONYX 876 |
| Baujahr | 2006 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1450 |
| Print width (mm) | 1400 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 760 |
| Unwinder type | SINGLE |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | SINGLE |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt., Thermo oil heat exchangers, automatic air recirculation system |
| Videocamera | BST Super Handy 3000 |
| Corona treatment | Yes |
| Web guides | Yes |
| Vyscosity control | 8 GAMA |
| Anilox | 8 as follows: 3x80L/cm, vol.17 cm3/m2; 1x80L/cm, vol.15cm3/m2; 2x100L/cm,vol. 13 cm3/m2;1x140L/cm, vol. 9 cm3/m2;1x180L/cm, vol. 10 cm3/m2 |
| Print Sleeves | 8 sleeves repeat 300 mm (plate thickness 2,84 + stickyback 0,55 mm) outer diameter 88,713 mm ; 8 sleeves repeat 319 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 98,262 mm; 8 sleeves repeat 369 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 114,177 mm; |
| Note | Speed 360m/min .Analyzer solvent concentration in the printing unit and drying tunnel |
