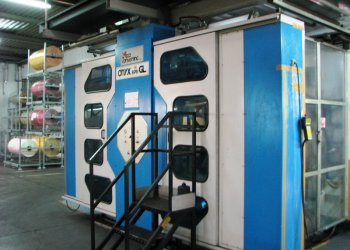

UTECO ONYX 876 Flexo central drum printing press 8 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL591
Manufacturer
UTECO
Model
ONYX 876
Year
2006
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1450
Print width (mm)
1400
Min print repeat (mm)
300
Max print repeat (mm)
760
Unwinder type
SINGLE
Max reel diameter unwinder (mm)
1000
Rewinder type
SINGLE
Max reel diameter rewinder (mm)
1000
Drying
2 zones , 4 fans , final tunnel 4 mt., Thermo oil heat exchangers, automatic air recirculation system
Videocamera
BST Super Handy 3000
Corona treatment
Yes
Web guides
Yes
Vyscosity control
8 GAMA
Anilox
8 as follows: 3x80L/cm, vol.17 cm3/m2; 1x80L/cm, vol.15cm3/m2; 2x100L/cm,vol. 13 cm3/m2;1x140L/cm, vol. 9 cm3/m2;1x180L/cm, vol. 10 cm3/m2
Print Sleeves
8 sleeves repeat 300 mm (plate thickness 2,84 + stickyback 0,55 mm) outer diameter 88,713 mm ; 8 sleeves repeat 319 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 98,262 mm; 8 sleeves repeat 369 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 114,177 mm;
Additional information
Speed 360m/min .Analyzer solvent concentration in the printing unit and drying tunnel
Machine Code FL591
Manufacturer UTECO
Model ONYX 876
Year 2006
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 300
Max print repeat (mm) 760
Unwinder type SINGLE
Max reel diameter unwinder (mm) 1000
Rewinder type SINGLE
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , final tunnel 4 mt., Thermo oil heat exchangers, automatic air recirculation system
Videocamera BST Super Handy 3000
Corona treatment Yes
Web guides Yes
Vyscosity control 8 GAMA
Anilox 8 as follows: 3x80L/cm, vol.17 cm3/m2; 1x80L/cm, vol.15cm3/m2; 2x100L/cm,vol. 13 cm3/m2;1x140L/cm, vol. 9 cm3/m2;1x180L/cm, vol. 10 cm3/m2
Print Sleeves 8 sleeves repeat 300 mm (plate thickness 2,84 + stickyback 0,55 mm) outer diameter 88,713 mm ; 8 sleeves repeat 319 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 98,262 mm; 8 sleeves repeat 369 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 114,177 mm;
Additional information Speed 360m/min .Analyzer solvent concentration in the printing unit and drying tunnel
