Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations

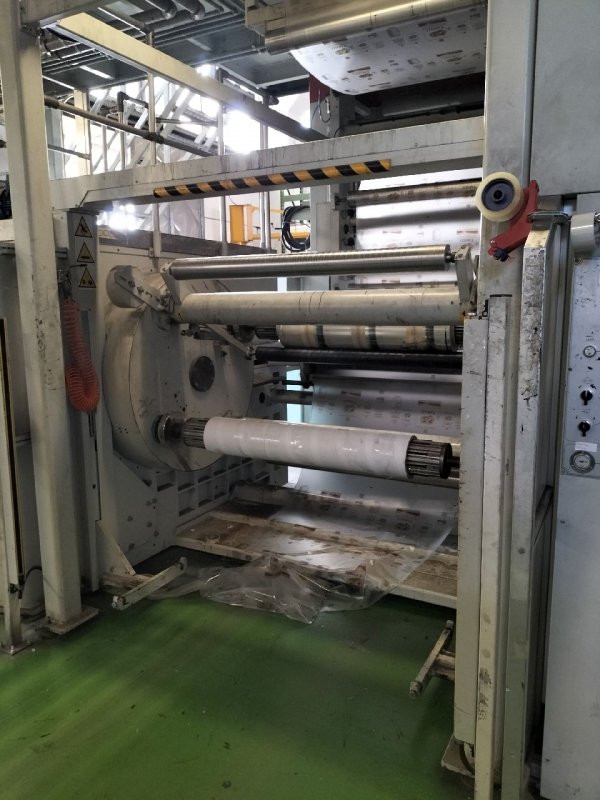

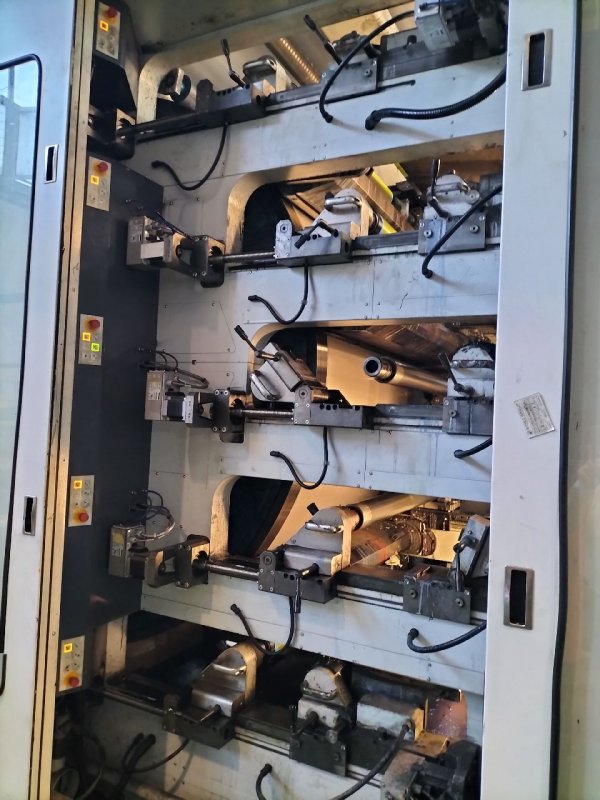

- Machine Code
- FL1184
- Manufacturer
- UTECO
- Modello
- CRYSTAL 108
- Year
- 2018
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners
- Videocamera
- YES
- Corona treatment
- Yes Ferrarini Benelli
- Web guides
- yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades and pneumatic ink pumps
- Anilox
- 12 ceramic anilox sleeves
- Print Sleeves
- 3 sets of sleeves , 1 set of Carriers
| Machine Code | FL1184 |
| Manufacturer | UTECO |
| Modello | CRYSTAL 108 |
| Year | 2018 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners |
| Videocamera | YES |
| Corona treatment | Yes Ferrarini Benelli |
| Web guides | yes in and out |
| Vyscosity control | Yes |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades and pneumatic ink pumps |
| Anilox | 12 ceramic anilox sleeves |
| Print Sleeves | 3 sets of sleeves , 1 set of Carriers |
FLEXOTECNICA TACHYS
-
Machine Code: FL1101
-
Year: 2003
-
Web width (mm): 1250
UTECO AMETHYST
-
Machine Code: FL0940
-
Year: 2002
-
Web width (mm): 1450
BIELLONI AXIOMA
-
Machine Code: FL1162
-
Year: 2015
-
Web width (mm): 1650
CARINT Discovery
-
Machine Code: FL1133
-
Year: 1999
-
Web width (mm): 1500

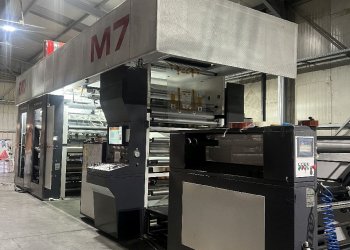

BONARDI M7
-
