Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1227
- Manufacturer
- BOBST FISCHER & KRECKE
- Modello
- FP16 - S10
- Year
- 2011
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1500
- Print width (mm)
- 1450
- Min print repeat (mm)
- 390
- Max print repeat (mm)
- 1050

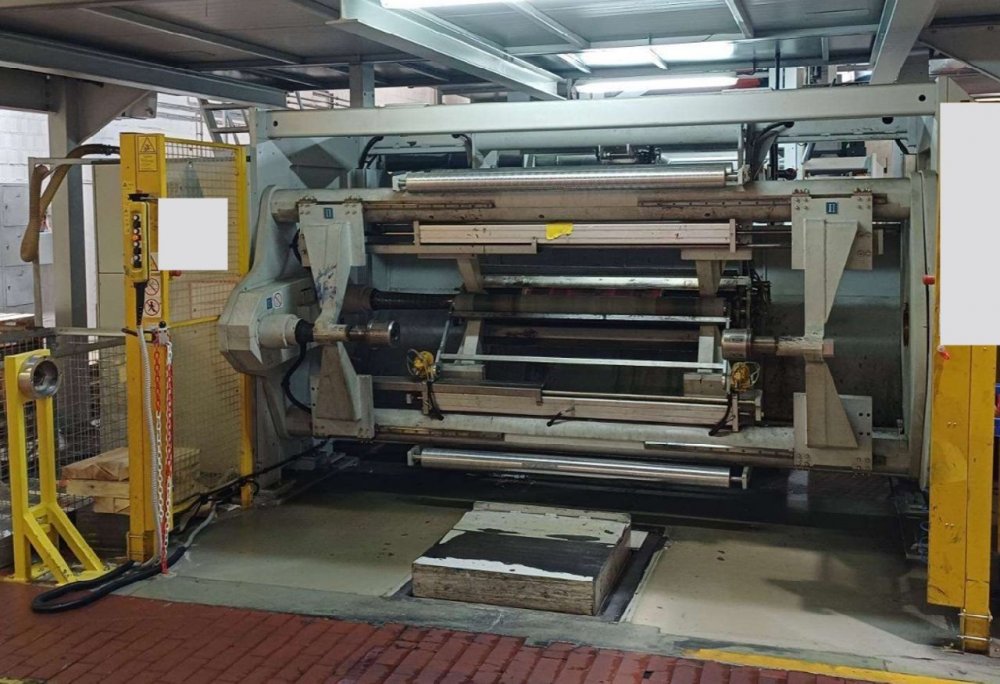

- Unwinder type
- Turret Automatic Shaftless with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic Shaftless with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermal oil
- Videocamera
- Yes
- Corona treatment
- AFS 6KW
- Web guides
- Yes
- Vyscosity control
- New Celio, 3 solvents
- Washing system
- Yes, automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 40 aniloxes
- Print Sleeves
- 535 sleeves, 60 pcs of adaptors, 6 different sizes
- Note
- Min. - Max. thickness of materials- min: 12 micron max 200 micron Max. Mechanical speed - 500m/min Print materials: PE, OPP, CPP, PA, PET, papier Web slitting before rewinder to separate ups Detection system for fire fighting system
| Machine Code | FL1227 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | FP16 - S10 |
| Year | 2011 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1500 |
| Print width (mm) | 1450 |
| Min print repeat (mm) | 390 |
| Max print repeat (mm) | 1050 |
| Unwinder type | Turret Automatic Shaftless with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic Shaftless with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Thermal oil |
| Videocamera | Yes |
| Corona treatment | AFS 6KW |
| Web guides | Yes |
| Vyscosity control | New Celio, 3 solvents |
| Washing system | Yes, automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 40 aniloxes |
| Print Sleeves | 535 sleeves, 60 pcs of adaptors, 6 different sizes |
| Note | Min. - Max. thickness of materials- min: 12 micron max 200 micron Max. Mechanical speed - 500m/min Print materials: PE, OPP, CPP, PA, PET, papier Web slitting before rewinder to separate ups Detection system for fire fighting system |
