Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1226
- Manufacturer
- BOBST FISCHER & KRECKE
- Modello
- 20 Six
- Year
- 2014
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1250
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic Shaftless with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic Shaftless with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , 6 m6 tunnel , 2 Gas burners, Automatic air recirculating system with LEL control cathalitic type by Heck

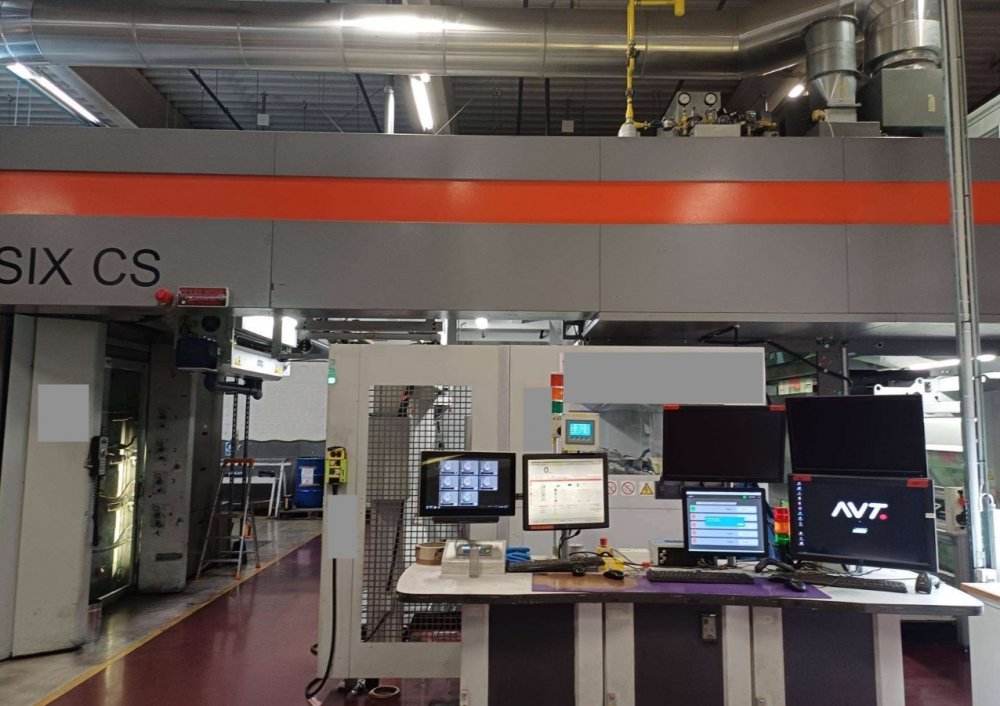

- Videocamera
- Yes AVT with 100% inspection
- Corona treatment
- AFS Single Side 6KW
- Web guides
- Yes
- Vyscosity control
- Yes, Inkspec 3 solvents
- Washing system
- Yes, automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 38 aniloxes
- Print Sleeves
- 640 printing sleeves repeats between 390 mm and 800 mm , 36 pcs of adaptors
- Note
- Max. mechanical speed - 400m/min Smart GPS system plate mounter included Materials: PE, OPP, CPP, PA, PET, papier Inline slitting, medium cut only Plate Mounter included GPS system
| Machine Code | FL1226 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | 20 Six |
| Year | 2014 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic Shaftless with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic Shaftless with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , 6 m6 tunnel , 2 Gas burners, Automatic air recirculating system with LEL control cathalitic type by Heck |
| Videocamera | Yes AVT with 100% inspection |
| Corona treatment | AFS Single Side 6KW |
| Web guides | Yes |
| Vyscosity control | Yes, Inkspec 3 solvents |
| Washing system | Yes, automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 38 aniloxes |
| Print Sleeves | 640 printing sleeves repeats between 390 mm and 800 mm , 36 pcs of adaptors |
| Note | Max. mechanical speed - 400m/min Smart GPS system plate mounter included Materials: PE, OPP, CPP, PA, PET, papier Inline slitting, medium cut only Plate Mounter included GPS system |
