Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1196
- Manufacturer
- COMEXI
- Modello
- Offset CI8
- Year
- 2016
- Number of colors
- 8
- Print possibilityes
- 8 + 0 ( 7 offset + 1 Flexo )
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Not specifed
- Computer supervision
- Yes
- Web width (mm)
- 1100
- Print width (mm)
- 1050
- Min print repeat (mm)
- 455
- Max print repeat (mm)
- 930

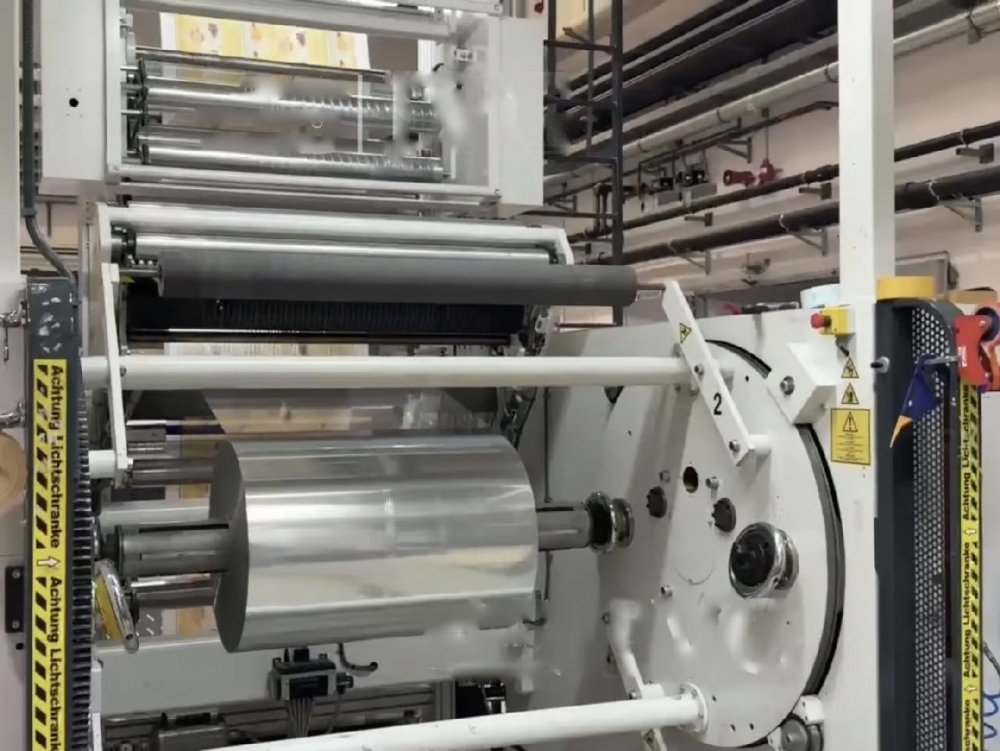

- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- EB drying ( Electron Beam )
- Corona treatment
- AHLBRANDT

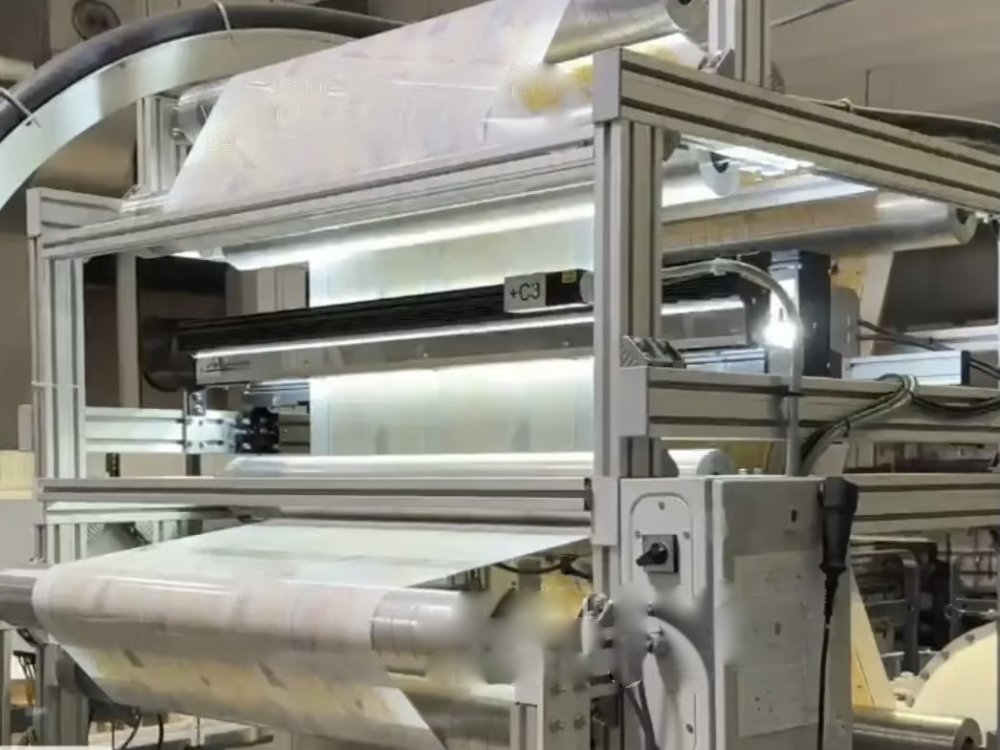

- Web guides
- BST
- Note
- Including CTP and Plate PROCESSOR - Agfa Materials: LDPE : 20-150 microns LLDPE : 12-100 microns HDPE : 20-150 microns BOPP : 12-60 microns PET : 12-50 microns Paper : 40-120 gr BST Eltromat
| Machine Code | FL1196 |
| Manufacturer | COMEXI |
| Modello | Offset CI8 |
| Year | 2016 |
| Number of colors | 8 |
| Print possibilityes | 8 + 0 ( 7 offset + 1 Flexo ) |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Not specifed |
| Computer supervision | Yes |
| Web width (mm) | 1100 |
| Print width (mm) | 1050 |
| Min print repeat (mm) | 455 |
| Max print repeat (mm) | 930 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | EB drying ( Electron Beam ) |
| Corona treatment | AHLBRANDT |
| Web guides | BST |
| Note | Including CTP and Plate PROCESSOR - Agfa Materials: LDPE : 20-150 microns LLDPE : 12-100 microns HDPE : 20-150 microns BOPP : 12-60 microns PET : 12-50 microns Paper : 40-120 gr BST Eltromat |
