** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one

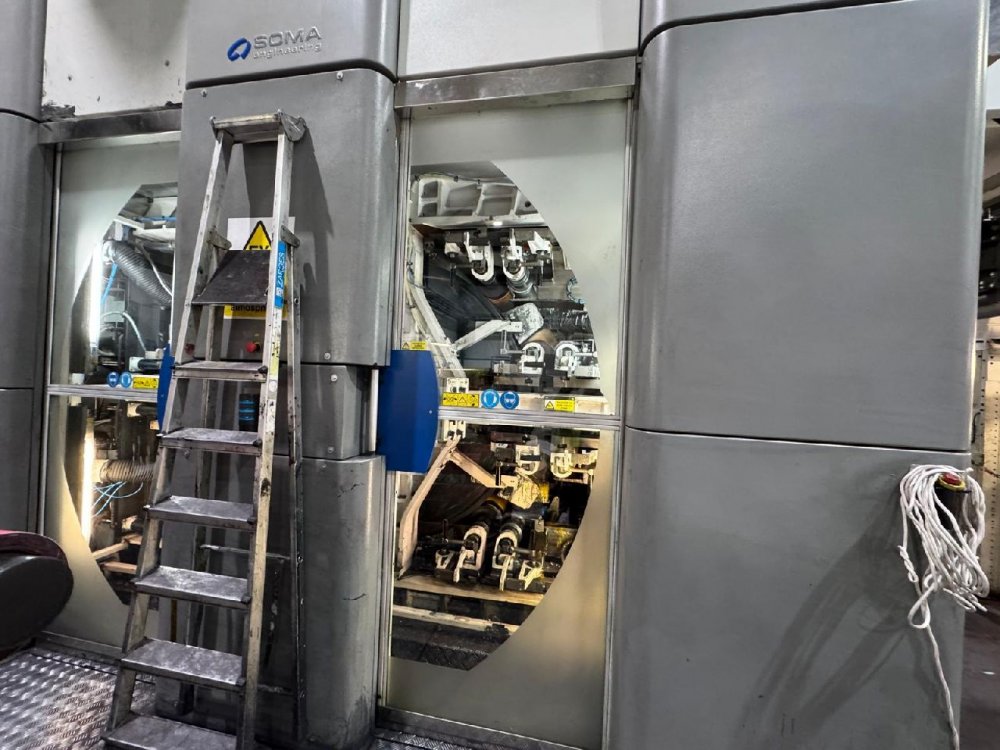

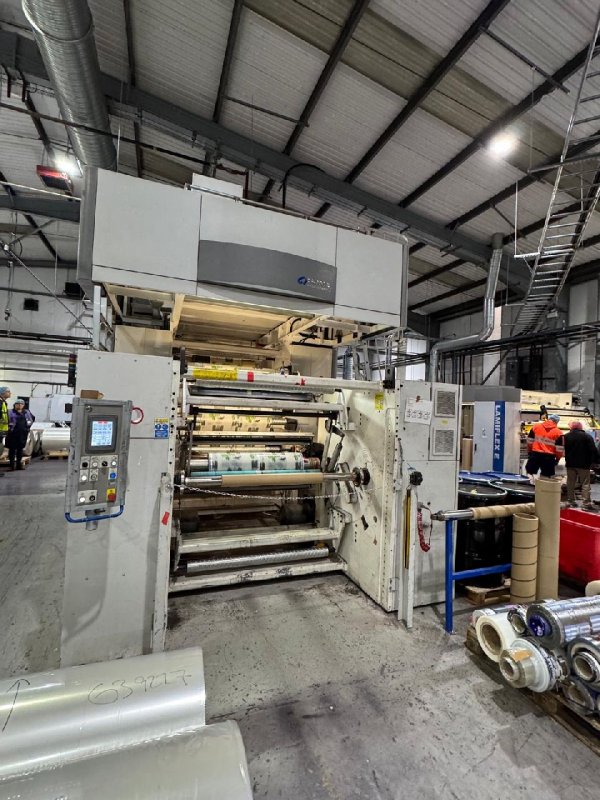

- Machine Code
- FL1142
- Manufacturer
- SOMA
- Modello
- MIDI II
- Year
- 2012
- Number of colors
- 8
- Print possibilityes
- 8+8, 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 780

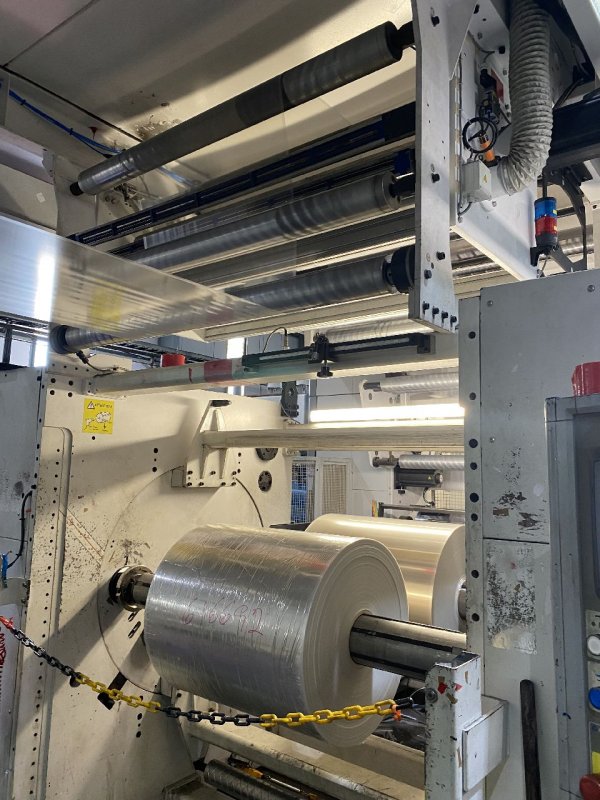

- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 800

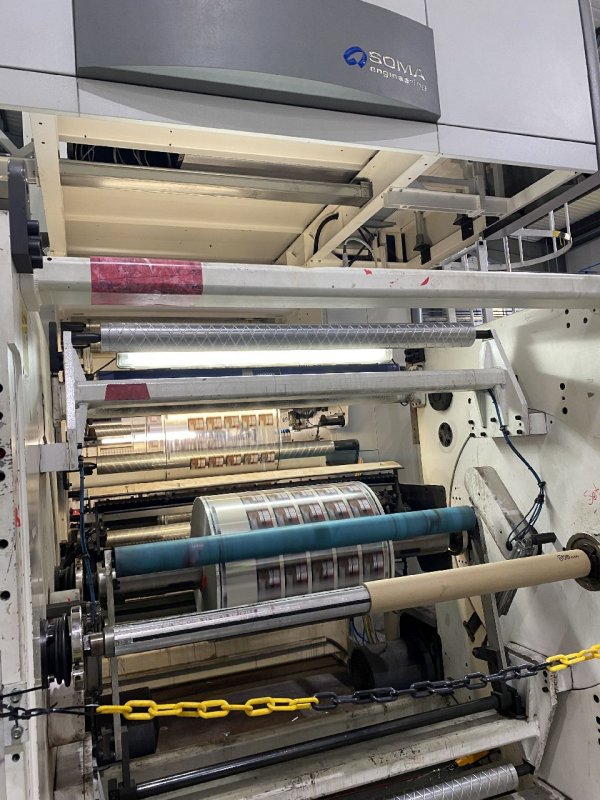

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zone s 4 fans , 4 mt tunnel and 2 gas burners - Auto recirculation system with LEL control

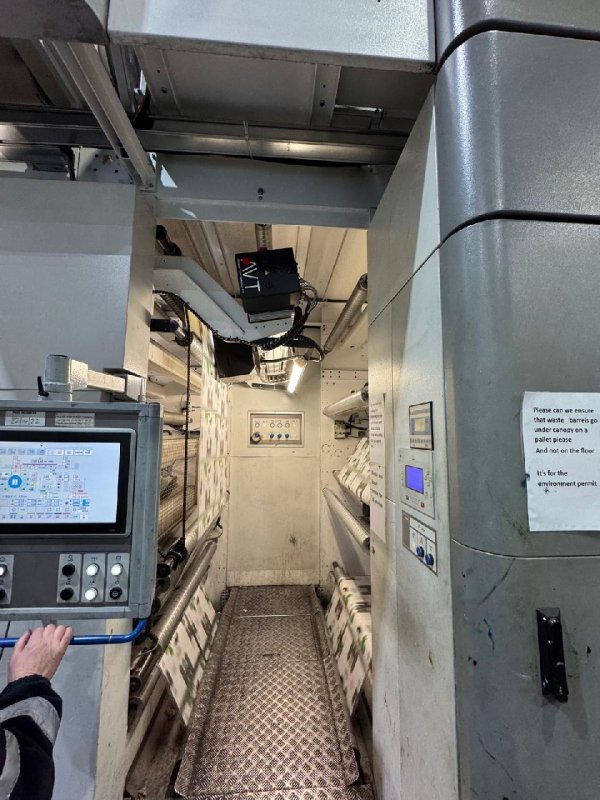

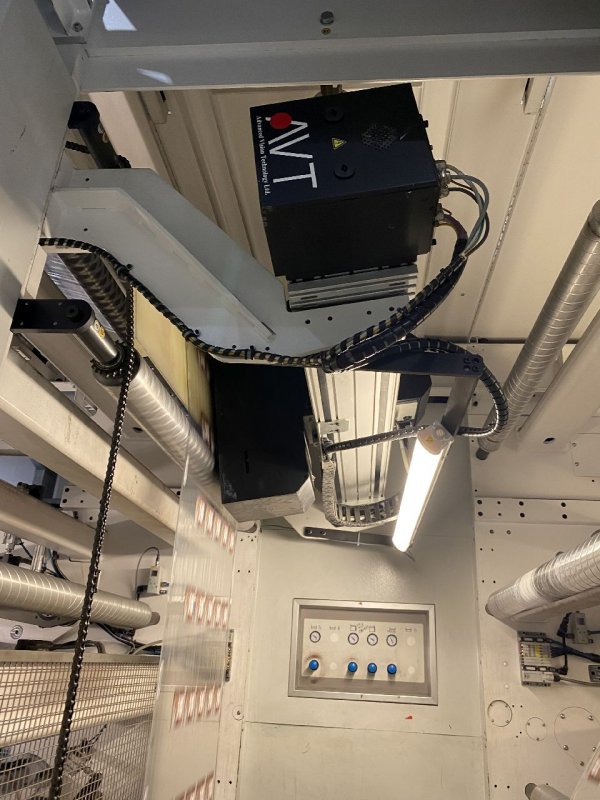

- Videocamera
- Yes AVT Jupiter
- Web guides
- Yes in and out
- Washing system
- Yes
- Inking system
- Closed chamber doctor blades and ceramic anilox rollers N° 8Ink Pumps.
- Anilox
- 15 anilox sleeves
- Print Sleeves
- appprox 80
- Note
- Max. mechanical machine speed 300 m/min Turning Bar 8+8n - half width complete with edge guides and reg control
| Machine Code | FL1142 |
| Manufacturer | SOMA |
| Modello | MIDI II |
| Year | 2012 |
| Number of colors | 8 |
| Print possibilityes | 8+8, 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 780 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zone s 4 fans , 4 mt tunnel and 2 gas burners - Auto recirculation system with LEL control |
| Videocamera | Yes AVT Jupiter |
| Web guides | Yes in and out |
| Washing system | Yes |
| Inking system | Closed chamber doctor blades and ceramic anilox rollers N° 8Ink Pumps. |
| Anilox | 15 anilox sleeves |
| Print Sleeves | appprox 80 |
| Note | Max. mechanical machine speed 300 m/min Turning Bar 8+8n - half width complete with edge guides and reg control |
