Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations

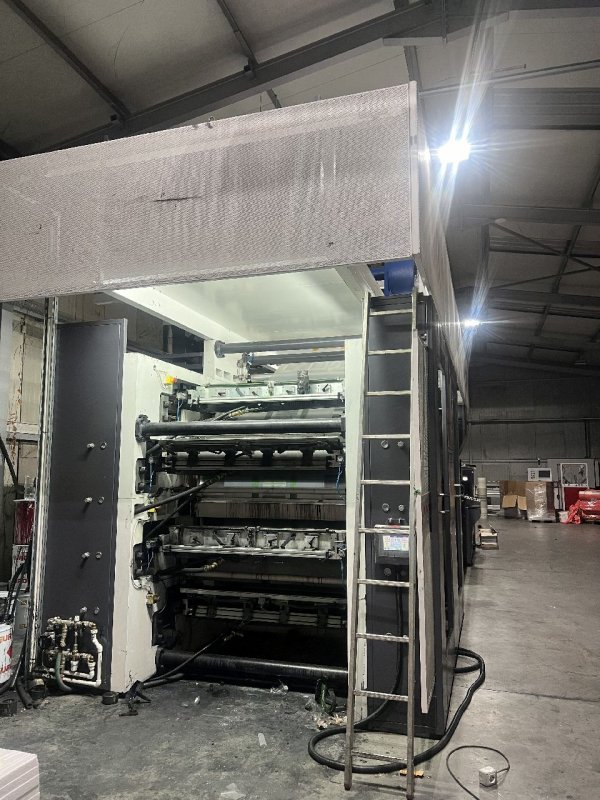

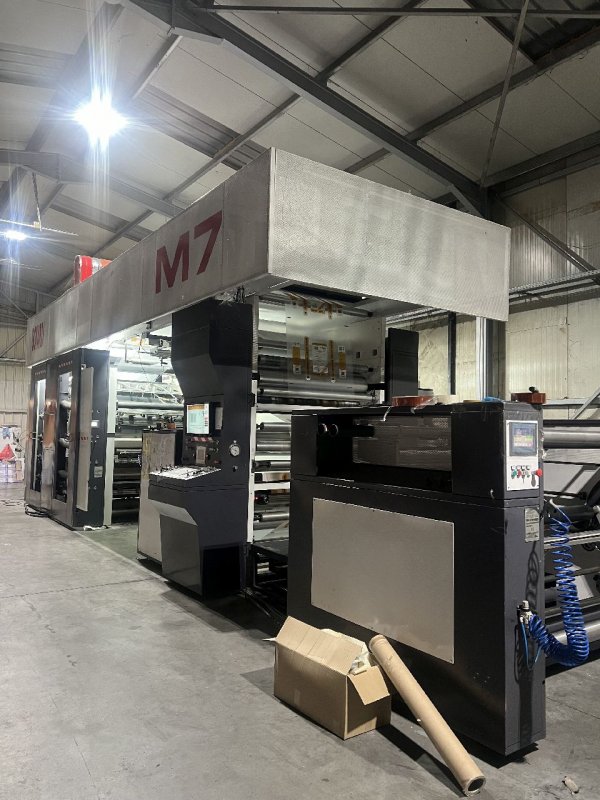

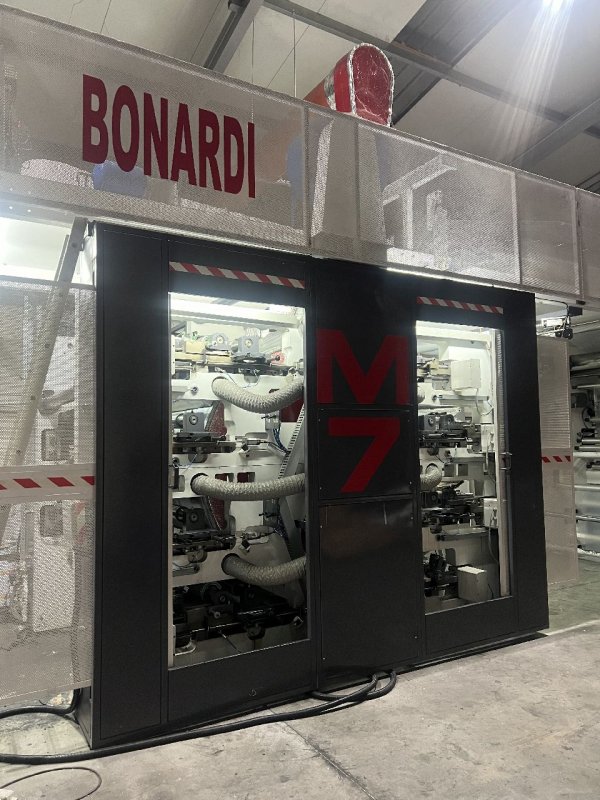

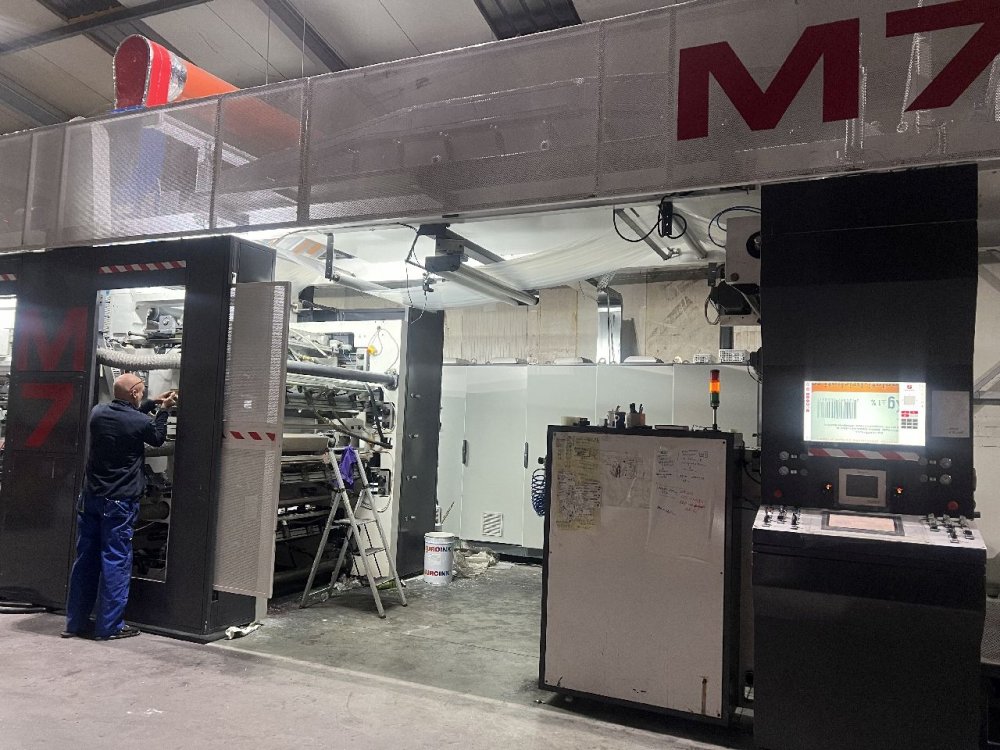

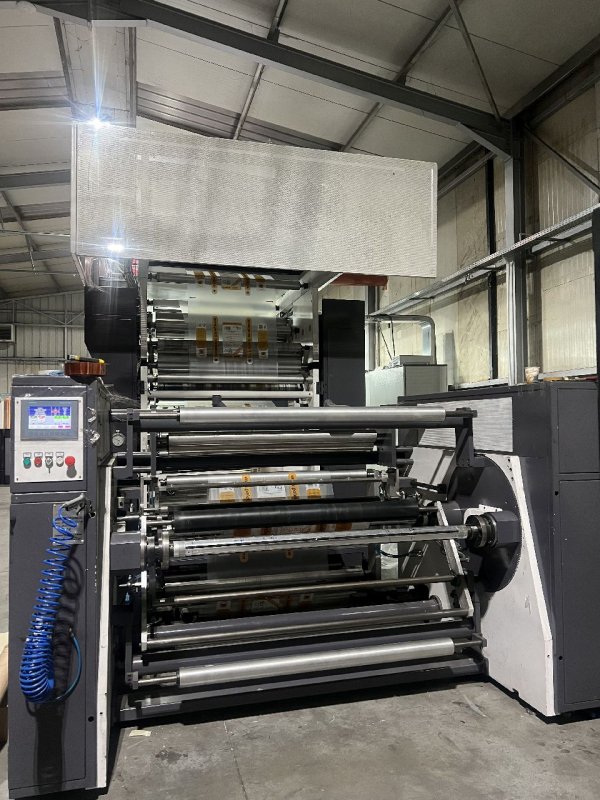

- Machine Code
- FL1136
- Manufacturer
- BONARDI
- Modello
- M7
- Year
- 2020
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1400
- Print width (mm)
- 1360
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- double bracket unwinder with dancing roller tension control
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- Electric
- Videocamera
- Yes
- Web guides
- Yes, 2
- Vyscosity control
- Yes
- Inking system
- Closed chambers doctor blade
- Anilox
- 1 x 100 lines/14 cmc 2 x 180 lines/9 cmc 1 x 220 lines/7,5 cmc 3 x 300 lines/ 5,5 cmc
- Print Sleeves
- 6 x 350 mm 6 x 380 mm 6 x 420 mm 6 x 440 mm 6 x 460 mm 6 x 480 mm 6 x 500 mm 6 x 560 mm 6 x 600 mm
| Machine Code | FL1136 |
| Manufacturer | BONARDI |
| Modello | M7 |
| Year | 2020 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1400 |
| Print width (mm) | 1360 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | double bracket unwinder with dancing roller tension control |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Electric |
| Videocamera | Yes |
| Web guides | Yes, 2 |
| Vyscosity control | Yes |
| Inking system | Closed chambers doctor blade |
| Anilox | 1 x 100 lines/14 cmc 2 x 180 lines/9 cmc 1 x 220 lines/7,5 cmc 3 x 300 lines/ 5,5 cmc |
| Print Sleeves | 6 x 350 mm 6 x 380 mm 6 x 420 mm 6 x 440 mm 6 x 460 mm 6 x 480 mm 6 x 500 mm 6 x 560 mm 6 x 600 mm |
