Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1080
- Manufacturer
- UTECO
- Modello
- ONYX 808 GL 130
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Automatic turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 Drying zones, 4 fans, 5 mt final tunnel , 2 Gas burners , automatic air recirculation with LEL
- Videocamera

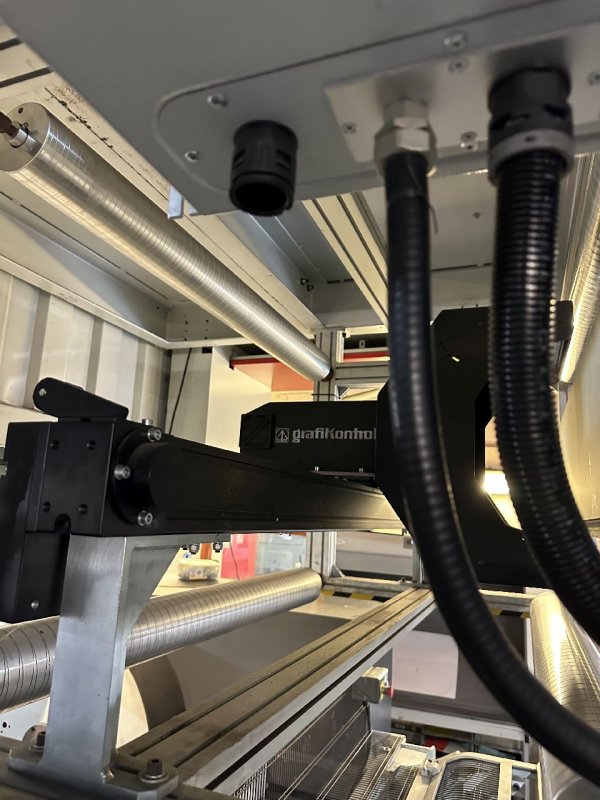

- Yes Grafikontrol with defect control. 3 chip camera + 100% inspection
- Web guides
- Yes
- Vyscosity control
- Yes GAMA
- Washing system
- Auto clean
- Inking system
- Solvent-water based
- Anilox
- 28 ceramic anilox sleeves as follows :6 x 470 L/cm -vol.4; 3 x 470 L/cm-vol.3,75 ; 9 x 275 L/cm, vol 8 ; 1 x 250 L/cm ; 3x 240 L/cm ; 1x 220 L/cm- Vol.9,5; 1x 200 L/cm;-Vol.9 ; 1x 180 L/cm-Vol.9,5 ; 1x 160 L/cm- Vol.14 ; 1x 160 L/cm-vol.9,5; 1x 120 L/cm-vol..16
- Print Sleeves
- 111 as follows : 16 x 340 mm, 8x360 mm; 8c490 , 16x 520 ; 8x 560 ; 8x 600 ; 8x 620 ; 16x 640 , 8x 660 , 8x 680 ;7x 760 .
| Machine Code | FL1080 |
| Manufacturer | UTECO |
| Modello | ONYX 808 GL 130 |
| Year | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Automatic turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic turret |
| Max reel diameter rewinder (mm) | 1000 |

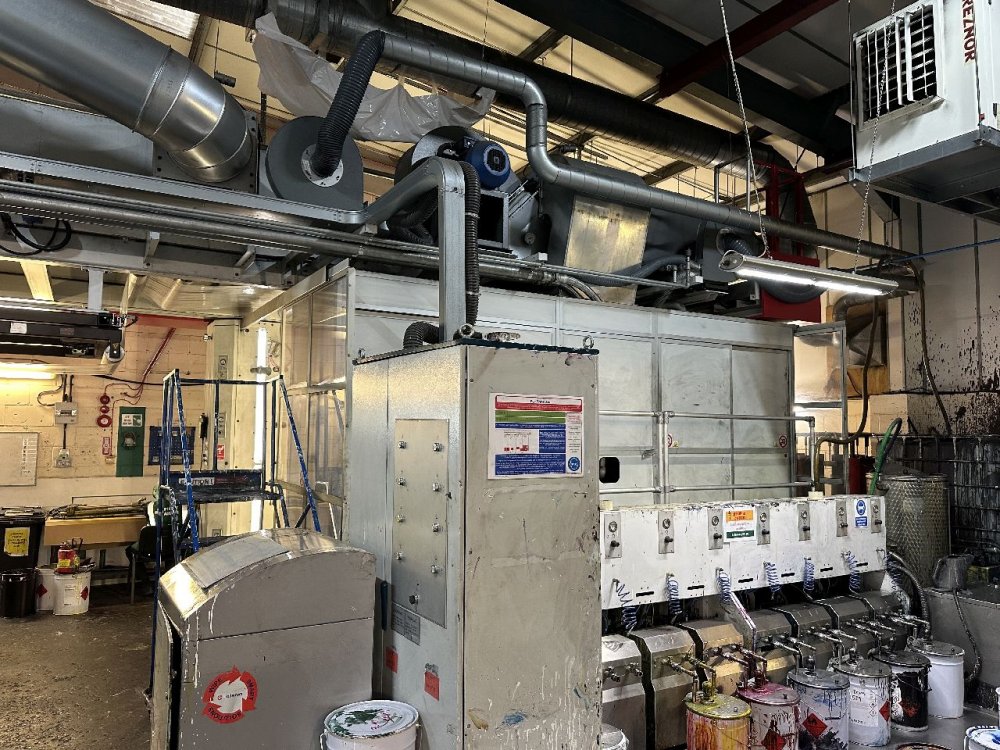

| Drying | 2 Drying zones, 4 fans, 5 mt final tunnel , 2 Gas burners , automatic air recirculation with LEL |
| Videocamera | Yes Grafikontrol with defect control. 3 chip camera + 100% inspection |
| Web guides | Yes |
| Vyscosity control | Yes GAMA |
| Washing system | Auto clean |
| Inking system | Solvent-water based |
| Anilox | 28 ceramic anilox sleeves as follows :6 x 470 L/cm -vol.4; 3 x 470 L/cm-vol.3,75 ; 9 x 275 L/cm, vol 8 ; 1 x 250 L/cm ; 3x 240 L/cm ; 1x 220 L/cm- Vol.9,5; 1x 200 L/cm;-Vol.9 ; 1x 180 L/cm-Vol.9,5 ; 1x 160 L/cm- Vol.14 ; 1x 160 L/cm-vol.9,5; 1x 120 L/cm-vol..16 |
| Print Sleeves | 111 as follows : 16 x 340 mm, 8x360 mm; 8c490 , 16x 520 ; 8x 560 ; 8x 600 ; 8x 620 ; 16x 640 , 8x 660 , 8x 680 ;7x 760 . |
