Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1094
- Manufacturer
- COMIFLEX
- Year
- 2008
- Number of colors
- 6
- Print possibilityes
- 6 CI + 1 stack + UV
- Gearless
- No
- Fast sleeve change
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1580
- Print width (mm)
- 1500
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1200

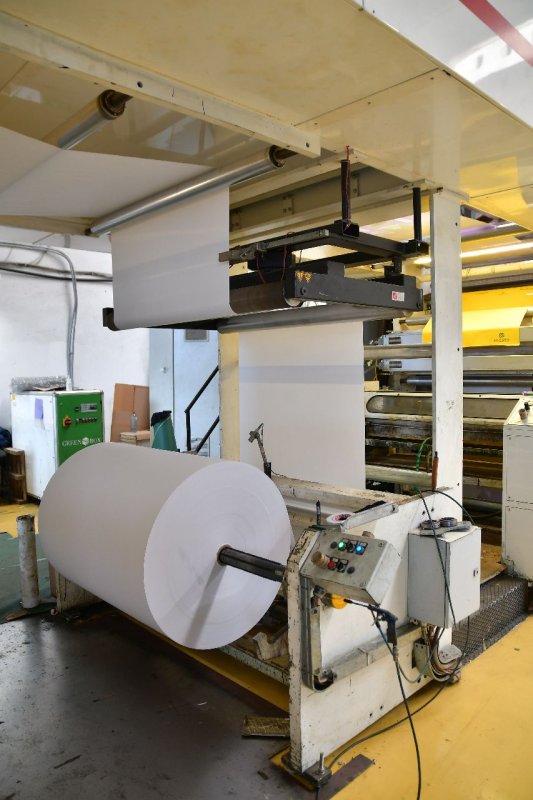

- Unwinder type
- Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
- Max reel diameter rewinder (mm)
- 1200
- Drying
- 2 zones 4 fans, 2 gas burners
- Videocamera
- Yes, L & C Graph
- Corona treatment
- No
- Web guides
- Electronic with ultrasound
- Vyscosity control
- No
- Washing system
- Automatic station
- Inking system
- Automatic station with pneumatic pumps
- Anilox
- total 12 ceramic anilox sleeves as follows 3x 80 l/cm-vol.13 ; 1x 120 l/vm vol.68 ; 2 +2 X 220 l/cm-v. 6,5 ; 1+1 x 140 l/cm-vol.7,8; 1x 140 l/cm-vol.7 ; 1x 50 l/cm-vol.20
- Print Sleeves

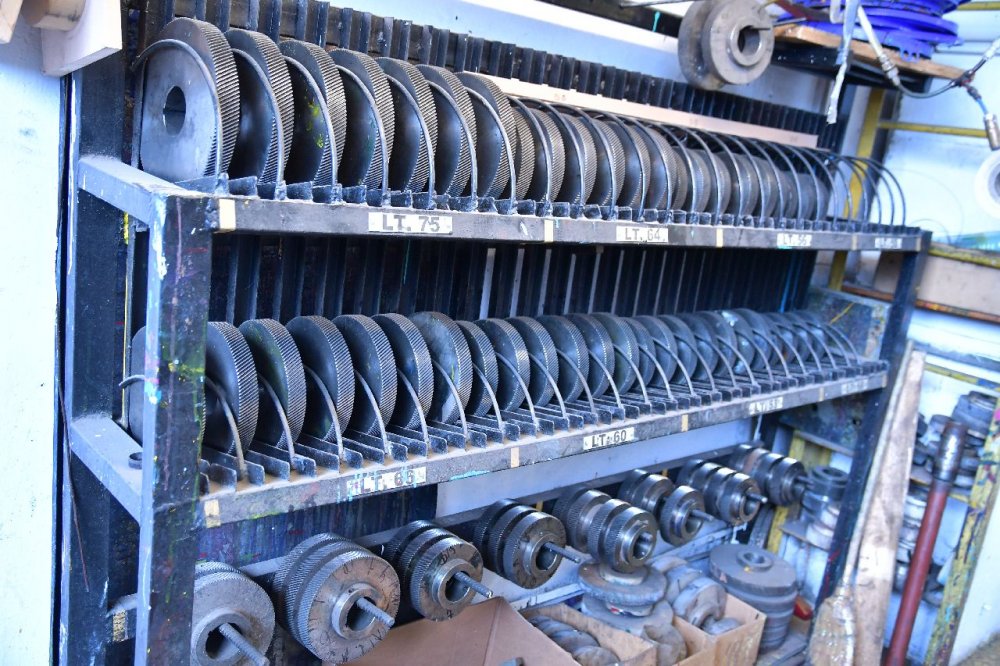

- Total 105 sleeves, 11x440, 6x470, 7x500, 6x520, 11x550, 7x560, 12x600, 12x640, 7x660, 6x680, 7x750, 6x770, 6x800
- Note
- Material : paper / carton 30 - 120 gsm. PRINTING SPEED: up to 250 mpm PRINT CYLINDER GEARING: 1,5915 ( 5 mm )
| Machine Code | FL1094 |
| Manufacturer | COMIFLEX |
| Year | 2008 |
| Number of colors | 6 |
| Print possibilityes | 6 CI + 1 stack + UV |
| Gearless | No |
| Fast sleeve change | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1580 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1200 |
| Unwinder type | Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity |
| Max reel diameter rewinder (mm) | 1200 |
| Drying | 2 zones 4 fans, 2 gas burners |
| Videocamera | Yes, L & C Graph |
| Corona treatment | No |
| Web guides | Electronic with ultrasound |
| Vyscosity control | No |
| Washing system | Automatic station |
| Inking system | Automatic station with pneumatic pumps |
| Anilox | total 12 ceramic anilox sleeves as follows 3x 80 l/cm-vol.13 ; 1x 120 l/vm vol.68 ; 2 +2 X 220 l/cm-v. 6,5 ; 1+1 x 140 l/cm-vol.7,8; 1x 140 l/cm-vol.7 ; 1x 50 l/cm-vol.20 |
| Print Sleeves | Total 105 sleeves, 11x440, 6x470, 7x500, 6x520, 11x550, 7x560, 12x600, 12x640, 7x660, 6x680, 7x750, 6x770, 6x800 |
| Note | Material : paper / carton 30 - 120 gsm. PRINTING SPEED: up to 250 mpm PRINT CYLINDER GEARING: 1,5915 ( 5 mm ) |
