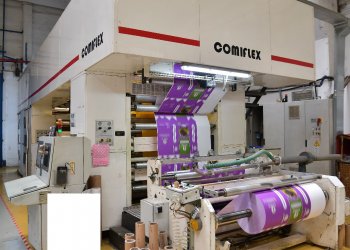

COMIFLEX Flexo printer 6 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Photo Gallery

Ask more informations

Machine Code: FL1094
Manufacturer: COMIFLEX
Year: 2008
Number of colors: 6
Print possibilityes: 6 CI + 1 stack + UV
Gearless: No
Fast sleeve change: Yes
Computer supervision: Yes
Web width (mm): 1580
Print width (mm): 1500
Min print repeat (mm): 400
Max print repeat (mm): 1200

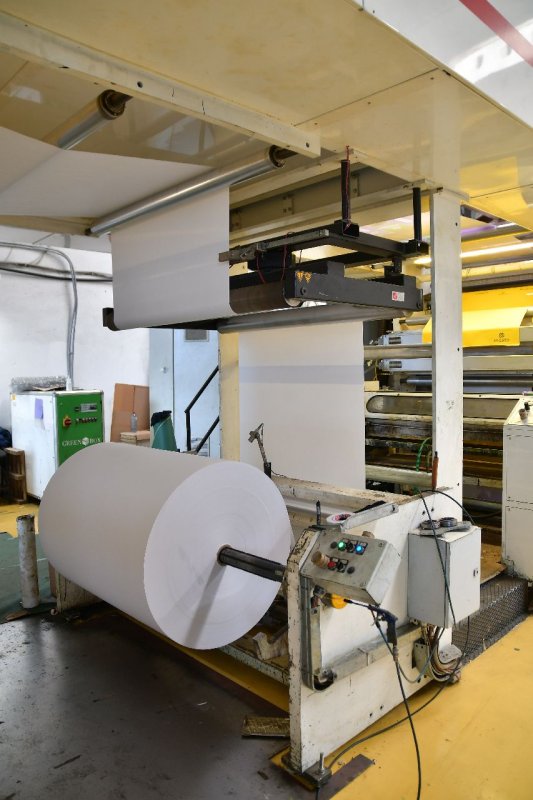

Unwinder type: Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
Max reel diameter unwinder (mm): 1200
Rewinder type: Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
Max reel diameter rewinder (mm): 1200
Drying: 2 zones 4 fans, 2 gas burners
Videocamera: Yes, L & C Graph
Corona treatment: No
Web guides: Electronic with ultrasound
Vyscosity control: No
Washing system: Automatic station
Inking system: Automatic station with pneumatic pumps
Anilox: total 12 ceramic anilox sleeves as follows 3x 80 l/cm-vol.13 ; 1x 120 l/vm vol.68 ; 2 +2 X 220 l/cm-v. 6,5 ; 1+1 x 140 l/cm-vol.7,8; 1x 140 l/cm-vol.7 ; 1x 50 l/cm-vol.20
Print Sleeves: Total 105 sleeves, 11x440, 6x470, 7x500, 6x520, 11x550, 7x560, 12x600, 12x640, 7x660, 6x680, 7x750, 6x770, 6x800
Note: Material : paper / carton 30 - 120 gsm. PRINTING SPEED: up to 250 mpm PRINT CYLINDER GEARING: 1,5915 ( 5 mm )

Machine Code	FL1094
Manufacturer	COMIFLEX
Year	2008
Number of colors	6
Print possibilityes	6 CI + 1 stack + UV
Gearless	No
Fast sleeve change	Yes
Computer supervision	Yes
Web width (mm)	1580
Print width (mm)	1500
Min print repeat (mm)	400
Max print repeat (mm)	1200
Unwinder type	Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
Max reel diameter unwinder (mm)	1200
Rewinder type	Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
Max reel diameter rewinder (mm)	1200
Drying	2 zones 4 fans, 2 gas burners
Videocamera	Yes, L & C Graph
Corona treatment	No
Web guides	Electronic with ultrasound
Vyscosity control	No
Washing system	Automatic station
Inking system	Automatic station with pneumatic pumps
Anilox	total 12 ceramic anilox sleeves as follows 3x 80 l/cm-vol.13 ; 1x 120 l/vm vol.68 ; 2 +2 X 220 l/cm-v. 6,5 ; 1+1 x 140 l/cm-vol.7,8; 1x 140 l/cm-vol.7 ; 1x 50 l/cm-vol.20
Print Sleeves	Total 105 sleeves, 11x440, 6x470, 7x500, 6x520, 11x550, 7x560, 12x600, 12x640, 7x660, 6x680, 7x750, 6x770, 6x800
Note	Material : paper / carton 30 - 120 gsm. PRINTING SPEED: up to 250 mpm PRINT CYLINDER GEARING: 1,5915 ( 5 mm )
