** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1076
- Manufacturer
- UTECO
- Modello
- EMERALD 825
- Year
- 2007
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

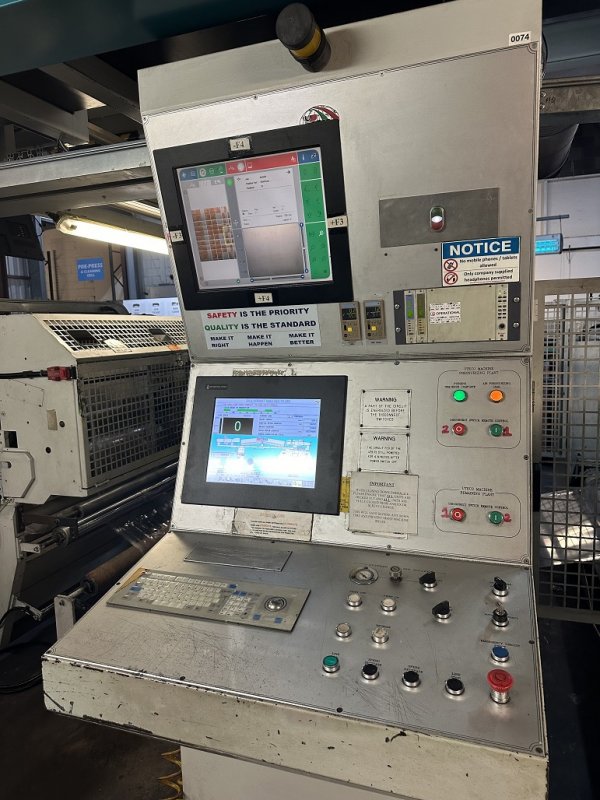

- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 800

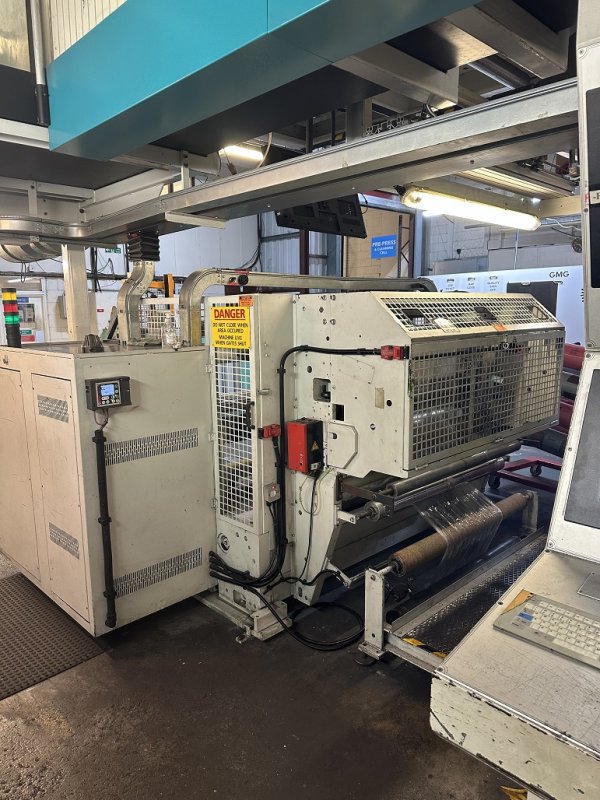

- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans, 2 gas burners: DRYING TUNNEL: tot heat 216kW, air speed 35m/s, 6 mt length, In blow fan 10000Nm3/h outflow 1200Nm3/h, BETWEEN COL DRY: tot heat 118kW, air speed 35m/s, In blow fan 6900Nm3/h outflow 8300Nm3/h

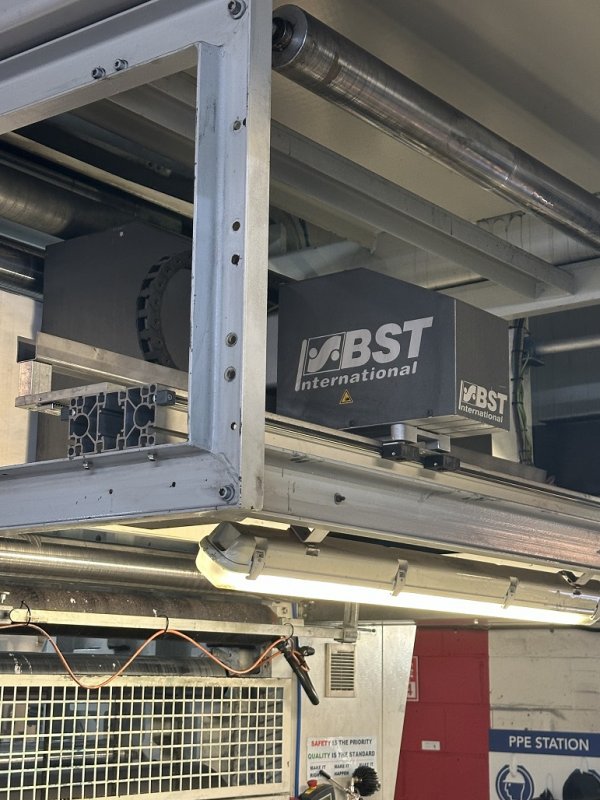

- Videocamera
- BST with defect control
- Inking system
- Closed chamber doctor blades
- Anilox
- 16 ceramic anilox sleeves
- Print Sleeves
- 116 print sleeves
- Note
- Available as optional for additional price plate mounter Heaford with cameras. Mandrel already suitable for this press. Mechanical speed 365 m/min chiller
| Machine Code | FL1076 |
| Manufacturer | UTECO |
| Modello | EMERALD 825 |
| Year | 2007 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans, 2 gas burners: DRYING TUNNEL: tot heat 216kW, air speed 35m/s, 6 mt length, In blow fan 10000Nm3/h outflow 1200Nm3/h, BETWEEN COL DRY: tot heat 118kW, air speed 35m/s, In blow fan 6900Nm3/h outflow 8300Nm3/h |
| Videocamera | BST with defect control |
| Inking system | Closed chamber doctor blades |
| Anilox | 16 ceramic anilox sleeves |
| Print Sleeves | 116 print sleeves |
| Note | Available as optional for additional price plate mounter Heaford with cameras. Mandrel already suitable for this press. Mechanical speed 365 m/min chiller |
