** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL1166
- Manufacturer
- OFEM
- Modello
- ARENA
- Year
- 2004
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Automatic Turret
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Automatic Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- Thermal oil
- Web guides
- 2 webguide system 1 before printing unit 1 before winder
- Vyscosity control
- Gama Viscosity Control System VISG265VID

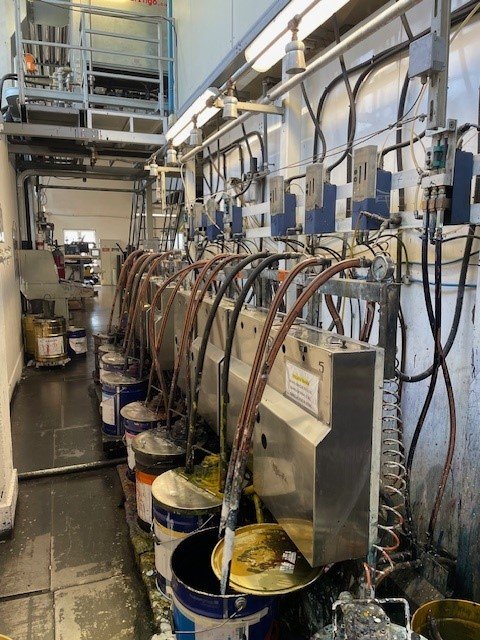

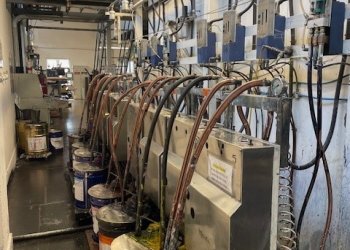

- Inking system
- Closed chamber doctor blades
- Anilox
- 28 approx. 2x90 L/cm-vol. 20, 1x140 L/cm-vol. 16, 1x130 L/cm-vol. 11, 2x 180 L/cm-vol. 10, 1x200 L/cm-vol. 9,5, 1x200 L/cm-vol. 7, 1x280 L/cm-vol. 10, 2x280 L/cm-vol. 8, 2x 300 L/cm-vol. 7, 2x 320 L/cm-vol. 6, 2x360 L/cm-vol. 8, 1x360 L/cm-vol. 7, 2x 360 L/cm-vol. 6, 1x 420 L/cm-vol. 4,2, 5x 460 L/cm-vol. 4,5, 1x 480 L/cm-vol. 3,6, 1x 520 L/cm-vol. 4,5, 1x Apex L
- Print Sleeves
- 438 approx. repeats as follows: 340, 350, 360, 370, 380, 390, 400, 410, 420, 425, 430, 440, 450,460, 470, 480, 490, 500, 510, 520, 530, 535, 540, 550, 560, 620, 625, 630, 640, 660, 670, 680, 710
- Print cylinders
- 2 sets of carriers
| Machine Code | FL1166 |
| Manufacturer | OFEM |
| Modello | ARENA |
| Year | 2004 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Automatic Turret |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Automatic Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Thermal oil |
| Web guides | 2 webguide system 1 before printing unit 1 before winder |
| Vyscosity control | Gama Viscosity Control System VISG265VID |
| Inking system | Closed chamber doctor blades |
| Anilox | 28 approx. 2x90 L/cm-vol. 20, 1x140 L/cm-vol. 16, 1x130 L/cm-vol. 11, 2x 180 L/cm-vol. 10, 1x200 L/cm-vol. 9,5, 1x200 L/cm-vol. 7, 1x280 L/cm-vol. 10, 2x280 L/cm-vol. 8, 2x 300 L/cm-vol. 7, 2x 320 L/cm-vol. 6, 2x360 L/cm-vol. 8, 1x360 L/cm-vol. 7, 2x 360 L/cm-vol. 6, 1x 420 L/cm-vol. 4,2, 5x 460 L/cm-vol. 4,5, 1x 480 L/cm-vol. 3,6, 1x 520 L/cm-vol. 4,5, 1x Apex L |
| Print Sleeves | 438 approx. repeats as follows: 340, 350, 360, 370, 380, 390, 400, 410, 420, 425, 430, 440, 450,460, 470, 480, 490, 500, 510, 520, 530, 535, 540, 550, 560, 620, 625, 630, 640, 660, 670, 680, 710 |
| Print cylinders | 2 sets of carriers |
