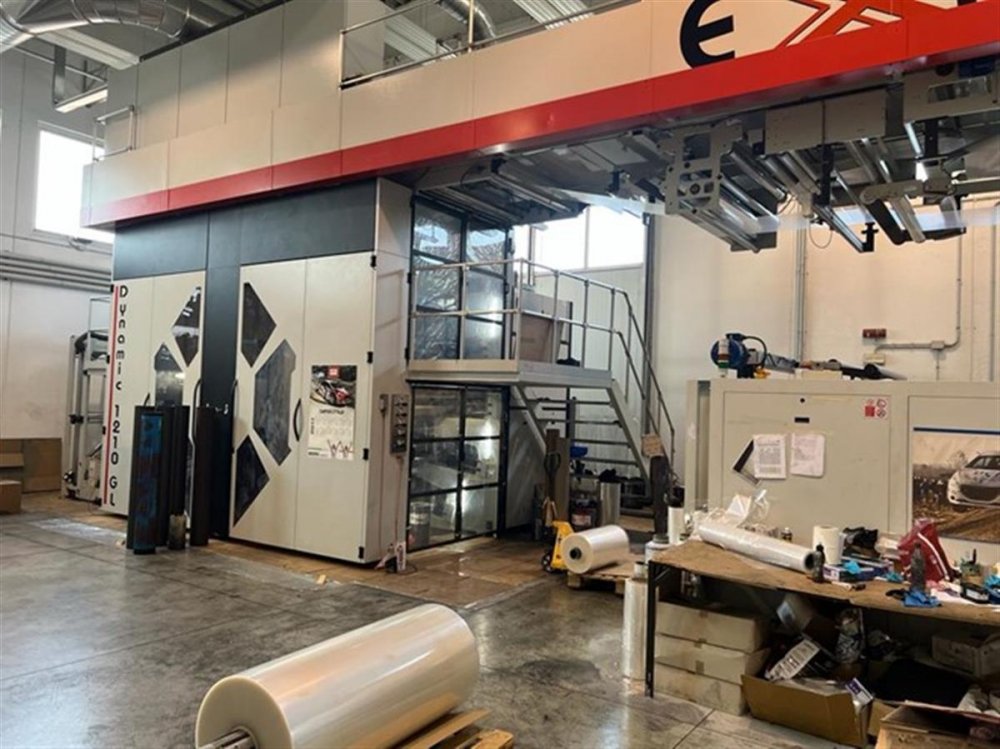

EXPERT DYNAMIC 10 Flexo printer 10 colors

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
Machine Code
FL1033
Manufacturer
EXPERT
Modello
DYNAMIC 10
Year
2016
Number of colors
10
Print possibilityes
10+0 , 5+5 , 10+10
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1550
Print width (mm)
1500
Min print repeat (mm)
540
Max print repeat (mm)
1250
Unwinder type
Turret Automatic auto splic e bidirectional
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret Automatic auto splic e bidirectional
Max reel diameter rewinder (mm)
1000
Drying
2 zones final tunnel 6 mt 2 gas burners
Videocamera
yes BST with auto register
Web guides
yes in and out
Vyscosity control
yes
Washing system
yes
Anilox
24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2
Note

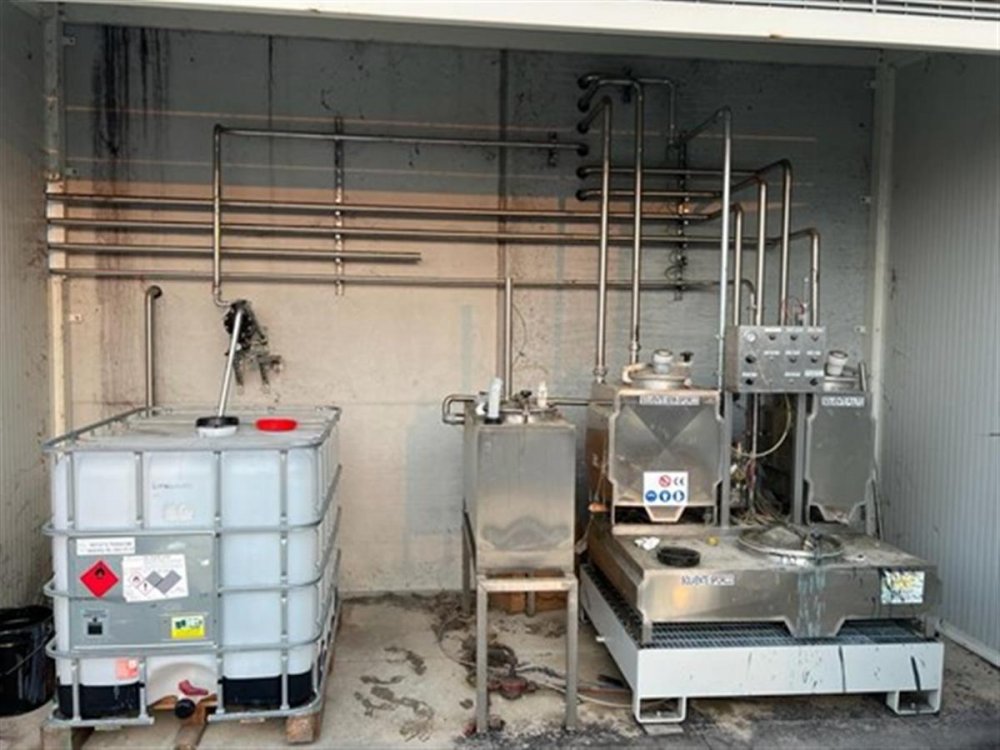

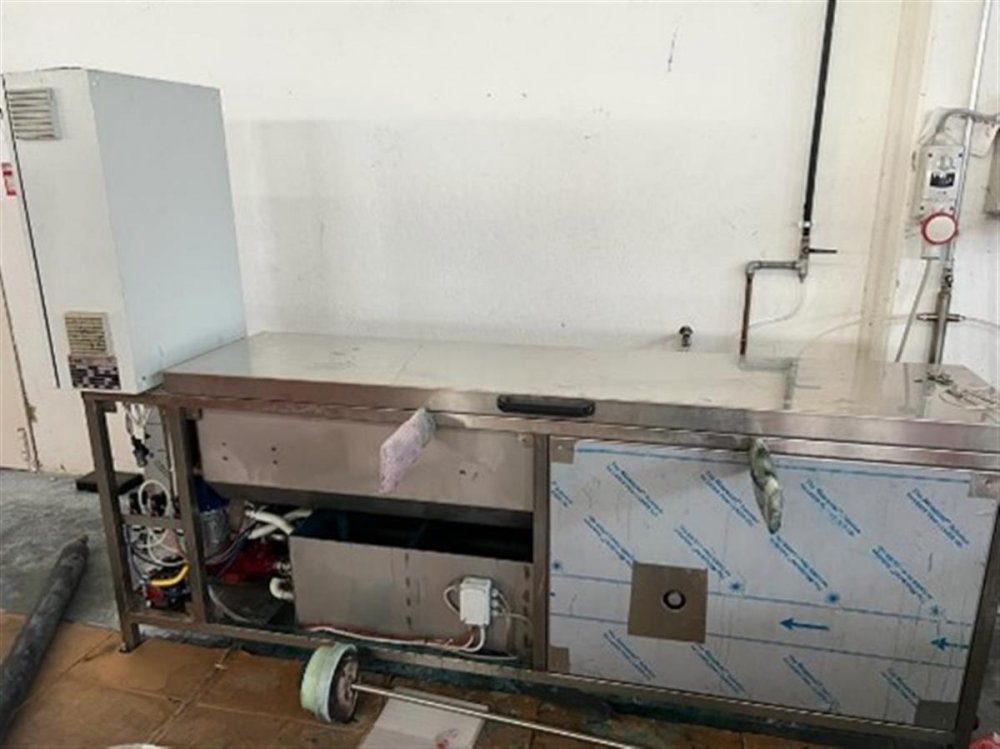

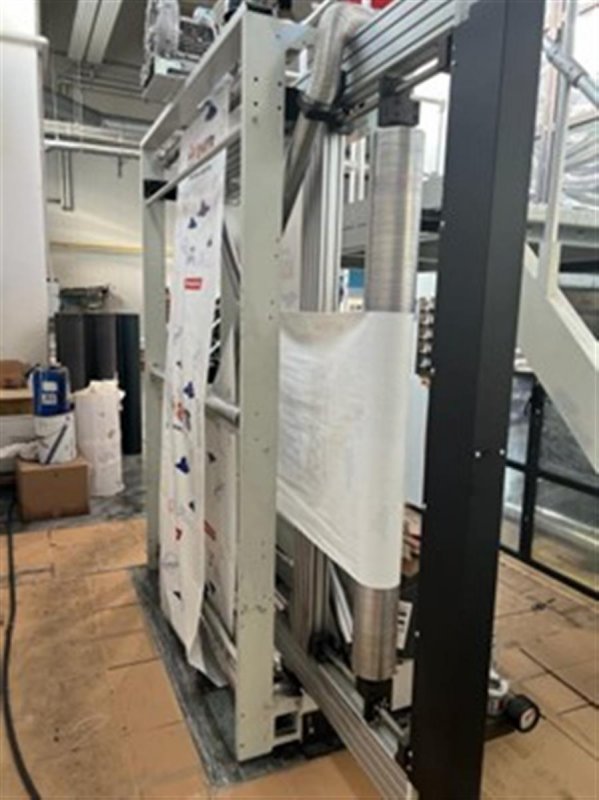

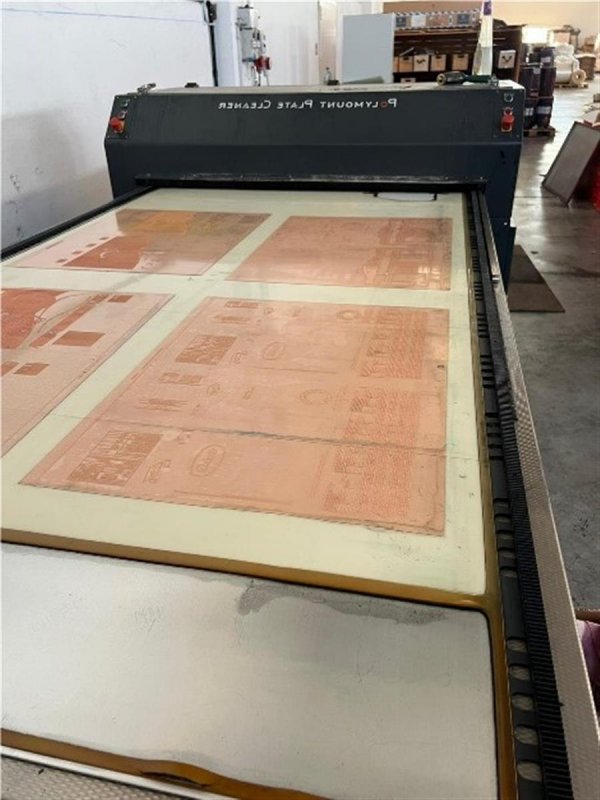

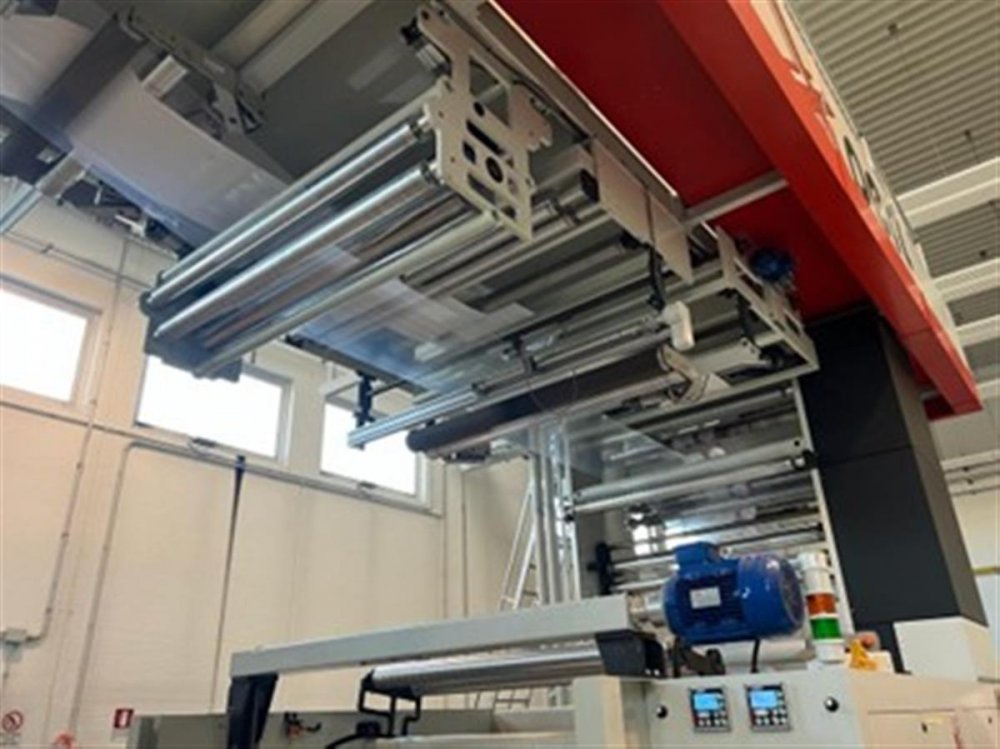

Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller
Machine Code FL1033
Manufacturer EXPERT
Modello DYNAMIC 10
Year 2016
Number of colors 10
Print possibilityes 10+0 , 5+5 , 10+10
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1550
Print width (mm) 1500
Min print repeat (mm) 540
Max print repeat (mm) 1250
Unwinder type Turret Automatic auto splic e bidirectional
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic auto splic e bidirectional
Max reel diameter rewinder (mm) 1000
Drying 2 zones final tunnel 6 mt 2 gas burners
Videocamera yes BST with auto register
Web guides yes in and out
Vyscosity control yes
Washing system yes
Anilox 24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2
Note Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller
