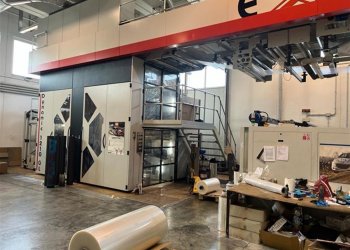

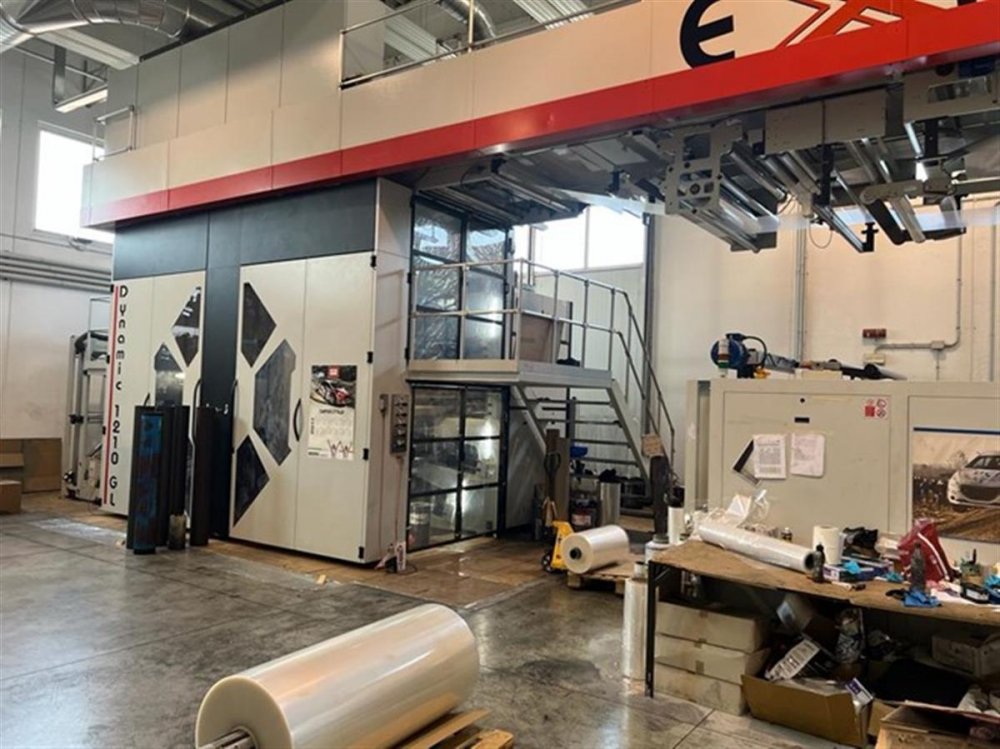

- Code Machine
- FL1033
- Fabricant
- EXPERT
- Modello
- DYNAMIC 10
- Année
- 2016
- Number of colors
- 10
- Print possibilityes
- 10+0 , 5+5 , 10+10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1550
- Print width (mm)
- 1500
- Min print repeat (mm)
- 540
- Max print repeat (mm)
- 1250
- Unwinder type
- Turret Automatic auto splic e bidirectional
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic auto splic e bidirectional
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones final tunnel 6 mt 2 gas burners
- Videocamera
- yes BST with auto register
- Web guides
- yes in and out
- Vyscosity control
- yes
- Washing system
- yes
- Anilox
- 24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2
- Note

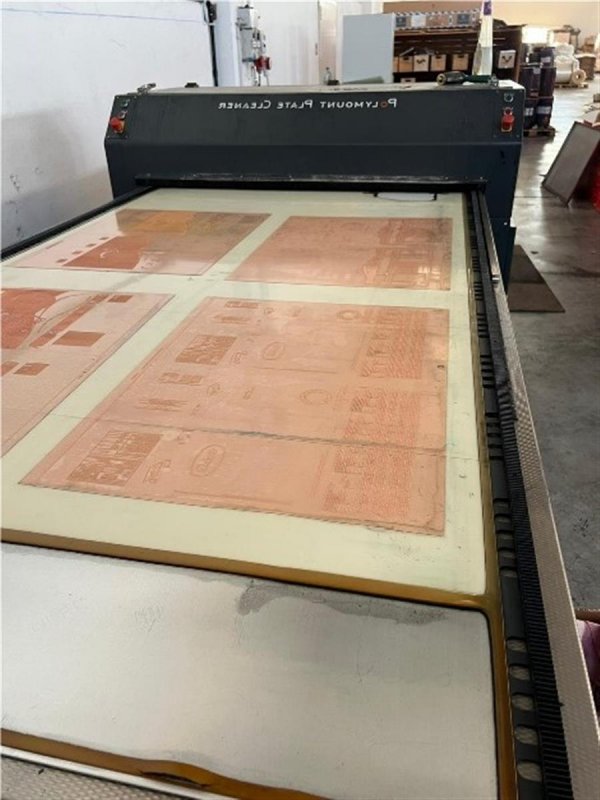

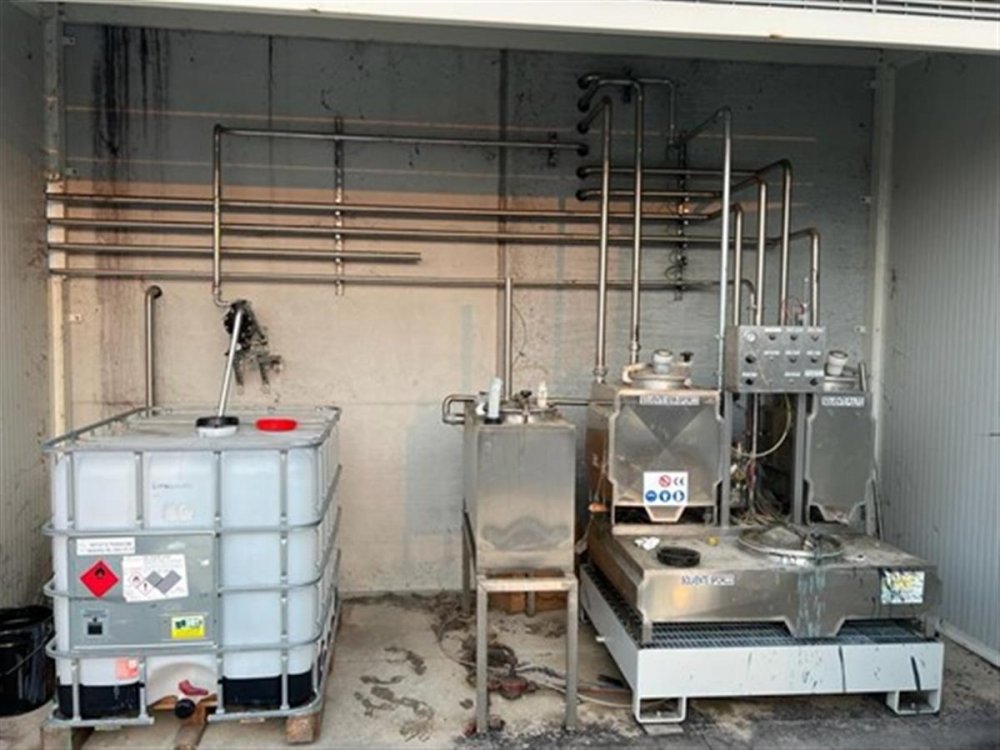

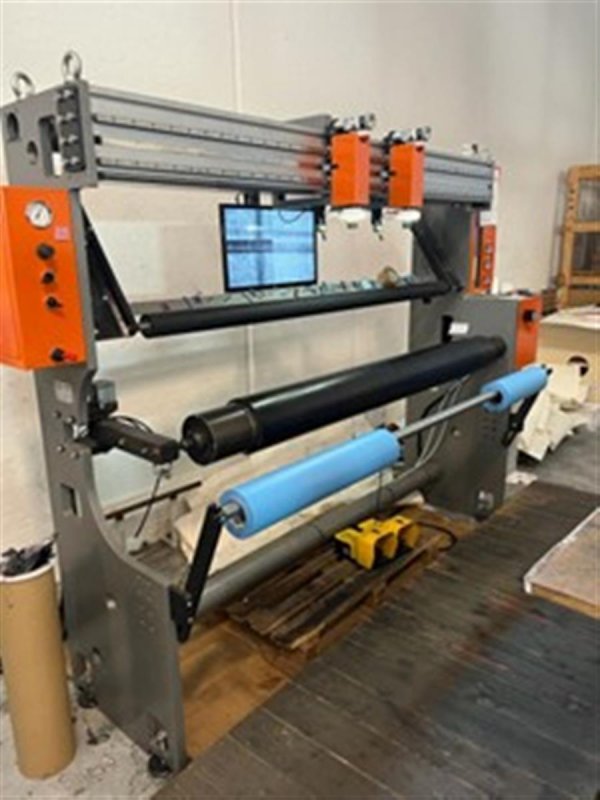

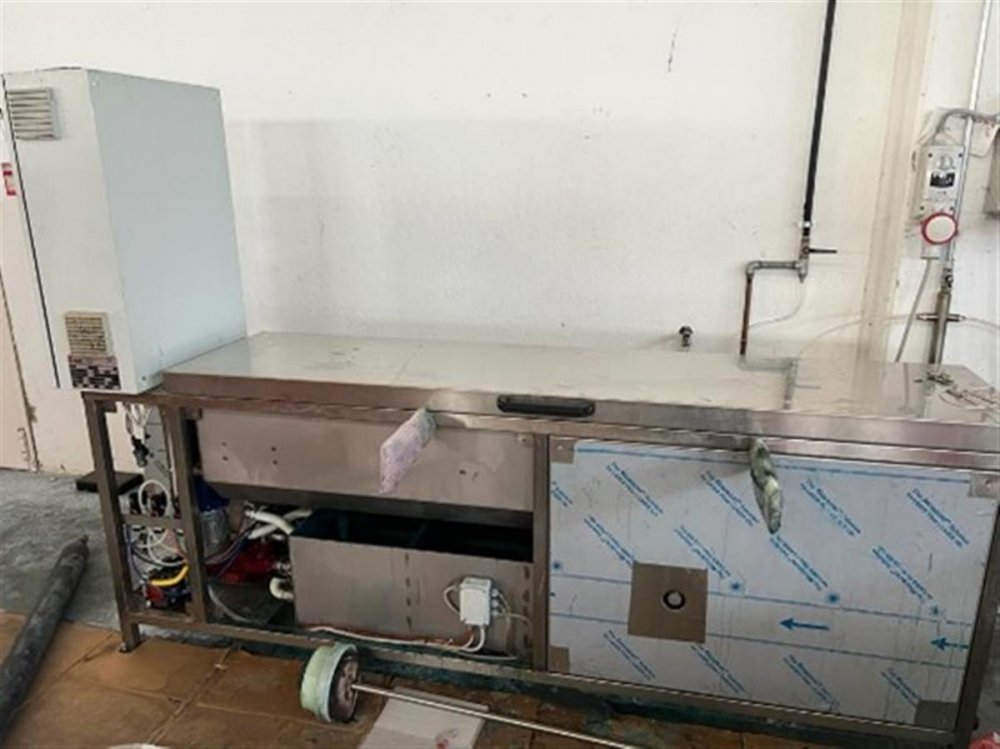

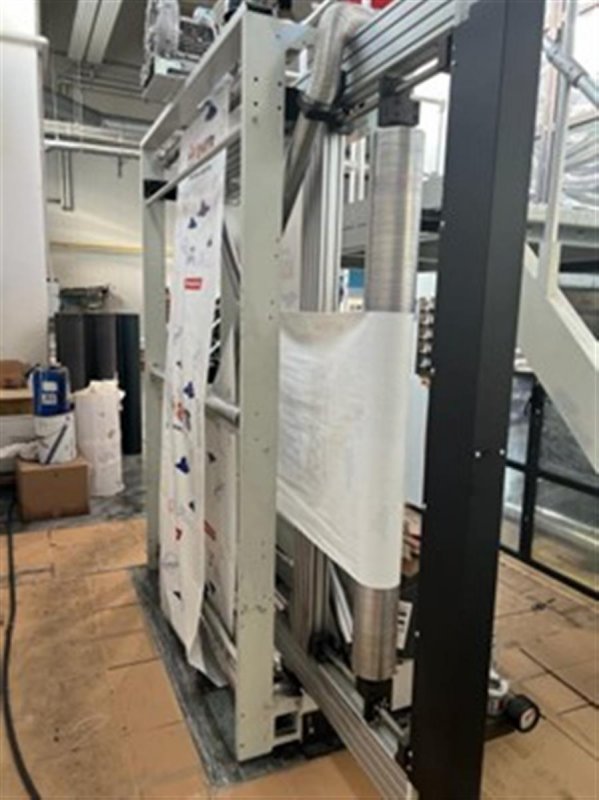

- Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller
| Code Machine | FL1033 |
| Fabricant | EXPERT |
| Modello | DYNAMIC 10 |
| Année | 2016 |
| Number of colors | 10 |
| Print possibilityes | 10+0 , 5+5 , 10+10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1550 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 540 |
| Max print repeat (mm) | 1250 |
| Unwinder type | Turret Automatic auto splic e bidirectional |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic auto splic e bidirectional |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones final tunnel 6 mt 2 gas burners |
| Videocamera | yes BST with auto register |
| Web guides | yes in and out |
| Vyscosity control | yes |
| Washing system | yes |
| Anilox | 24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2 |
| Note | Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller |
