- Codice Macchina
- FL1033
- Manufacturer

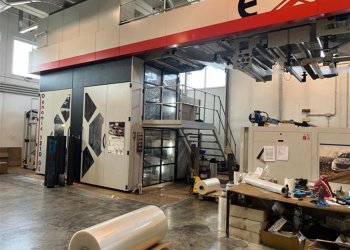

- EXPERT
- Modello

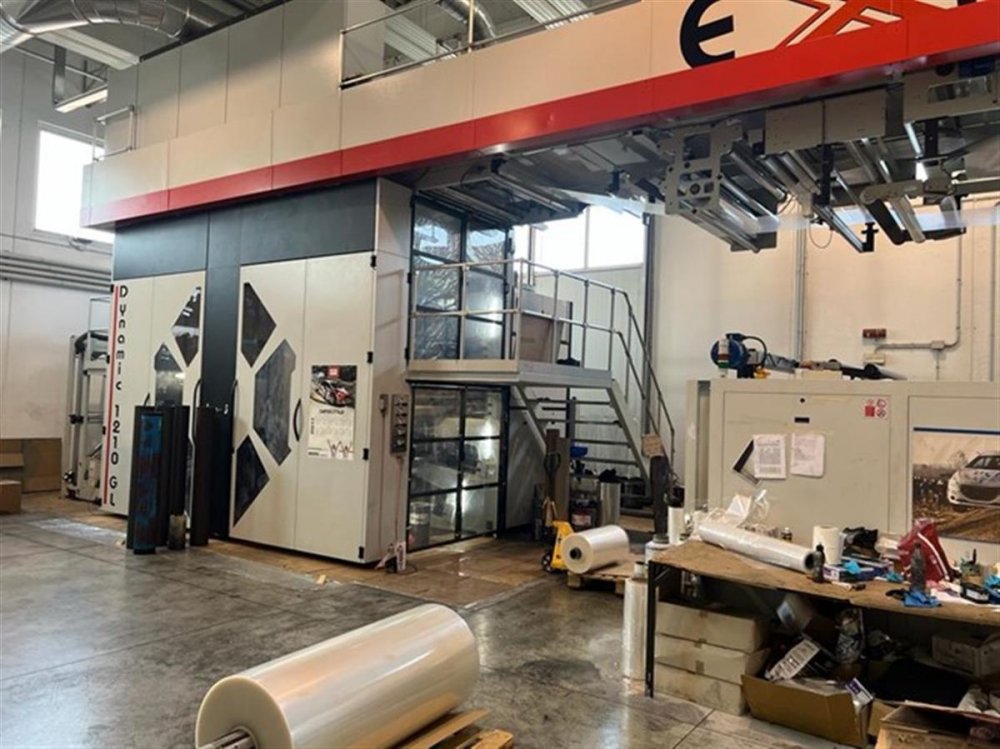

- DYNAMIC 10
- Year
- 2016
- Numero di colori
- 10
- Print possibilityes
- 10+0 , 5+5 , 10+10
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1550
- Larghezza stampa (mm)
- 1500
- Min print repeat (mm)
- 540
- Max print repeat (mm)
- 1250

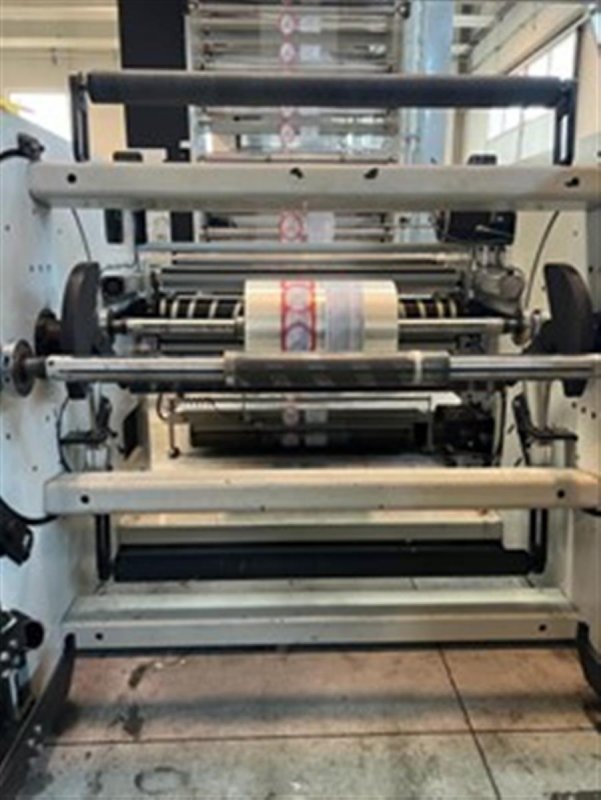

- Unwinder type
- Turret Automatic auto splic e bidirectional
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Turret Automatic auto splic e bidirectional
- Max reel diameter rewinder (mm)
- 1000
- Essiccazione
- 2 zones final tunnel 6 mt 2 gas burners
- Videocamera
- yes BST with auto register
- Guida film
- yes in and out

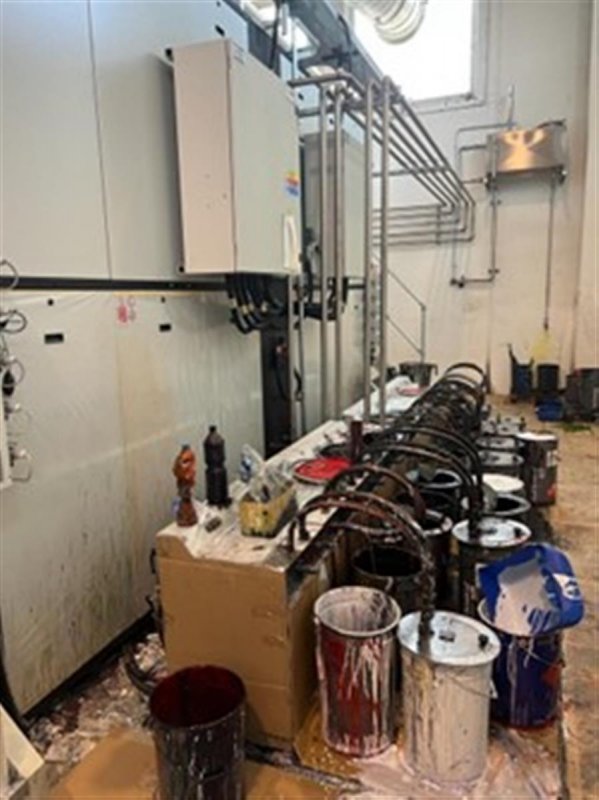

- Vyscosity control
- yes
- Washing system
- yes
- Anilox
- 24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2
- Ulteriori informazioni

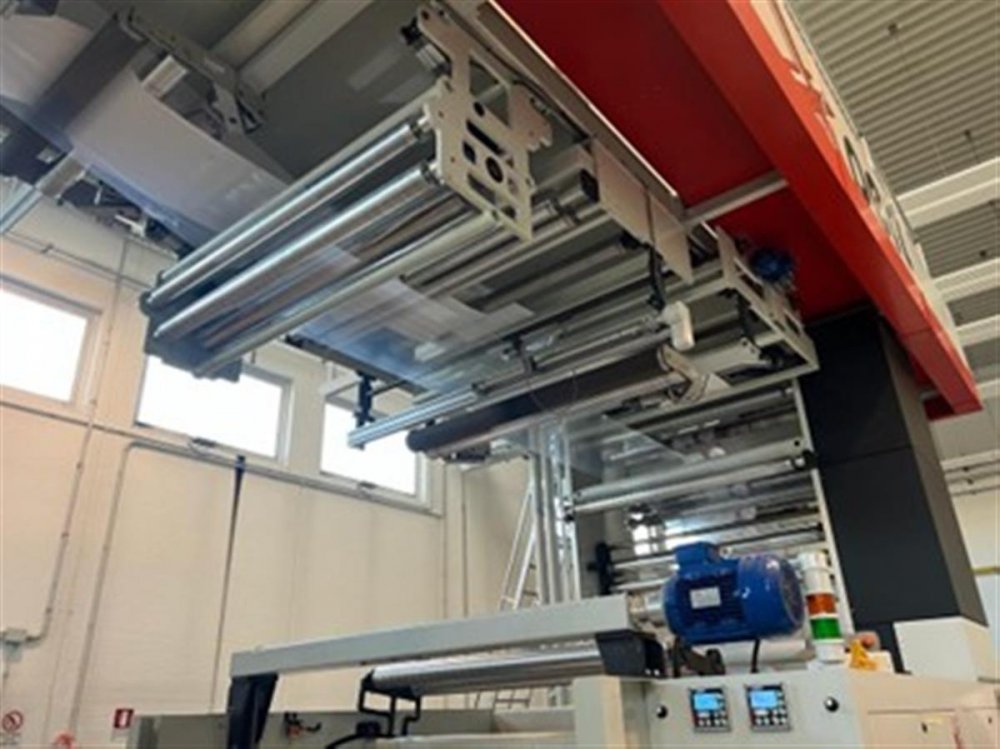

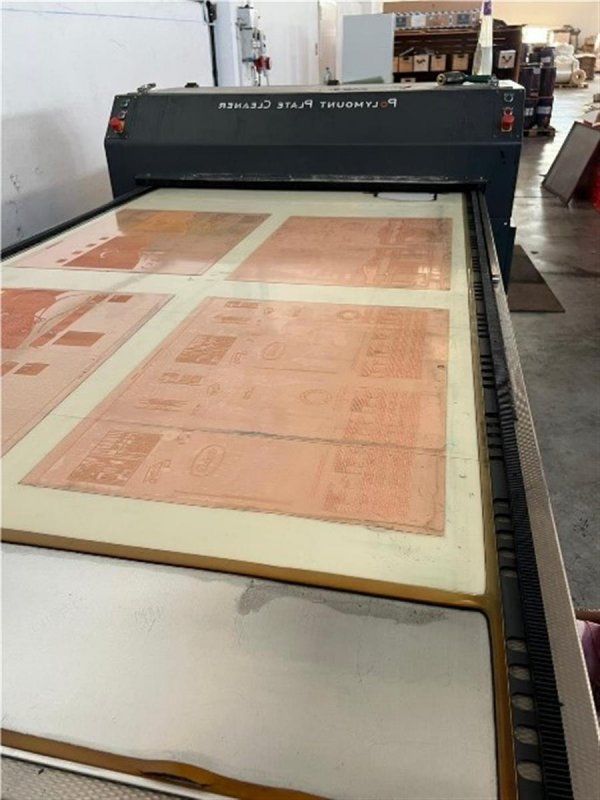

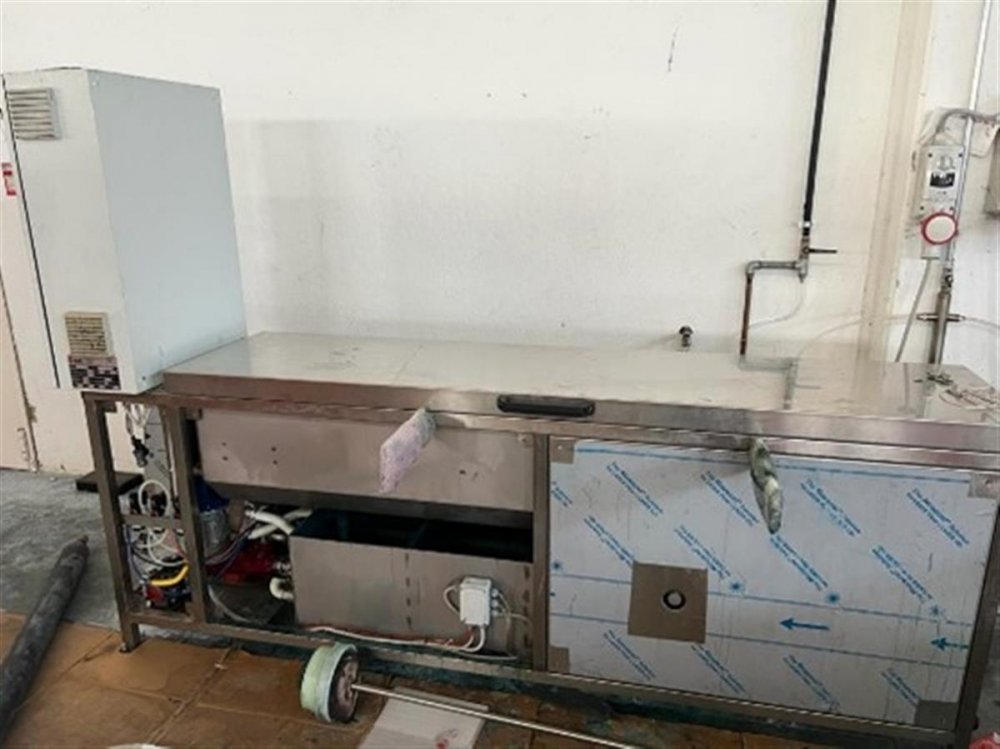

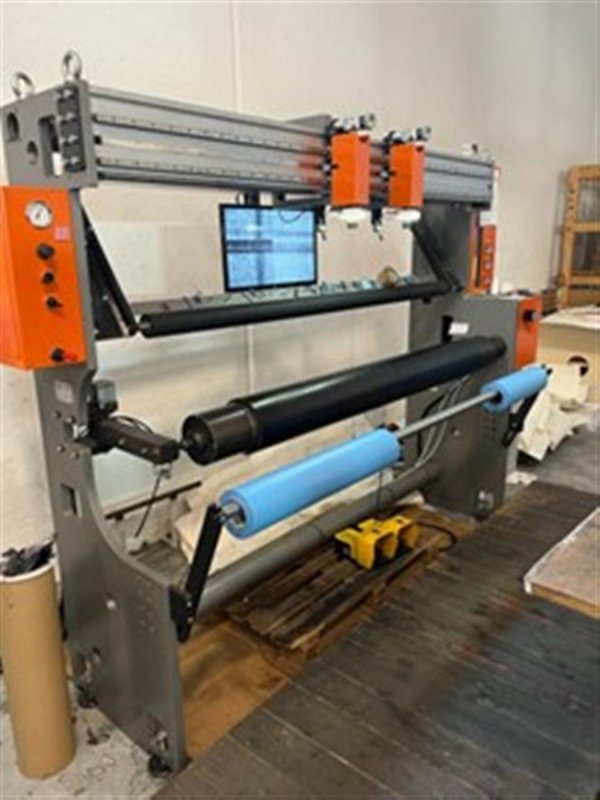

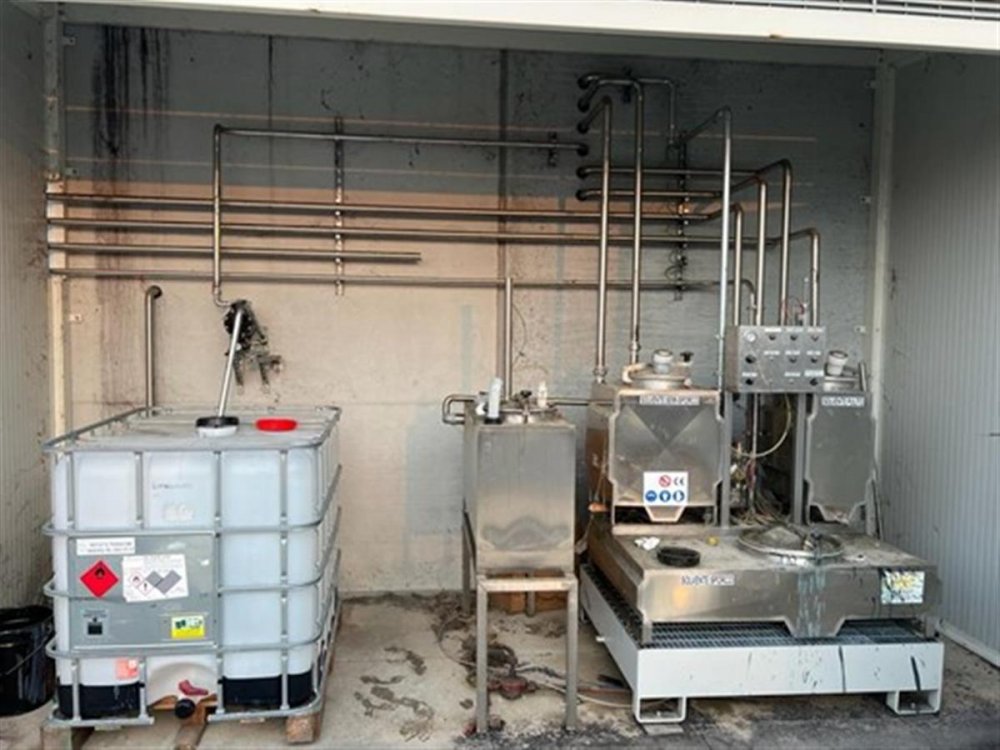

- Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller
| Codice Macchina | FL1033 |
| Manufacturer | EXPERT |
| Modello | DYNAMIC 10 |
| Year | 2016 |
| Numero di colori | 10 |
| Print possibilityes | 10+0 , 5+5 , 10+10 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1550 |
| Larghezza stampa (mm) | 1500 |
| Min print repeat (mm) | 540 |
| Max print repeat (mm) | 1250 |

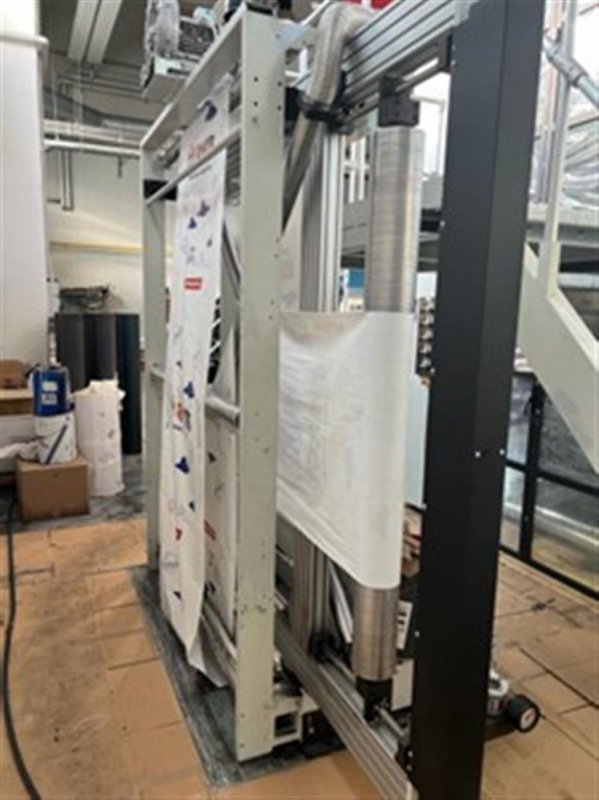

| Unwinder type | Turret Automatic auto splic e bidirectional |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Turret Automatic auto splic e bidirectional |
| Max reel diameter rewinder (mm) | 1000 |
| Essiccazione | 2 zones final tunnel 6 mt 2 gas burners |
| Videocamera | yes BST with auto register |
| Guida film | yes in and out |
| Vyscosity control | yes |
| Washing system | yes |
| Anilox | 24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2 |
| Ulteriori informazioni | Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller |
