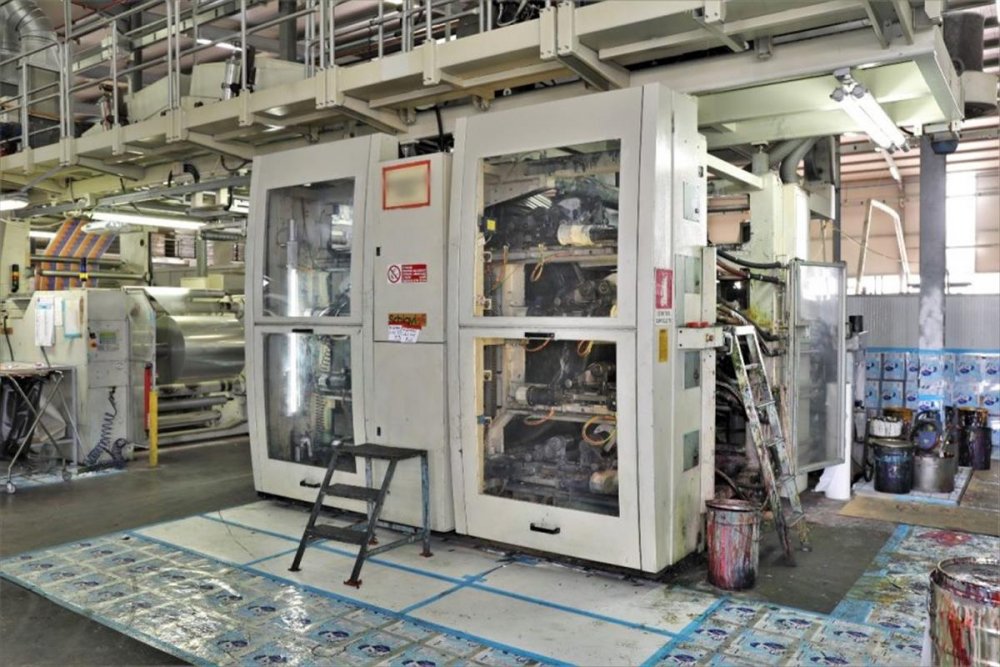

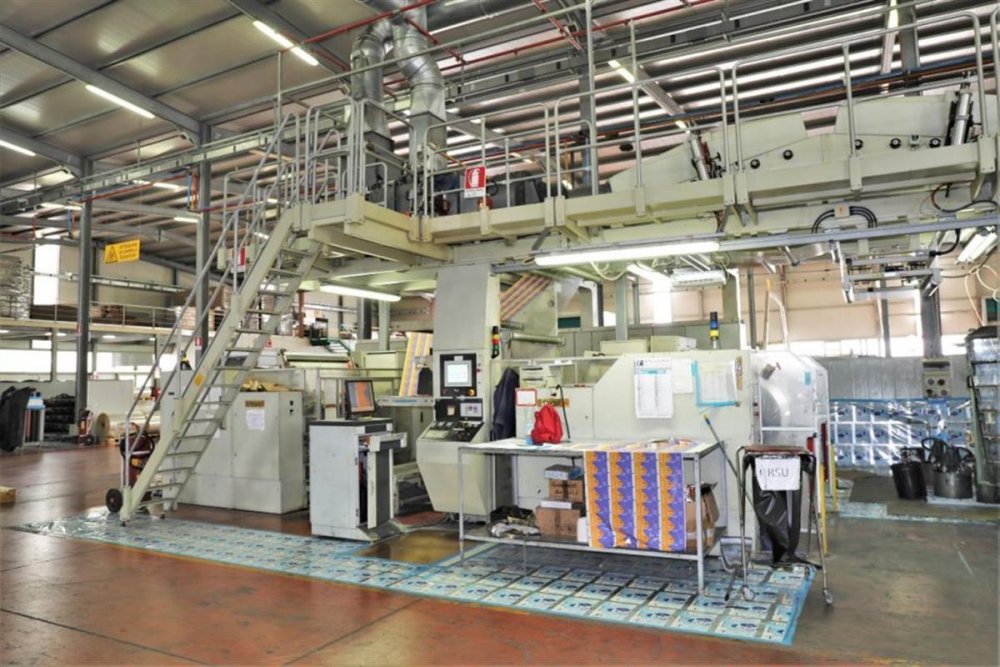

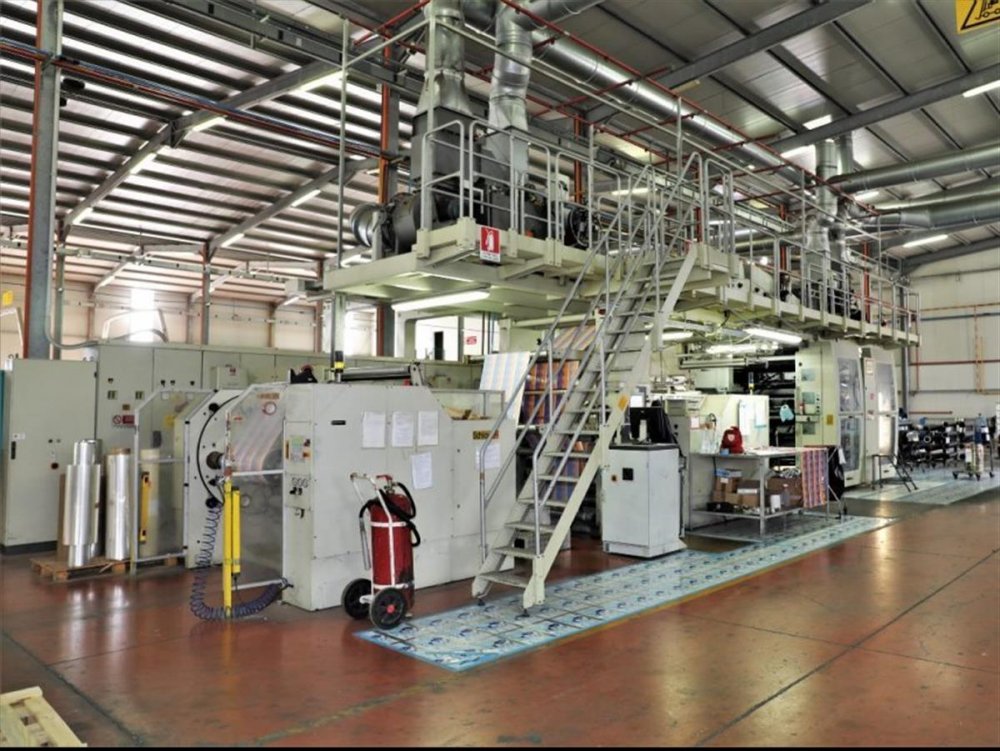

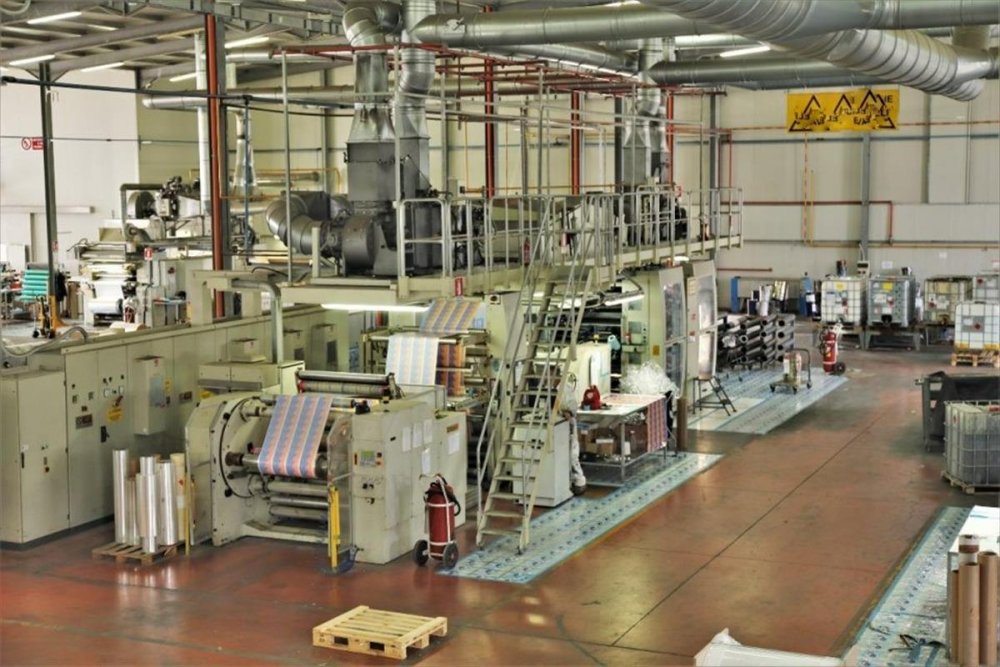

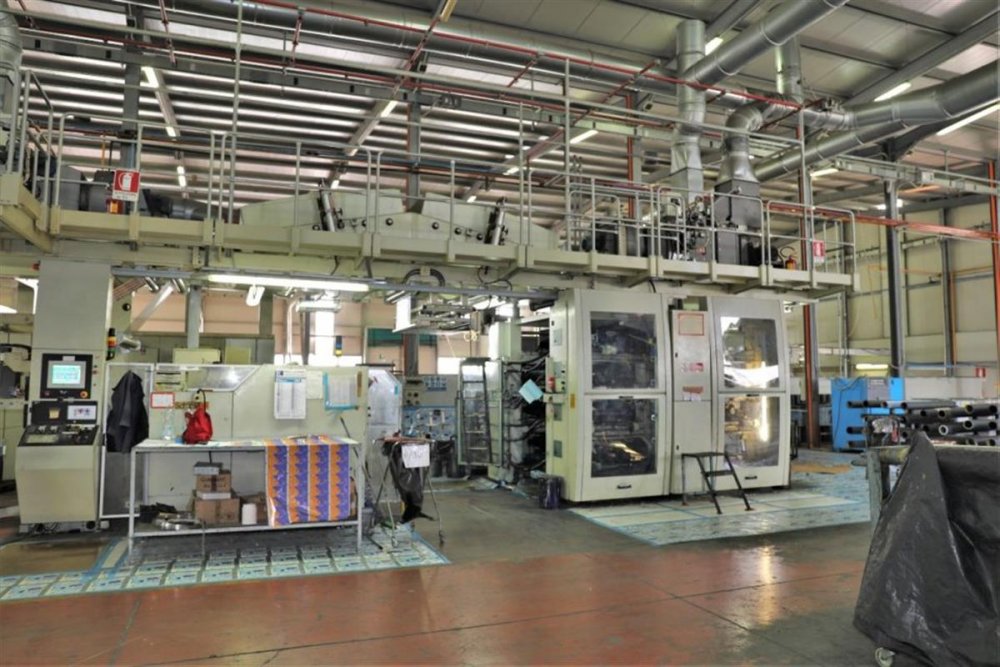

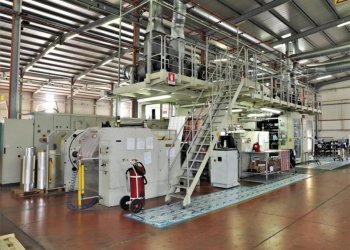

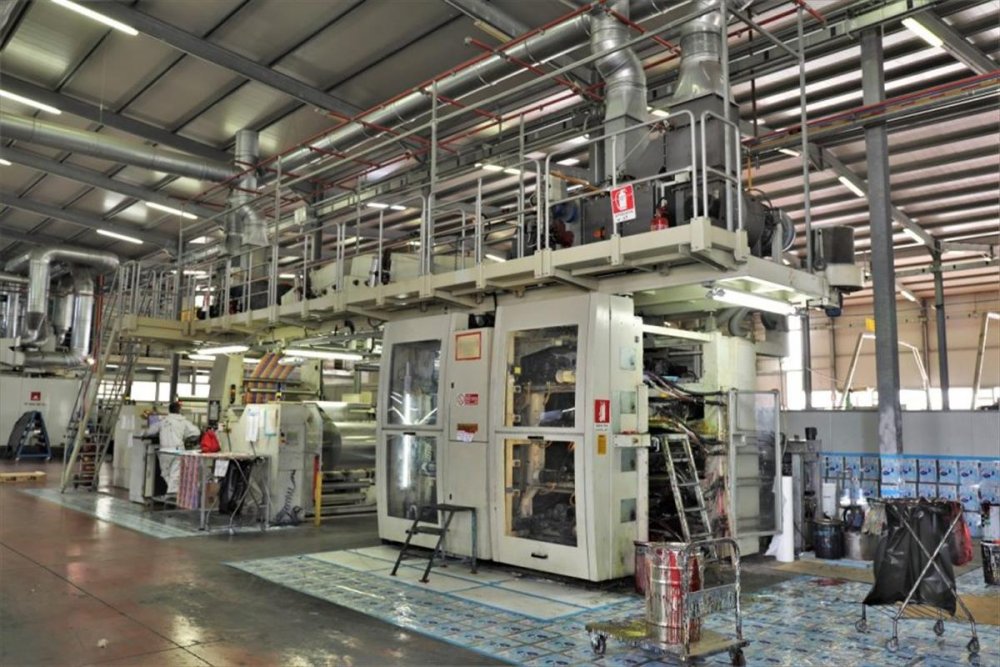

SCHIAVI EF4020 flexographic printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL969
Manufacturer
SCHIAVI
Modello
EF4020
Year
2006
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

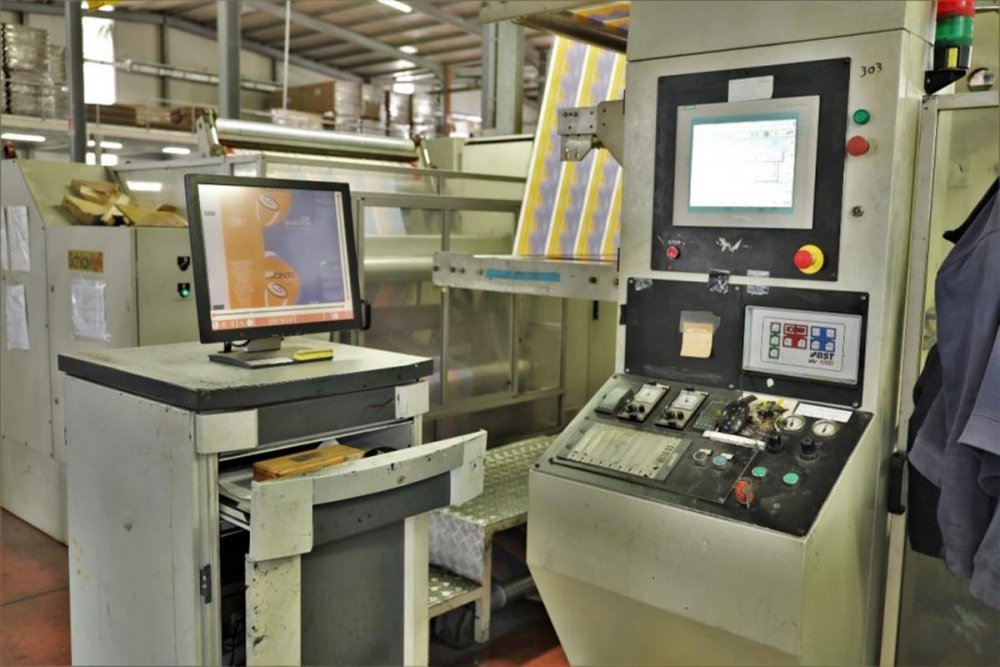

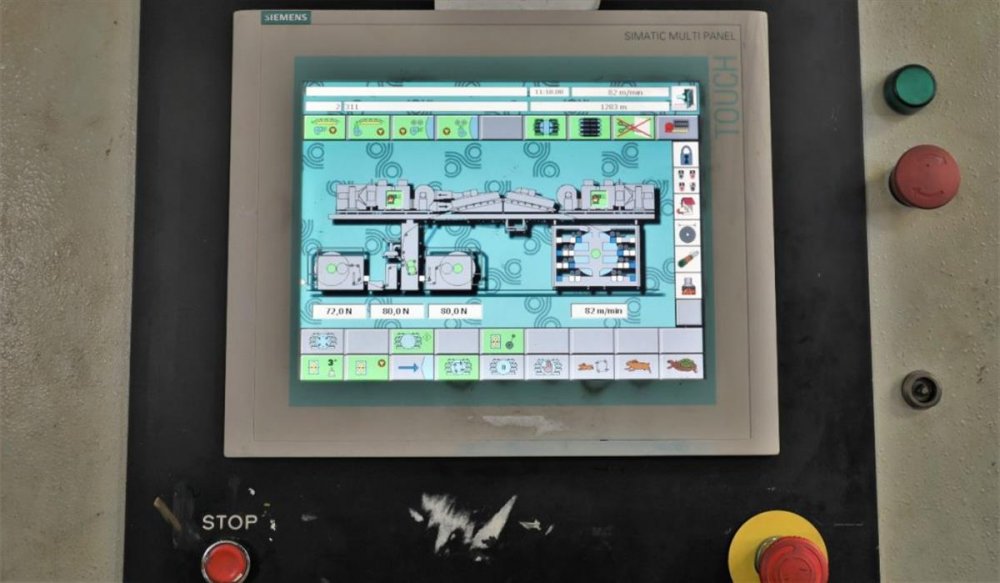

Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
330
Max print repeat (mm)
760

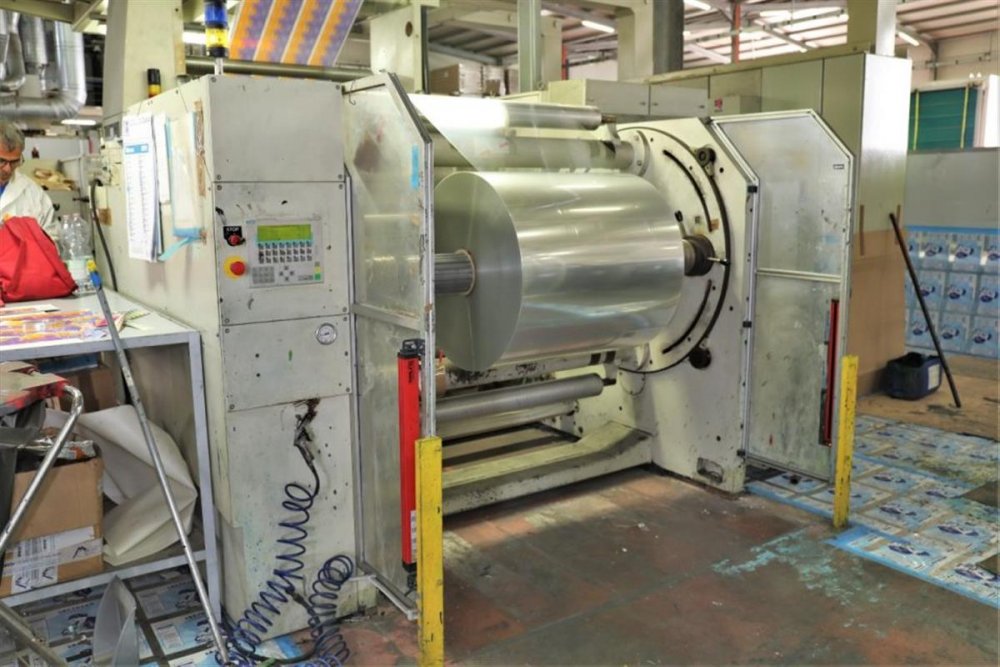

Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
1000

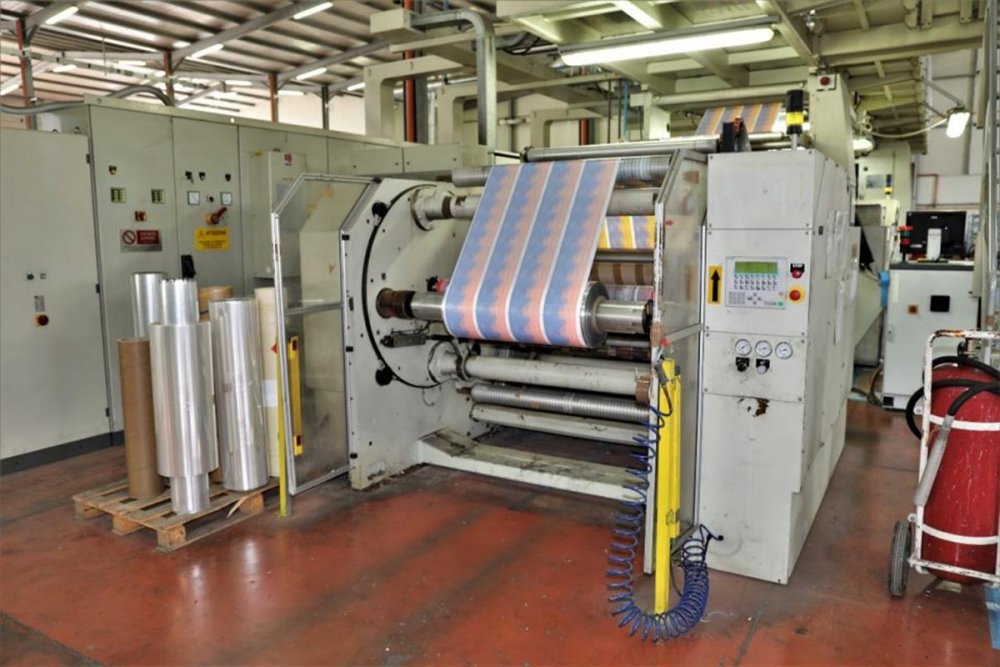

Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
1000

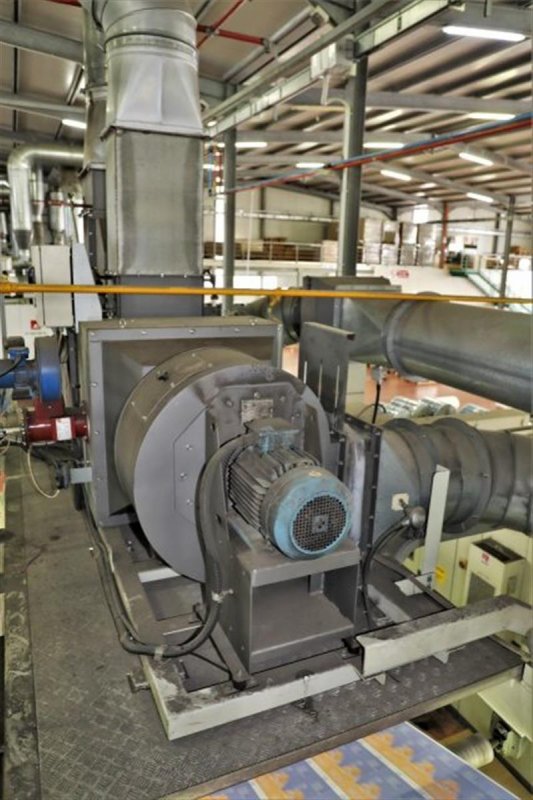

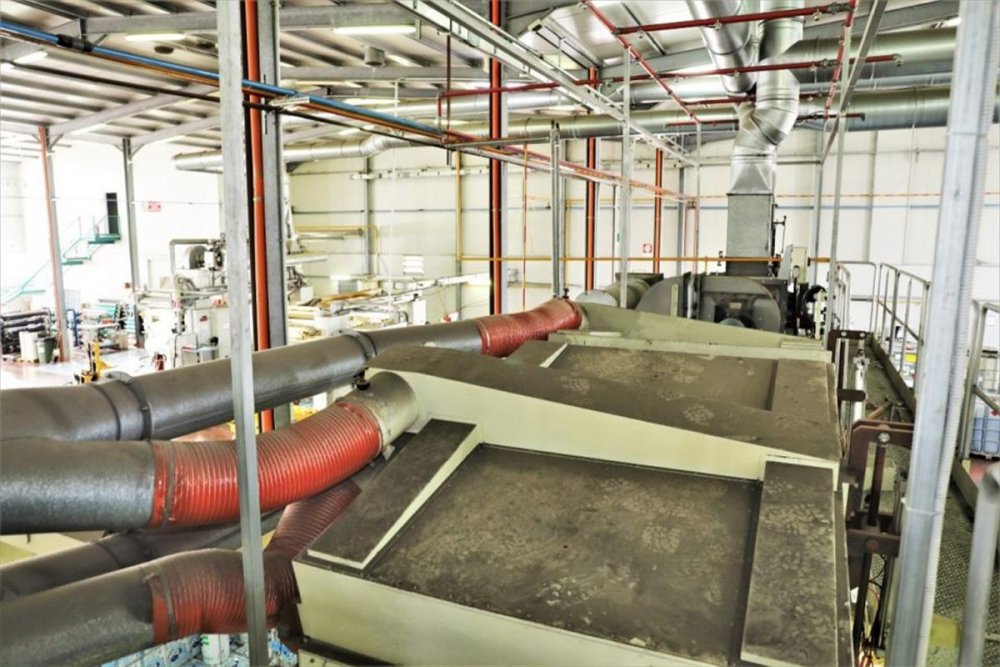

Drying
2 zones 4 fans Final Tunnel 4 mt Length - 2 gas burners 150.000 Kcal / h ; automatic air recirculation system with LEL solvent control

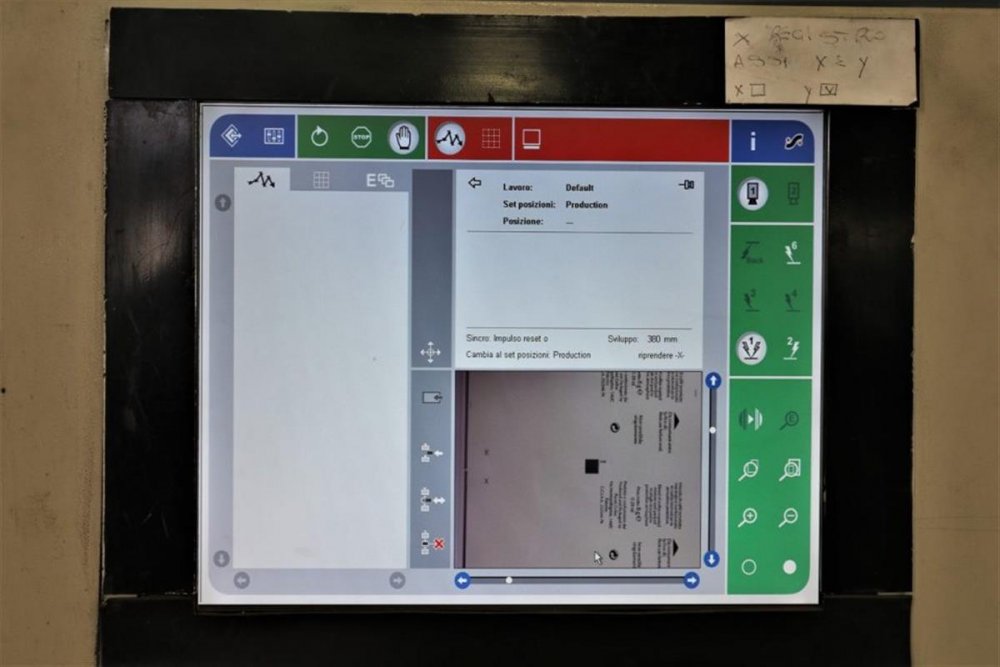

Videocamera
Deco system with register control and quality control

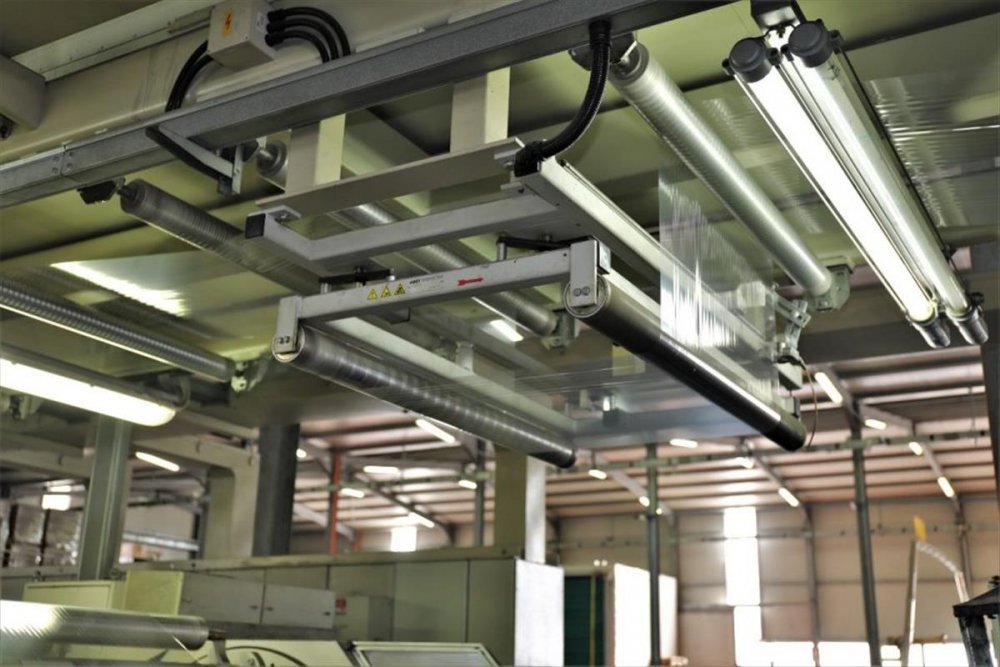

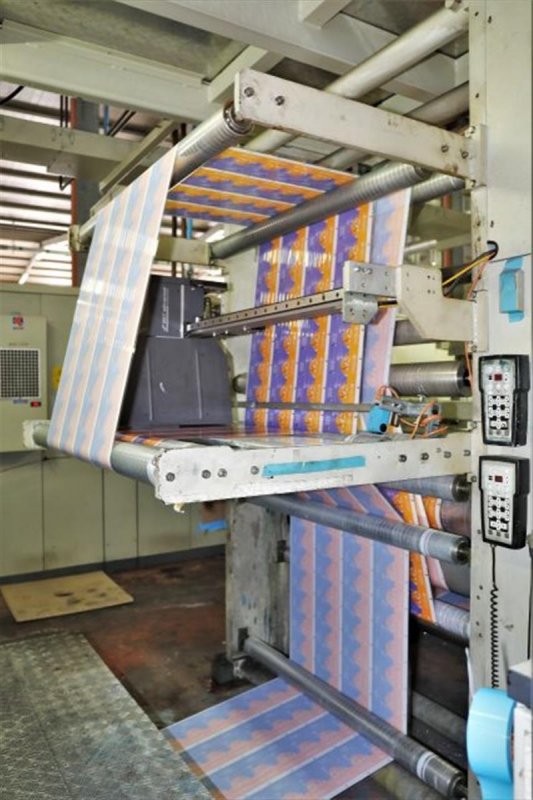

Web guides
Yes in and out OPG type
Vyscosity control
Yes by FASNACHT

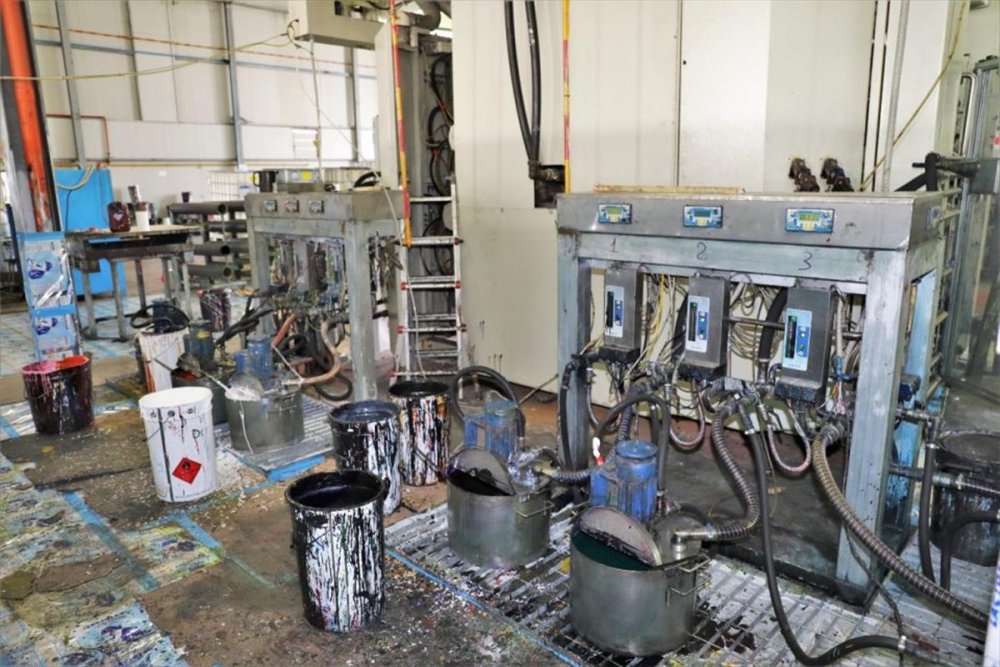

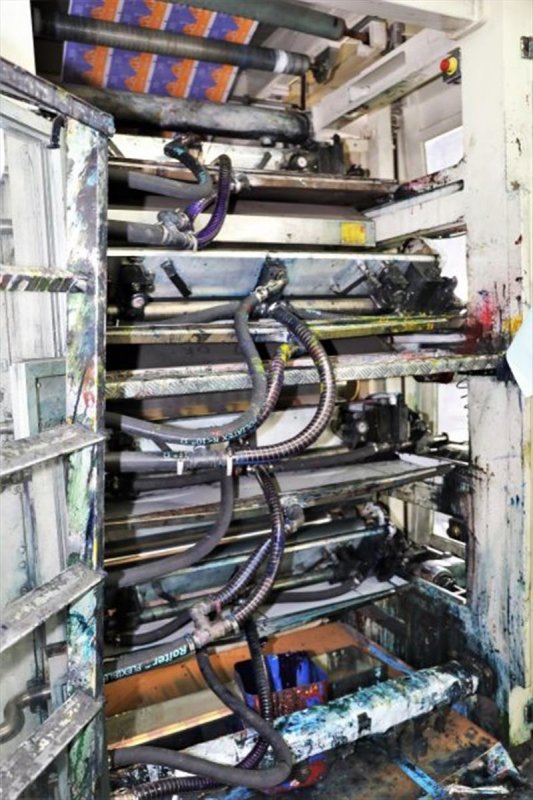

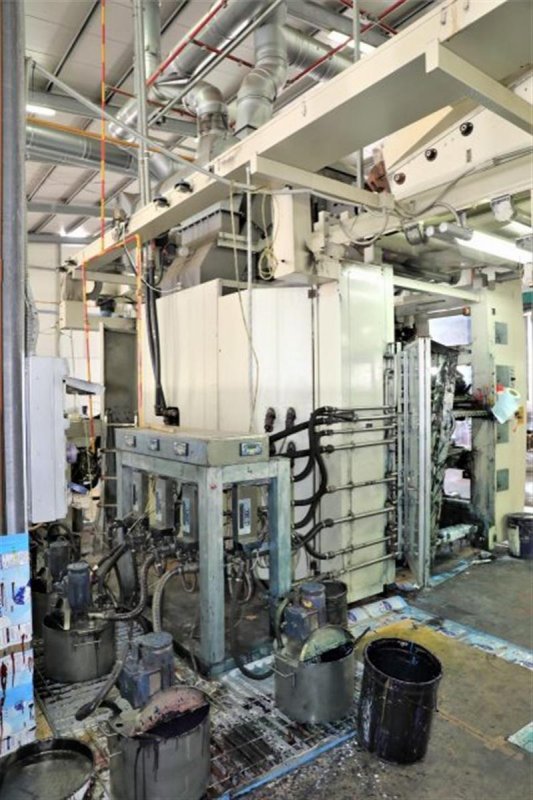

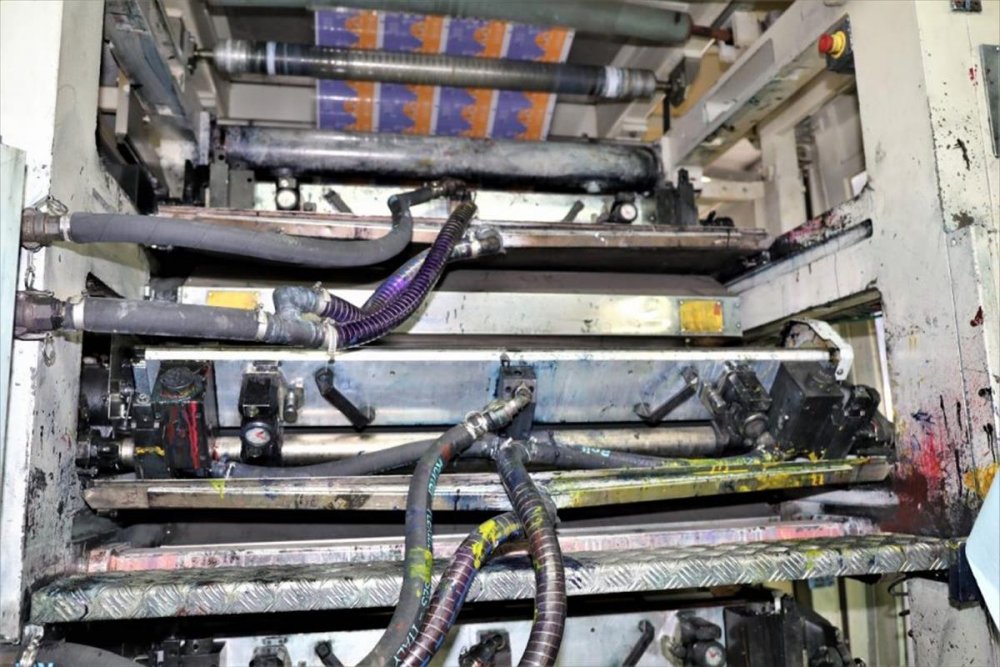

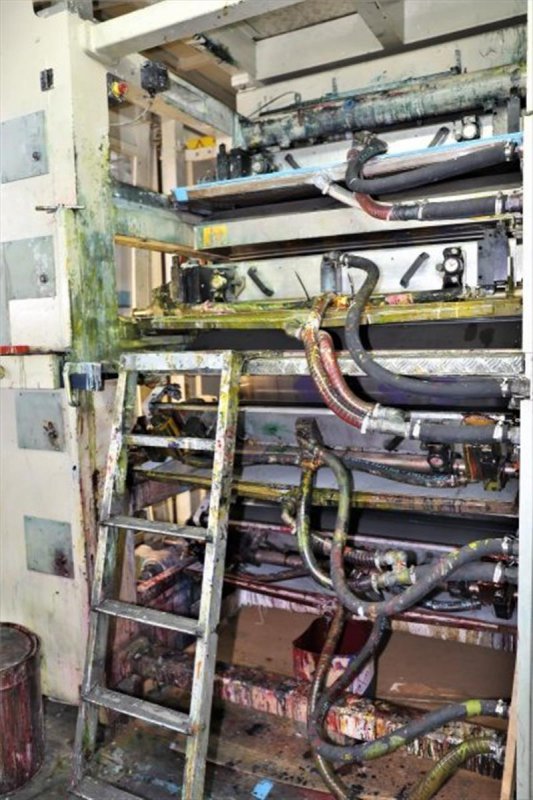

Inking system
Closed Chamber doctor blades 8 electric ink pumps
Anilox
totally 12 a s folows 1x 430 l/cm -vol.3 ; 1x 420 l/cm-vol.5,5; 1x 360 l/cm vol.5,5 ; 1x 300 l/cm-vol.5; 2x 280 l/cm-vol.6,5; 1x 260 l/cm vol.7,5; 2x 200 l/cm vol.10; 2x 110 l/cm vol.14; 1x 100 l/cm -vol.18
Print Sleeves
totally 72 as 8 of each following repeat 400, 420 , 440 , 460 , 480 , 550 , 640 , 660 , 680
Note
Chiller thermo regulating unit for CI drum 18.000 Kcal/h
Machine Code FL969
Manufacturer SCHIAVI
Modello EF4020
Year 2006
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 330
Max print repeat (mm) 760
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans Final Tunnel 4 mt Length - 2 gas burners 150.000 Kcal / h ; automatic air recirculation system with LEL solvent control
Videocamera Deco system with register control and quality control
Web guides Yes in and out OPG type
Vyscosity control Yes by FASNACHT
Inking system Closed Chamber doctor blades 8 electric ink pumps
Anilox totally 12 a s folows 1x 430 l/cm -vol.3 ; 1x 420 l/cm-vol.5,5; 1x 360 l/cm vol.5,5 ; 1x 300 l/cm-vol.5; 2x 280 l/cm-vol.6,5; 1x 260 l/cm vol.7,5; 2x 200 l/cm vol.10; 2x 110 l/cm vol.14; 1x 100 l/cm -vol.18
Print Sleeves totally 72 as 8 of each following repeat 400, 420 , 440 , 460 , 480 , 550 , 640 , 660 , 680
Note Chiller thermo regulating unit for CI drum 18.000 Kcal/h
** SOLD **
