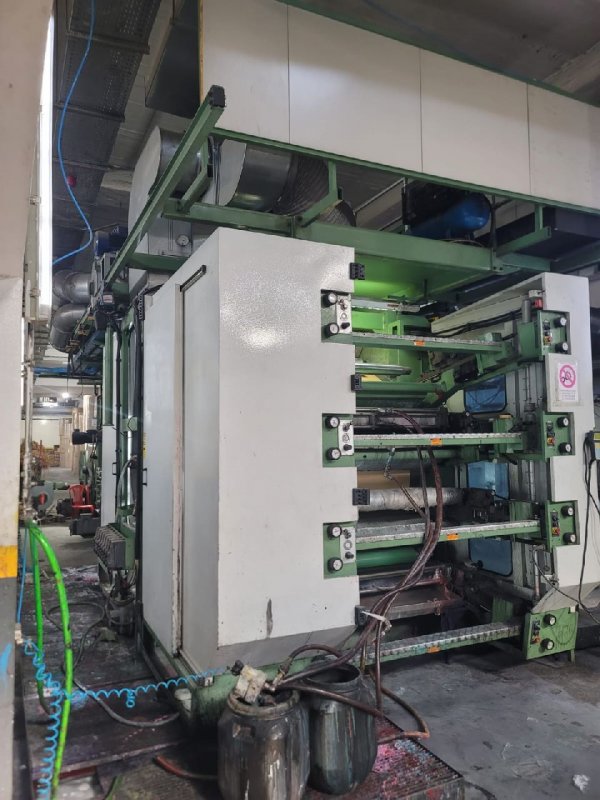

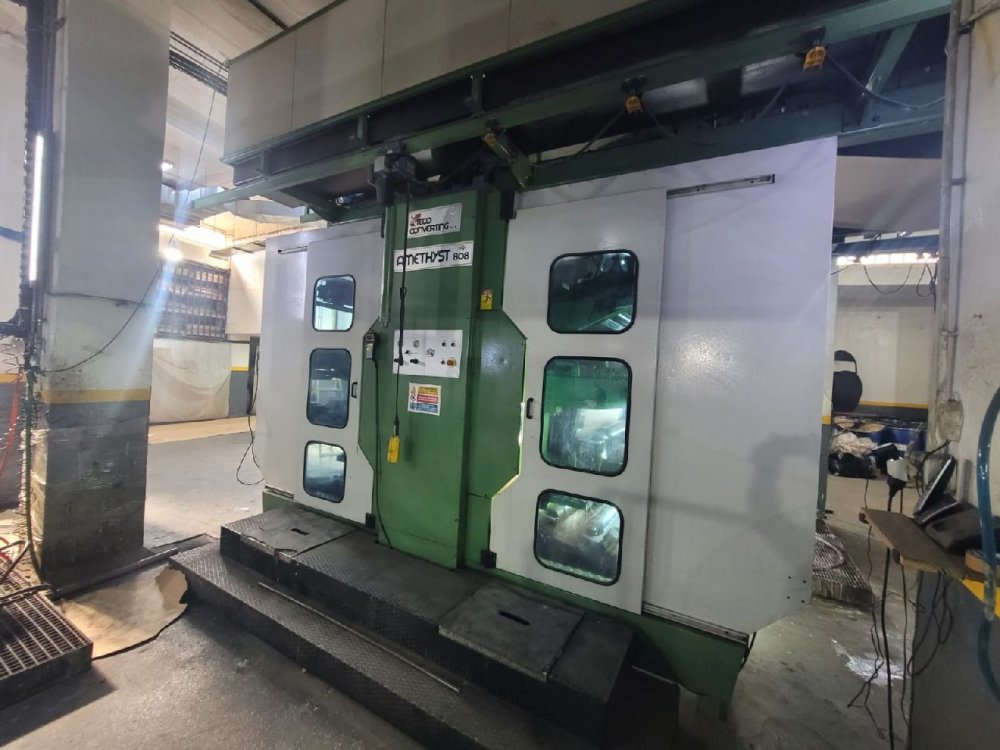

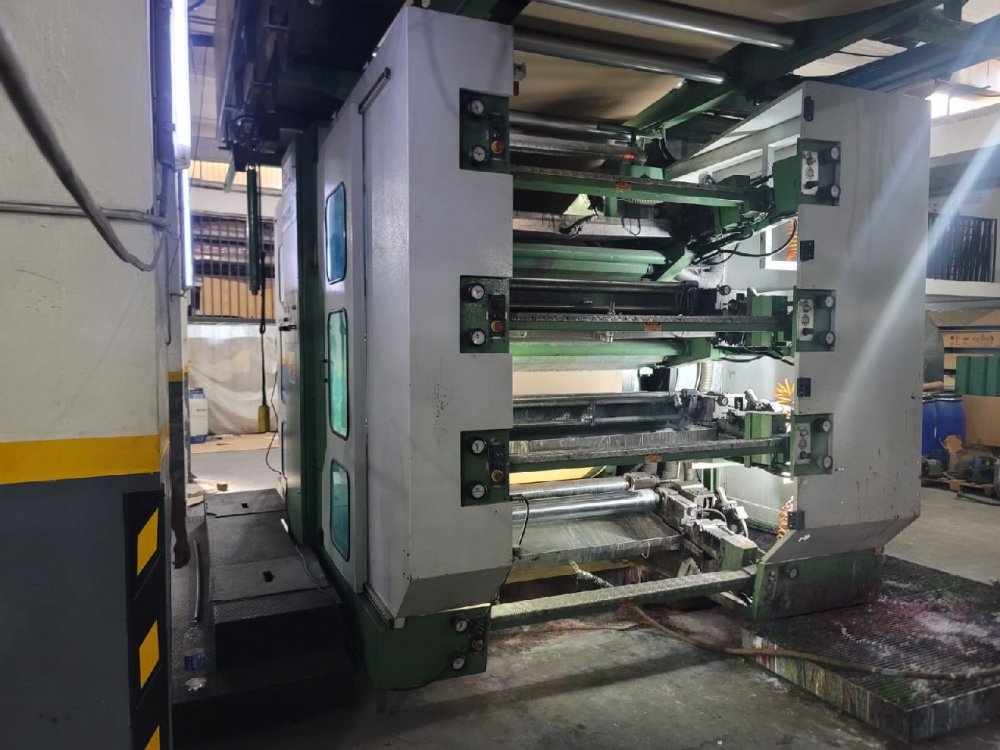

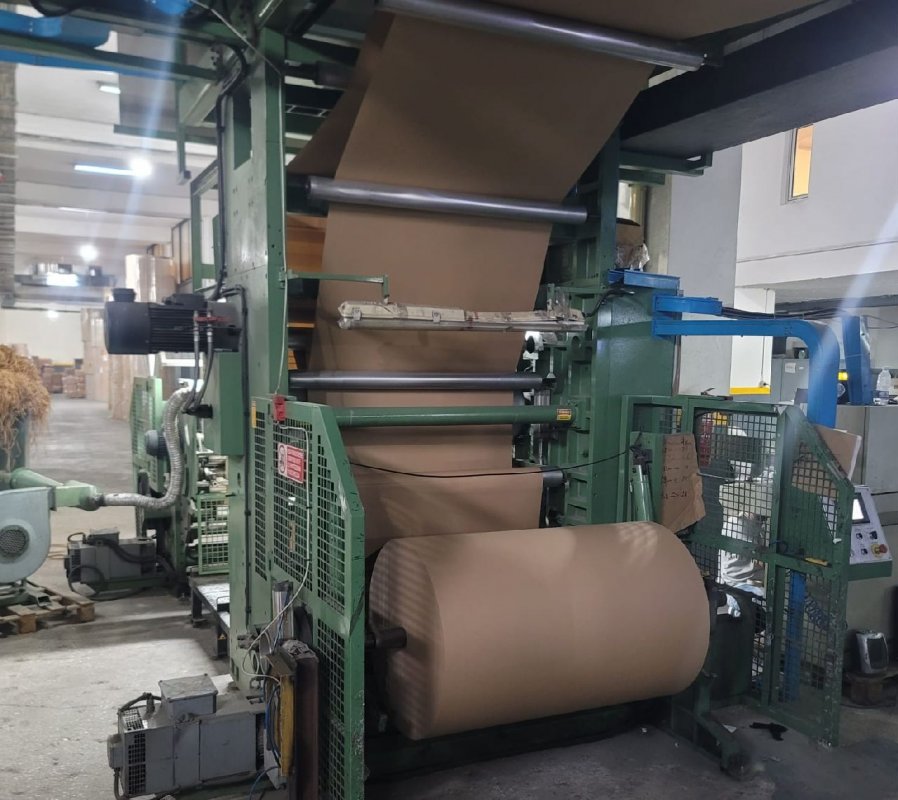

UTECO AMETHYST Flexo central drum printing press 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL940
Manufacturer UTECO
Model AMETHYST
Year 2002
Number of colors 8
Print possibilities 8+0
Gearless No
Fast sleeve change Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 400
Max print repeat (mm) 800

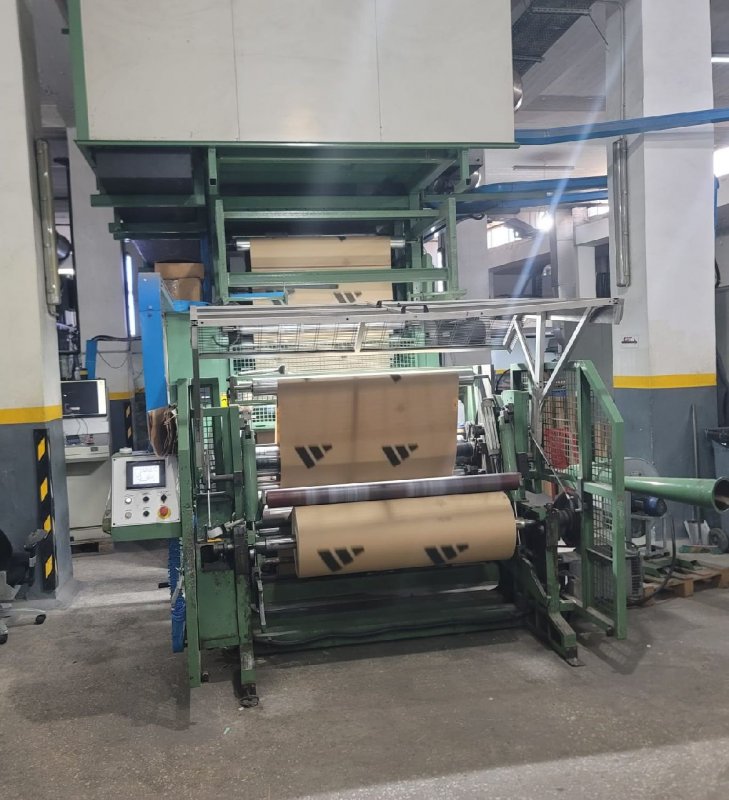

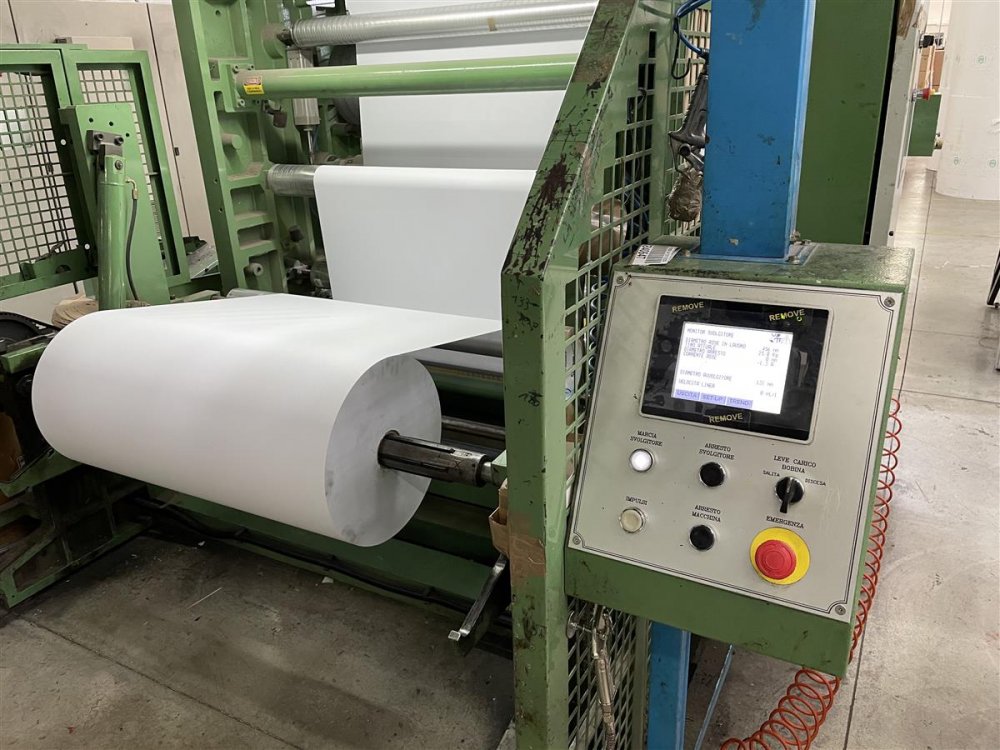

Unwinder type SINGLE
Max reel diameter unwinder (mm) 1250

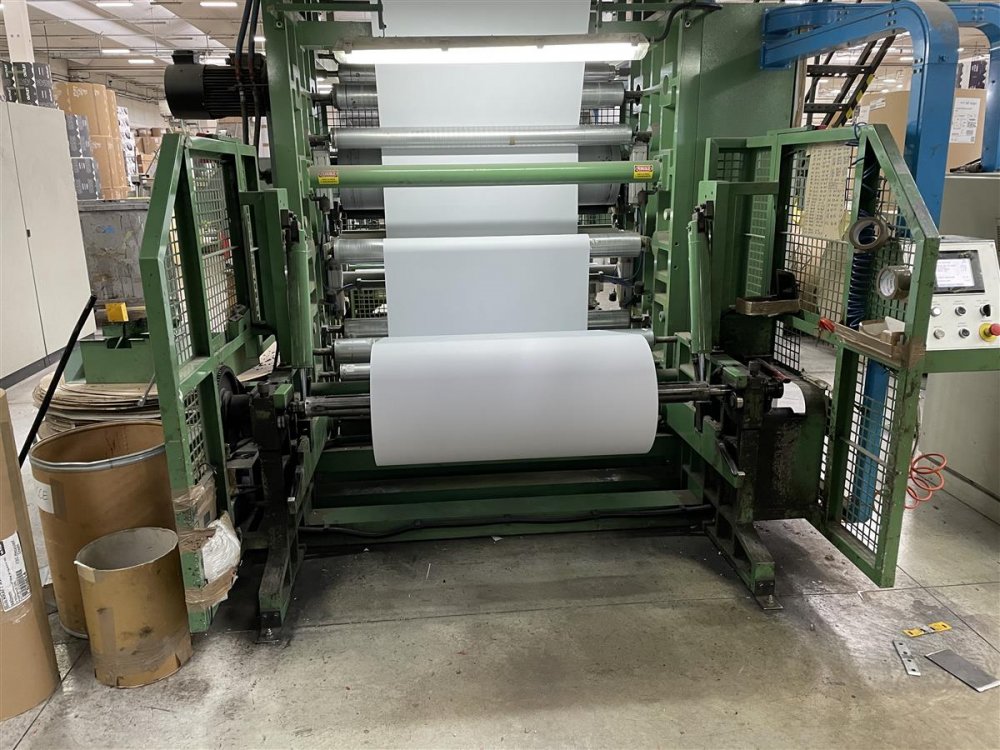

Rewinder type SINGLE
Max reel diameter rewinder (mm) 1250

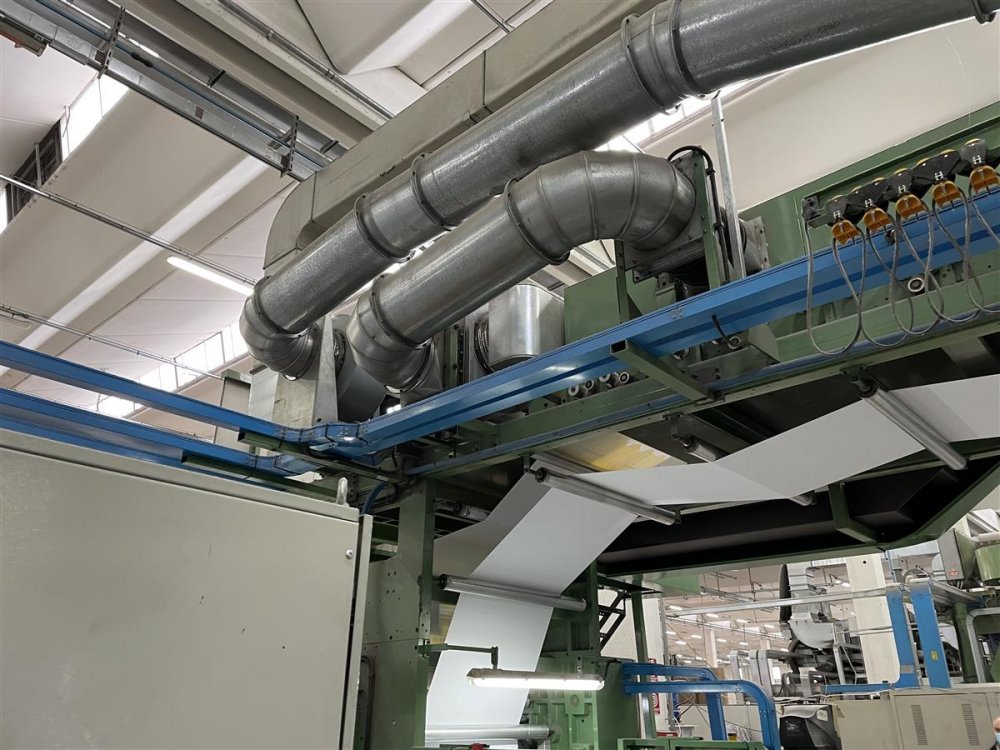

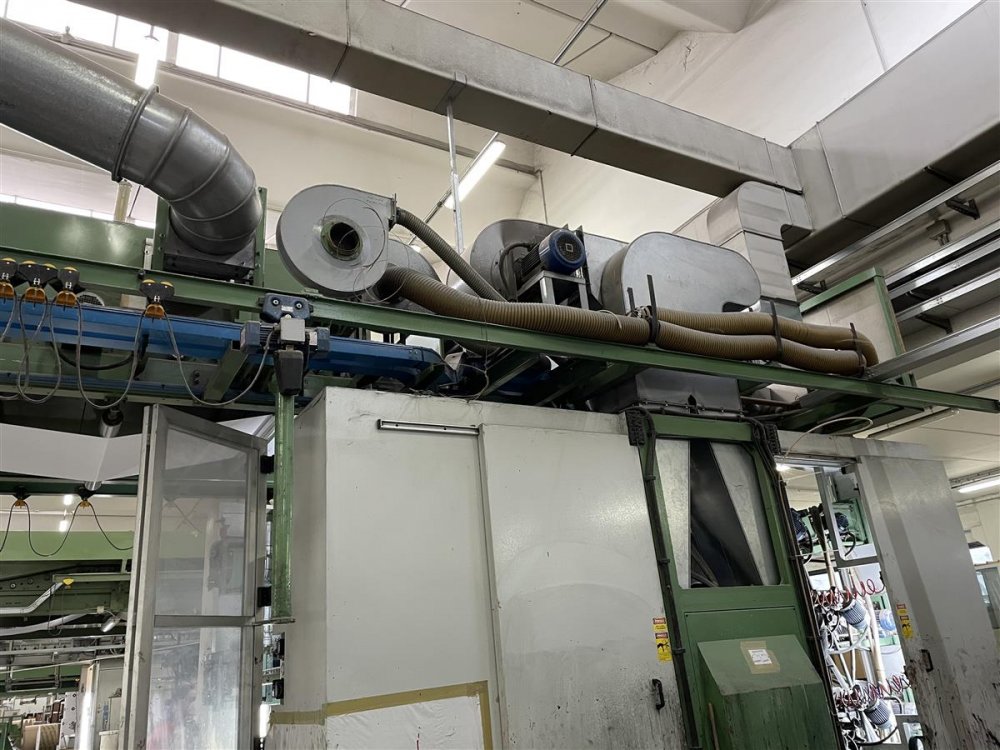

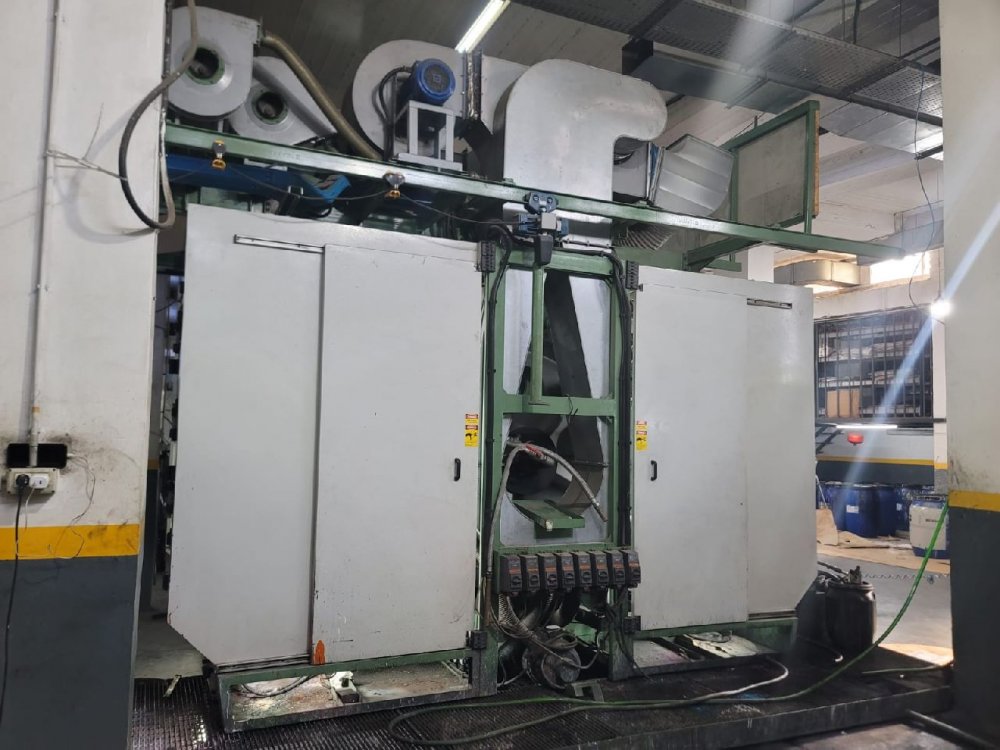

Drying 2 zones (CI unit and tunnel) with independent control, 4 motors per deck positioning
Videocamera Selectra
Web guides Yes, before winding
Anilox 2x 60 linee cm/ 20 cm³/m²; 3x 80 linee cm/ 18 cm³/m²; 2x 100 linee cm/ 18 cm³/m²; 4x 100 lines/ cm -15 cm³/m² ; 2x 120 lines/ cm -12.5 cm³/m² ; 4x 220 lines/ cm -8 cm³/m² ; 4x 320 lines/ cm 5.2 cm³/m²
Print Sleeves Sleeves: 11x40cm; 7x45cm; 12x50cm; 4x52cm; 12x55cm; 7x60cm; 7x65cm; 8x70cm; Gears: 8x 40 – 45 – 50 –55 – 60 – 65 – 70 cm + 4x 52cm
Additional information - In line slitting system 2 knives with suction - Thermoregulation for CI drum
