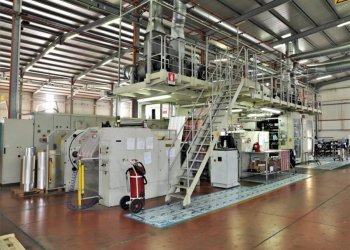

- Código Máquina
- FL969
- Constructor
- SCHIAVI
- Modello
- EF4020
- Año
- 2006
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 760
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans Final Tunnel 4 mt Length - 2 gas burners 150.000 Kcal / h ; automatic air recirculation system with LEL solvent control
- Videocamera
- Deco system with register control and quality control
- Web guides
- Yes in and out OPG type
- Vyscosity control
- Yes by FASNACHT
- Inking system
- Closed Chamber doctor blades 8 electric ink pumps
- Anilox
- totally 12 a s folows 1x 430 l/cm -vol.3 ; 1x 420 l/cm-vol.5,5; 1x 360 l/cm vol.5,5 ; 1x 300 l/cm-vol.5; 2x 280 l/cm-vol.6,5; 1x 260 l/cm vol.7,5; 2x 200 l/cm vol.10; 2x 110 l/cm vol.14; 1x 100 l/cm -vol.18
- Print Sleeves
- totally 72 as 8 of each following repeat 400, 420 , 440 , 460 , 480 , 550 , 640 , 660 , 680
- Note
- Chiller thermo regulating unit for CI drum 18.000 Kcal/h
| Código Máquina | FL969 |
| Constructor | SCHIAVI |
| Modello | EF4020 |
| Año | 2006 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 760 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans Final Tunnel 4 mt Length - 2 gas burners 150.000 Kcal / h ; automatic air recirculation system with LEL solvent control |
| Videocamera | Deco system with register control and quality control |
| Web guides | Yes in and out OPG type |
| Vyscosity control | Yes by FASNACHT |
| Inking system | Closed Chamber doctor blades 8 electric ink pumps |
| Anilox | totally 12 a s folows 1x 430 l/cm -vol.3 ; 1x 420 l/cm-vol.5,5; 1x 360 l/cm vol.5,5 ; 1x 300 l/cm-vol.5; 2x 280 l/cm-vol.6,5; 1x 260 l/cm vol.7,5; 2x 200 l/cm vol.10; 2x 110 l/cm vol.14; 1x 100 l/cm -vol.18 |
| Print Sleeves | totally 72 as 8 of each following repeat 400, 420 , 440 , 460 , 480 , 550 , 640 , 660 , 680 |
| Note | Chiller thermo regulating unit for CI drum 18.000 Kcal/h |
