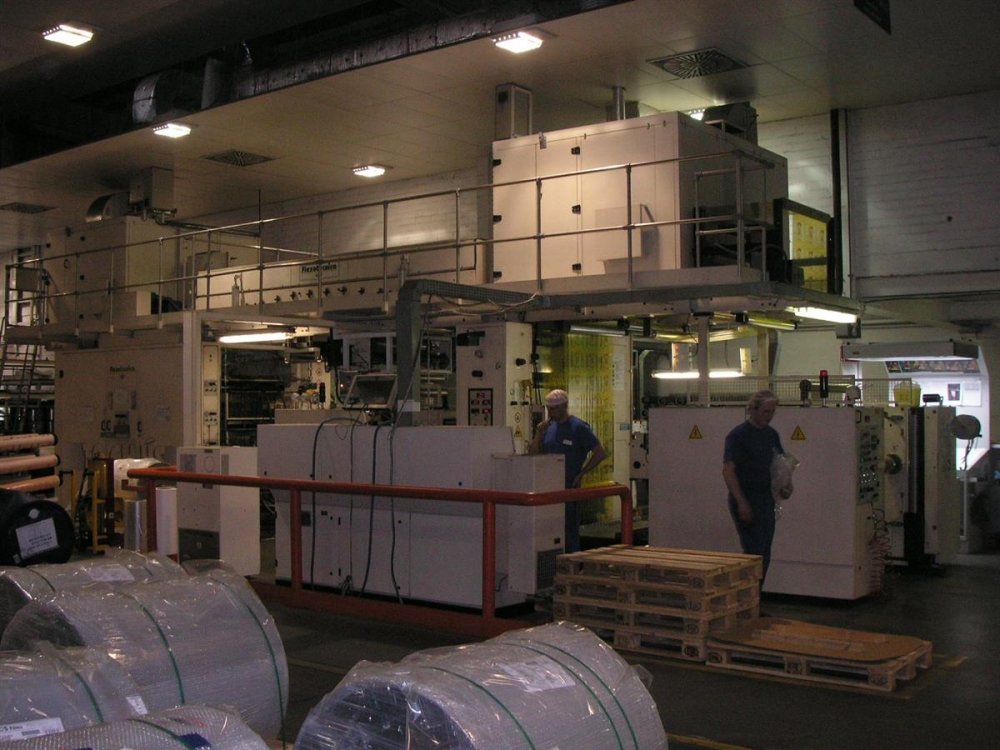

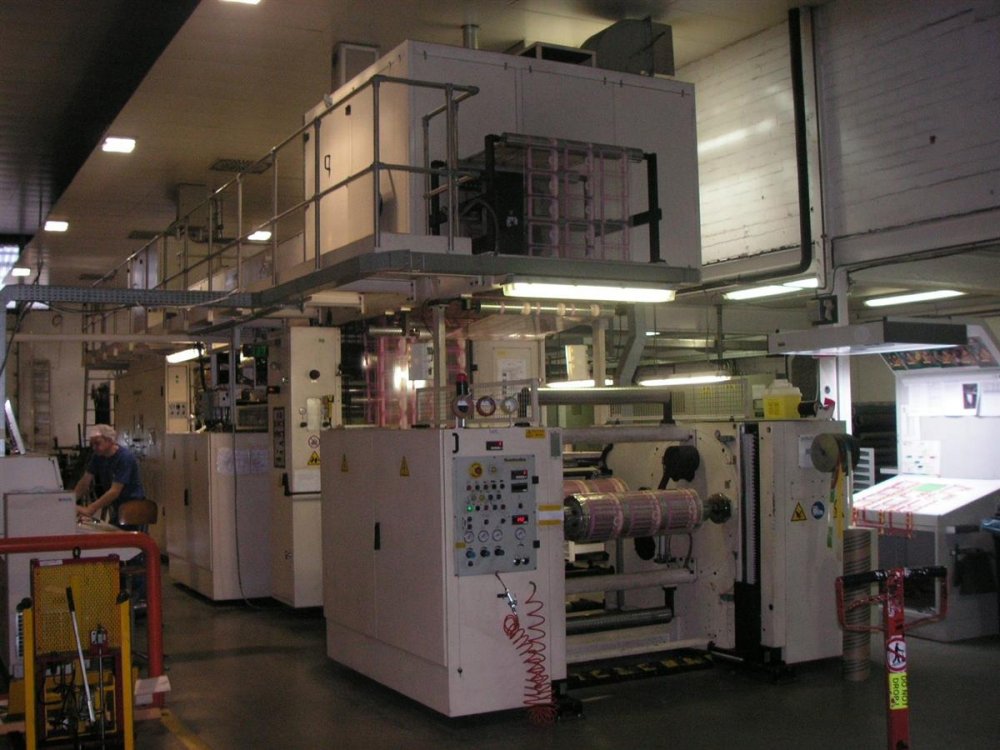

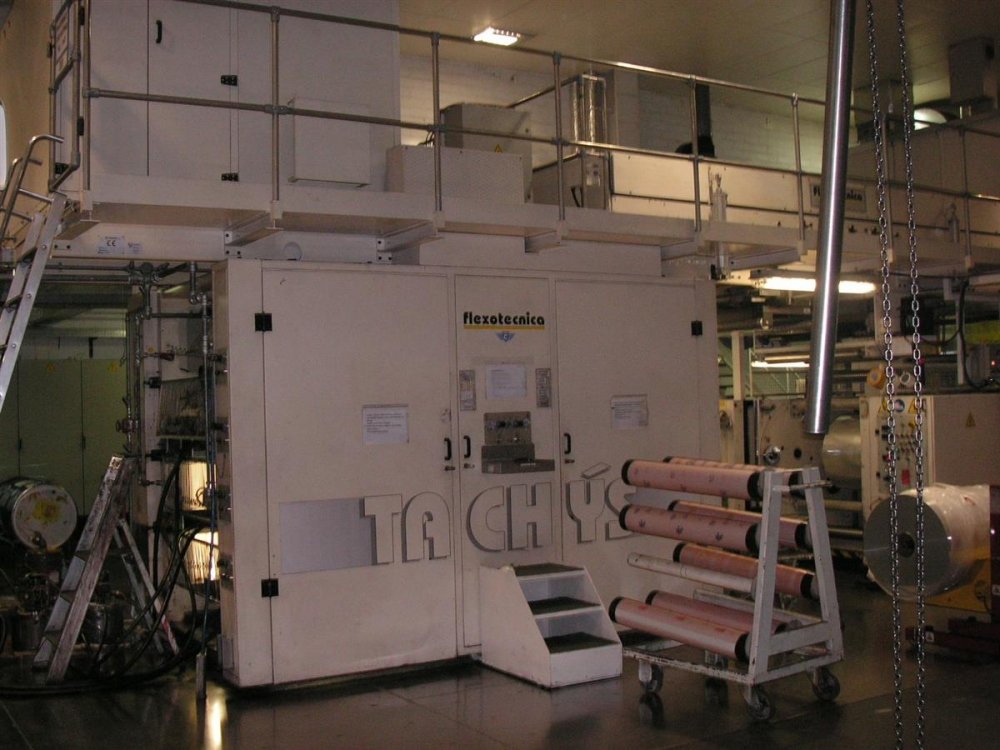

FLEXOTECNICA TACHYS flexo press 8 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Photo Gallery

Machine Code: FL968
Manufacturer: FLEXOTECNICA
Modello: TACHYS
Year: 2000
Number of colors: 8
Gearless: No
Fast sleeve change: Yes

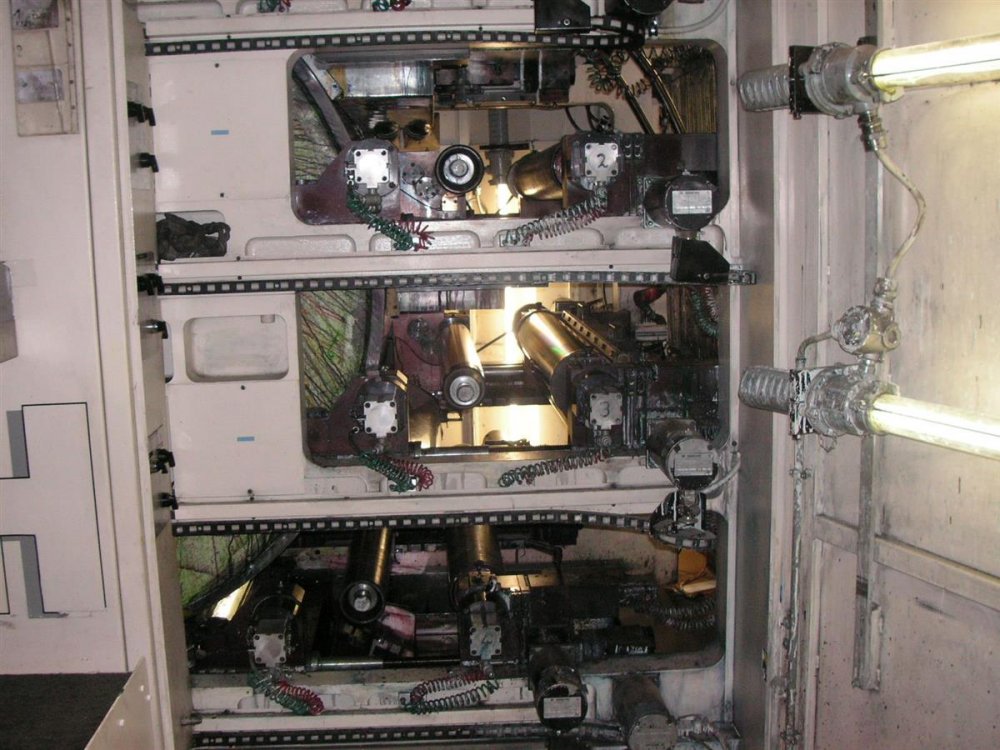

4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1050
Print width (mm): 1000
Min print repeat (mm): 300
Max print repeat (mm): 650
Unwinder type: Turret automatic
Max reel diameter unwinder (mm): 800
Rewinder type: Turret automatic
Max reel diameter rewinder (mm): 800
Drying: 2 zones, 4 fans, 2 heaters
Videocamera: camera BST Webvideostar year 2014, with defect control
Corona treatment: Yes

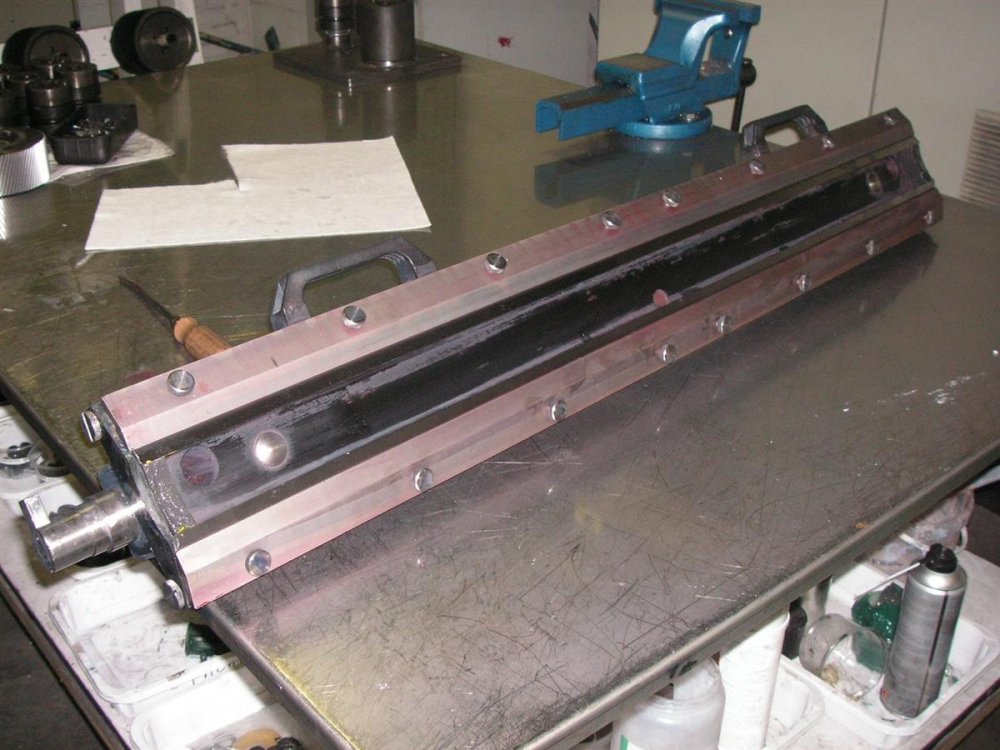

Inking system: Closed chamber doctror blades

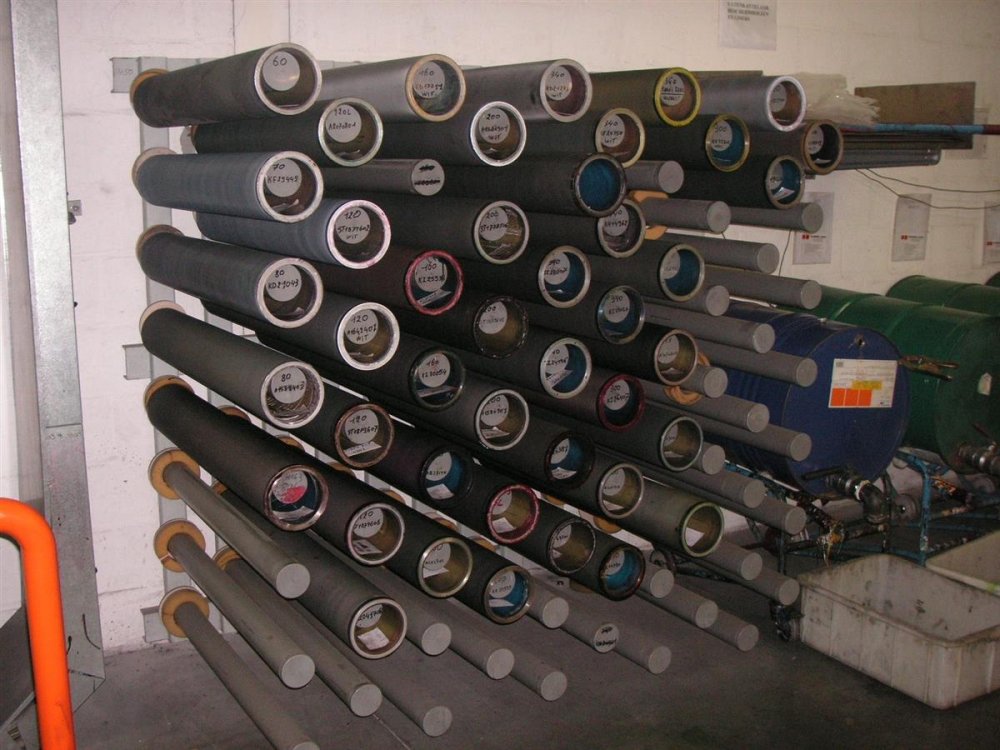

Anilox: 25

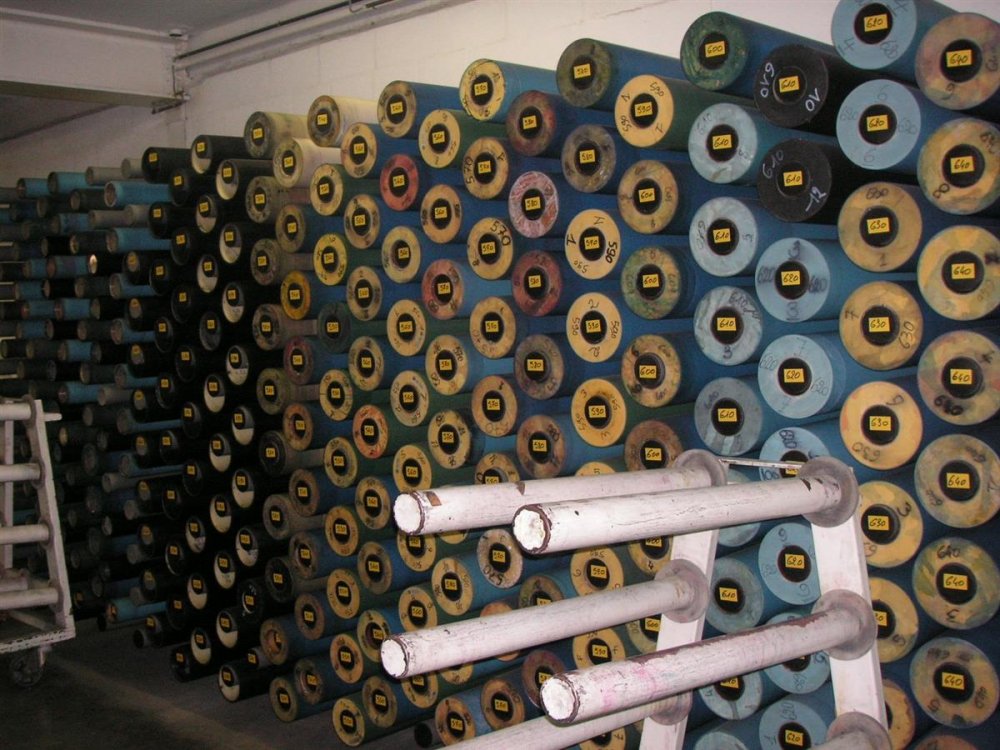

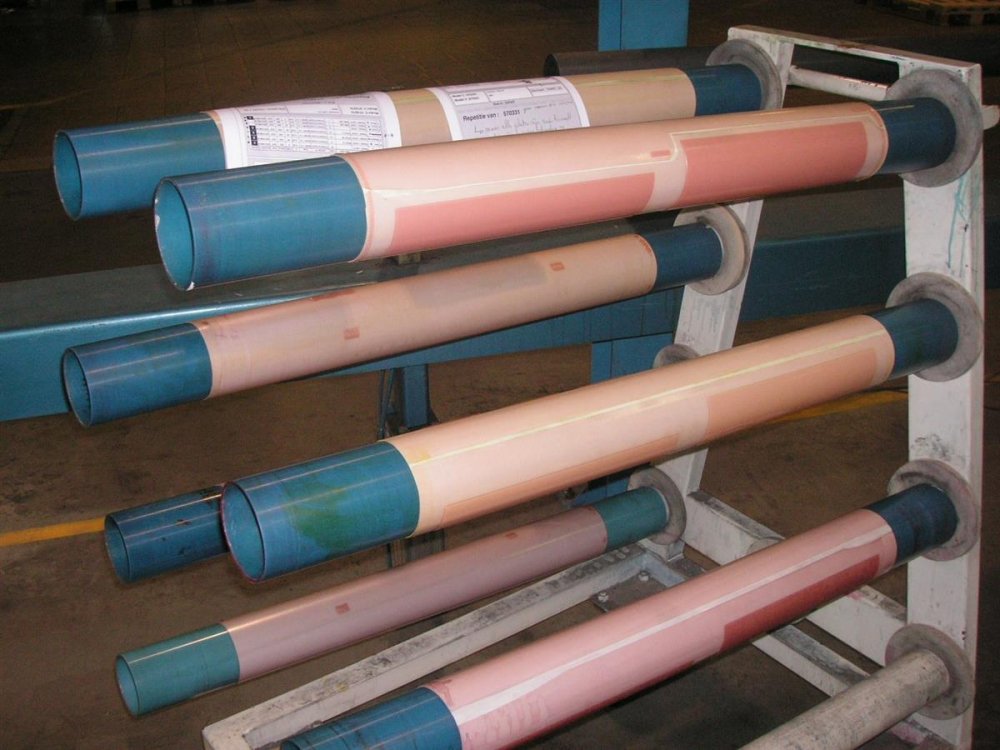

Print Sleeves: 400
Note: Max. speed 250 m/min Coronatreater Webviewer 400 sleeves and the necessary carriers 40 anilox ceramic sleeves (volume 5 to 18 cm³/m², 340 to 60 lines/cm)
