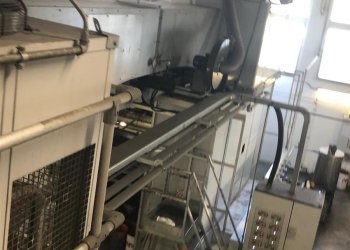

UTECO ONYX 810 Flexo central drum printing press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL885
Manufacturer
UTECO
Model
ONYX 810
Year
2012
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
400
Max print repeat (mm)
1100
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
1000
Drying
2 Zones 4 fans 5 mt tunnel thermo oil heat exchangers
Videocamera
BST Premius digital
Web guides
Yes in and out
Vyscosity control
Yes
Washing system
Automatic
Inking system
Closed chamber doctor blades
Anilox
14 ceramic aniox sleevs
Print Sleeves
124 pruìintign sleeves
Machine Code FL885
Manufacturer UTECO
Model ONYX 810
Year 2012
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 400
Max print repeat (mm) 1100
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000
Drying 2 Zones 4 fans 5 mt tunnel thermo oil heat exchangers
Videocamera BST Premius digital
Web guides Yes in and out
Vyscosity control Yes
Washing system Automatic
Inking system Closed chamber doctor blades
Anilox 14 ceramic aniox sleevs
Print Sleeves 124 pruìintign sleeves
