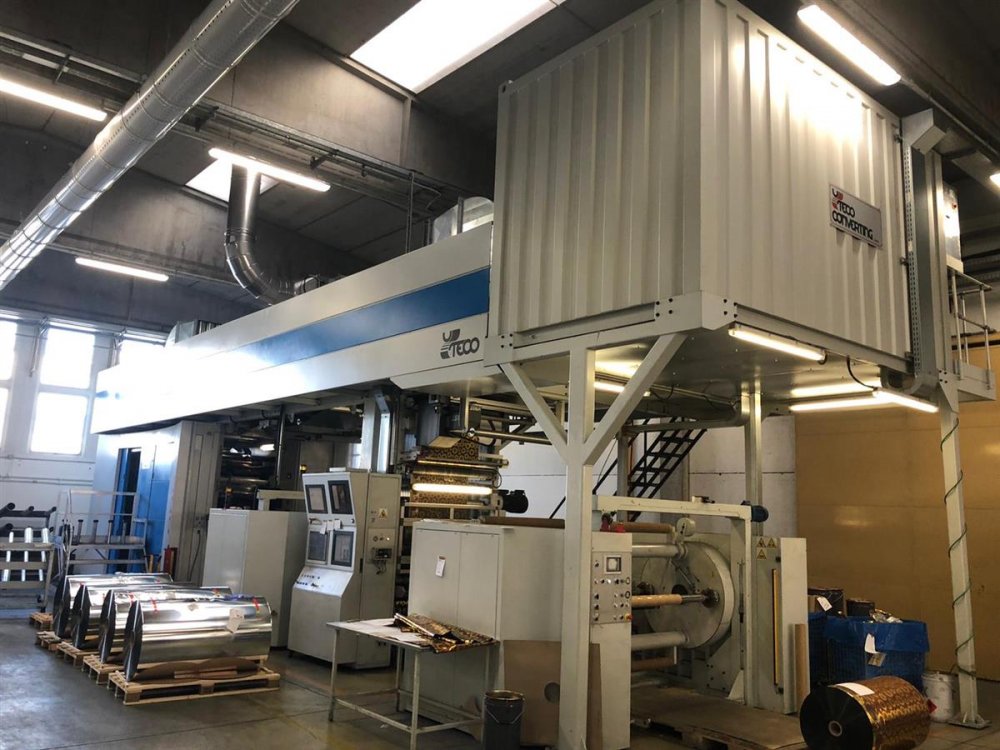

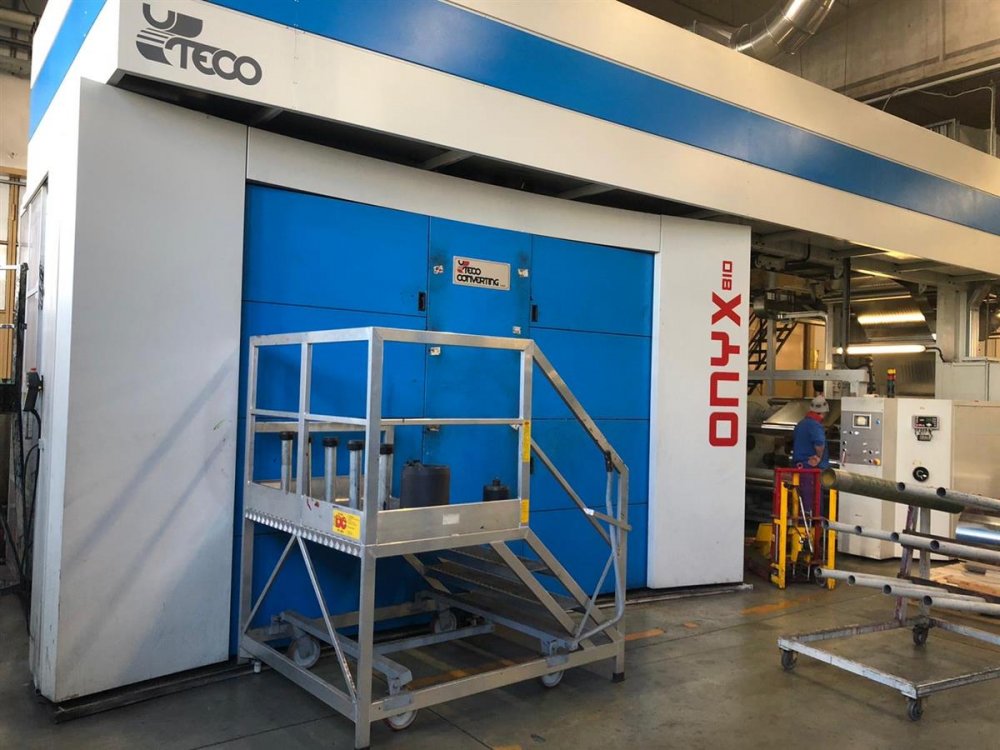

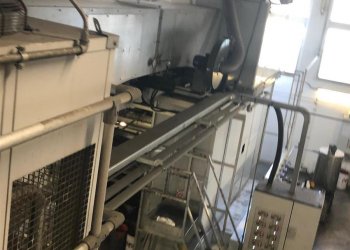

UTECO ONYX 810 Flexo printer 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL885
Manufacturer UTECO
Model ONYX 810
Year 2012
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

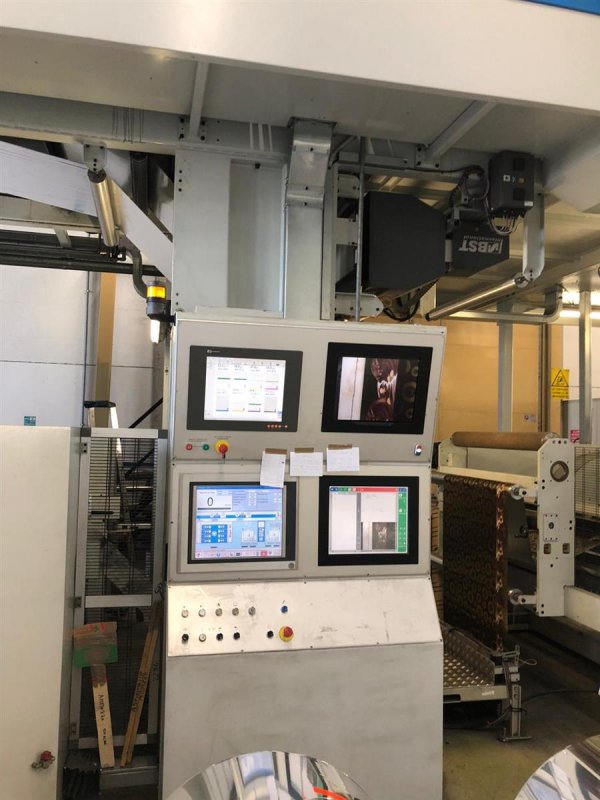

Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 400
Max print repeat (mm) 1100

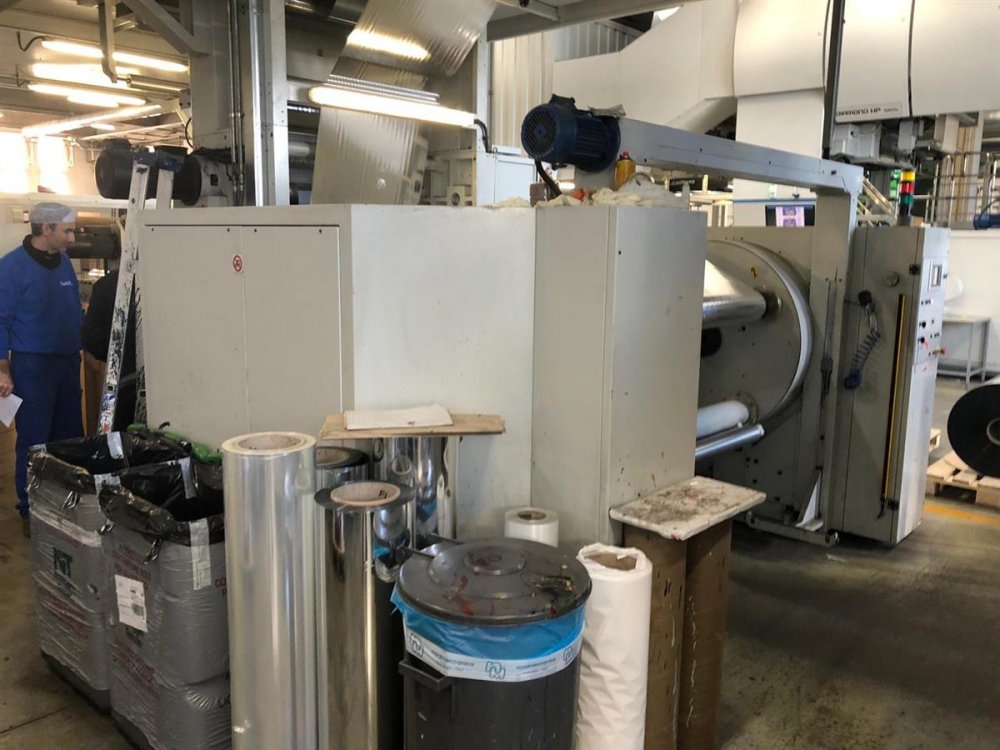

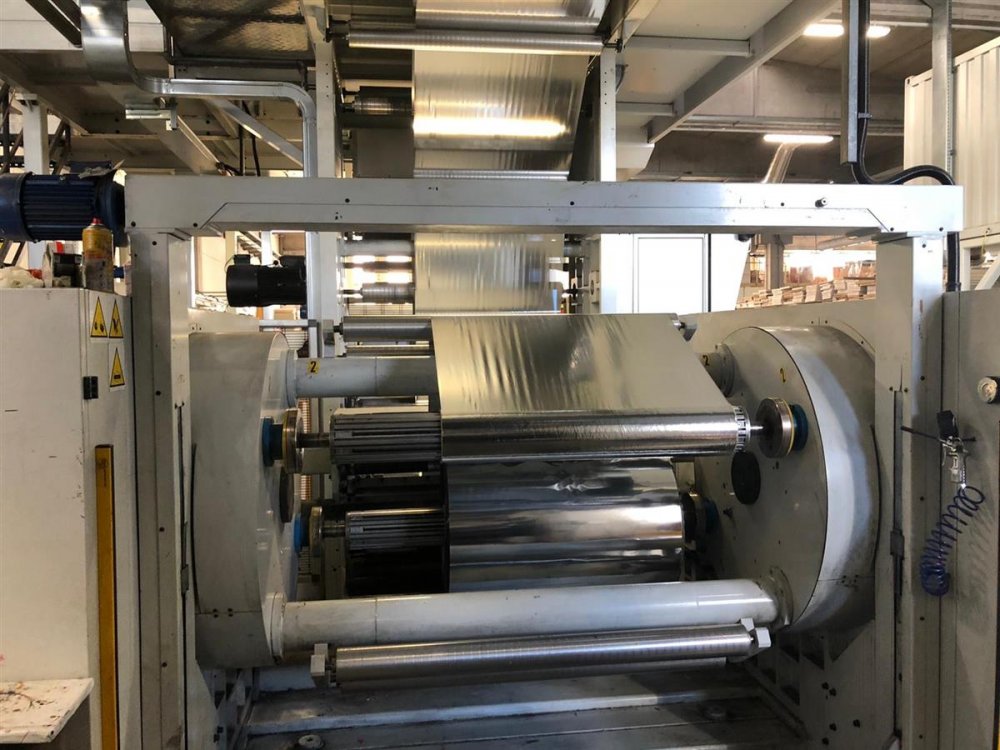

Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000

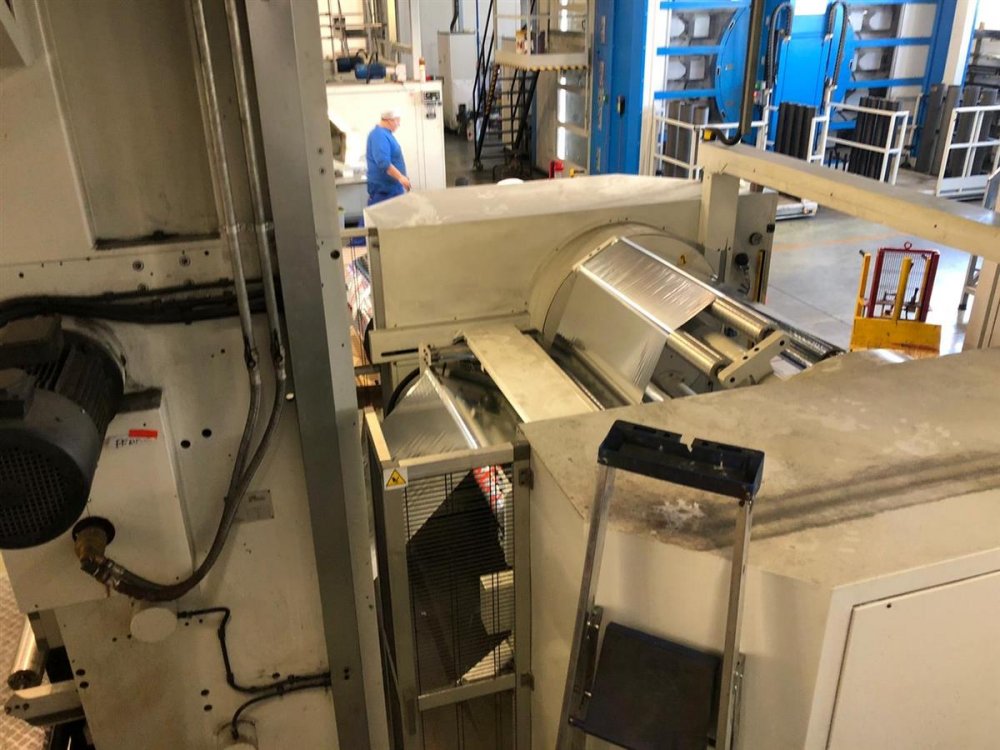

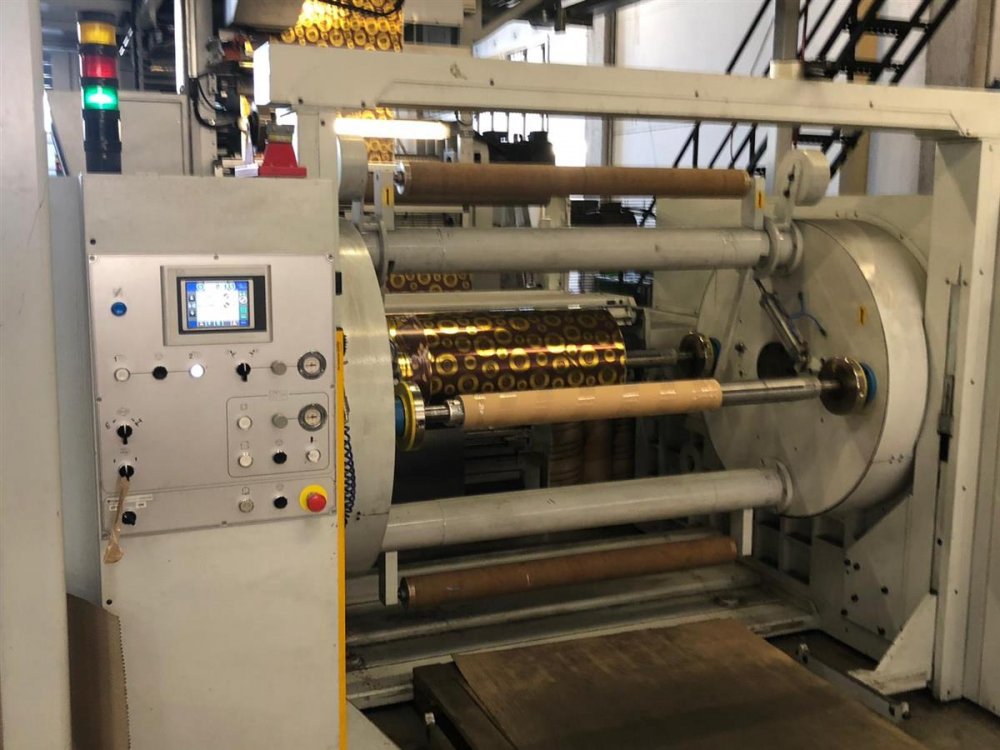

Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000

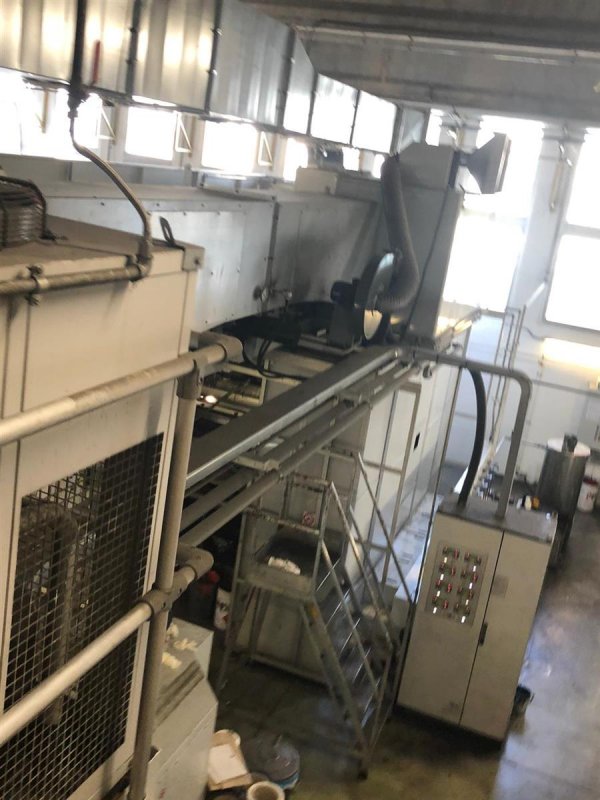

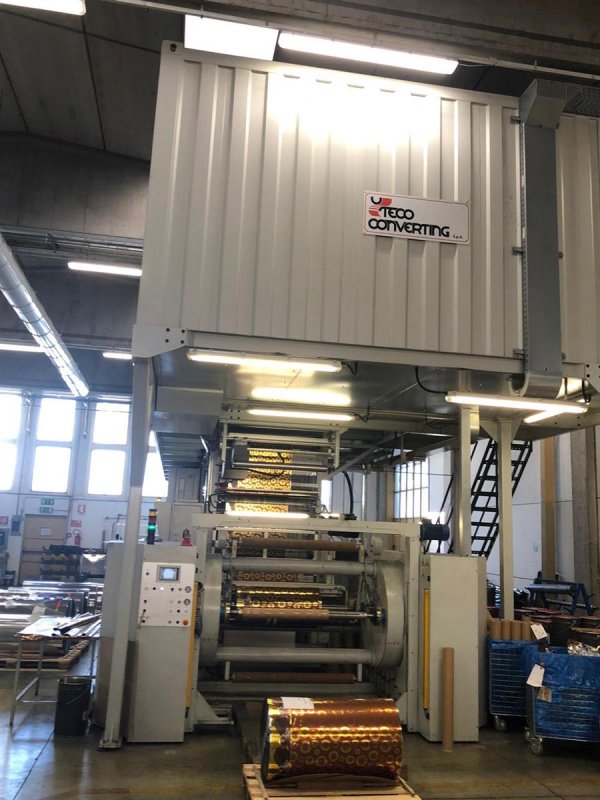

Drying 2 Zones 4 fans 5 mt tunnel thermo oil heat exchangers
Videocamera BST Premius digital
Web guides Yes in and out

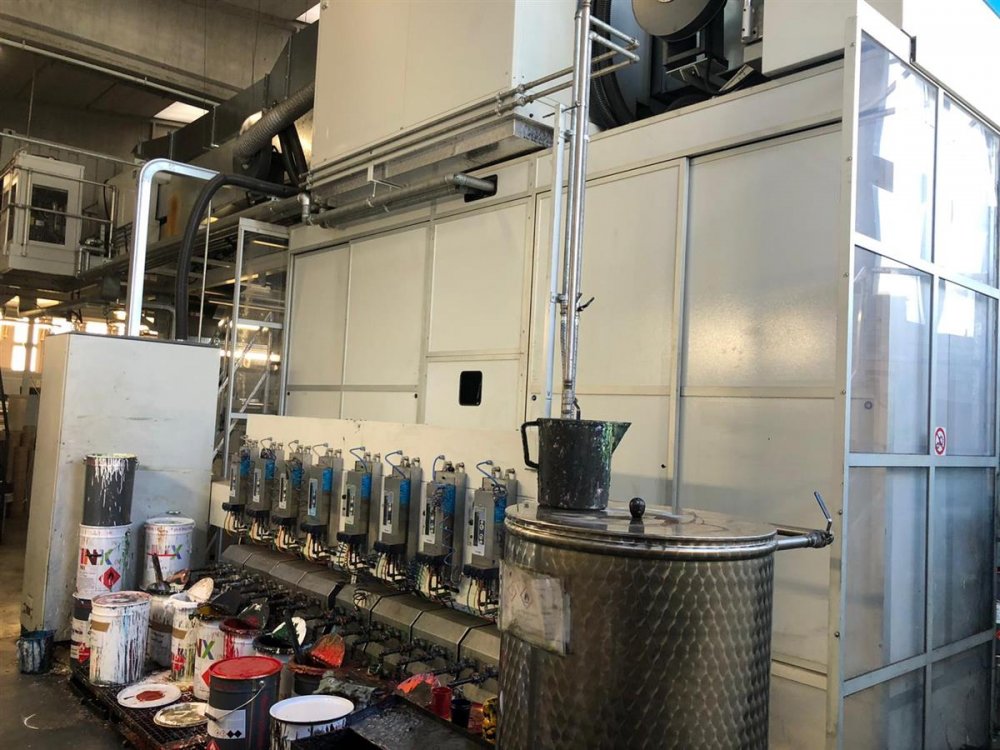

Vyscosity control Yes
Washing system Automatic

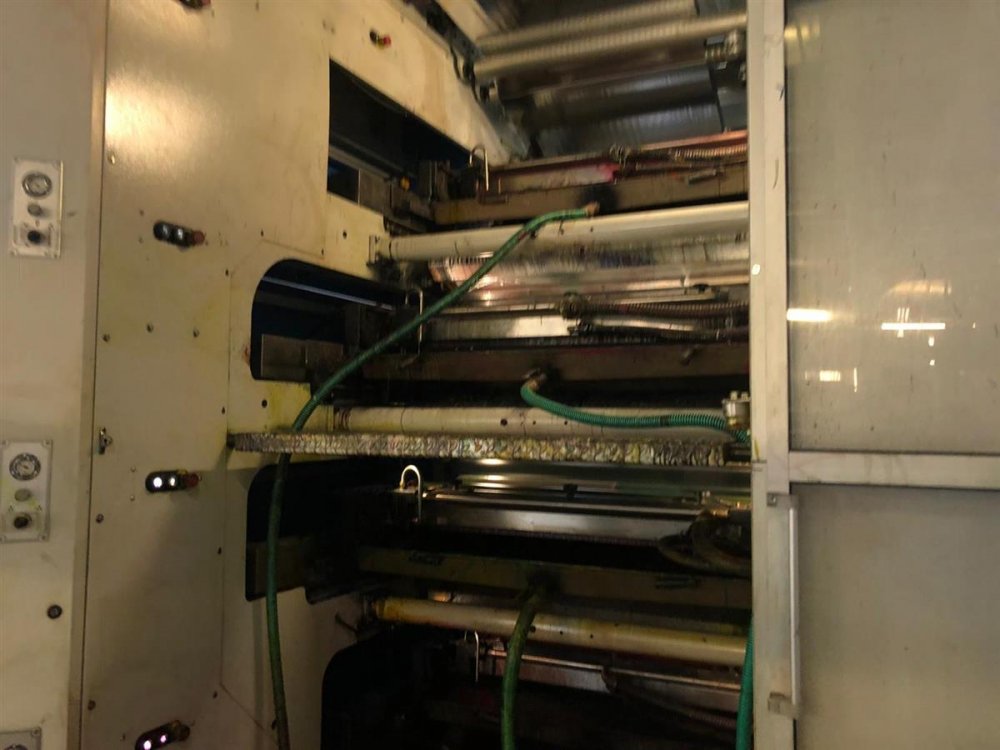

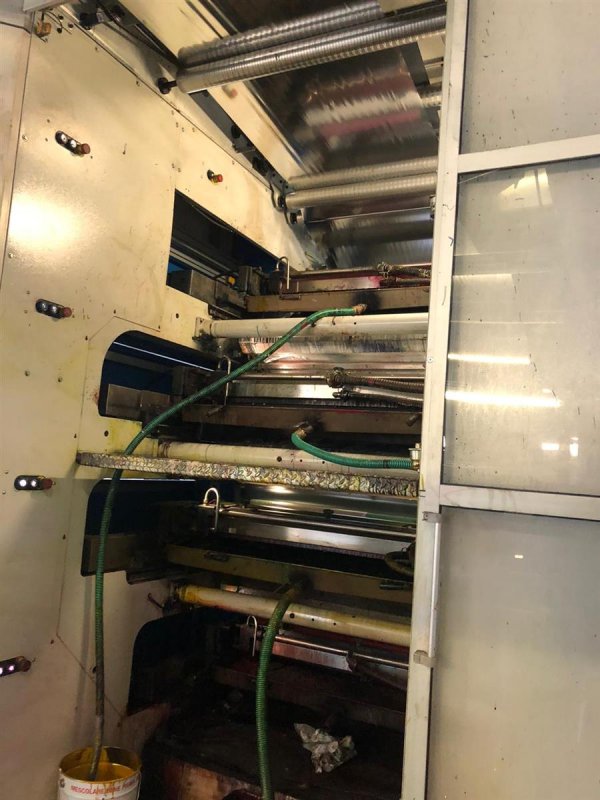

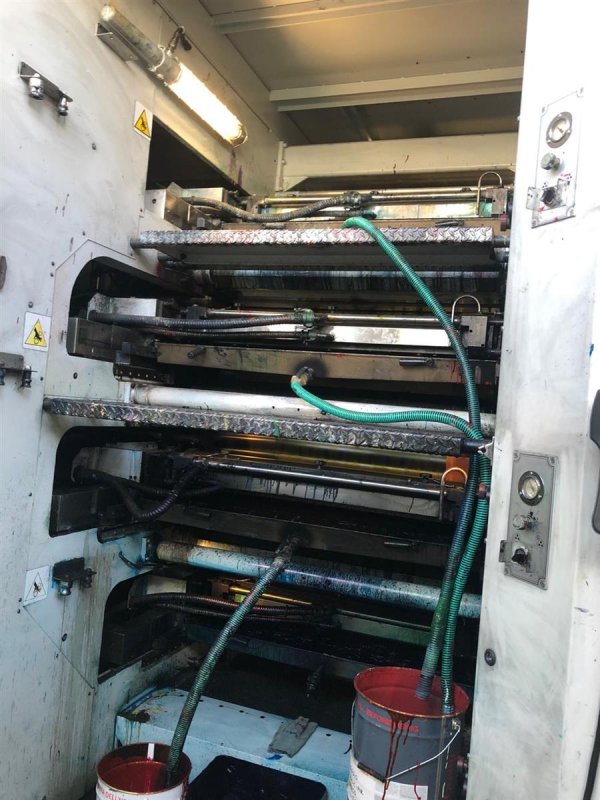

Inking system Closed chamber doctor blades
Anilox 12 ceramic aniox sleevs
