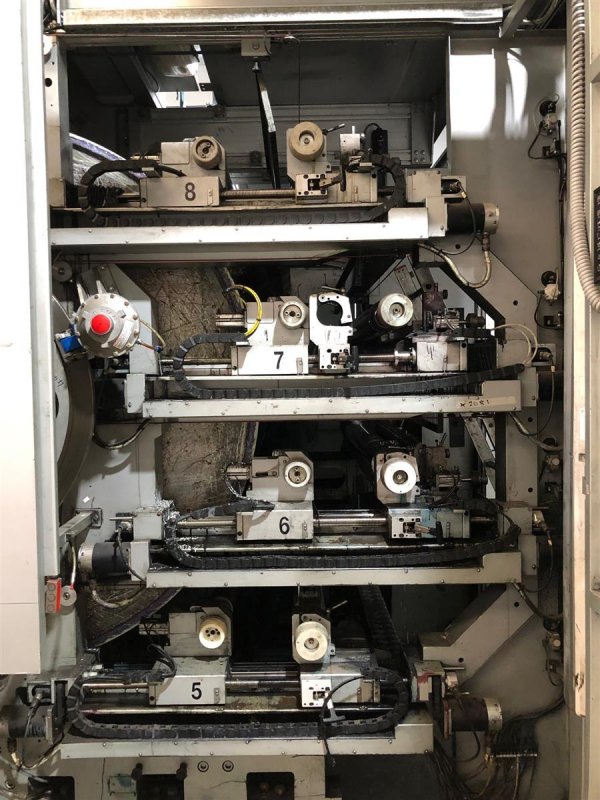

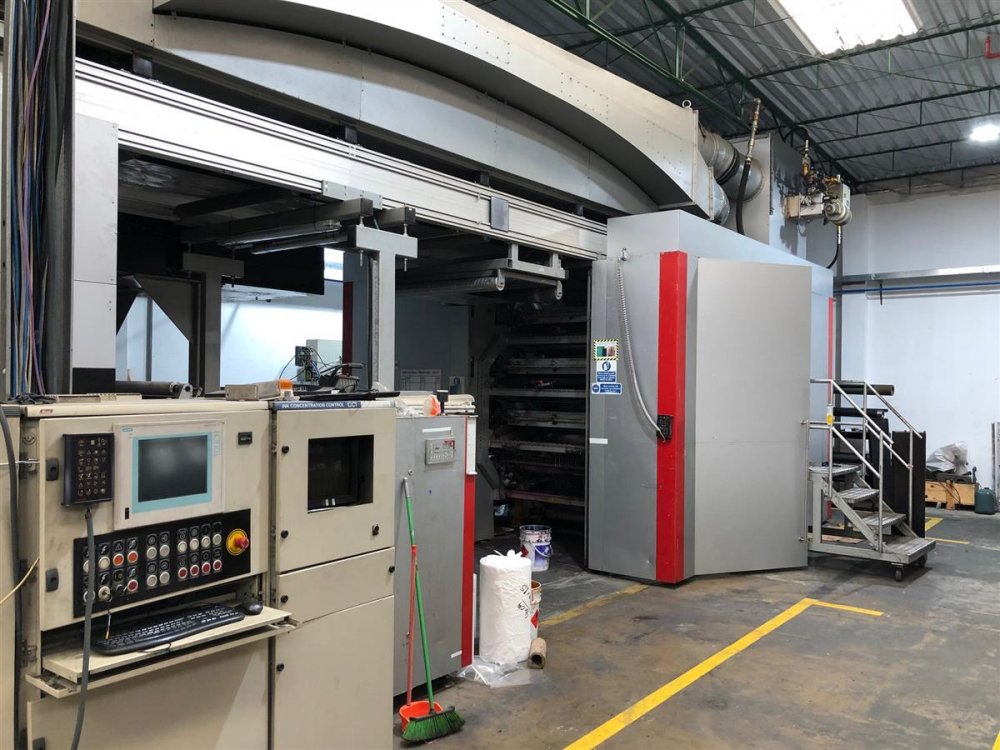

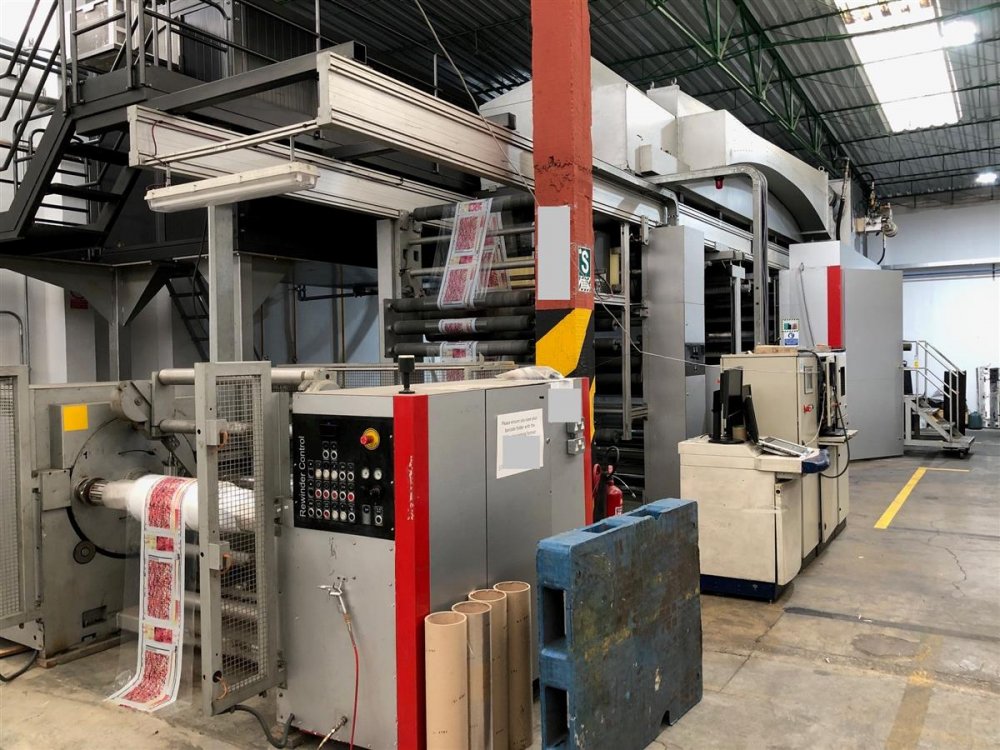

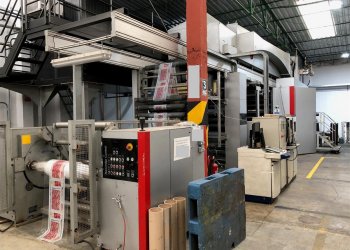

COMEXI FB2108 flexographic printing machine 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
Machine Code
FL867
Manufacturer
COMEXI
Modello
FB2108
Year
2006
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
850
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones - 4 fans - 4 mt tunnel - 2 gas burners
Videocamera
Yes AVT JUPITER , defect detection
Web guides
YES (camera type)
Vyscosity control
Yes
Washing system
Automatic
Inking system
Closed chamber doctor blades
Anilox
16 ceramic anilox sleeves
Print Sleeves
totlly 70 ; 1x380 ,2x420 ,1x570 , 1x590 , 6x600 , 2x610 , 7x640 , 2x650 , 5x660 , 9x680 , 1x690 , 8x695 , 2x740 , 8x770 , 6x760 , 1x780 , 8x790
Note
mechanical speed 350 m/min
Machine Code FL867
Manufacturer COMEXI
Modello FB2108
Year 2006
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 850
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones - 4 fans - 4 mt tunnel - 2 gas burners
Videocamera Yes AVT JUPITER , defect detection
Web guides YES (camera type)
Vyscosity control Yes
Washing system Automatic
Inking system Closed chamber doctor blades
Anilox 16 ceramic anilox sleeves
Print Sleeves totlly 70 ; 1x380 ,2x420 ,1x570 , 1x590 , 6x600 , 2x610 , 7x640 , 2x650 , 5x660 , 9x680 , 1x690 , 8x695 , 2x740 , 8x770 , 6x760 , 1x780 , 8x790
Note mechanical speed 350 m/min
