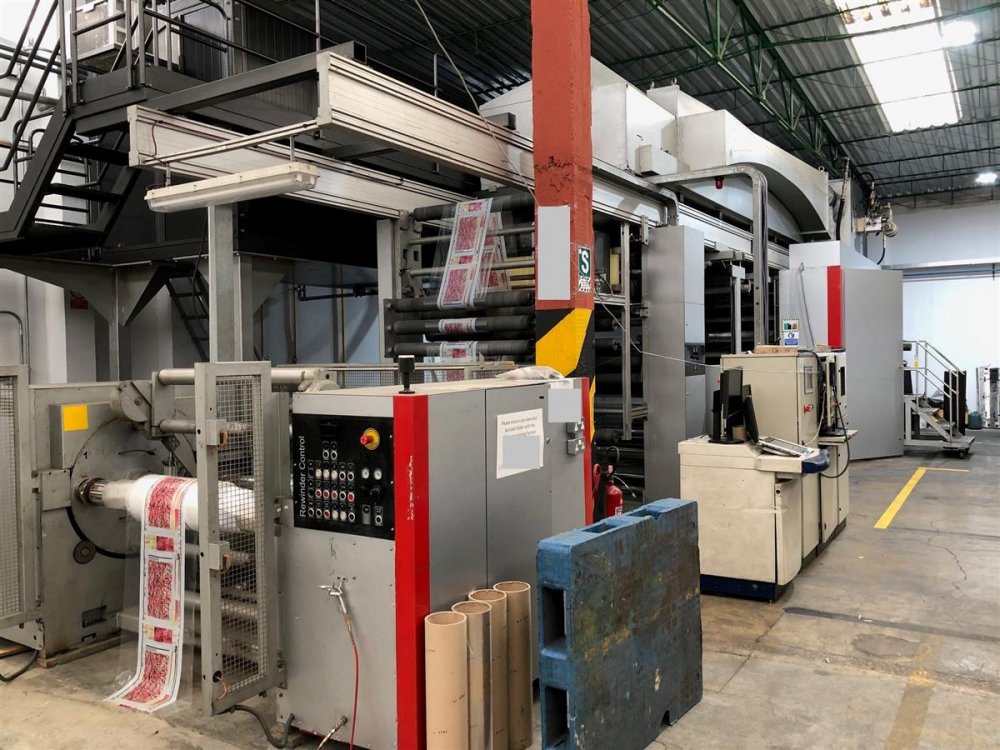

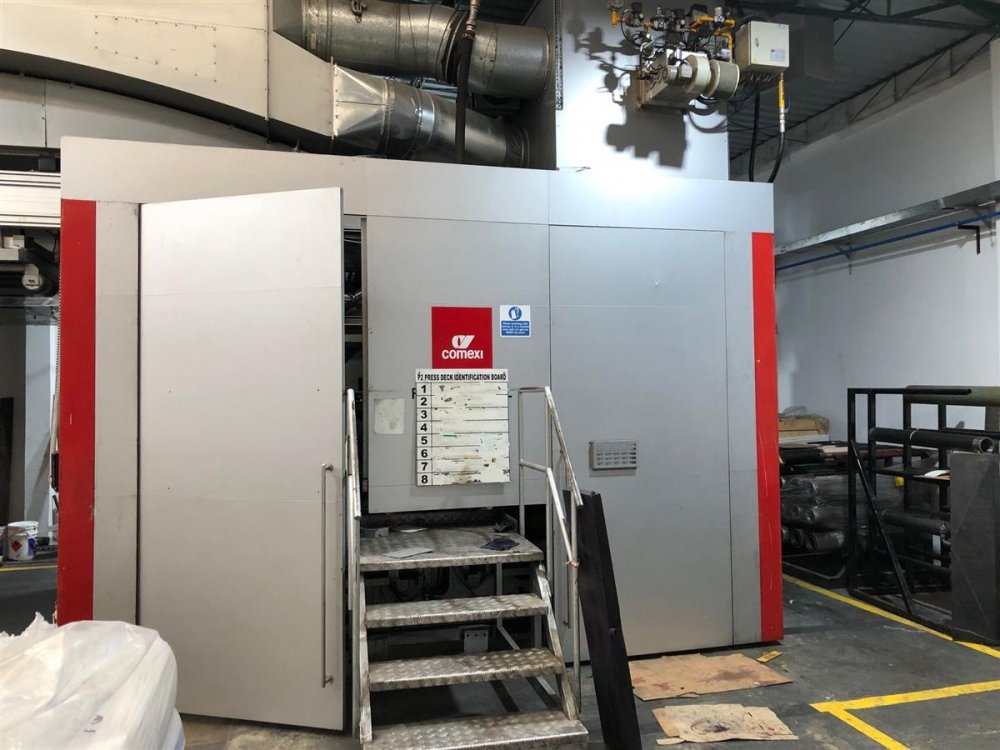

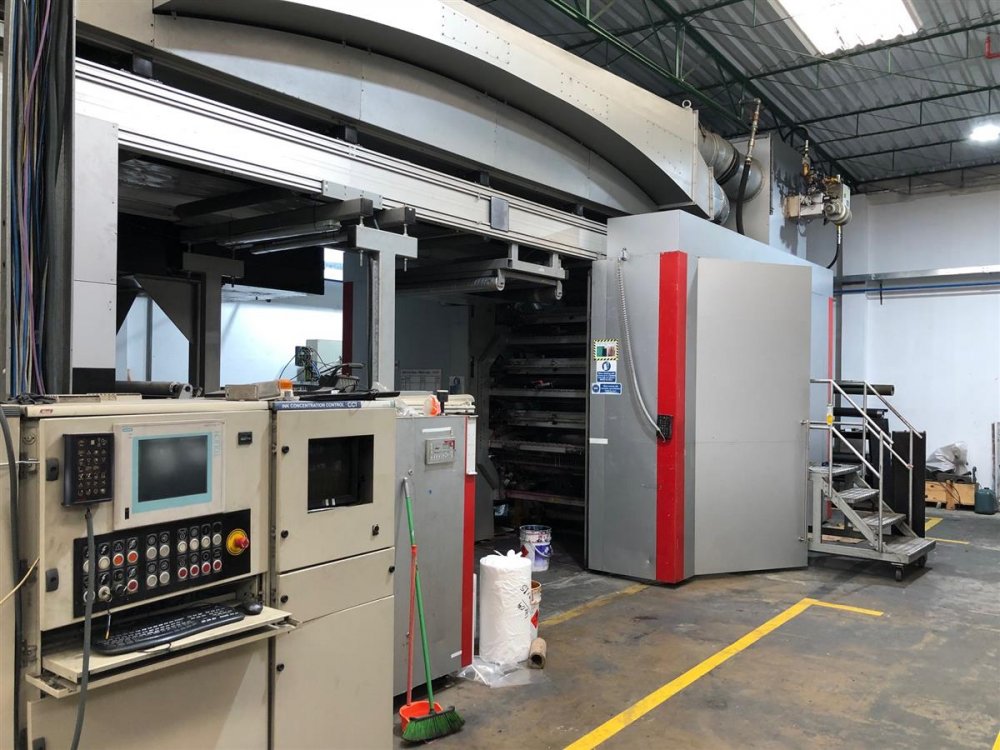

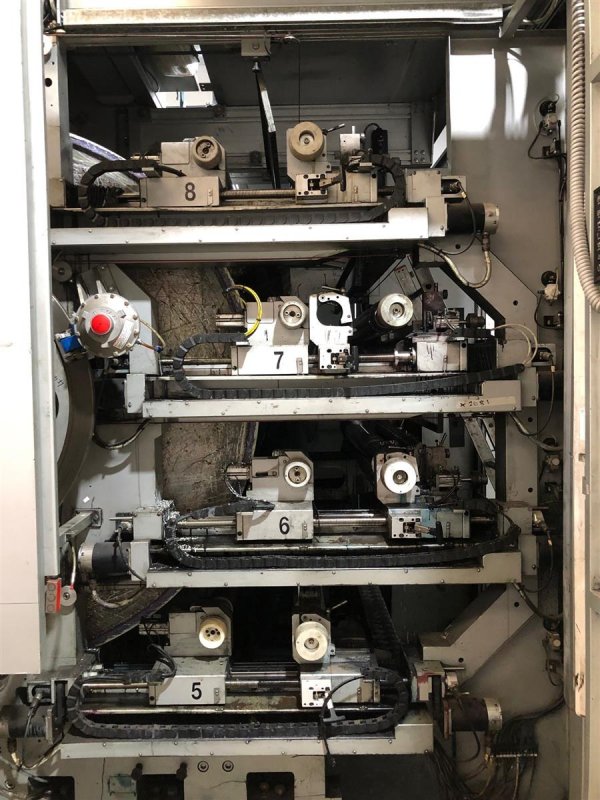

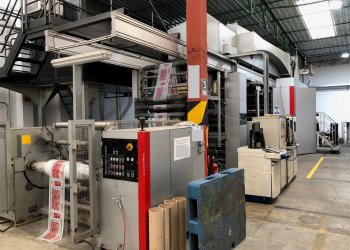

COMEXI FB2108 Macchina da stampa flexo 8 colori

Codice Macchina
FL0867
Manufacturer
COMEXI
Modello
FB2108
Year
2006
Numero di colori
8
Print possibilityes
8+0
Gearless
Yes
Cambio a maniche rapido
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Larghezza nastro (mm)
1270
Larghezza stampa (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
850
Unwinder type
Turret Automatic
Diametro massimo svolgitore (mm)
800
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
800
Essiccazione
2 zones - 4 fans - 4 mt tunnel - 2 gas burners
Videocamera
Yes AVT JUPITER , defect detection
Guida film
YES (camera type)
Vyscosity control
Yes
Washing system
Automatic
Sistema d'inchiostro
Closed chamber doctor blades
Anilox
16 ceramic anilox sleeves
Maniche stampa
totlly 70 ; 1x380 ,2x420 ,1x570 , 1x590 , 6x600 , 2x610 , 7x640 , 2x650 , 5x660 , 9x680 , 1x690 , 8x695 , 2x740 , 8x770 , 6x760 , 1x780 , 8x790
Ulteriori informazioni
mechanical speed 350 m/min
Codice Macchina FL0867
Manufacturer COMEXI
Modello FB2108
Year 2006
Numero di colori 8
Print possibilityes 8+0
Gearless Yes
Cambio a maniche rapido Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Larghezza nastro (mm) 1270
Larghezza stampa (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 850
Unwinder type Turret Automatic
Diametro massimo svolgitore (mm) 800
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 800
Essiccazione 2 zones - 4 fans - 4 mt tunnel - 2 gas burners
Videocamera Yes AVT JUPITER , defect detection
Guida film YES (camera type)
Vyscosity control Yes
Washing system Automatic
Sistema d'inchiostro Closed chamber doctor blades
Anilox 16 ceramic anilox sleeves
Maniche stampa totlly 70 ; 1x380 ,2x420 ,1x570 , 1x590 , 6x600 , 2x610 , 7x640 , 2x650 , 5x660 , 9x680 , 1x690 , 8x695 , 2x740 , 8x770 , 6x760 , 1x780 , 8x790
Ulteriori informazioni mechanical speed 350 m/min
