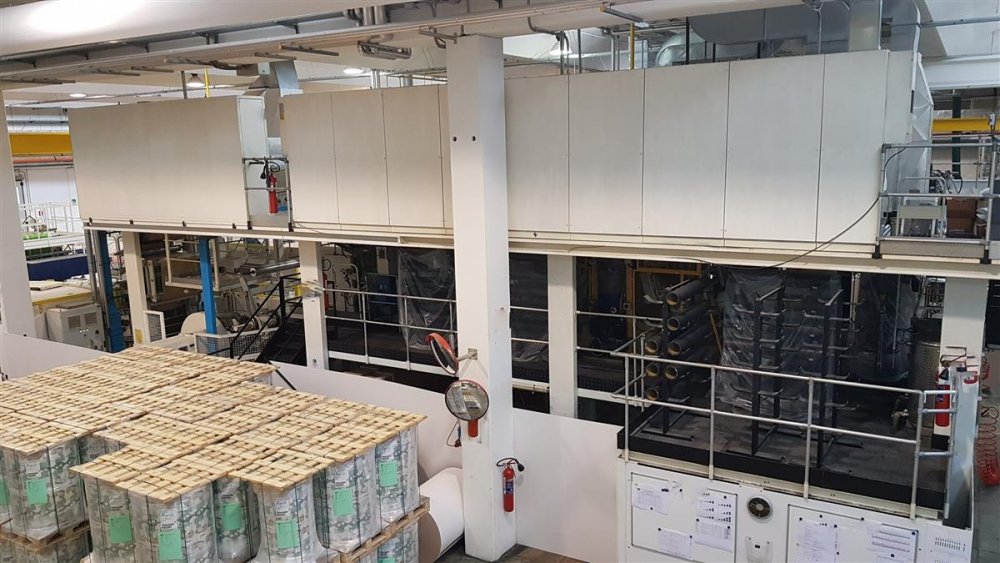

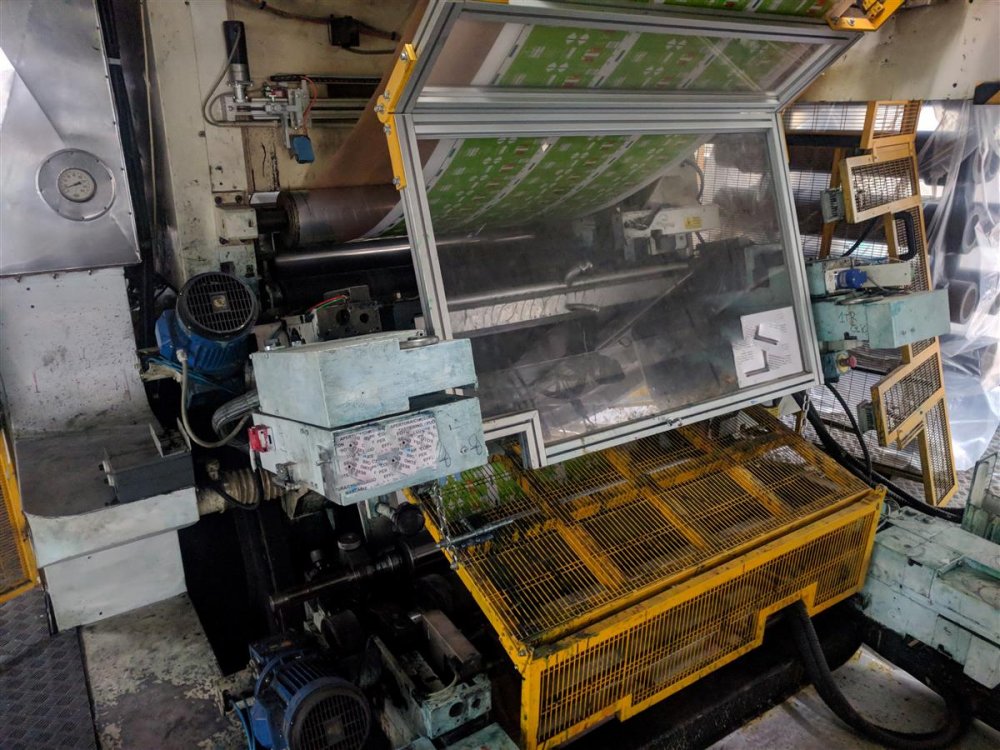

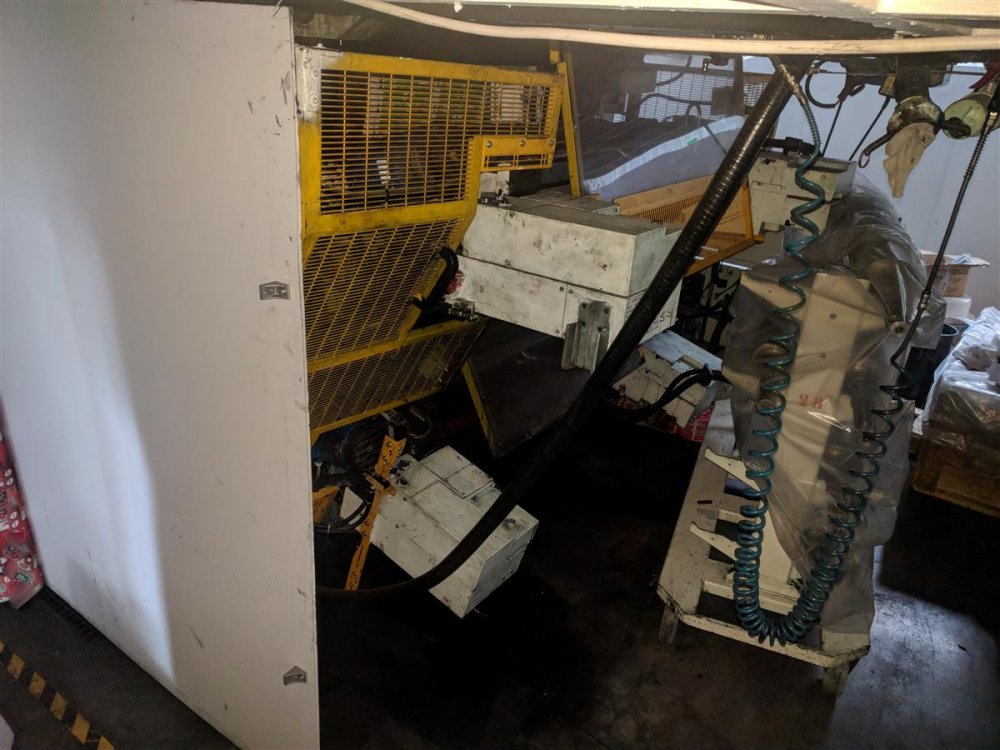

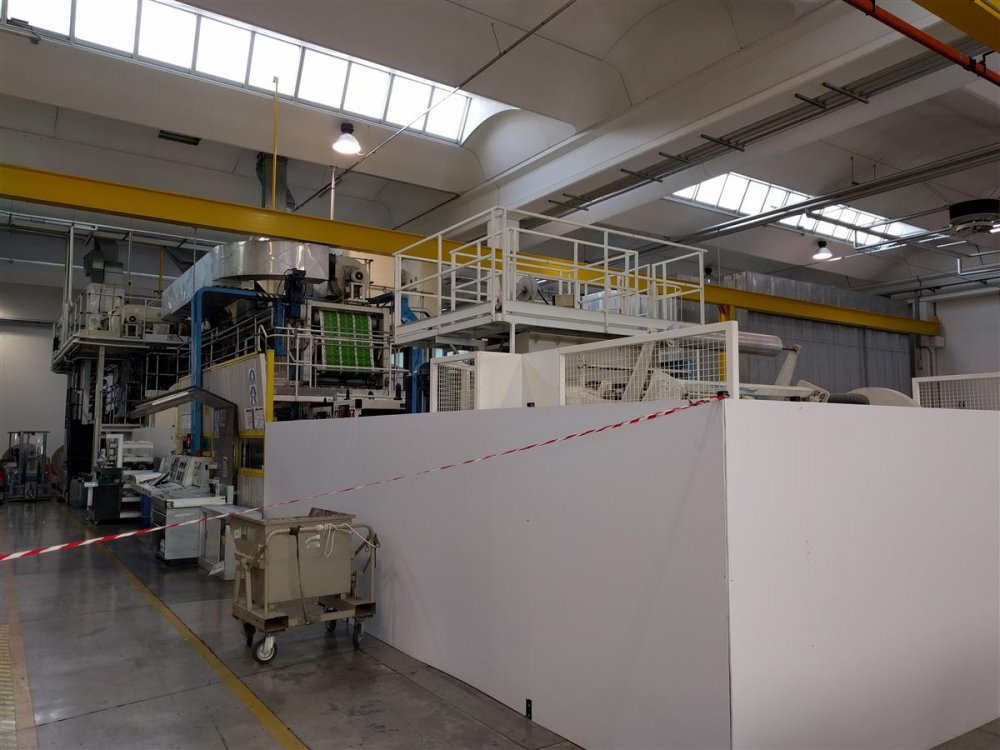

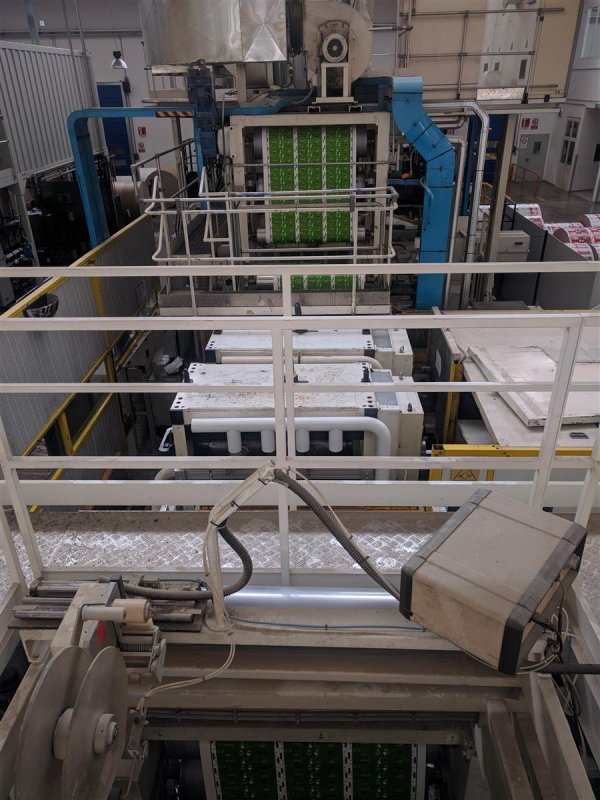

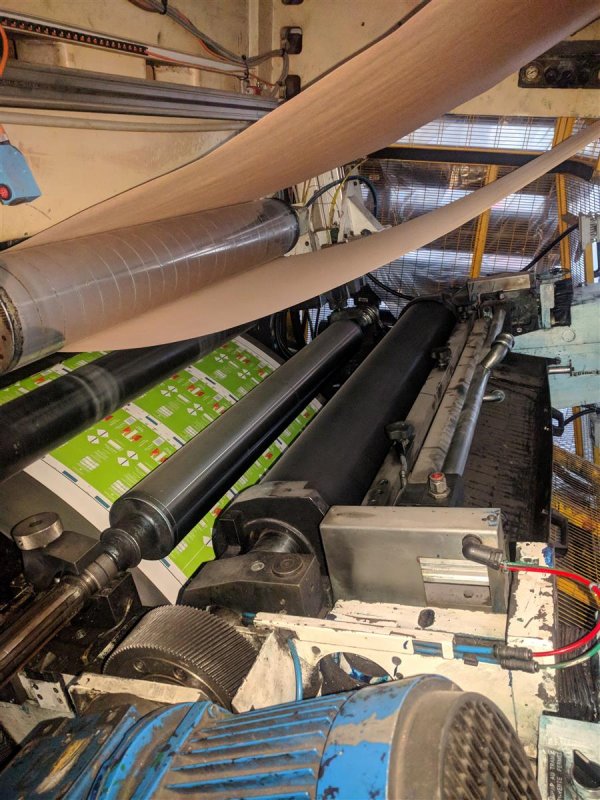

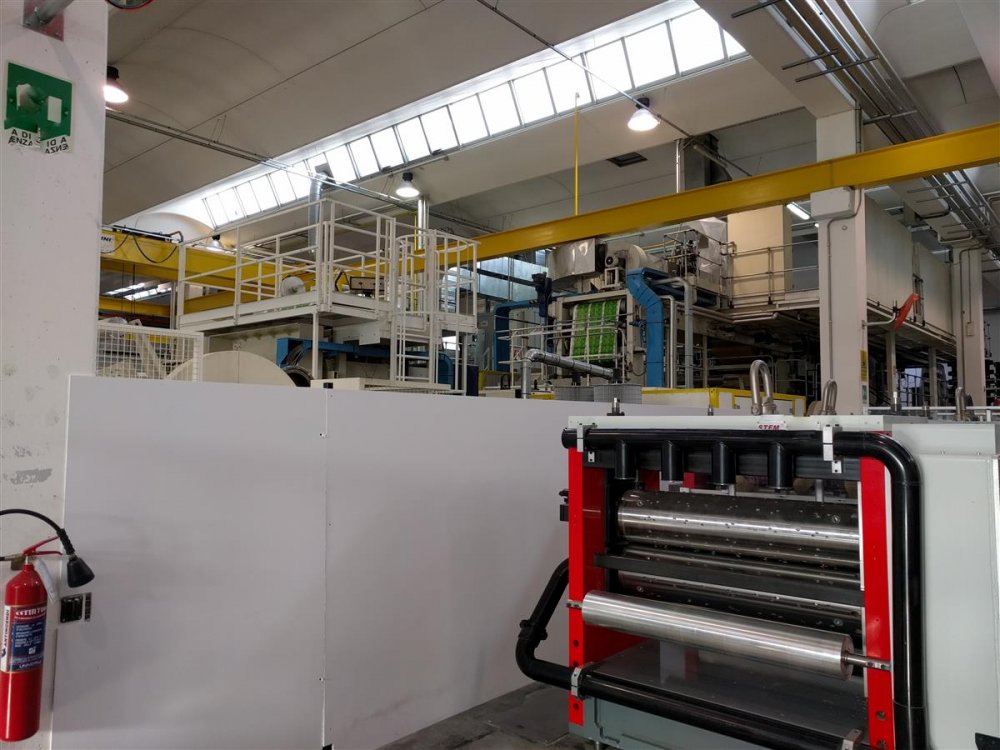

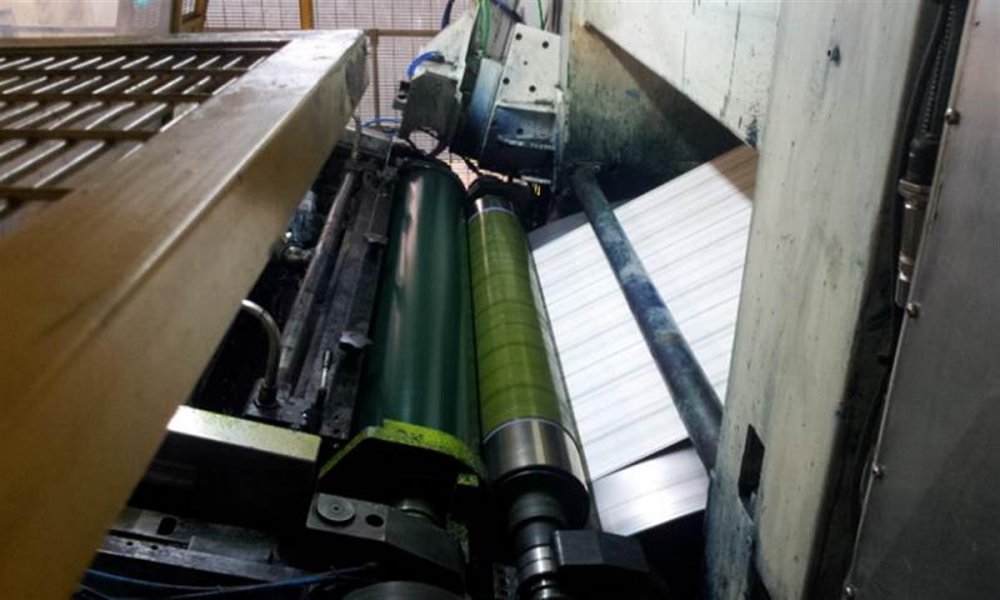

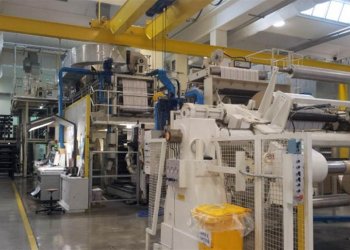

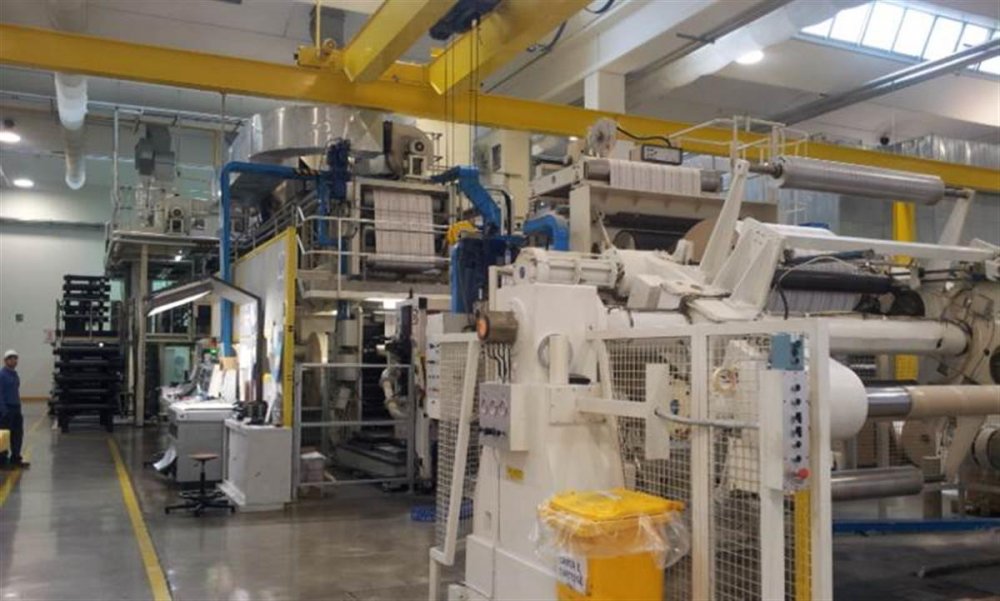

UTECO JADE 810 flexo press 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL844
Manufacturer UTECO
Model JADE 810
Year 1996
Number of colors 8
Gearless No
Fast sleeve change Yes

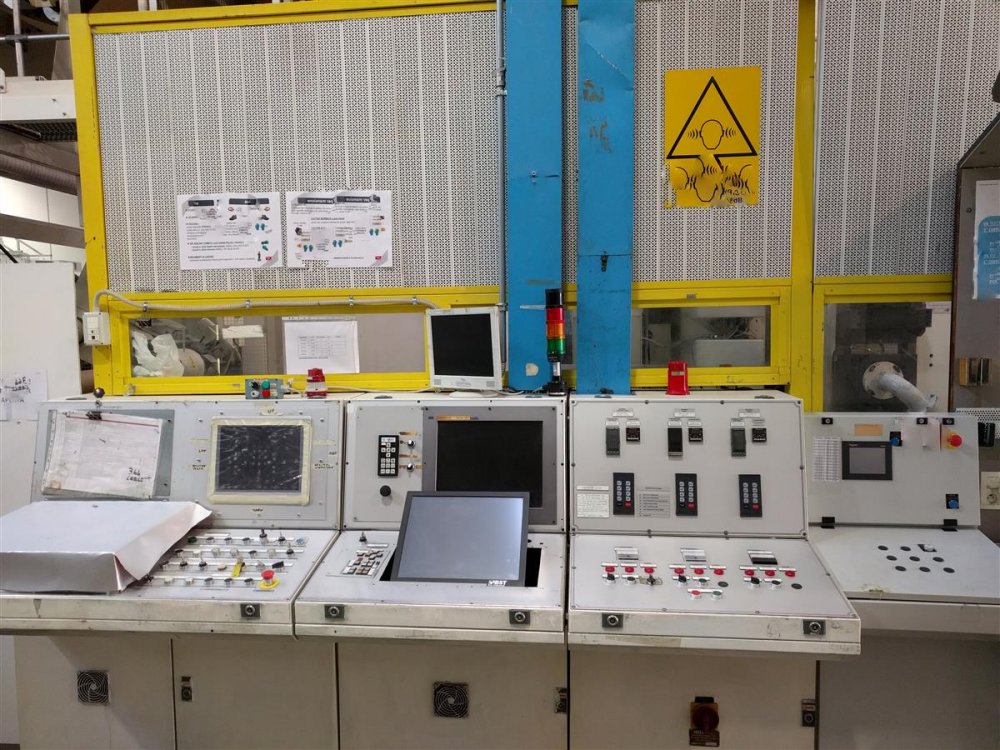

Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 480
Max print repeat (mm) 1000
Unwinder type Shaftless, Cerutti, automatic
Max reel diameter unwinder (mm) 1550
Rewinder type Shaftless, Cerutti, automatic
Max reel diameter rewinder (mm) 1550

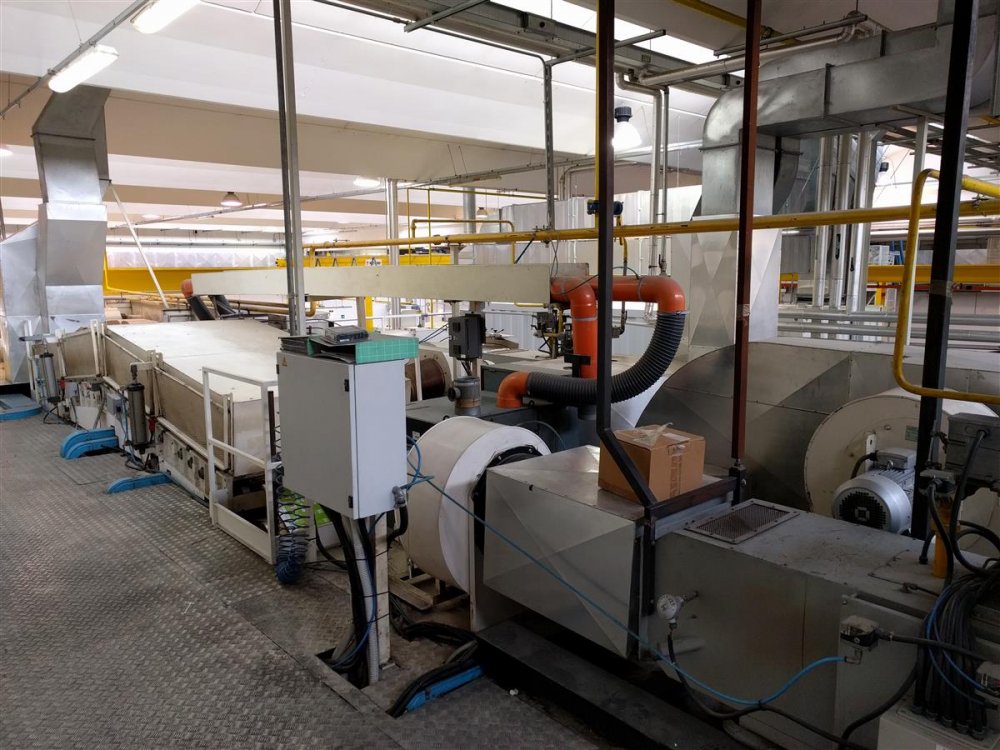

Drying Interdeck and drying ovens with natural gas burners
Web guides Fife
Vyscosity control Yes
Inking system water based
Additional information Paper min150 – max 450 g/m2 Air shafts : 152 or 305 Kelva web cleaner Automatic print cut register control Clichè cylinders with quick change system Automatic BST print quality control system Viscosimeters and automatic washing system for ink pumps Option Bernal Inc. double scoring and drilling station in electric axis
