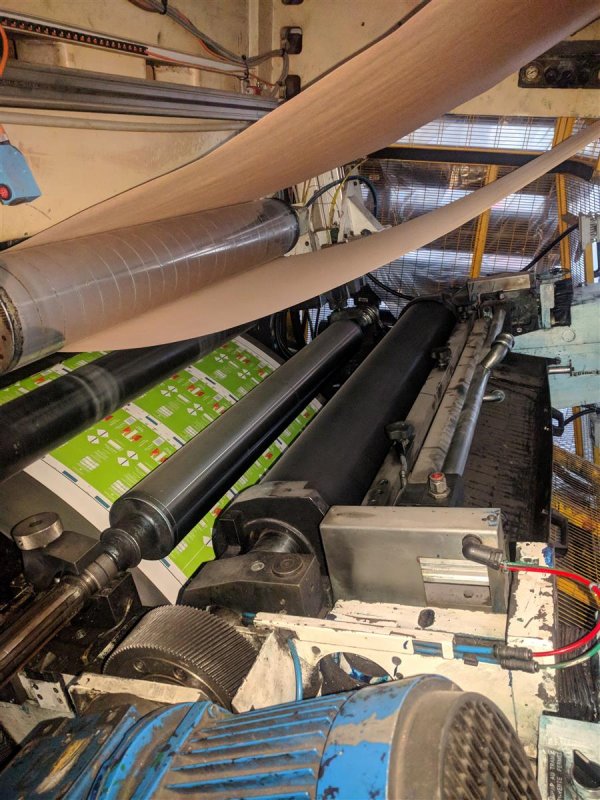

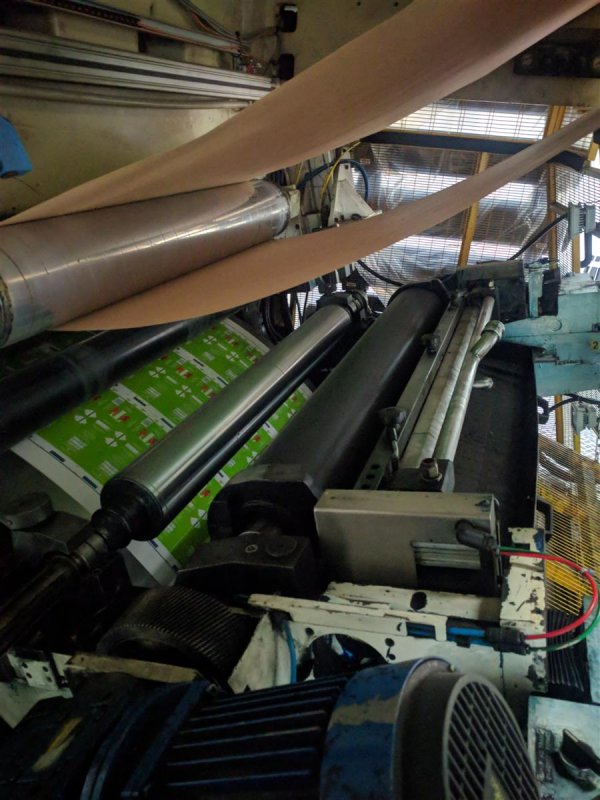

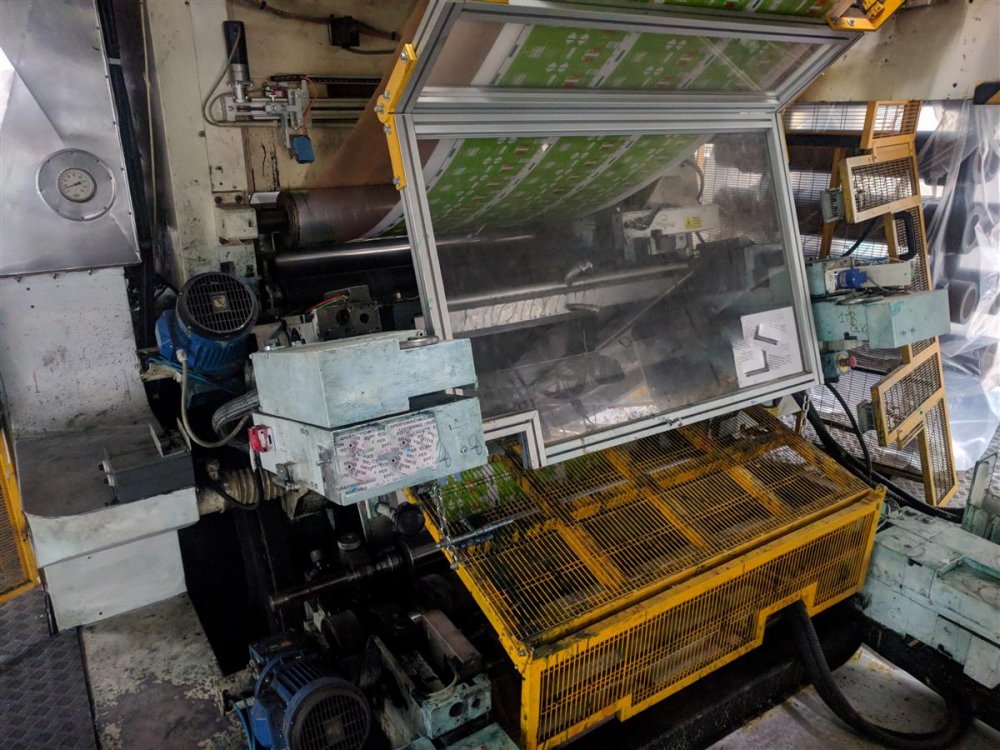

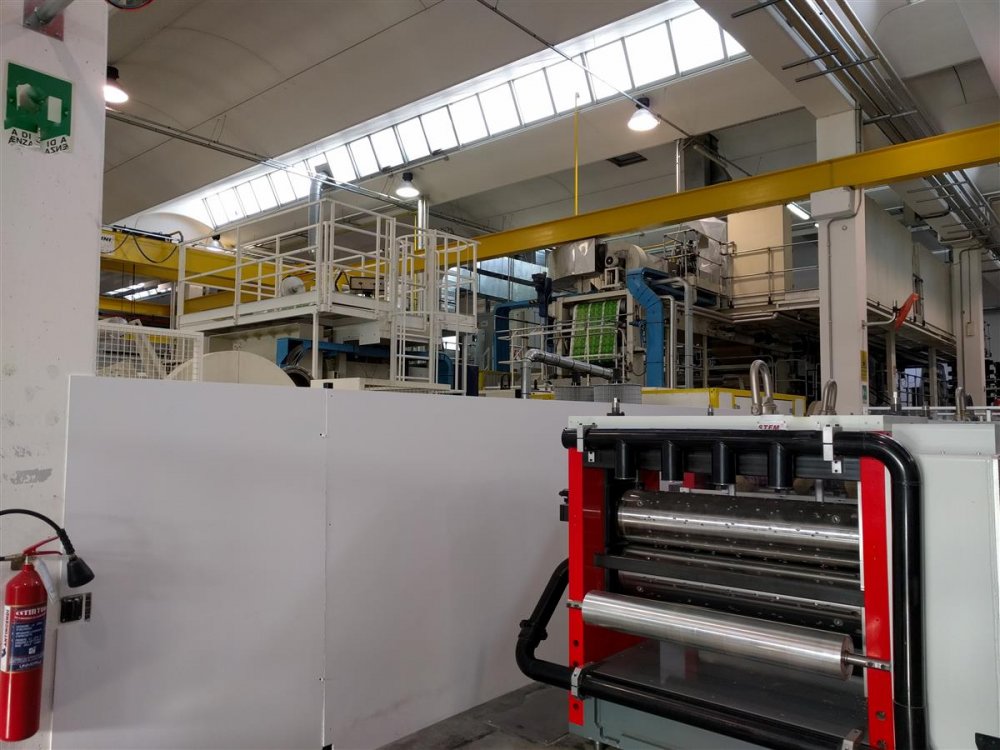

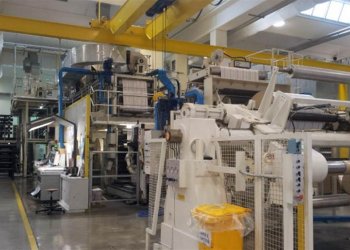

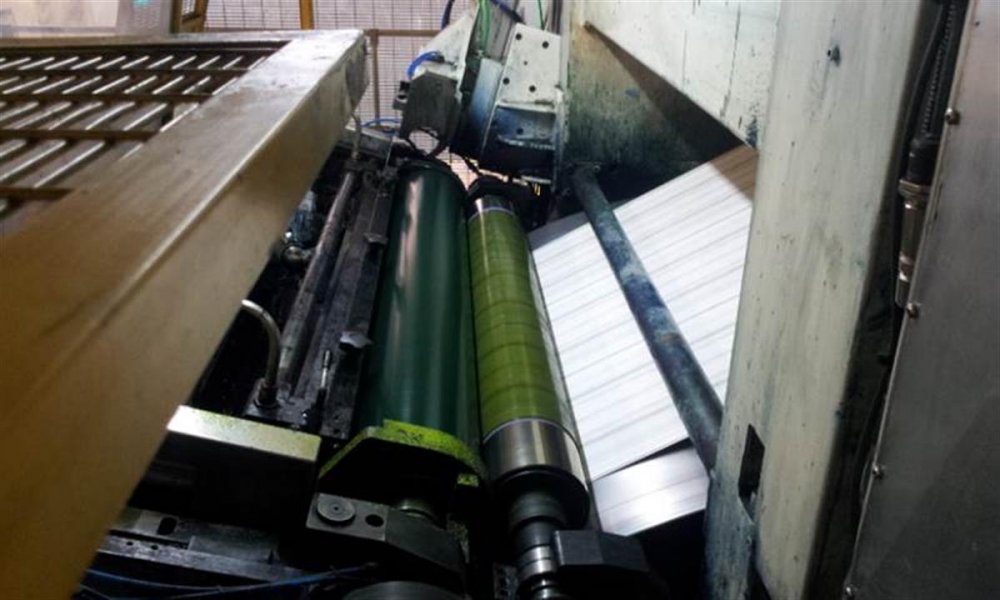

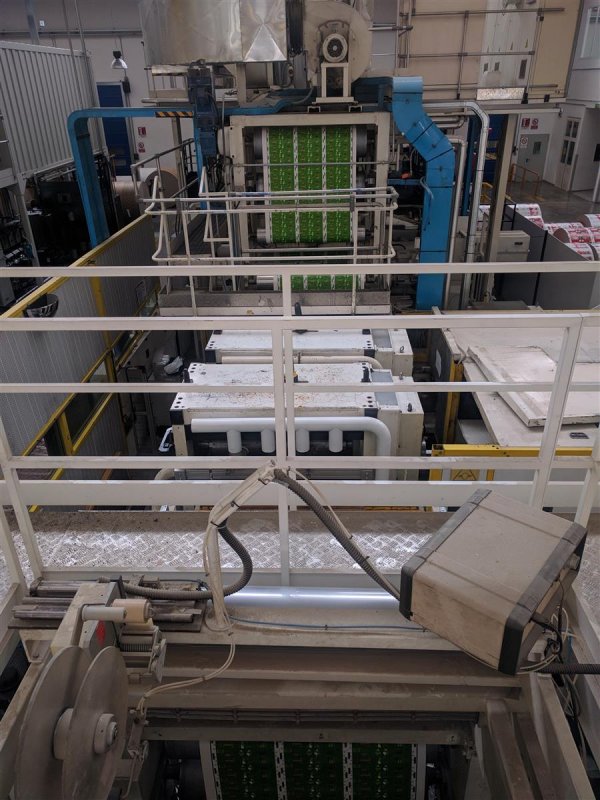

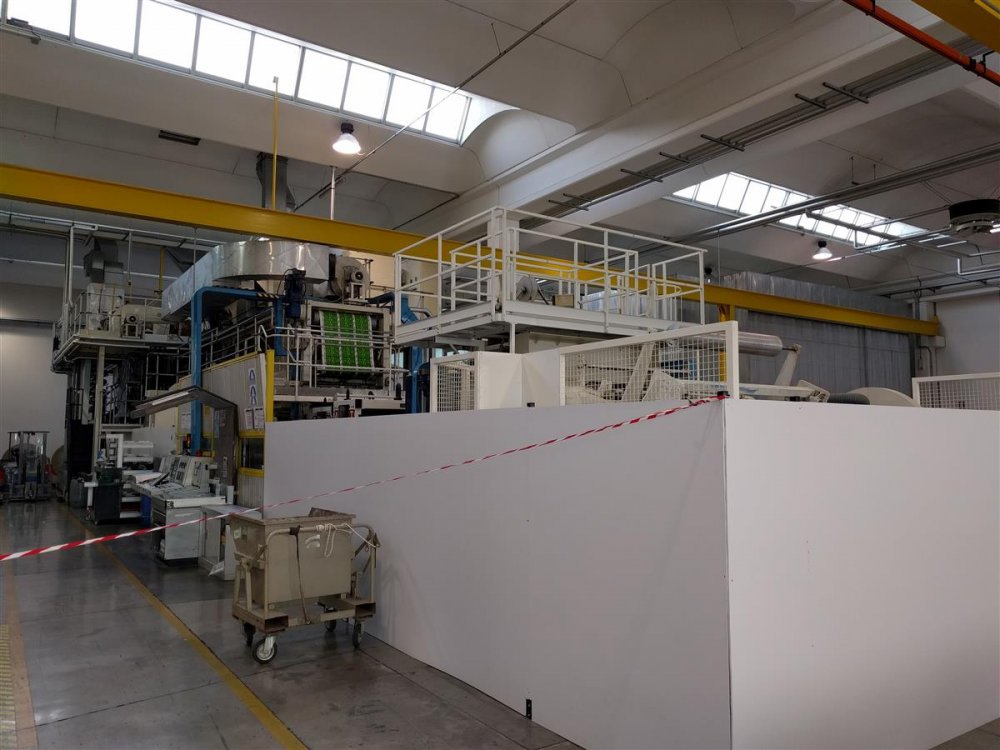

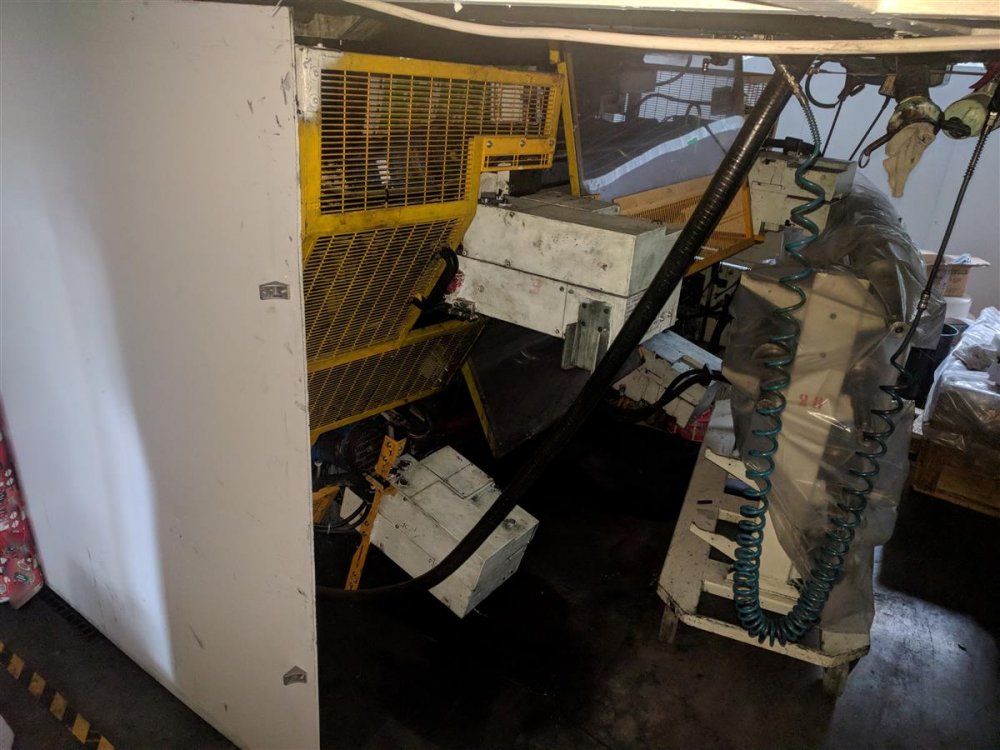

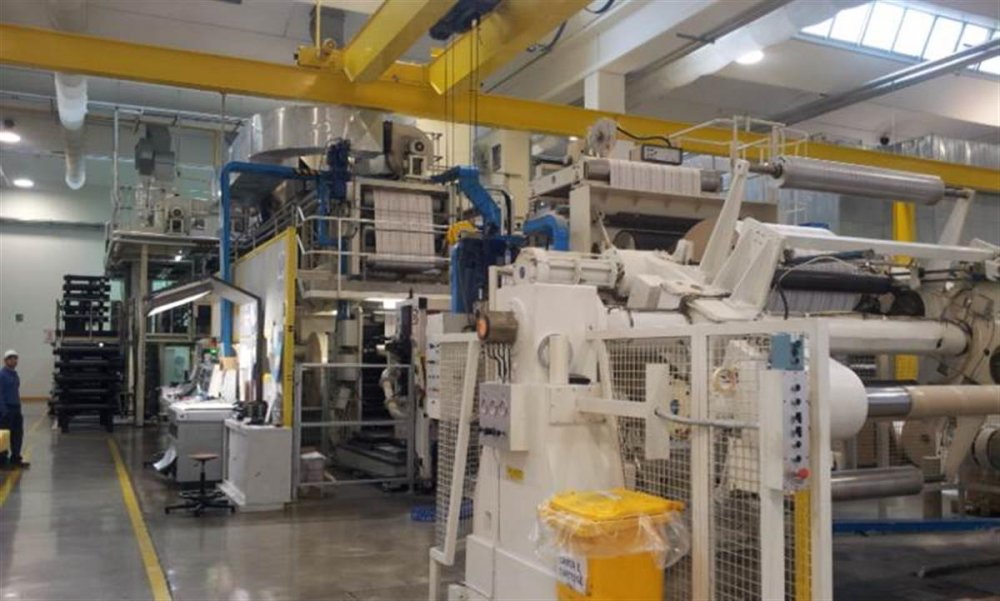

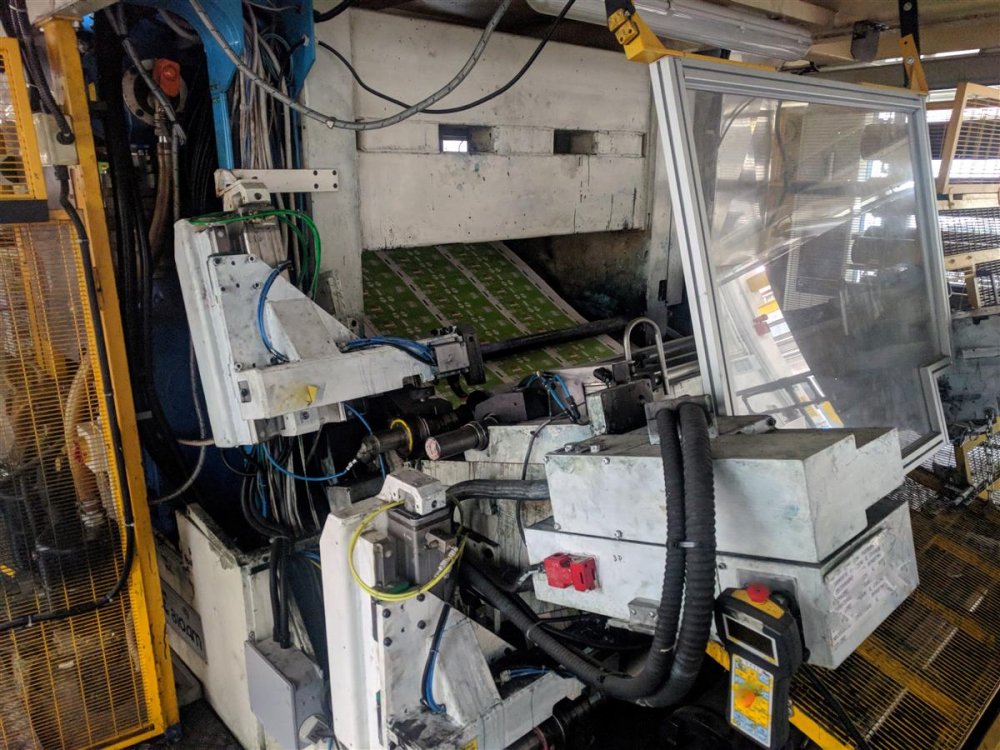

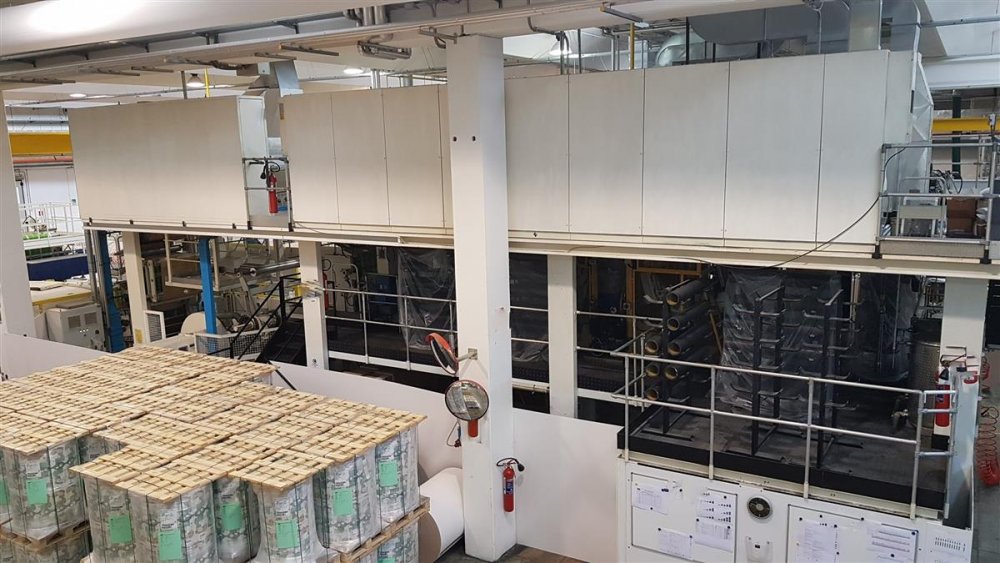

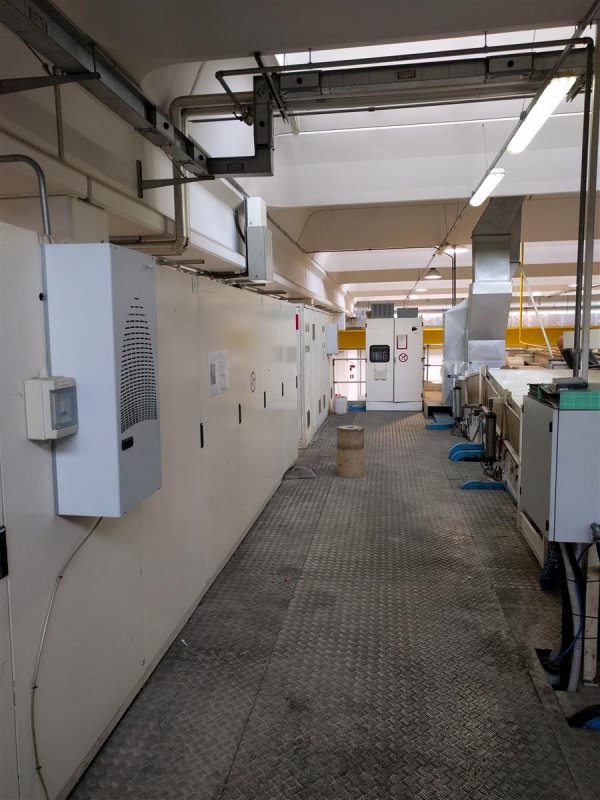

UTECO JADE 810 flexographic printing machine 8 colors

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
Machine Code
FL844
Manufacturer
UTECO
Model
JADE 810
Year
1996
Number of colors
8
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
Yes

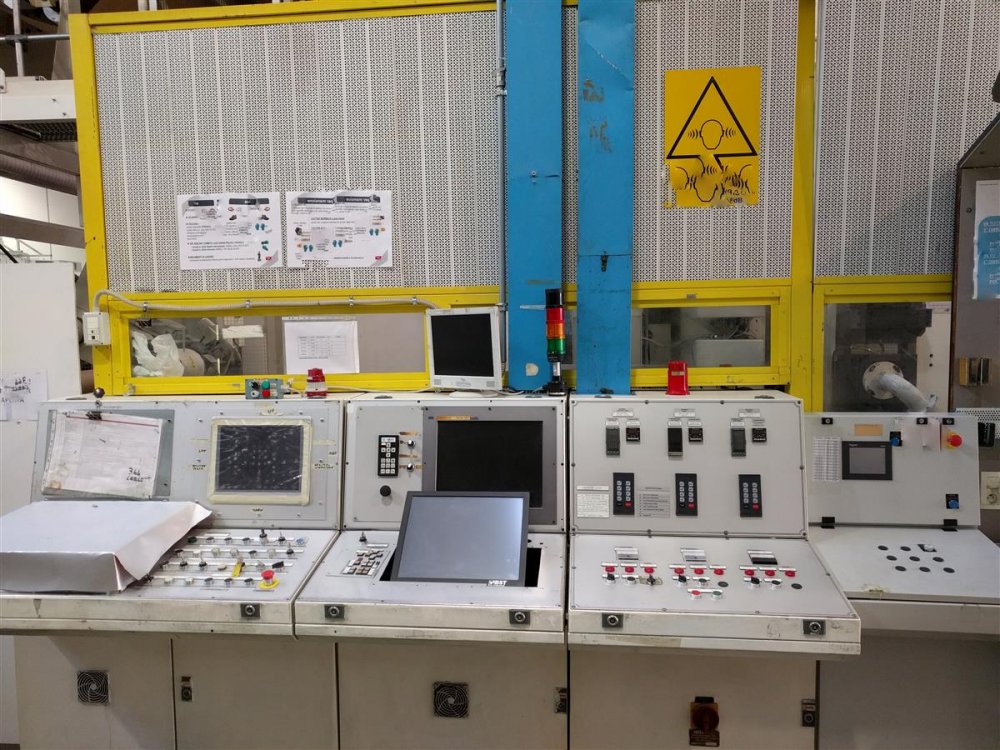

Computer supervision
Yes
Web width (mm)
1350
Print width (mm)
1300
Min print repeat (mm)
480
Max print repeat (mm)
1000

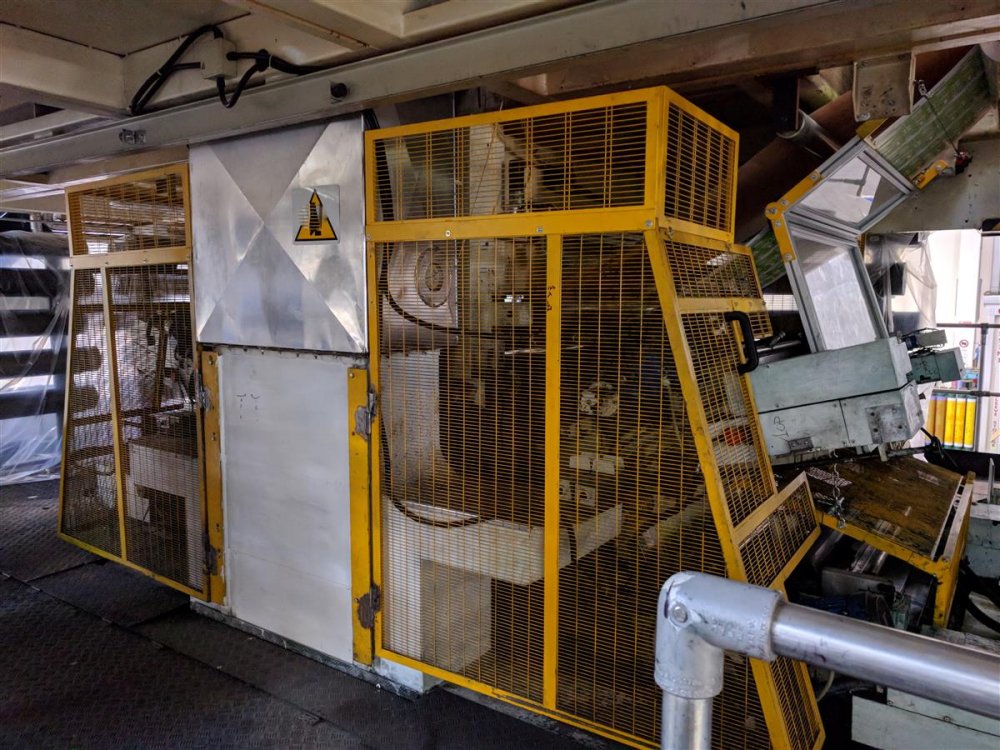

Unwinder type
Shaftless, Cerutti, automatic
Max reel diameter unwinder (mm)
1550
Rewinder type
Shaftless, Cerutti, automatic
Max reel diameter rewinder (mm)
1550
Drying

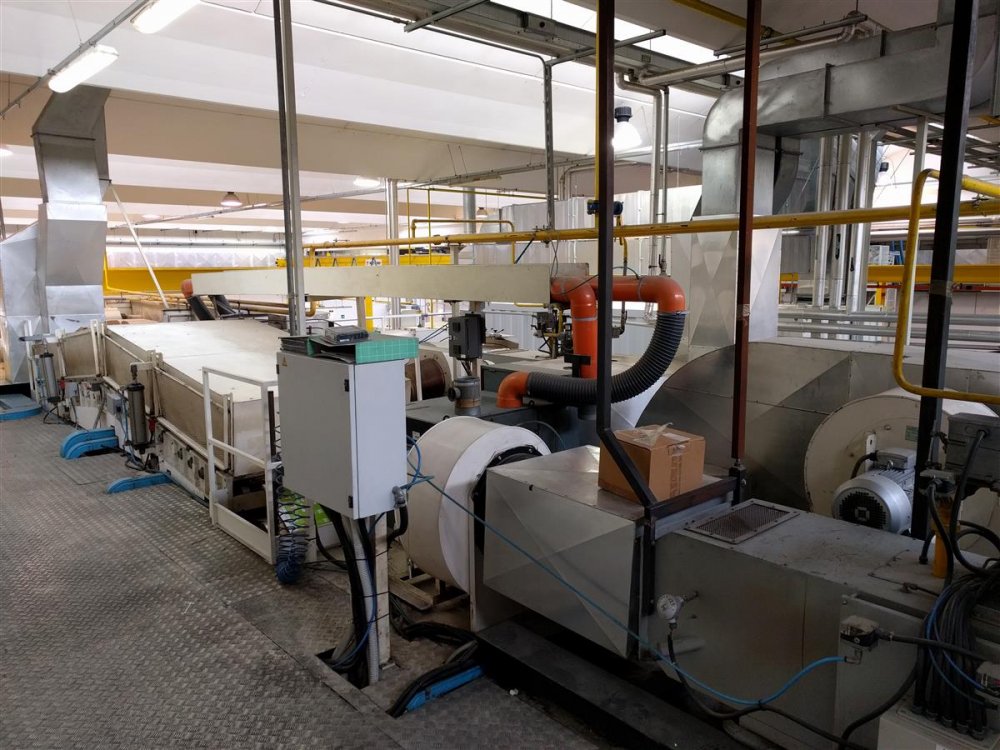

Interdeck and drying ovens with natural gas burners
Web guides
Fife
Vyscosity control
Yes
Inking system
water based
Additional information
Paper min150 – max 450 g/m2 Air shafts : 152 or 305 Kelva web cleaner Automatic print cut register control Clichè cylinders with quick change system Automatic BST print quality control system Viscosimeters and automatic washing system for ink pumps Option Bernal Inc. double scoring and drilling station in electric axis
Machine Code FL844
Manufacturer UTECO
Model JADE 810
Year 1996
Number of colors 8
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 480
Max print repeat (mm) 1000
Unwinder type Shaftless, Cerutti, automatic
Max reel diameter unwinder (mm) 1550
Rewinder type Shaftless, Cerutti, automatic
Max reel diameter rewinder (mm) 1550
Drying Interdeck and drying ovens with natural gas burners
Web guides Fife
Vyscosity control Yes
Inking system water based
Additional information Paper min150 – max 450 g/m2 Air shafts : 152 or 305 Kelva web cleaner Automatic print cut register control Clichè cylinders with quick change system Automatic BST print quality control system Viscosimeters and automatic washing system for ink pumps Option Bernal Inc. double scoring and drilling station in electric axis
