** SOLD **

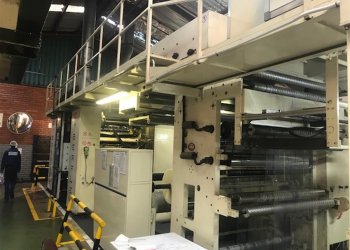

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL840
- Manufacturer
- CARINT- C&C FLEXO
- Modello
- Cyberflex 1708
- Year
- 2007
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1200
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 800
- Unwinder type
- Semi automatic with mariiage roller
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Automatic turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 electric heaters by 100kw each
- Videocamera
- POWERSCOPE 3000 – 1 CHIP BST
- Web guides
- in and out
- Inking system
- Doctor blade + ceramic anilox
- Anilox
- 8 sleeves. 1x100lcm 1 x140lcm, 5 x400 lcm, 1 x 240 lcm
- Print Sleeves
- n° 48 plate sleeves; repeats: 400 mm 430 mm 440 mm 460 mm 490
- Note
- Printing speed: 300m/min Max. Overall Dimensions( L x W x H) 13000 x5800 x 4700 Tension Range 2-20 kg
Machine Code | FL840 |
Manufacturer | CARINT- C&C FLEXO |
Modello | Cyberflex 1708 |
Year | 2007 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1270 |
Print width (mm) | 1200 |
Min print repeat (mm) | 400 |
Max print repeat (mm) | 800 |
Unwinder type | Semi automatic with mariiage roller |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Automatic turret |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 electric heaters by 100kw each |
Videocamera | POWERSCOPE 3000 – 1 CHIP BST |
Web guides | in and out |
Inking system | Doctor blade + ceramic anilox |
Anilox | 8 sleeves. 1x100lcm 1 x140lcm, 5 x400 lcm, 1 x 240 lcm |
Print Sleeves | n° 48 plate sleeves; repeats: 400 mm 430 mm 440 mm 460 mm 490 |
Note | Printing speed: 300m/min Max. Overall Dimensions( L x W x H) 13000 x5800 x 4700 Tension Range 2-20 kg |
