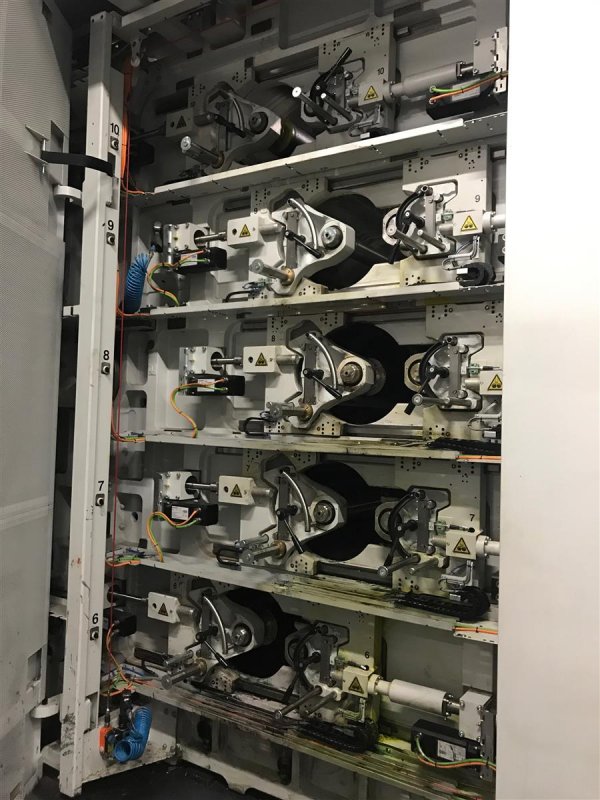

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL0739
- Manufacturer

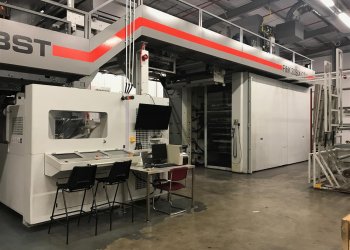

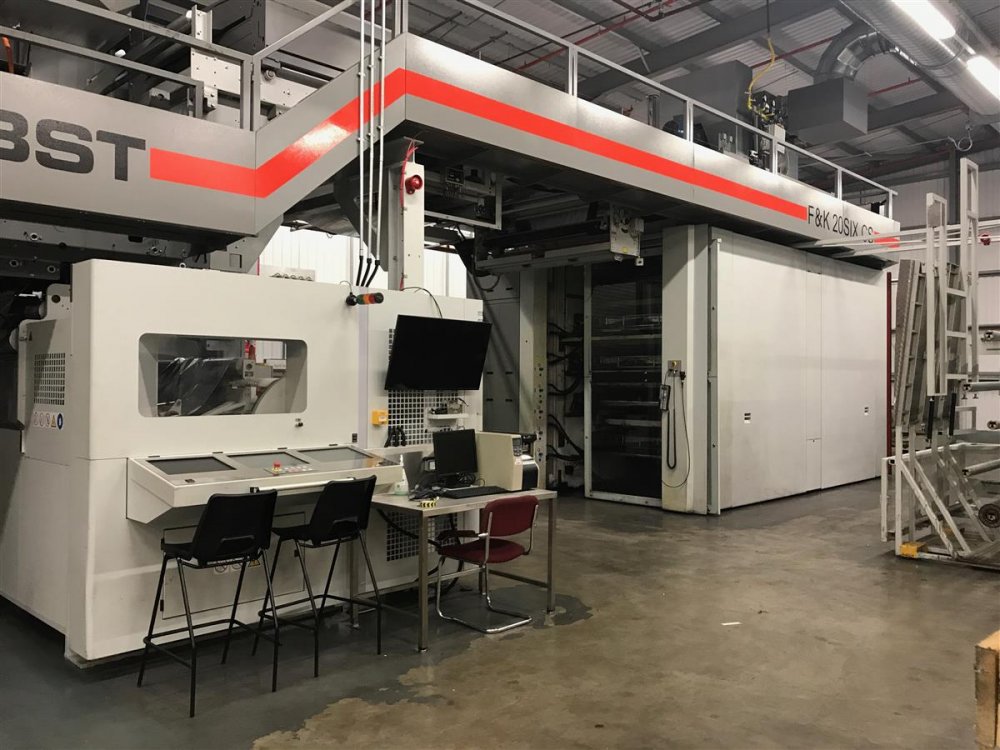

- BOBST FISCHER & KRECKE
- Modello
- FK 20 / 6 CS
- Year
- 2015
- Number of colors
- 10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1700
- Print width (mm)
- 1650
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 1200
- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000

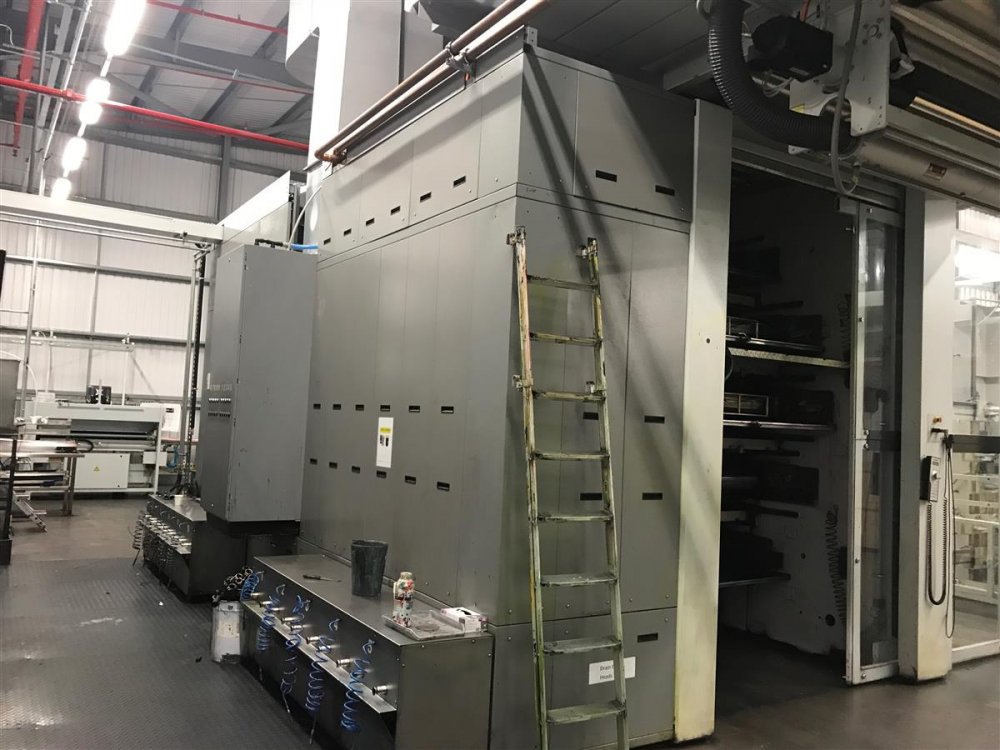

- Drying
- 2 ZONES 2 GAS BURNERS 4 FANS 6 mt tunnel, Automtic air recirculation system with LEL control

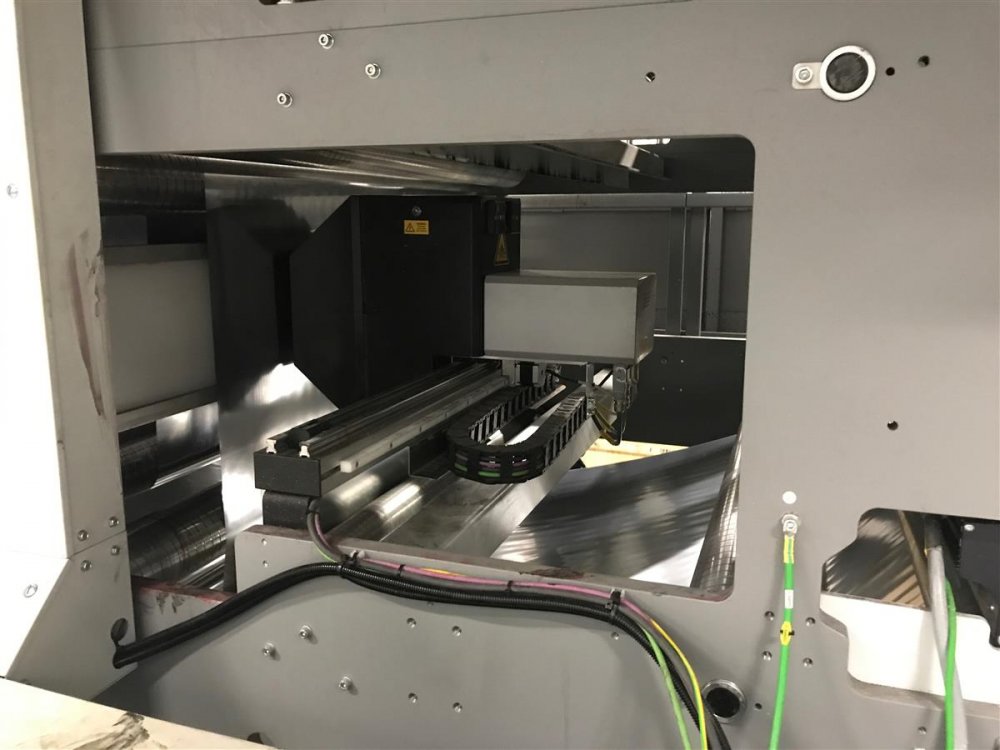

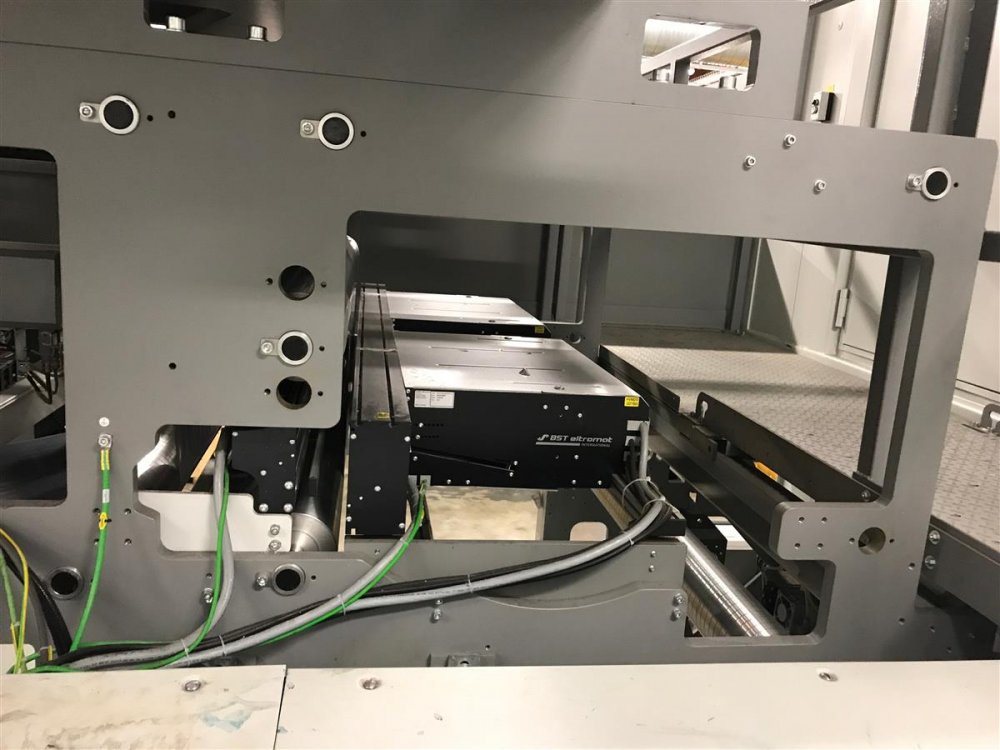

- Videocamera
- Eltromat high resolution camera; Eltromat 100% inspection system
- Corona treatment
- MERO Web MR/B10K0P3IGBT
- Web guides
- yes
- Vyscosity control
- Automatic
- Washing system
- Automatic
- Inking system
- closed chamber doctor blades
- Anilox
- 34 ceramic anilox sleeves engraving between 80 lines / cm and 480 lines / cm DIam .mm 200,54, width 1730 1x 80 L/cm-Vol16 cm3/mq ; 1x 80 L/cm- Vol.14 ; 1x 100 L/cm-vol.18 ¸1x 140 L/cm- vol.12; 1x 200 L/cm-vol.10; 2x 200 L/cm-vol.9 ; 1x 200 L/cm- vol.4,9 ; 1x 220 L/cm-vol.9 ; 1x 260 L/cm-vol.7,5; 1x 300 L/cm-vol.6,5 ; 7x 360 L/cm-vol.5 ; 1x 360 L/cm- vol.6; 2x 400 L/cm-vol.5; 1x 400 L/cm-vol.5,7 ; 4x 400 L/cm-vol.3,5; 2x 400 L/cm-vol.2,7 ; 1x 400 L/cm- vol.3; 2x 480 L/cm-vol.2,5 ; 2x 480 L/cm-vol.3,8 ; 1x 490 L/cm-vol.4,65

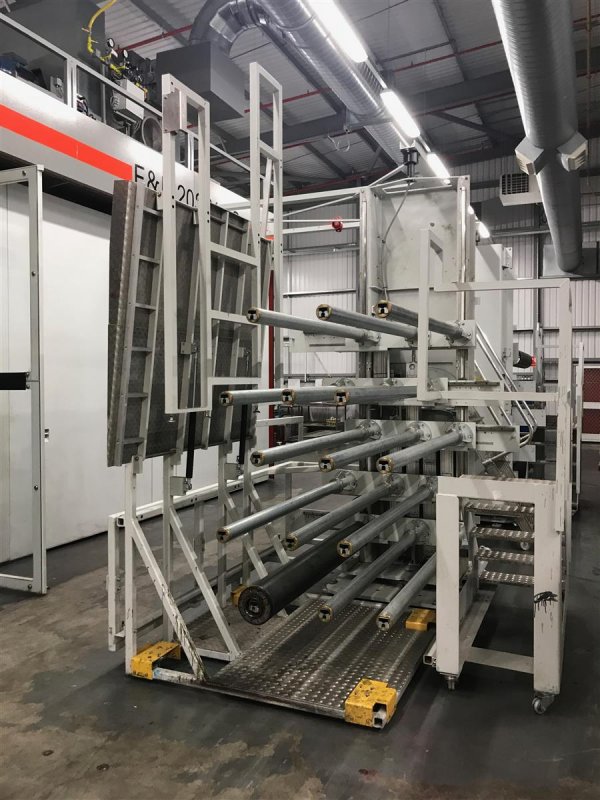

- Print Sleeves
- approx 220, many with GPS chip as follows 8x 600 mm ; 8x 610 mm ; 5x 620mm ; 18x 640 mm ; 5x 650 mm ; 21x 660 mm ; 5x 675 mm; 14x 680mm ; 9x 690mm ; 12x 700 mm ; 18x 720 mm ; 5x 725 mm ; 6x 740 mm ; 15x 760 mm ; 5x 765 mm.; 5x 735 m ; , 5x 750 mm ; 20 x 780 mm ; 9x 800mm ;8x 810 mm ; 9x 840mm ; 8x 860 mm, 5x 870 mm ; 8x 880 mm
- Note
- SMART GPS SYSTEM COMMISSIONED IN 2016 IONTIS Web Treatment Unit SMC IDFA37E Refrigeration Air Dryer TECHNOTRANS Bete.t Chiller PROTEC Series 21000 Fire Suppression OPTIMA Environmental Protection
| Machine Code | FL0739 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | FK 20 / 6 CS |
| Year | 2015 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1700 |
| Print width (mm) | 1650 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 1200 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 ZONES 2 GAS BURNERS 4 FANS 6 mt tunnel, Automtic air recirculation system with LEL control |
| Videocamera | Eltromat high resolution camera; Eltromat 100% inspection system |
| Corona treatment | MERO Web MR/B10K0P3IGBT |
| Web guides | yes |
| Vyscosity control | Automatic |
| Washing system | Automatic |
| Inking system | closed chamber doctor blades |
| Anilox | 34 ceramic anilox sleeves engraving between 80 lines / cm and 480 lines / cm DIam .mm 200,54, width 1730 1x 80 L/cm-Vol16 cm3/mq ; 1x 80 L/cm- Vol.14 ; 1x 100 L/cm-vol.18 ¸1x 140 L/cm- vol.12; 1x 200 L/cm-vol.10; 2x 200 L/cm-vol.9 ; 1x 200 L/cm- vol.4,9 ; 1x 220 L/cm-vol.9 ; 1x 260 L/cm-vol.7,5; 1x 300 L/cm-vol.6,5 ; 7x 360 L/cm-vol.5 ; 1x 360 L/cm- vol.6; 2x 400 L/cm-vol.5; 1x 400 L/cm-vol.5,7 ; 4x 400 L/cm-vol.3,5; 2x 400 L/cm-vol.2,7 ; 1x 400 L/cm- vol.3; 2x 480 L/cm-vol.2,5 ; 2x 480 L/cm-vol.3,8 ; 1x 490 L/cm-vol.4,65 |
| Print Sleeves | approx 220, many with GPS chip as follows 8x 600 mm ; 8x 610 mm ; 5x 620mm ; 18x 640 mm ; 5x 650 mm ; 21x 660 mm ; 5x 675 mm; 14x 680mm ; 9x 690mm ; 12x 700 mm ; 18x 720 mm ; 5x 725 mm ; 6x 740 mm ; 15x 760 mm ; 5x 765 mm.; 5x 735 m ; , 5x 750 mm ; 20 x 780 mm ; 9x 800mm ;8x 810 mm ; 9x 840mm ; 8x 860 mm, 5x 870 mm ; 8x 880 mm |
| Note | SMART GPS SYSTEM COMMISSIONED IN 2016 IONTIS Web Treatment Unit SMC IDFA37E Refrigeration Air Dryer TECHNOTRANS Bete.t Chiller PROTEC Series 21000 Fire Suppression OPTIMA Environmental Protection |
UTECO ONYX 808 GL
-
Machine Code: FL1151
-
Year: 2014
-
Web width (mm): 1450
UTECO ONYX 876
-
Machine Code: FL1089
-
Year: 2007
-
Web width (mm): 1200
UTECO EMERALD 825
-
Machine Code: FL1169
-
Year: 2001
-
Web width (mm): 850
OFEM Colombus 7/806
-
Machine Code: FL1099
-
Year: 1998
-
Web width (mm): 1270
UTECO ONYX 808
-
Machine Code: FL1153
-
Year: 2013
-
Web width (mm): 1250

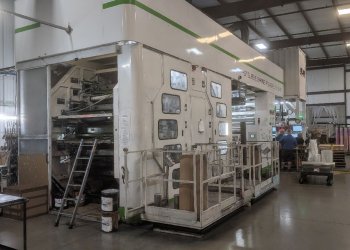

BIELLONI AXIOMA
-
