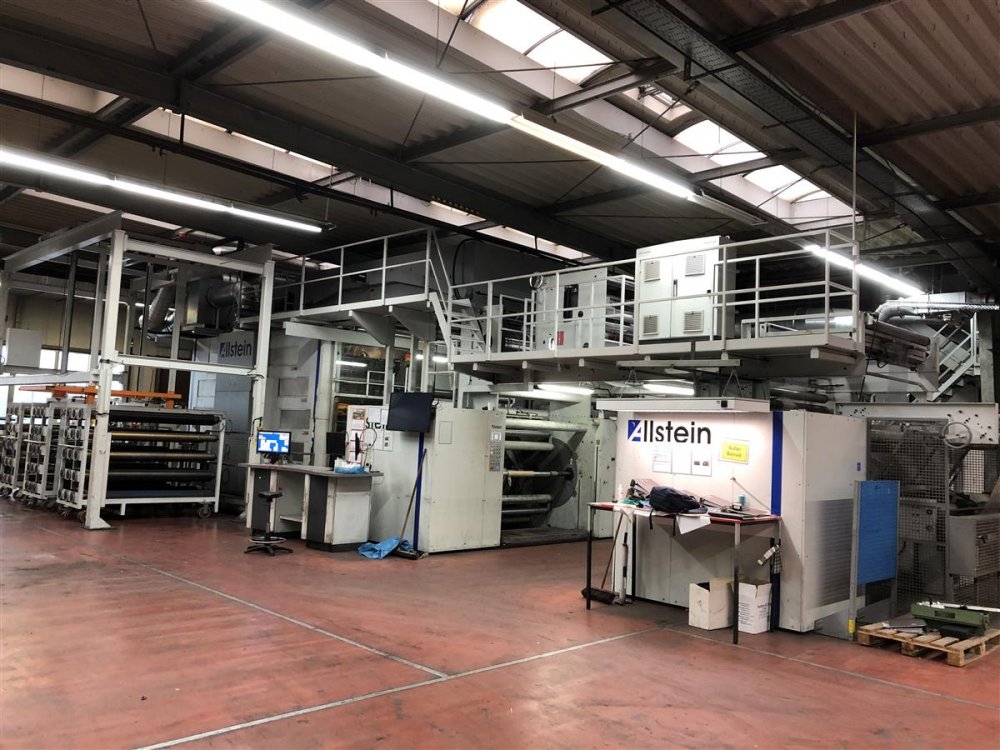

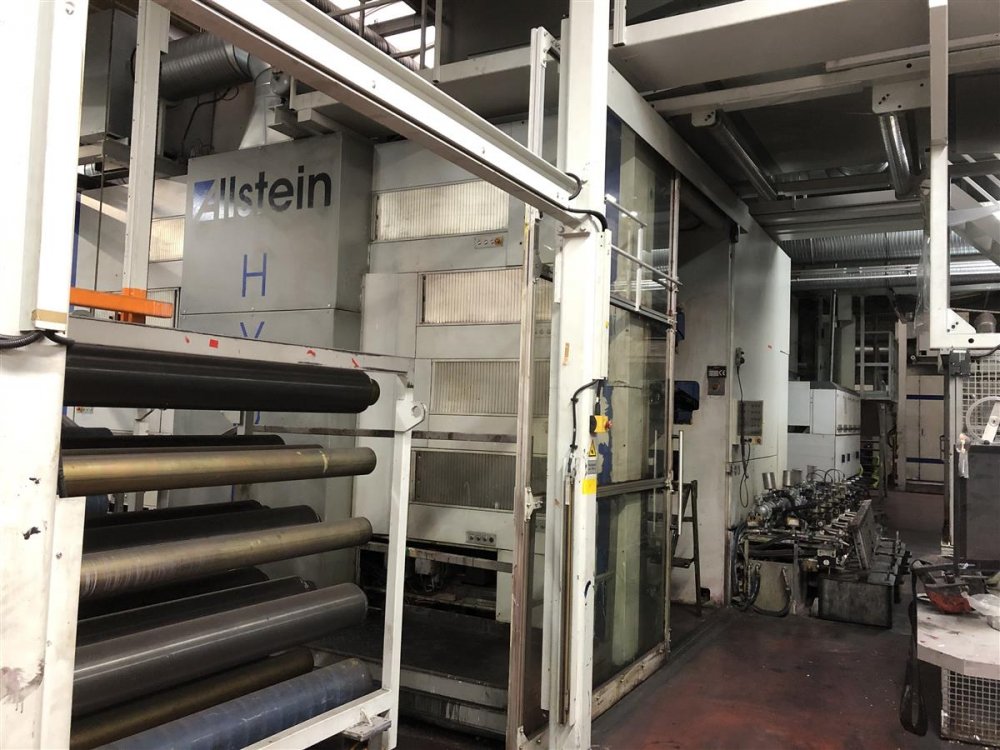

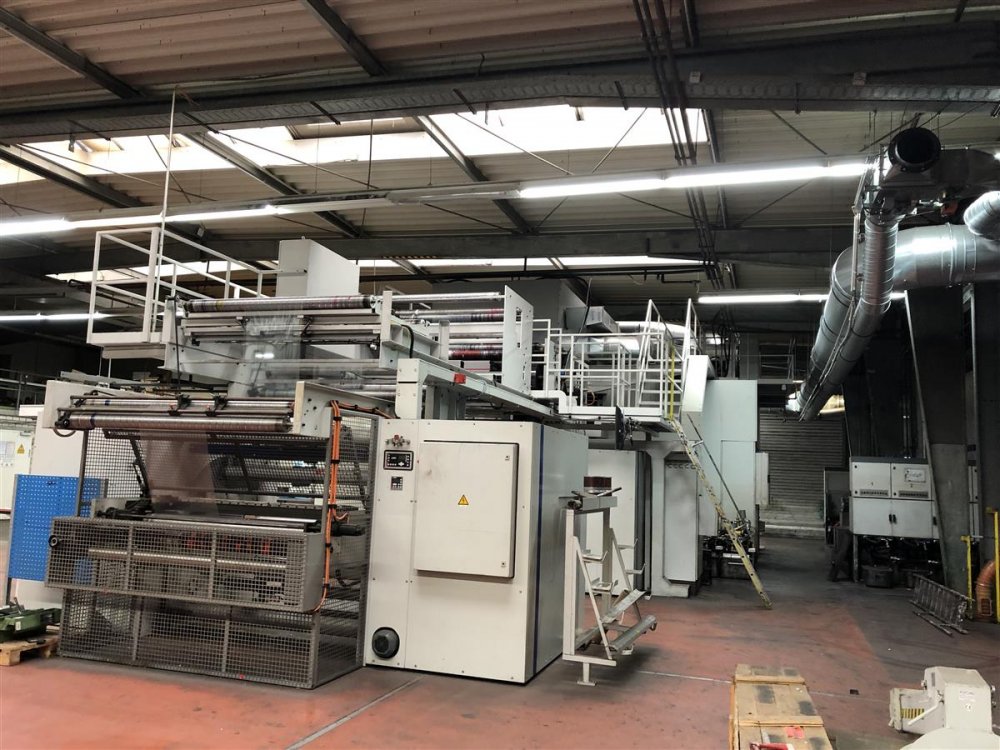

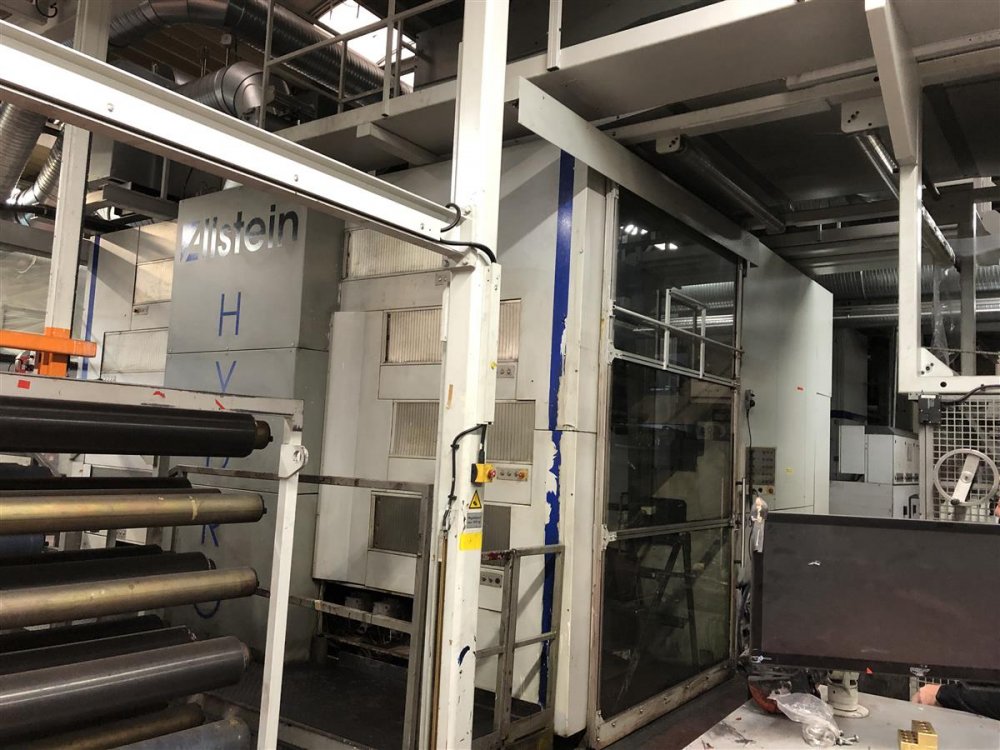

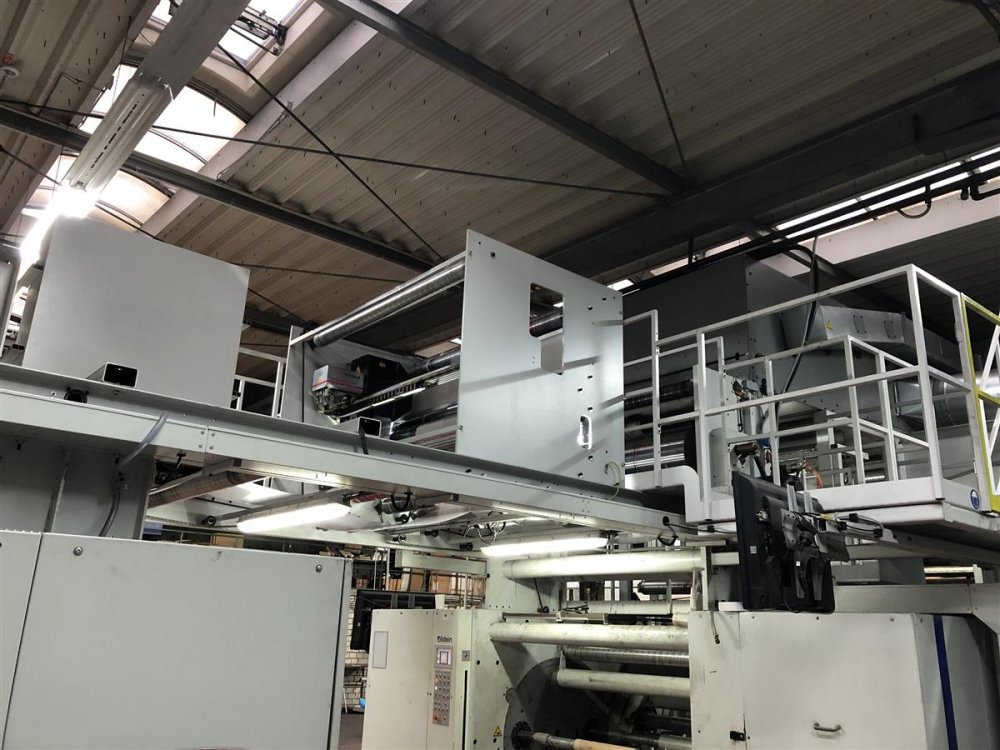

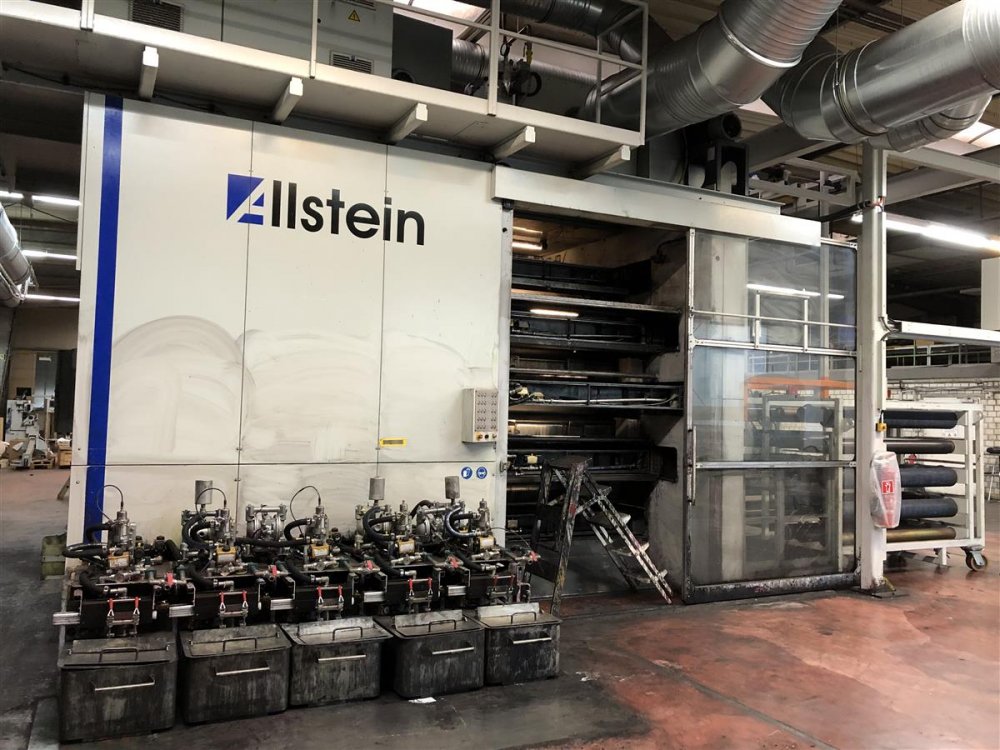

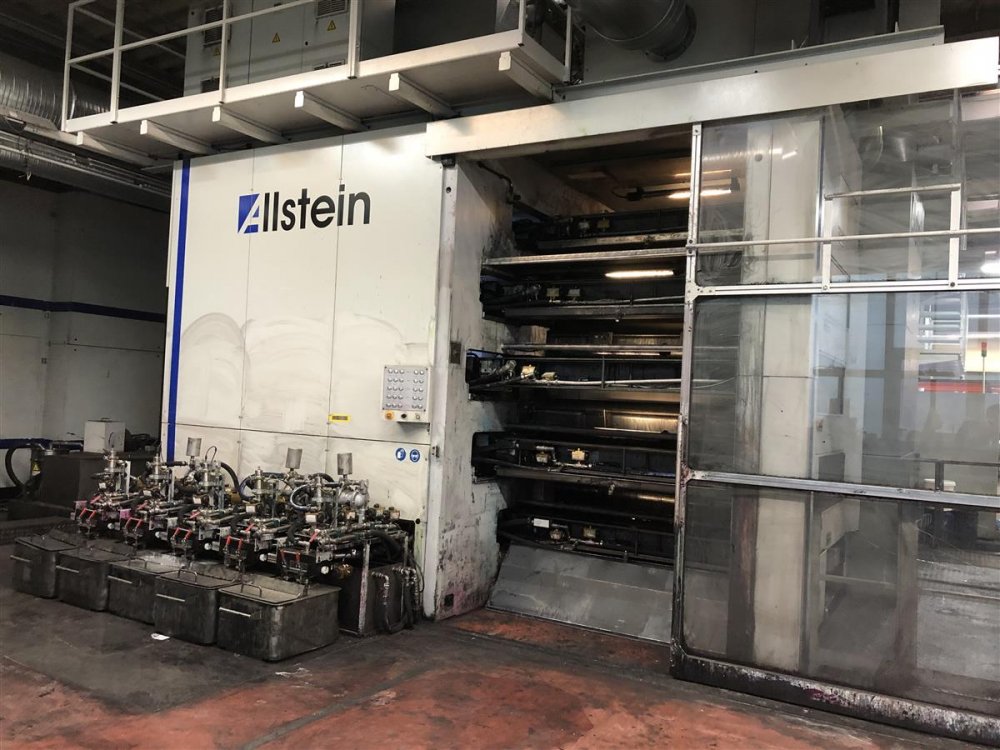

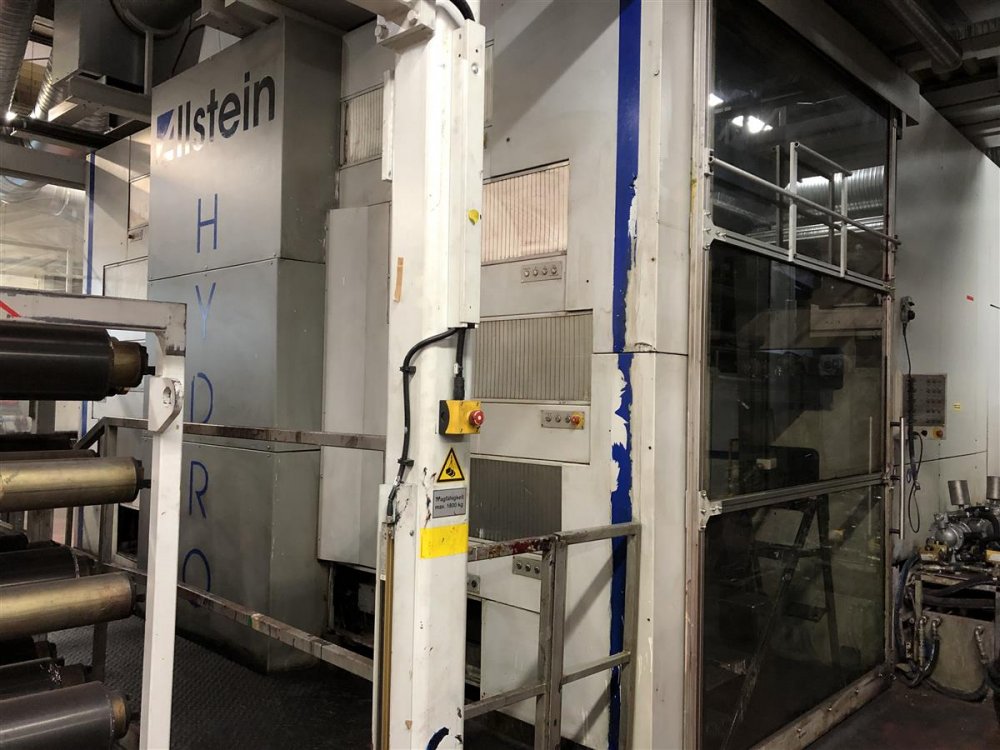

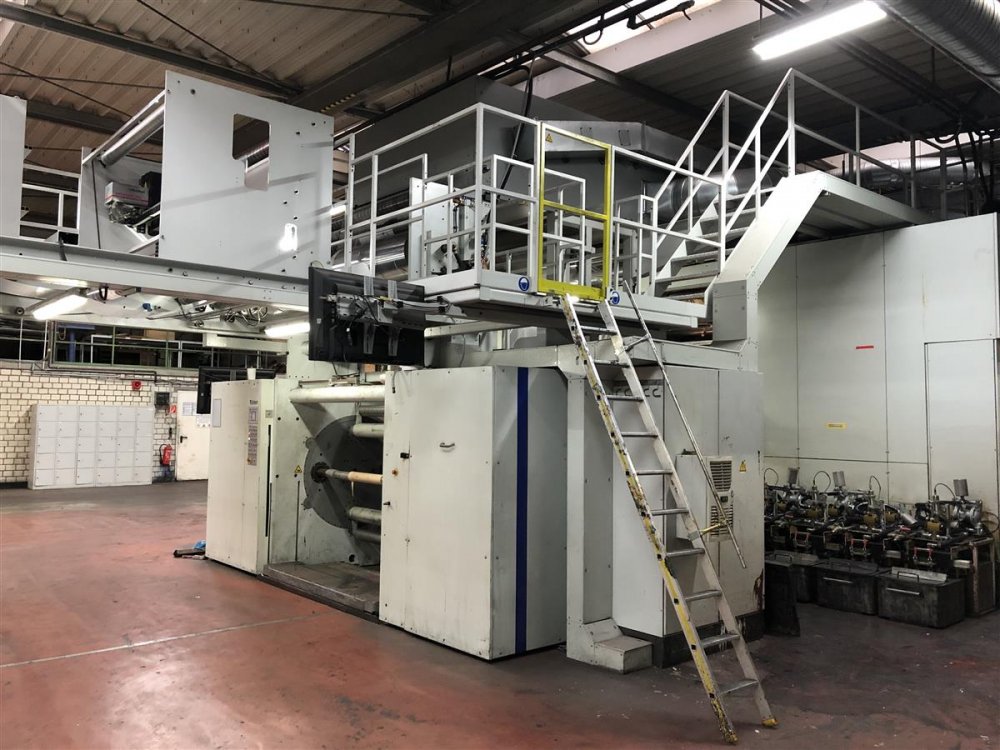

ALLSTEIN Hydro 10 flexo printing machine 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL945
Manufacturer ALLSTEIN
Model Hydro 10
Year 2014
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

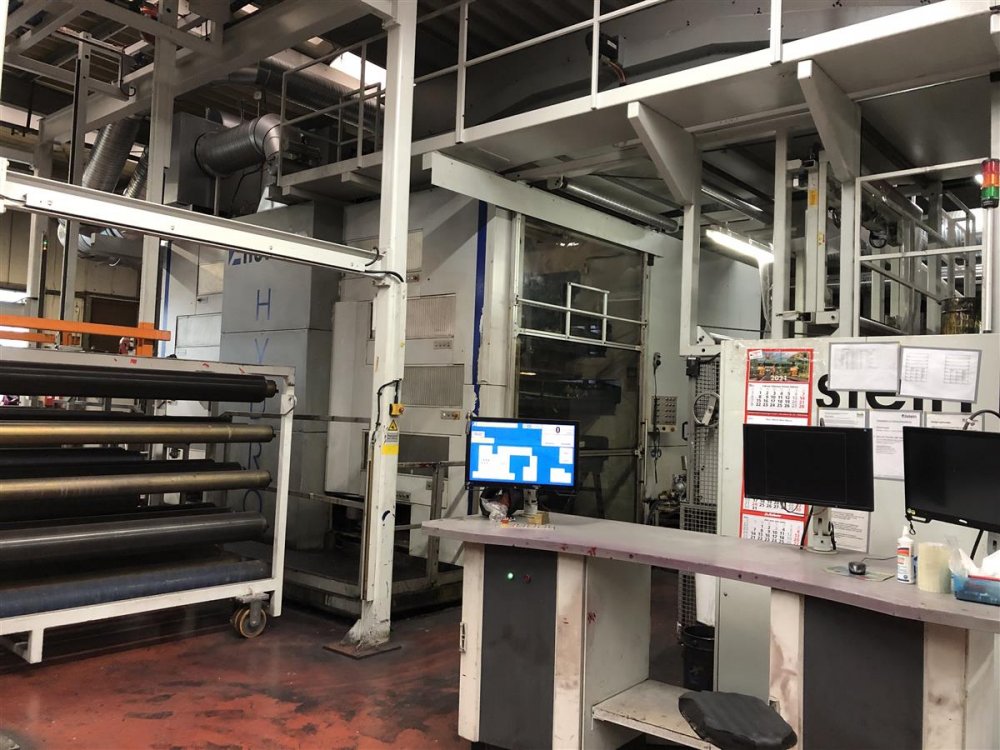

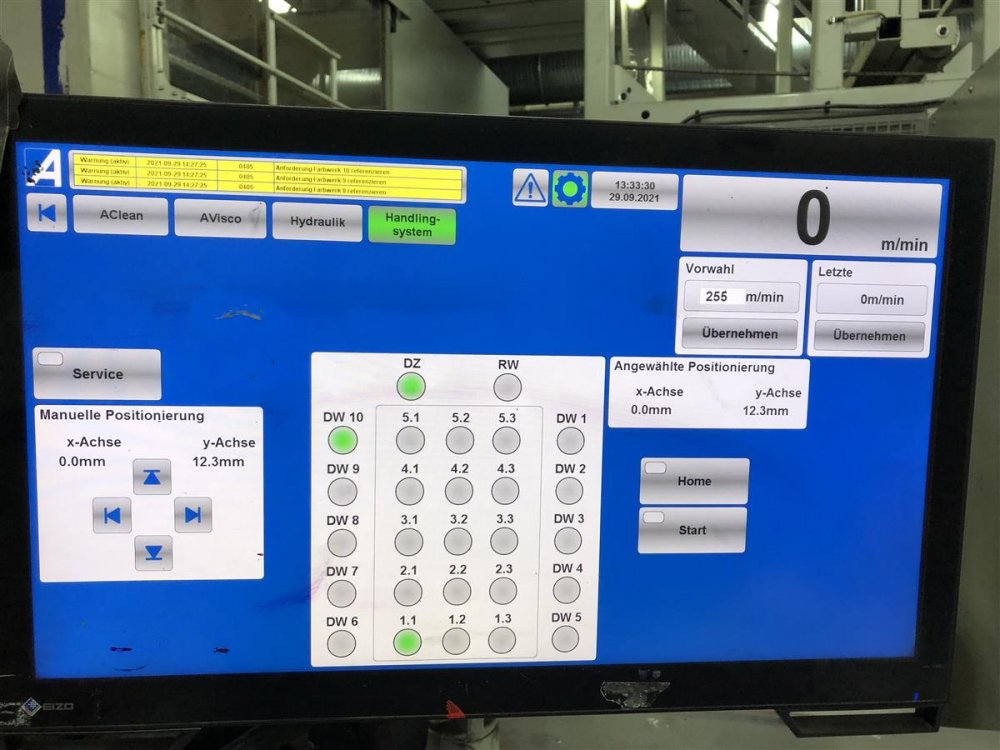

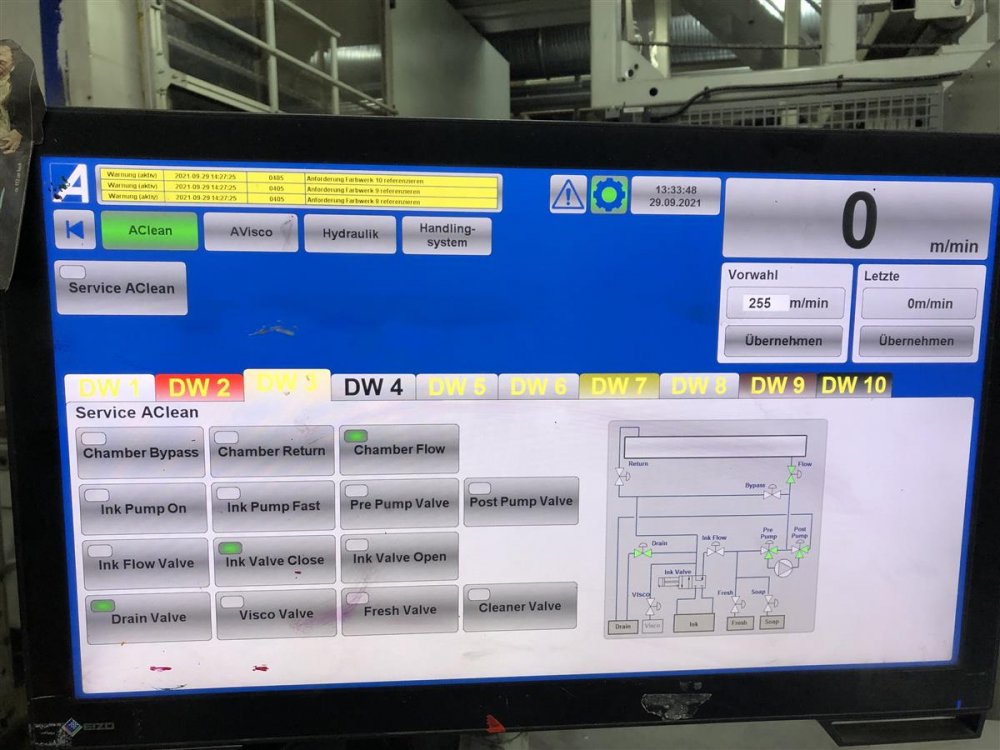

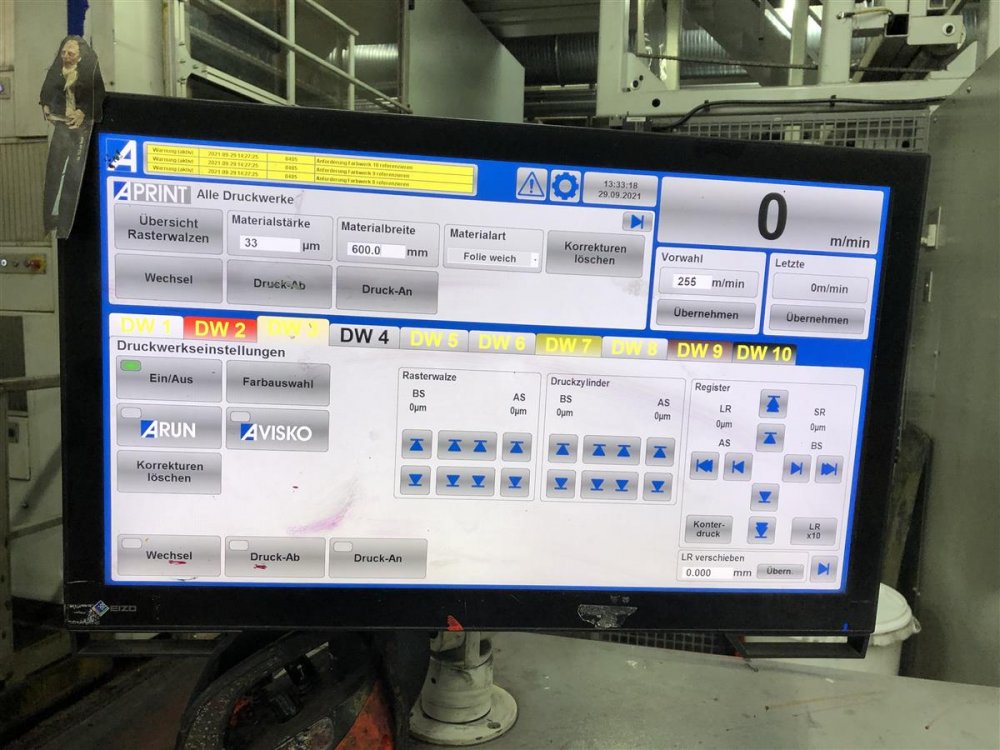

Computer supervision Yes
Web width (mm) 1850
Print width (mm) 1800
Min print repeat (mm) 440
Max print repeat (mm) 880

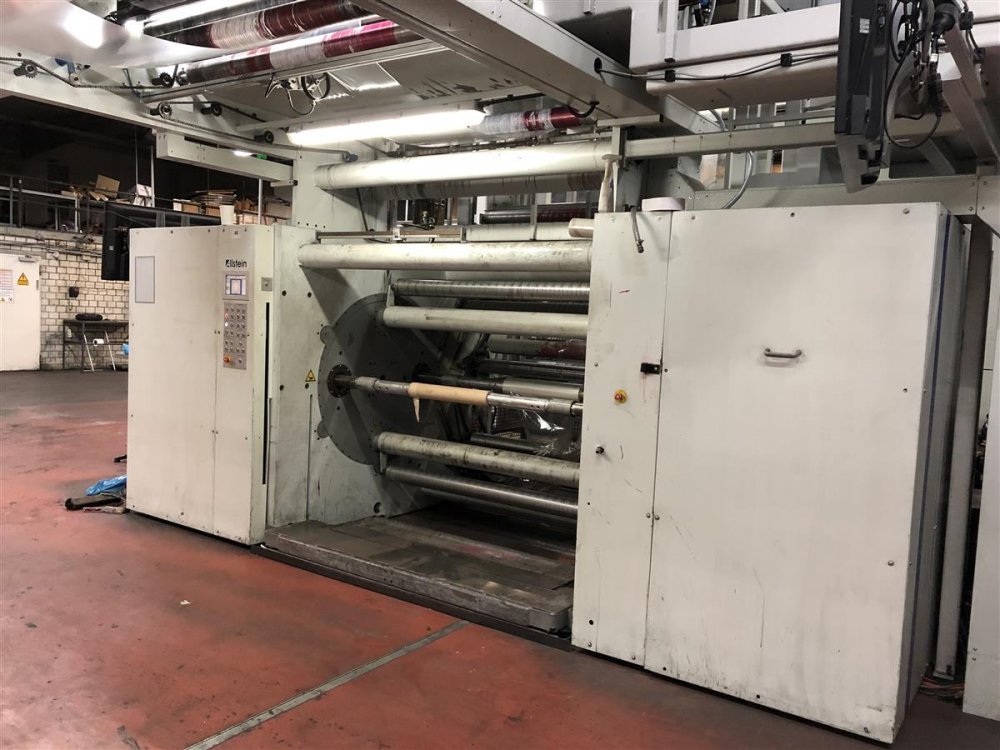

Unwinder type TURRET bi-directional
Max reel diameter unwinder (mm) 1000

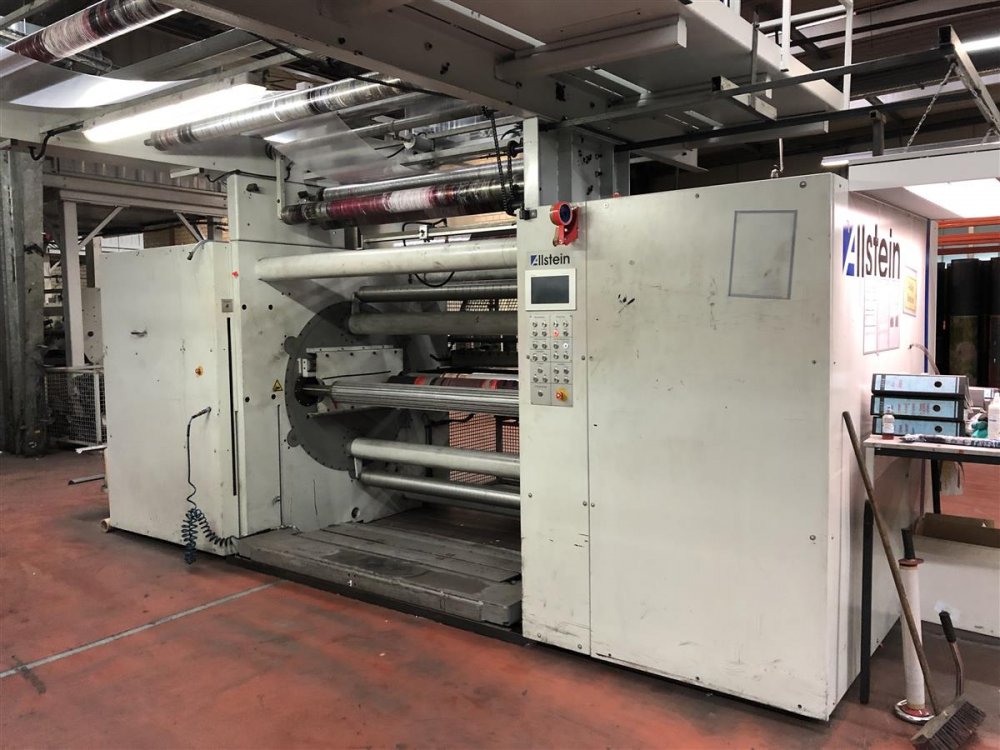

Rewinder type TURRET bi-directional
Max reel diameter rewinder (mm) 1000
Drying 5 m drying tunnel Gas burners Maxon with UV control

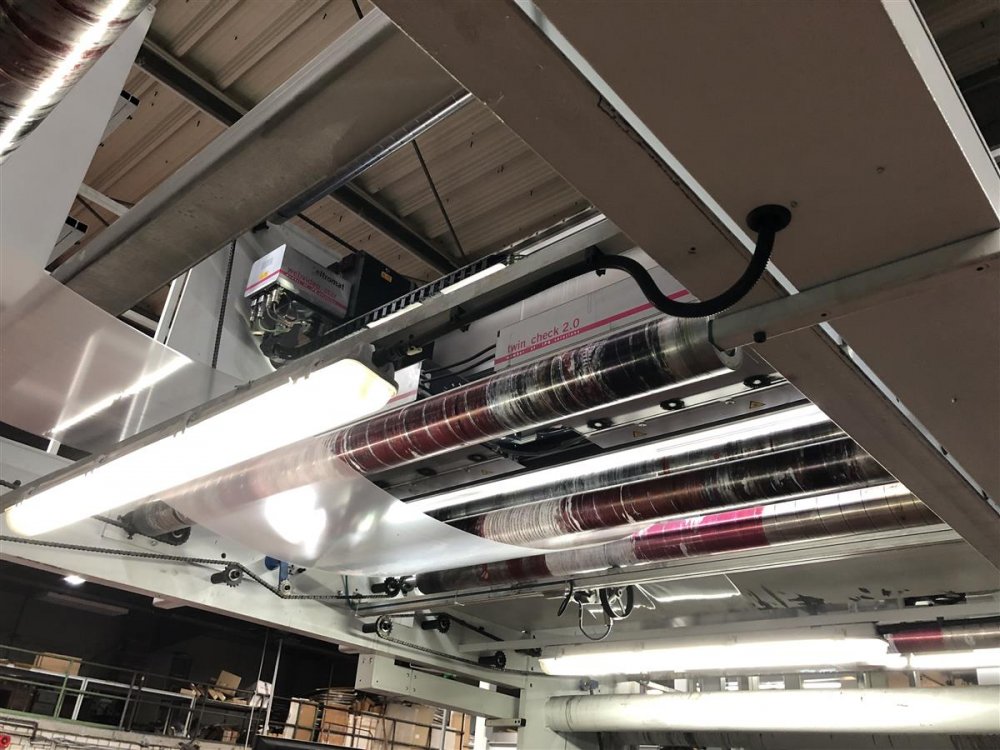

Videocamera Eltromat with quality inspection. 3ccd camera + 100% inspection
Web guides 2

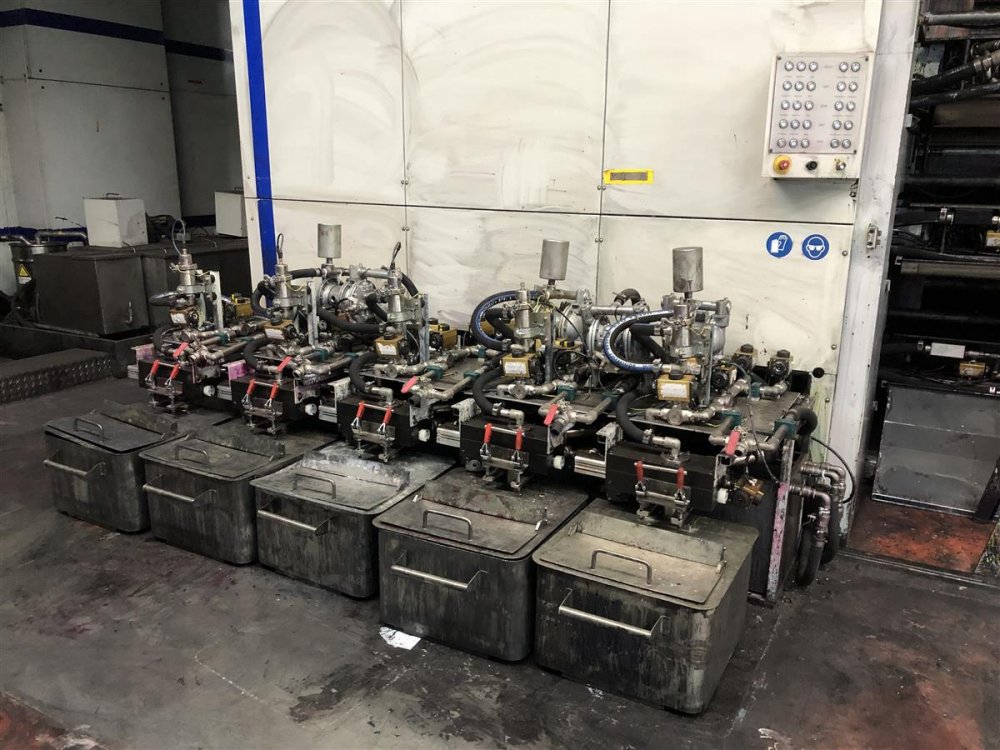

Vyscosity control ACLIAN
Washing system Yey

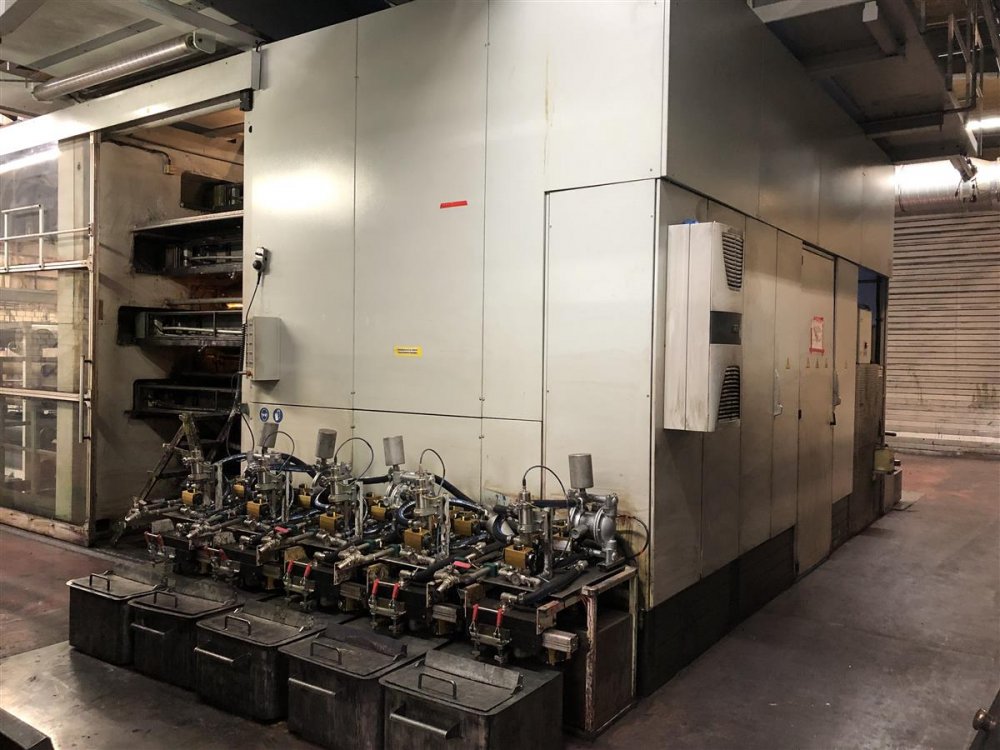

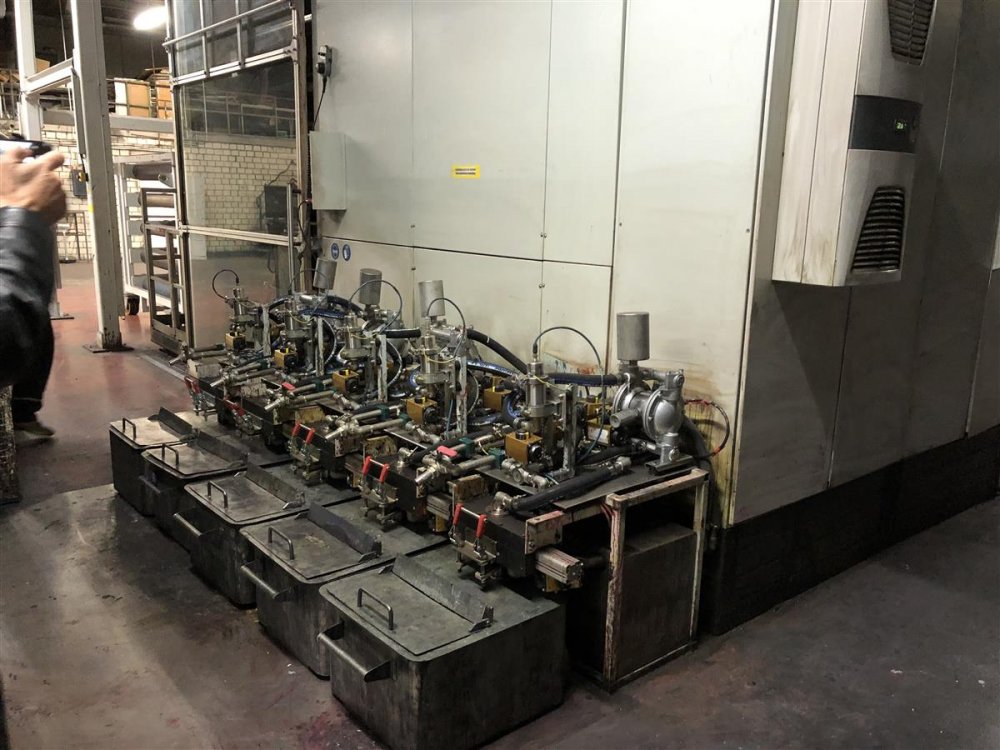

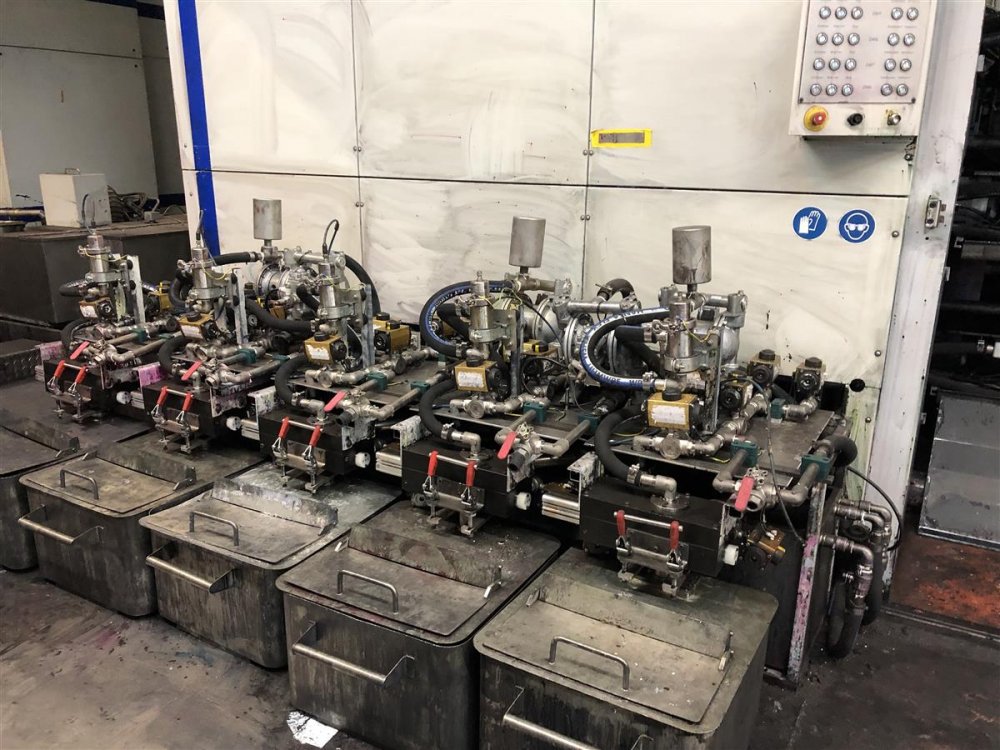

Inking system CFK chambers
Anilox 1x120, 1x180, 1x160, 2x140, 2x220, 1x280, 3x400, 1x340, 2x285.

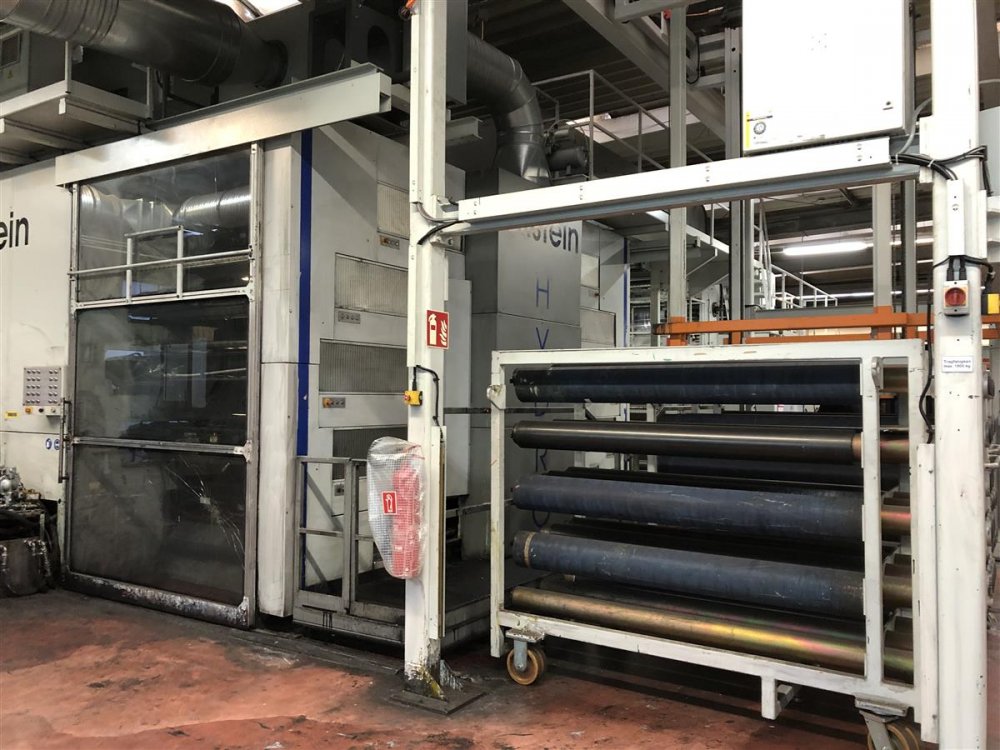

Print Sleeves approx 300, plate thickness 1,14mm: qty x repeat (mm) 11x440, 20x460, 20x480, 10x490,10x500, 10x520, 10x540, 10x560, 10x570, 10x580, 29x600, 10x620, 10x660, 20x680, 20x690, 20x700, 10x720, 20x780, 10x800, 10x840, 10x870
Additional information 8 color on a 10 color frame complete 8 print station fully operational 2 print station ( 4 and 5 ) to be upgraded CI drum diam 2750mm speed 600 m/min LEL sensors
