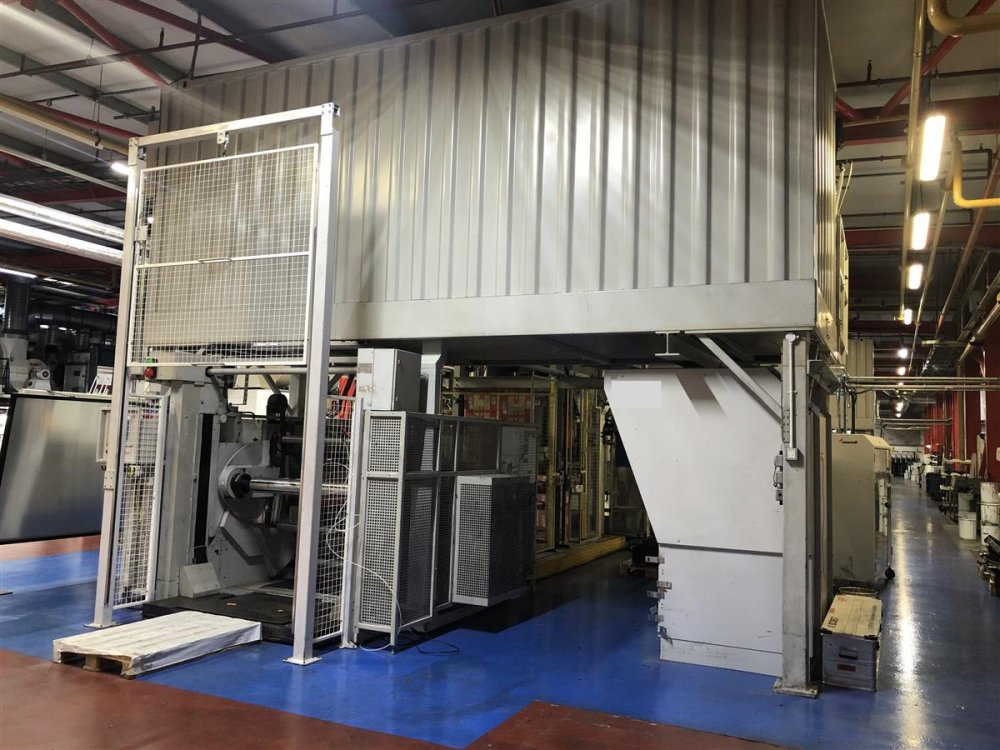

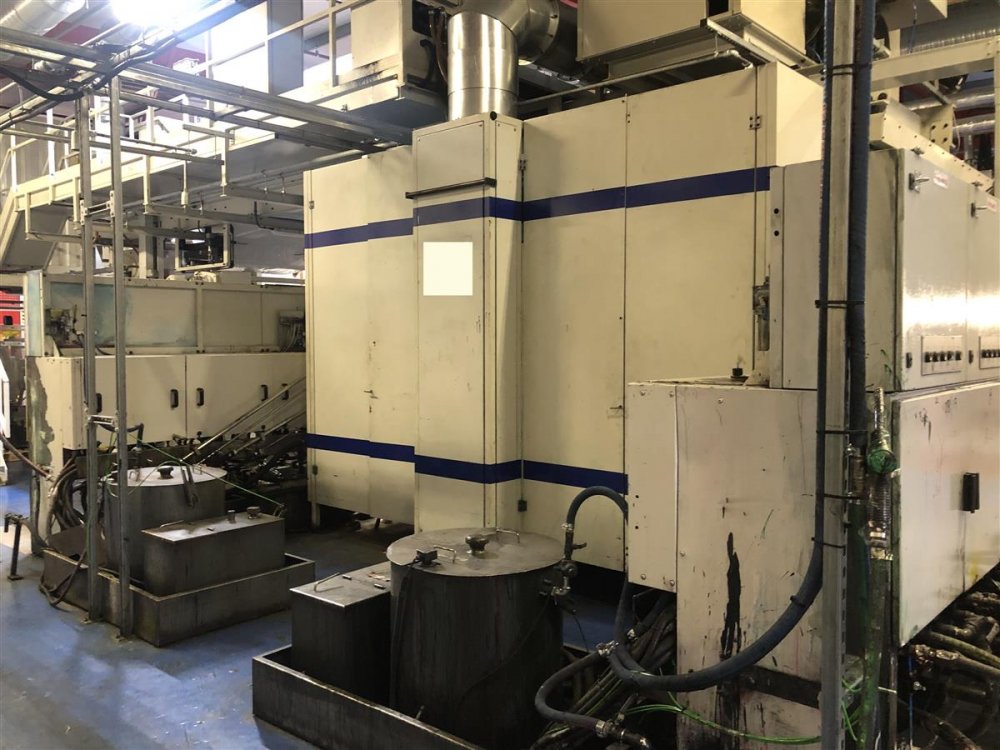

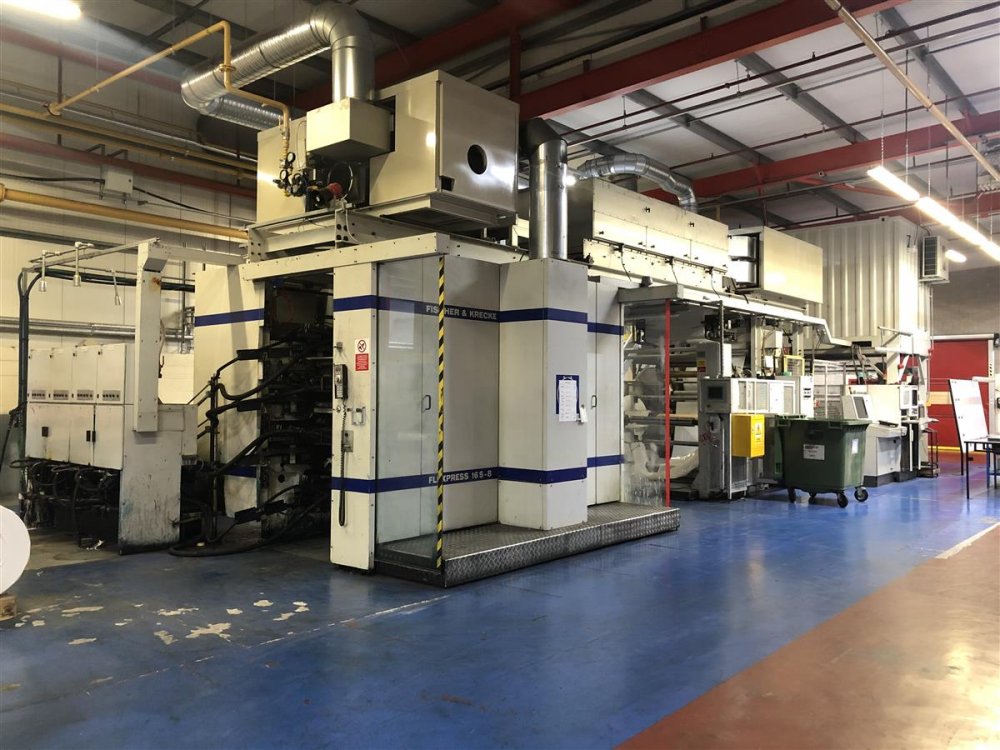

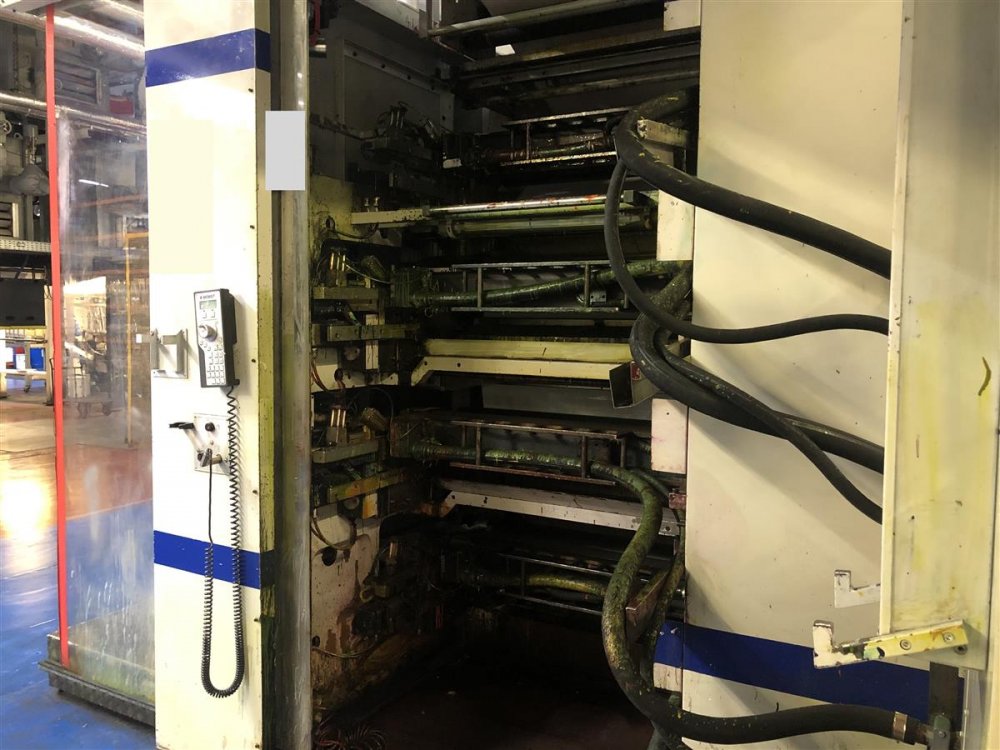

FISCHER & KRECKE 16S flexographic printing machine 8 colors

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
about a similar one
Machine Code
FL900
Manufacturer
FISCHER & KRECKE
Model
16S
Year
2005
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1100
Print width (mm)
1050
Max print repeat (mm)
800
Unwinder type
Turret
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret
Max reel diameter rewinder (mm)
1000
Drying
2 zones , 2 gas burners
Videocamera
year 2016 BST Eltromat with quality control
Web guides
2
Vyscosity control
Autimatic
Washing system
Yes
Inking system
closed chamber doctor blades
Print Sleeves
Qty x repeat(mm):15x390, 8x400, 8x410, 8x420, 8x430, 8x440, 8x450, 8x560, 7x470, 8x490, 8x500, 8x510, 8x520, 8x530, 8x550 24x560, 8x570, 8x580, 8x590, 8x600, 8x620, 8x630, 8x640, 8x650, 8x660, 8x680, 7x700, 2x720, 8x740, 8x750, 8x760, 8x780
Machine Code FL900
Manufacturer FISCHER & KRECKE
Model 16S
Year 2005
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1100
Print width (mm) 1050
Max print repeat (mm) 800
Unwinder type Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Turret
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 2 gas burners
Videocamera year 2016 BST Eltromat with quality control
Web guides 2
Vyscosity control Autimatic
Washing system Yes
Inking system closed chamber doctor blades
Print Sleeves Qty x repeat(mm):15x390, 8x400, 8x410, 8x420, 8x430, 8x440, 8x450, 8x560, 7x470, 8x490, 8x500, 8x510, 8x520, 8x530, 8x550 24x560, 8x570, 8x580, 8x590, 8x600, 8x620, 8x630, 8x640, 8x650, 8x660, 8x680, 7x700, 2x720, 8x740, 8x750, 8x760, 8x780
** SOLD **
