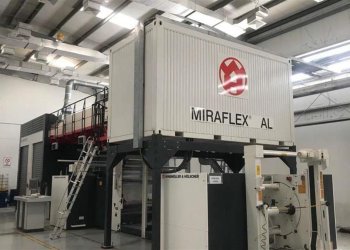

WINDMÖLLER & HÖLSCHER MIRAFLEX AL Flexo central drum printing press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL892
Manufacturer
WINDMÖLLER & HÖLSCHER
Model
MIRAFLEX AL
Year
2014
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
370
Max print repeat (mm)
1130
Unwinder type
Turret
Max reel diameter unwinder (mm)
1000
Rewinder type
TURRET
Max reel diameter rewinder (mm)
1000
Drying
2 x Electric heaters
Videocamera
BST PREMIUM high resolution 3 chip camera,with easy registretion feature
Web guides
2
Vyscosity control
Automatic
Washing system
Turbowash
Inking system
closed chamber doctor blades
Anilox
qtyxL/cm: 2x140, 2x160, 2x180, 1x220, 1x280, 2x340, 2x400
Print Sleeves
qtyxmm repeat: 8x400, 8x420, 8x440, 8x460, 8x480, 8x490, 8x510, 8x530, 8x570, 8x610, 8x640, 8x700, 8x715, 8x850, 8x900, 8x1015
Additional information
EASY SET: Automated print deck position system
Machine Code FL892
Manufacturer WINDMÖLLER & HÖLSCHER
Model MIRAFLEX AL
Year 2014
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 370
Max print repeat (mm) 1130
Unwinder type Turret
Max reel diameter unwinder (mm) 1000
Rewinder type TURRET
Max reel diameter rewinder (mm) 1000
Drying 2 x Electric heaters
Videocamera BST PREMIUM high resolution 3 chip camera,with easy registretion feature
Web guides 2
Vyscosity control Automatic
Washing system Turbowash
Inking system closed chamber doctor blades
Anilox qtyxL/cm: 2x140, 2x160, 2x180, 1x220, 1x280, 2x340, 2x400
Print Sleeves qtyxmm repeat: 8x400, 8x420, 8x440, 8x460, 8x480, 8x490, 8x510, 8x530, 8x570, 8x610, 8x640, 8x700, 8x715, 8x850, 8x900, 8x1015
Additional information EASY SET: Automated print deck position system
** SOLD **
