- Code Machine
- FL892
- Fabricant

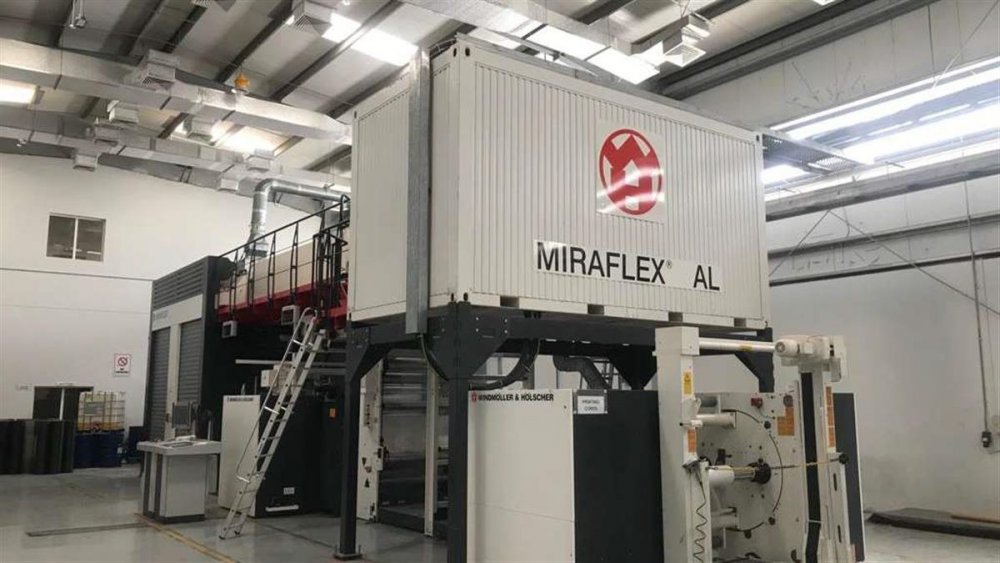

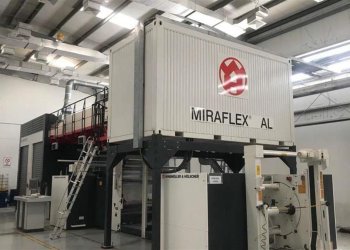

- WINDMÖLLER & HÖLSCHER
- Modello
- MIRAFLEX AL
- Année
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 370
- Max print repeat (mm)
- 1130
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 x Electric heaters
- Videocamera
- BST PREMIUM high resolution 3 chip camera,with easy registretion feature
- Web guides
- 2
- Vyscosity control
- Automatic
- Washing system
- Turbowash
- Inking system
- closed chamber doctor blades
- Anilox
- qtyxL/cm: 2x140, 2x160, 2x180, 1x220, 1x280, 2x340, 2x400
- Print Sleeves
- qtyxmm repeat: 8x400, 8x420, 8x440, 8x460, 8x480, 8x490, 8x510, 8x530, 8x570, 8x610, 8x640, 8x700, 8x715, 8x850, 8x900, 8x1015
- Note
- EASY SET: Automated print deck position system
| Code Machine | FL892 |
| Fabricant | WINDMÖLLER & HÖLSCHER |
| Modello | MIRAFLEX AL |
| Année | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 370 |
| Max print repeat (mm) | 1130 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 x Electric heaters |
| Videocamera | BST PREMIUM high resolution 3 chip camera,with easy registretion feature |
| Web guides | 2 |
| Vyscosity control | Automatic |
| Washing system | Turbowash |
| Inking system | closed chamber doctor blades |
| Anilox | qtyxL/cm: 2x140, 2x160, 2x180, 1x220, 1x280, 2x340, 2x400 |
| Print Sleeves | qtyxmm repeat: 8x400, 8x420, 8x440, 8x460, 8x480, 8x490, 8x510, 8x530, 8x570, 8x610, 8x640, 8x700, 8x715, 8x850, 8x900, 8x1015 |
| Note | EASY SET: Automated print deck position system |
