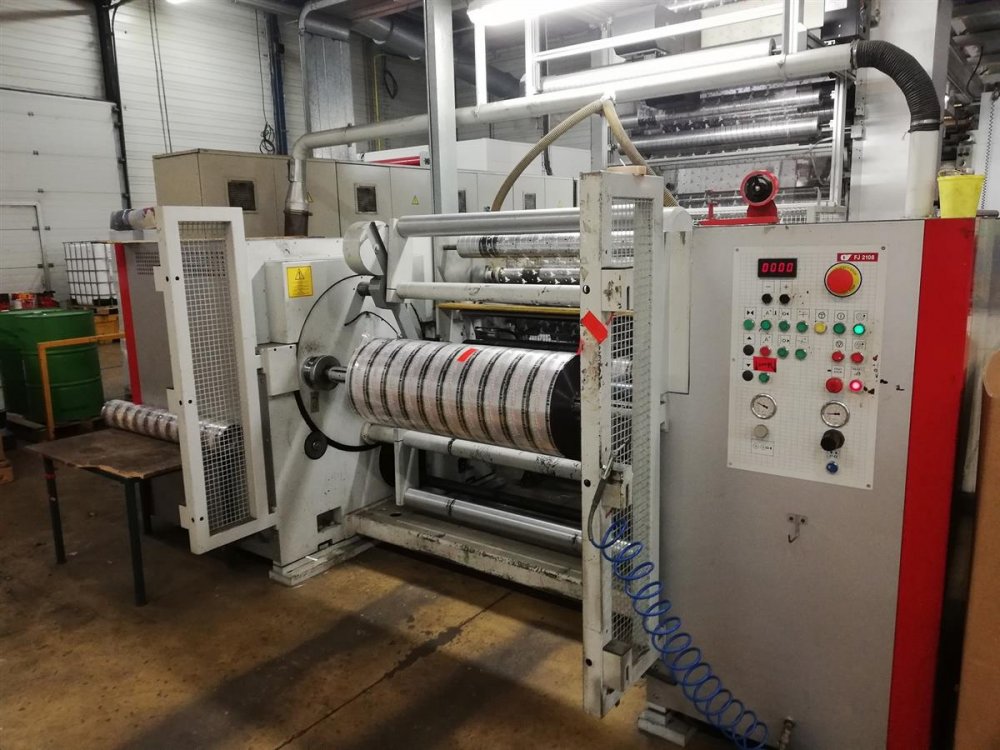

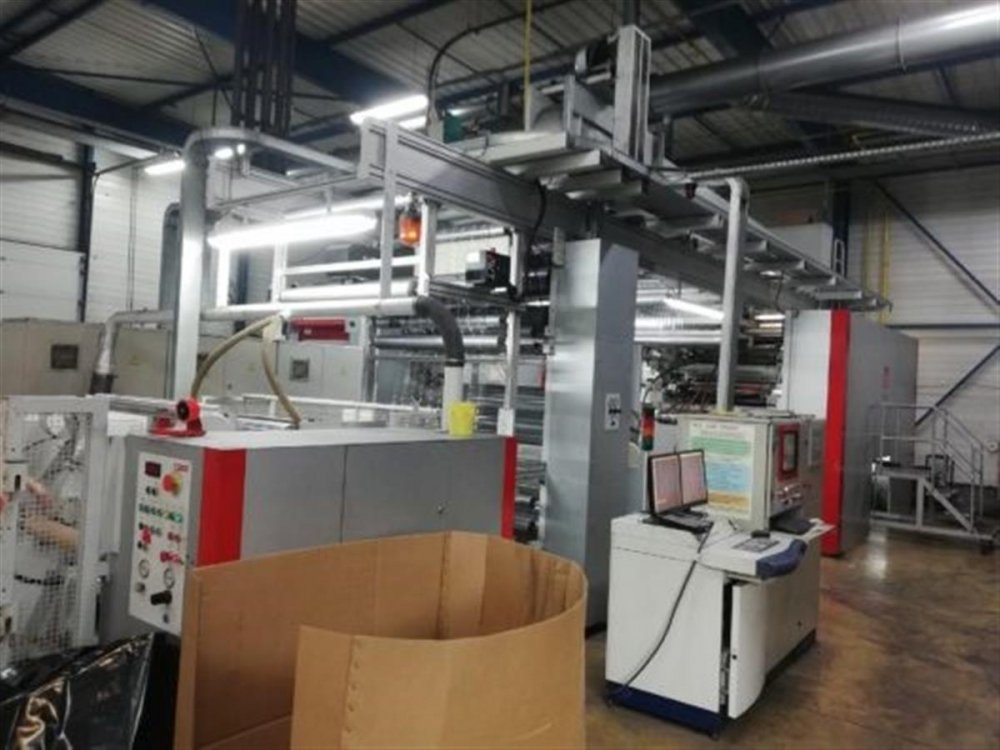

COMEXI FJ 2108 Flexo central drum printing press 8 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL858
Manufacturer
COMEXI
Model
FJ 2108
Year
2004
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
800
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones ,4 fans , 2 gas burners
Videocamera
Yes AVT Print Jupiter
Web guides
Yes in and out
Vyscosity control
Yes
Inking system
Closed chamber Doctor blades , 8 ink pumps
Anilox
5 x280 L/cm , 2×220 L , 2×160 L, 2×140 L ; 1×80 L
Print Sleeves
Sleeves and gears :8 x370,380,400,420,440,460,500,6OO,620 mm ;6 x 635,650,670 mm ; 4 x 480 mm
Additional information
Paper : 20 – 125 gr LDPE : 25 – 150 µ OPP : 12 – 40 µ PET : 12 – 30 µ/ Motorized longitudinal register Motorized side register Four motor deck positioning
Machine Code FL858
Manufacturer COMEXI
Model FJ 2108
Year 2004
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 800
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones ,4 fans , 2 gas burners
Videocamera Yes AVT Print Jupiter
Web guides Yes in and out
Vyscosity control Yes
Inking system Closed chamber Doctor blades , 8 ink pumps
Anilox 5 x280 L/cm , 2×220 L , 2×160 L, 2×140 L ; 1×80 L
Print Sleeves Sleeves and gears :8 x370,380,400,420,440,460,500,6OO,620 mm ;6 x 635,650,670 mm ; 4 x 480 mm
Additional information Paper : 20 – 125 gr LDPE : 25 – 150 µ OPP : 12 – 40 µ PET : 12 – 30 µ/ Motorized longitudinal register Motorized side register Four motor deck positioning
