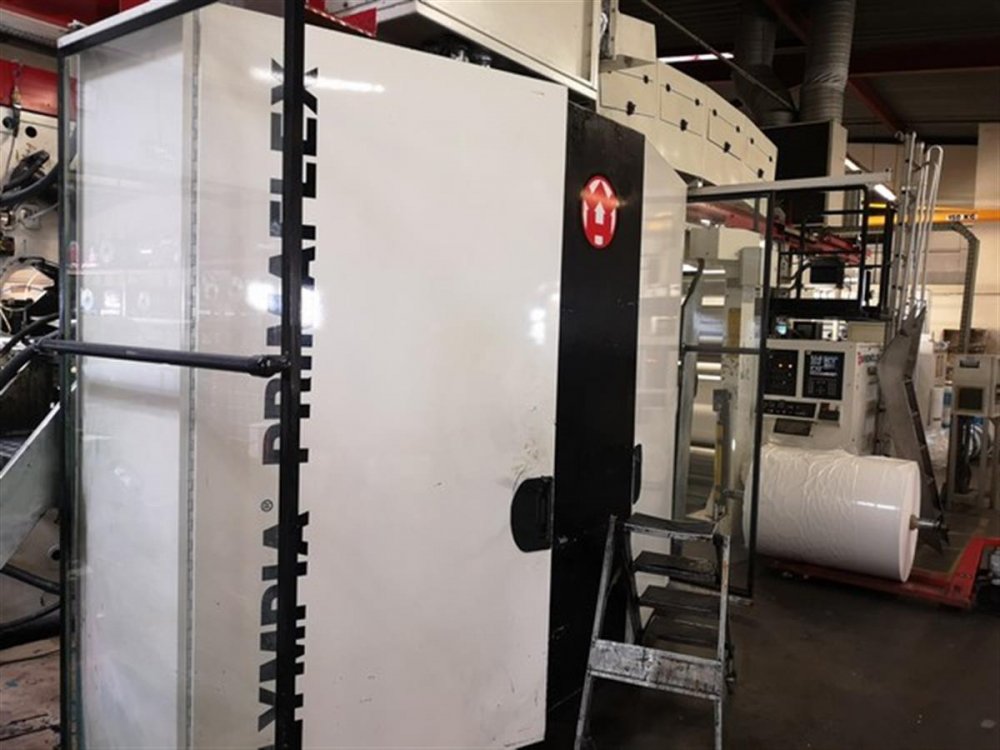

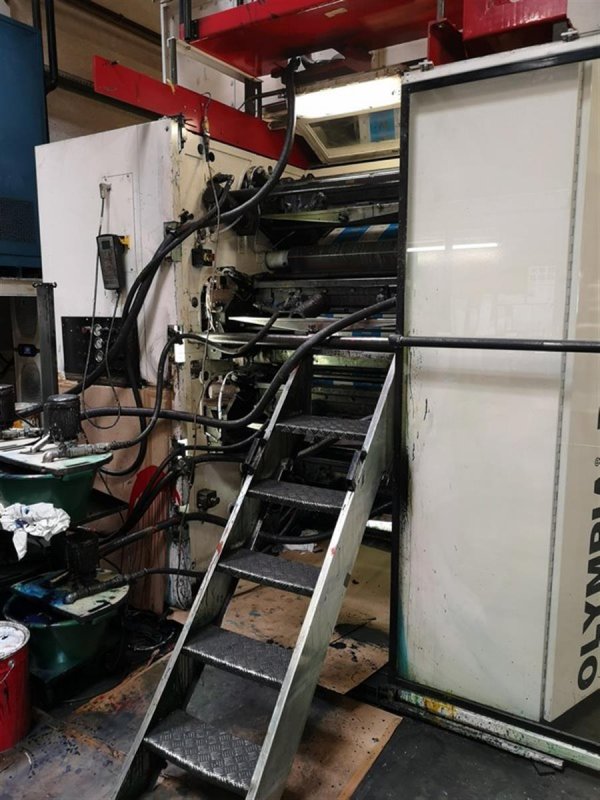

WINDMÖLLER & HÖLSCHER PRIMAFLEX Flexo printer 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL856
Manufacturer
WINDMÖLLER & HÖLSCHER
Model
PRIMAFLEX
Year
2000
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes

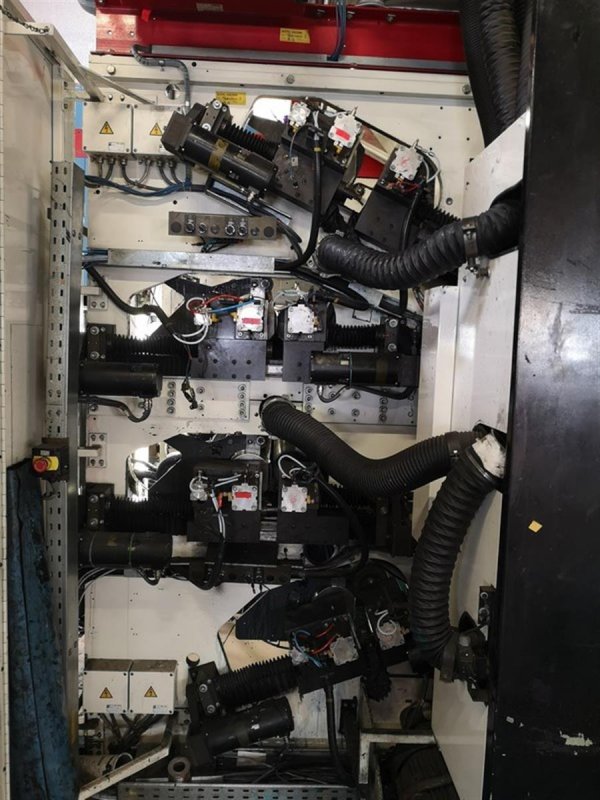

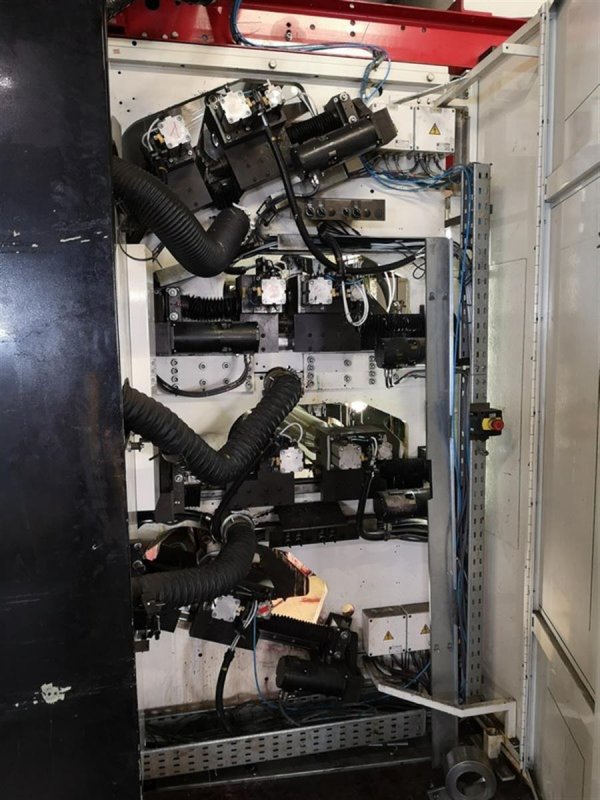

4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
300
Max print repeat (mm)
760
Unwinder type
Turret automatic with lifting table for rolls
Max reel diameter unwinder (mm)
800

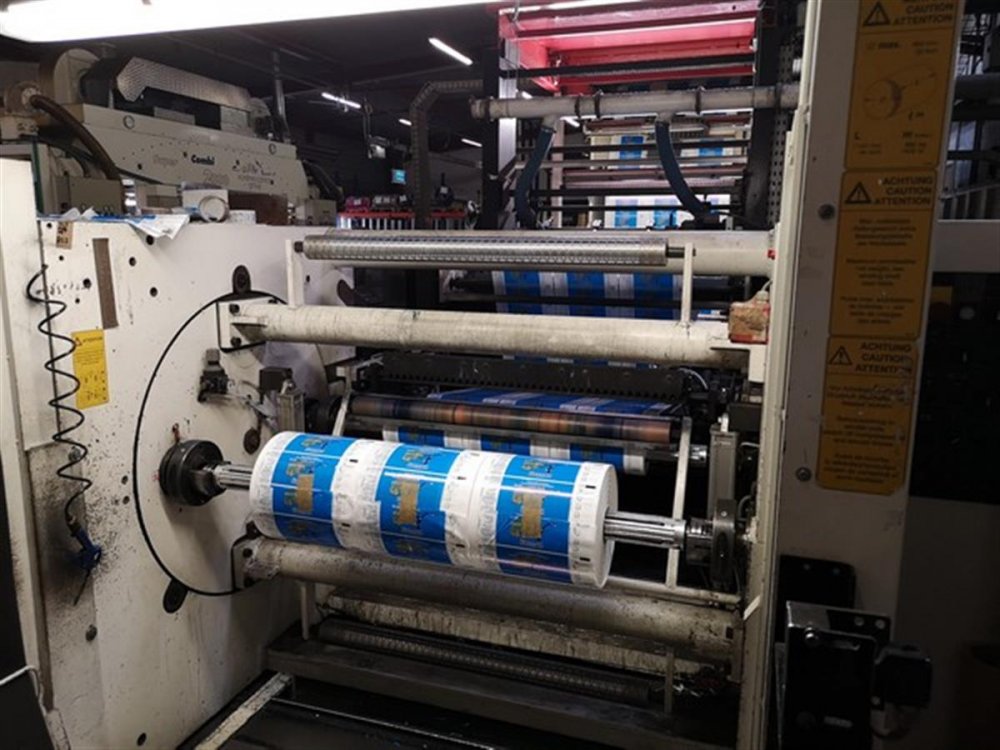

Rewinder type
Turret automatic with lifting table for rolls
Max reel diameter rewinder (mm)
800

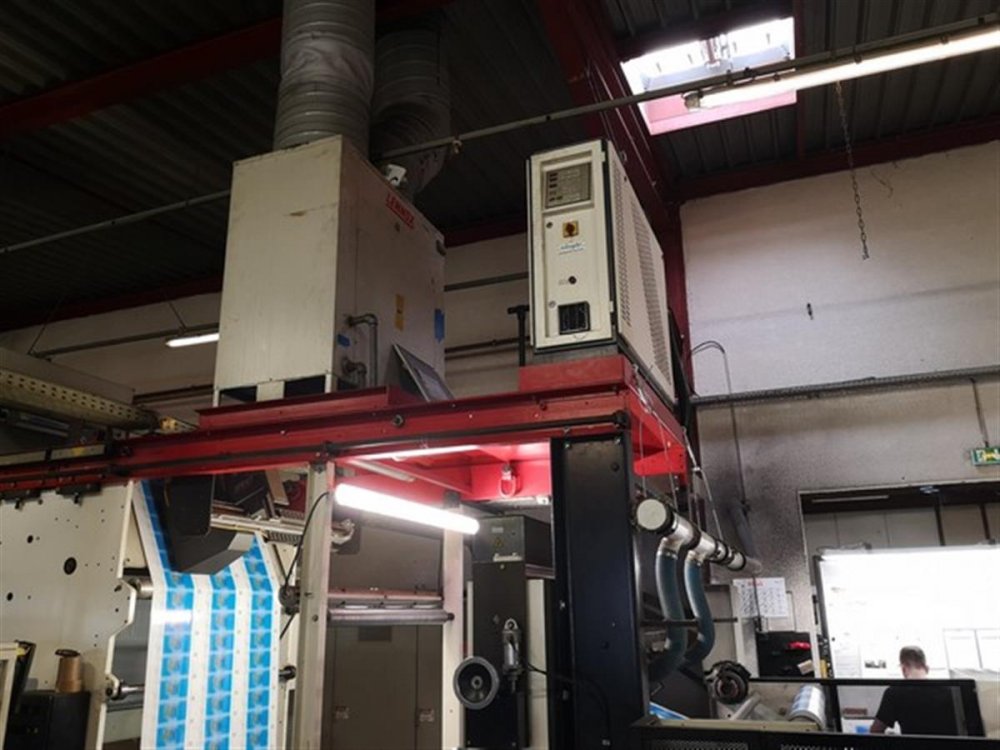

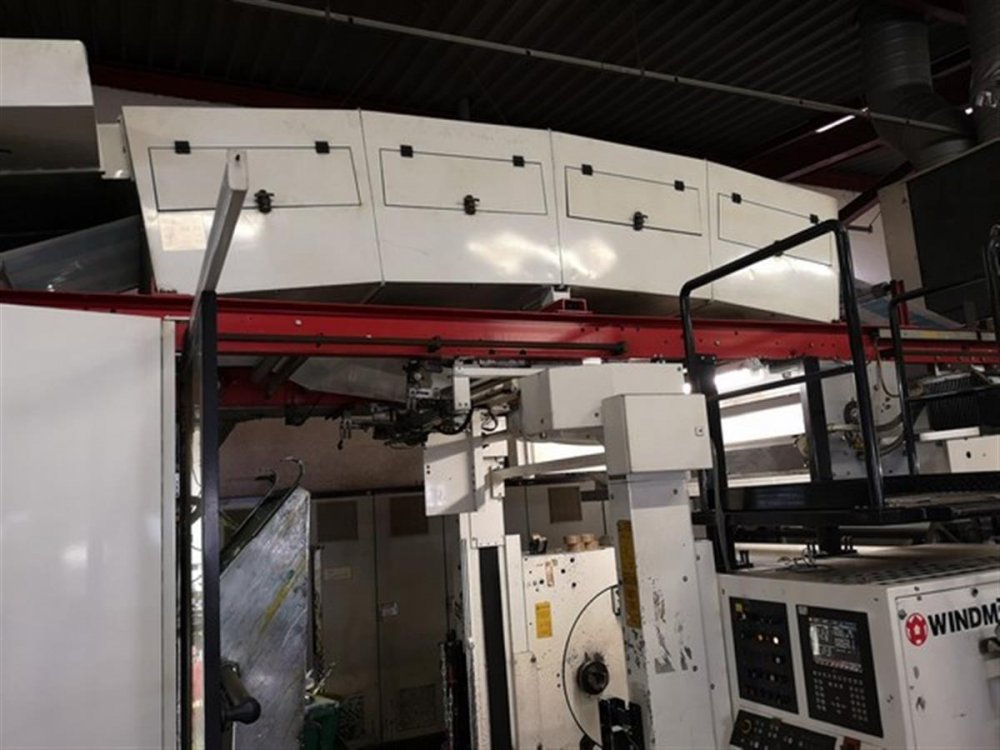

Drying
2 zones 4 fans , two heating units by thermal oil heat exchanger

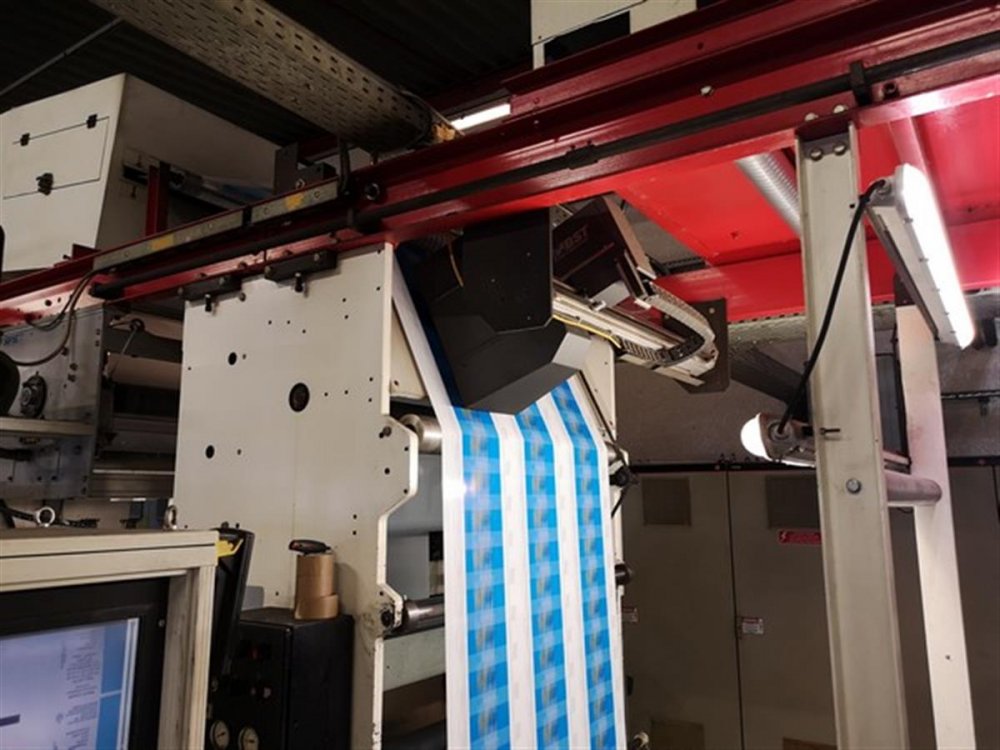

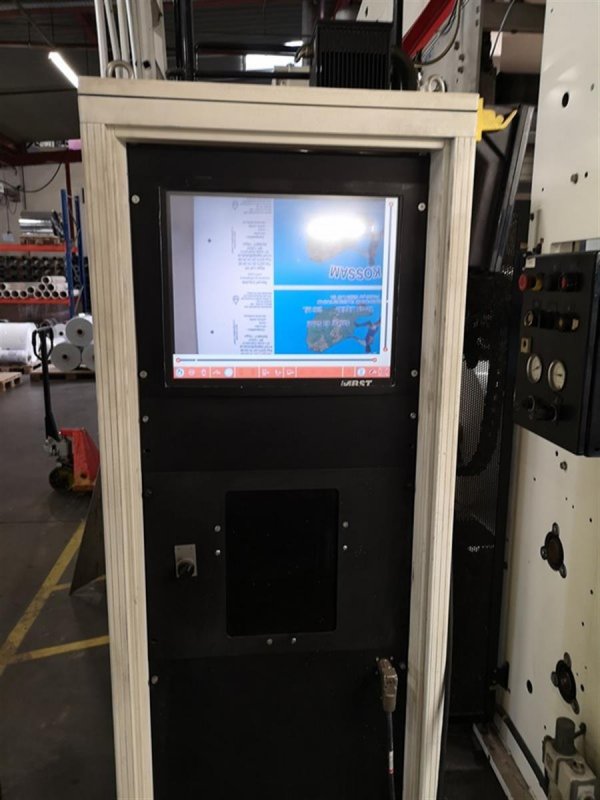

Videocamera
yes BST
Corona treatment
yes SOFTAL
Web guides
yes in and out BST
Inking system
closed chamber doctor blades
Anilox
16 ceramic anilox sleeves
Print Sleeves
150
Machine Code FL856
Manufacturer WINDMÖLLER & HÖLSCHER
Model PRIMAFLEX
Year 2000
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Max print repeat (mm) 760
Unwinder type Turret automatic with lifting table for rolls
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic with lifting table for rolls
Max reel diameter rewinder (mm) 800
Drying 2 zones 4 fans , two heating units by thermal oil heat exchanger
Videocamera yes BST
Corona treatment yes SOFTAL
Web guides yes in and out BST
Inking system closed chamber doctor blades
Anilox 16 ceramic anilox sleeves
Print Sleeves 150
** SOLD **
