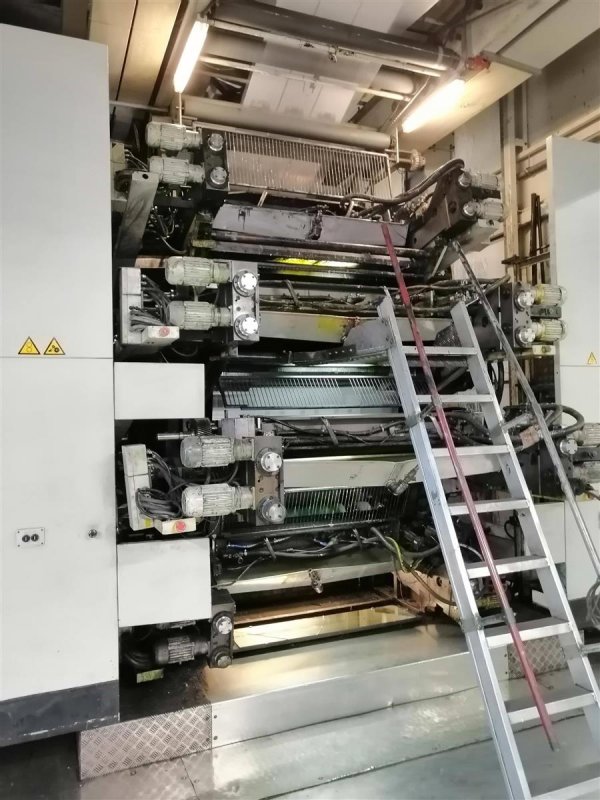

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL0695
- Manufacturer

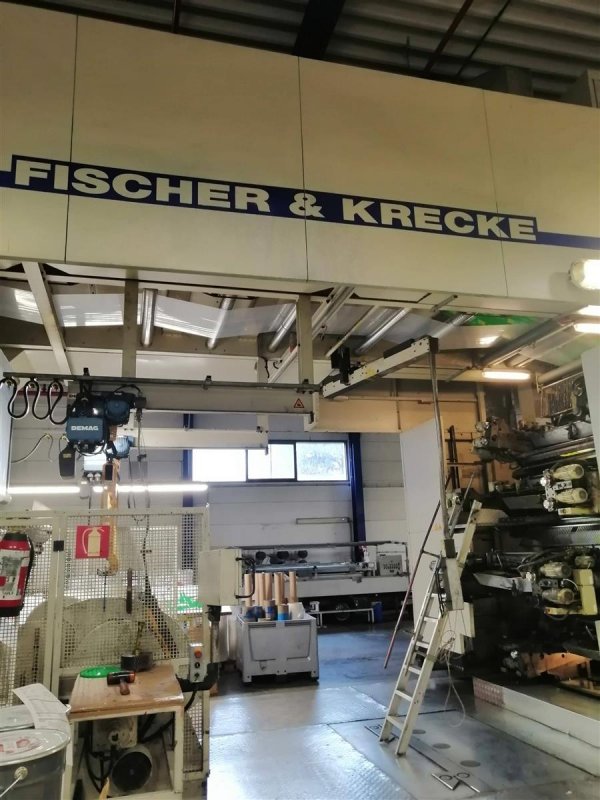

- FISCHER & KRECKE
- Modello
- 34DF/8 CNC
- Year
- 1995
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1300
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 1100
- Unwinder type
- Turret FLYING SPLICE
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret FLYING SPLICE
- Max reel diameter rewinder (mm)
- 1000
- Drying
- GAS
- Videocamera
- Yes
- Corona treatment
- NO
- Web guides
- FIFE
- Vyscosity control
- Yes
- Washing system
- F&K
- Inking system
- Ceramic anilox + closed chambered doctor blade
- Note
- Overall sizes: L=17m, W=5m, H=6m Mech speed: 350m/min, working speed: up to 300m/min Diameter of central drum: 2280mm
Machine Code | FL0695 |
Manufacturer | FISCHER & KRECKE |
Modello | 34DF/8 CNC |
Year | 1995 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | No |
Fast sleeve change | No |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1250 |
Print width (mm) | 1300 |
Min print repeat (mm) | 380 |
Max print repeat (mm) | 1100 |

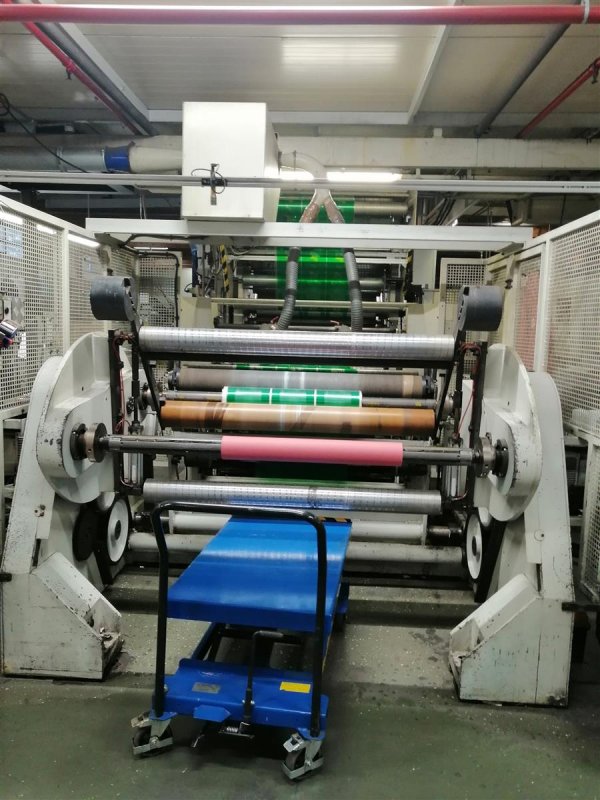

Unwinder type | Turret FLYING SPLICE |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret FLYING SPLICE |
Max reel diameter rewinder (mm) | 1000 |
Drying | GAS |
Videocamera | Yes |
Corona treatment | NO |
Web guides | FIFE |
Vyscosity control | Yes |
Washing system | F&K |
Inking system | Ceramic anilox + closed chambered doctor blade |
Note | Overall sizes: L=17m, W=5m, H=6m Mech speed: 350m/min, working speed: up to 300m/min Diameter of central drum: 2280mm |
SCHIAVI ARIES
-
Machine Code: FL0910
-
Year: 1995
-
Web width (mm): 1450
OFEM COLUMBUS 10/806
-
Machine Code: FL0978
-
Year: 1997
-
Web width (mm): 1670
BONARDI MIRA 1200
-
Machine Code: FL1026
-
Year: 2002
-
Web width (mm): 1250

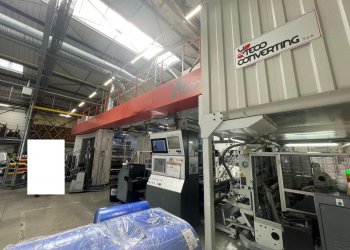

UTECO EMERALD 825 MOD 120
-
