** SOLD **

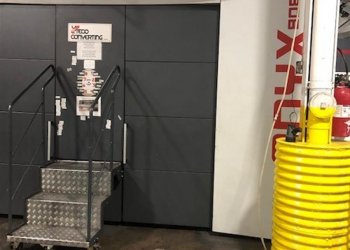

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL822
- Manufacturer
- UTECO
- Modello
- ONYX 808
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0 , with reprint possibility
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt , 2 gas burners
- Videocamera
- Yes
- Corona treatment
- Yes
- Web guides
- Yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes fully auto wash up system
- Anilox
- 12
- Print Sleeves
- 50
Machine Code | FL822 |
Manufacturer | UTECO |
Modello | ONYX 808 |
Year | 2014 |
Number of colors | 8 |
Print possibilityes | 8+0 , with reprint possibility |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1350 |
Print width (mm) | 1300 |
Min print repeat (mm) | 350 |
Max print repeat (mm) | 800 |
Unwinder type | Turret Automatic |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret automatic |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones , 4 fans , final tunnel 4 mt , 2 gas burners |
Videocamera | Yes |
Corona treatment | Yes |
Web guides | Yes in and out |
Vyscosity control | Yes |
Washing system | Yes fully auto wash up system |
Anilox | 12 |
Print Sleeves | 50 |
